VinyLok™ Interlocking Extruded Plastic Formliners

Design by Max. Depth...

VinyLok Max. Depth: 0.75" - 0.875" (19 of 19 Results Found)

Click to go to pattern - 14304 | 14307 | 14309 | 14310 | 14311 | 14315 | 14316 | 14320 | 14329 | 14331 | 14348 | 14380 | 14394 |  14542 | 14653 | 14656 | 14658A | 14662 | 14667

14304 Fluted Rib - 0.75" Deep, 2" on Center

VinyLok™
Styrene - Single use.
ABS Plastic - Up to 10 reuses.

Max Depth: 0.75"
On Center: 2"
Peak: 0.75"
Valley: 0.75"
Draft: 0.25"

Part Size:
6" Wide Coverage, lengths up to 40'

Click here for cut-sheet

Notes:
For a 1" Deep, 2" on Center, see pattern 14448

14304 Fluted Rib - Techridge Park & Ride Facility, Austin, TX: Mitchell Enterprises, Ltd.
14304 Fluted Rib - Kenworth Overland Park, KS: Sedalco Construction
14304 Fluted Rib - Kenworth Overland Park, KS: Sedalco Construction

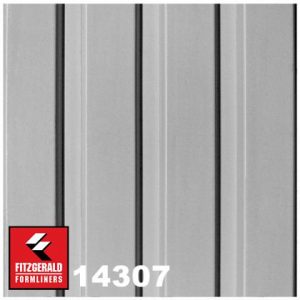

14307 Fluted Rib - 0.75" Deep, 4" on Center

VinyLok™
Styrene - Single use.
ABS Plastic - Up to 10 reuses.

Max Depth: 0.750"
On Center: 4"
Peak: 2.5"
Valley: 1.0"
Draft: 0.25"



Part Size:
8" Wide Coverage, lengths up to 40'

Click here for cut-sheet

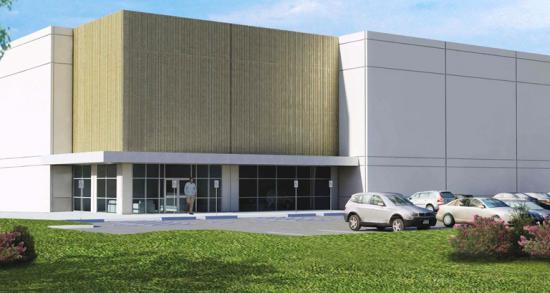

14307 VL DFW Global Logistics Centre completed Dec 2013 Dist CMC Inc




14309 Fluted Rib - 0.75" Deep, 3" on Center

VinyLok™
Styrene - Single use.
ABS Plastic - Up to 10 reuses.

Max Depth: 0.750"
On Center: 3"
Peak: 1.75"
Valley: 0.75"
Draft: 0.25"



Part Size:
6" Wide Coverage, lengths up to 40'

Click here for cut-sheet




14310 Fluted Rib - 0.75" Deep, 1.5" on Center

VinyLok™
Styrene - Single use.
ABS Plastic - Up to 10 reuses.

Max Depth: 0.750"
On Center: 1.5"
Peak: 0.5"
Valley: 0.5"
Draft: 0.25"

Part Size:
6" Wide Coverage, lengths up to 40'

Click here for cut-sheet

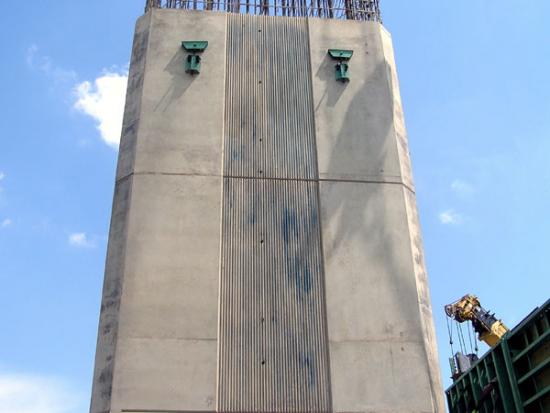

14310 Fluted Rib - Bridge Pier
14310 Fluted Rib - Blue Cross Blue Shield Building, Dallas, TX

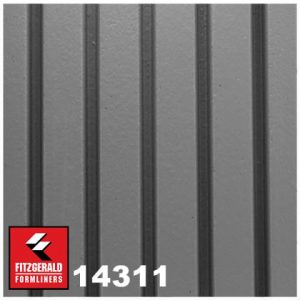

14311 Fluted Rib - 0.875" Deep, 2.25" on Center

VinyLok™
Styrene - Single use.
ABS Plastic - Up to 10 reuses.

Max Depth: 0.875"
On Center: 2.25"
Peak: 0.5"
Valley: 1.5"
Draft: 0.1875"

Part Size:
6.75" Wide Coverage, lengths up to 40'

Click here for cut-sheet




14315 Fluted Rib - 0.750" Deep, 3" on Center

VinyLok™
Styrene - Single use.
ABS Plastic - Up to 10 reuses.

Max Depth: 0.75"
On Center: 3"
Peak: 1"
Valley: 1"
Draft: 0.5"

Part Size:
6" Wide Coverage, lengths up to 40'

Click here for cut-sheet




14316 Fluted Rib - 0.75" Deep, 2" on Center

VinyLok™
Styrene - Single use.
ABS Plastic - Up to 10 reuses.

Max Depth: 0.75"
On Center: 2"
Peak: 0.5"
Valley: 1.75"
Draft: 0.375"

Part Size:
6" Wide Coverage, lengths up to 40'

Click here for cut-sheet

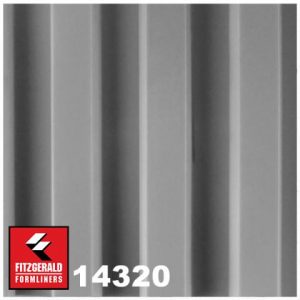

14320 Fluted Rib - 0.75" Deep, 3.5" on Center

VinyLok™
Styrene - Single use.
ABS Plastic - Up to 10 reuses.

Max Depth: 0.75"
On Center: 3.5"
Peak: 1.5"
Valley: 1.5"
Draft: 0.25"

Part Size:
7" Wide Coverage, lengths up to 40'

Click here for cut-sheet




14329 Fluted Rib - 0.75" Deep, 4" on Center

VinyLok™
Styrene - Single use.
ABS Plastic - Up to 10 reuses.

Max Depth: 0.750"
On Center: 4.0"
Peak: 1.75"
Valley: 1.75"
Draft: 0.25"



Part Size:
8" Wide Coverage, lengths up to 40'

Click here for cut-sheet

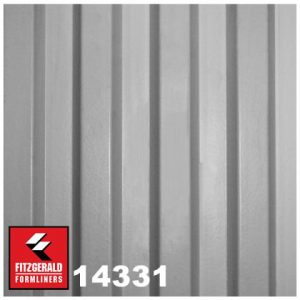

14331 Fluted Rib - 0.75" Deep, 4" on Center

VinyLok™
Styrene - Single use.
ABS Plastic - Up to 10 reuses.

Max Depth: 0.750"
On Center: 4.0"
Peak: 1.5"
Valley: 1.5"
Draft: 0.5"



Part Size:
8" Wide Coverage, lengths up to 40'

Click here for cut-sheet

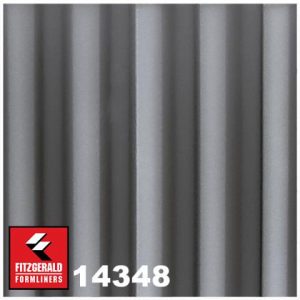

14348 Fluted Rib - 0.75" Deep, 2.5" on Center

VinyLok™
Styrene - Single use.
ABS Plastic - Up to 10 reuses.

Max Depth: 0.750"
On Center: 2.5"
Peak: 1.5"
Valley: 1.0"
Draft: 0.375"



Part Size:
7.5" Wide Coverage, lengths up to 40'

Click here for cut-sheet




14380A Fluted Rib - 0.75" Deep, 6" on Center

VinyLok™
Styrene - Single use.
ABS Plastic - Up to 10 reuses.

Max Depth: 0.75"
On Center: 6"
Peak: 2.5"
Valley: 2"
Draft: 0.75"

Part Size:
6" Wide Coverage, lengths up to 40'

Click here for cut-sheet




14394 Fluted Rib - 0.75" Deep, 6" on Center

p14394

VinyLok™
Styrene - Single use.
ABS Plastic - Up to 10 reuses.

Max Depth: 0.75"
On Center: 6"
Peak: 4"
Valley: 1"
Draft: 0.5"

Part Size: 6" Wide Coverage, lengths up to 40'

Click here for cut-sheet




14542 Fluted Rib - 0.75" Deep, 6" on Center

14542

VinyLok™
Styrene - Single use.
ABS Plastic - Up to 10 reuses.

Max Depth: 0.750"
On Center: 6.0"
Peak: 4.0"
Valley: 1.0"
Draft: 0.5"



Part Size: 12" Wide Coverage, lengths up to 40'

Click here for cut-sheet




14653 Fluted Rib - 0.75" Deep, 7.5" on Center

VinyLok™
Styrene - Single use.
ABS Plastic - Up to 10 reuses.

Max Depth: 0.750"
On Center: 7.5"
Peak: 3.5"
Valley: 3.5"
Draft: 0.25"



Part Size:
7.5" Wide Coverage, lengths up to 40'

Click here for cut-sheet




14656 Fluted Rib - 0.75" Deep Random Fluted Rib

S-14656

VinyLok™
Styrene - Single use.
ABS Plastic - Up to 10 reuses.

Max Depth: 0.75"
On Center: 16" Part A, 12" Part B, 10" Part C
Peak: 3.125"
Valley: Varies
Draft: 0.4375"

Part Size:
38" Coverage, lengths up to 40'

Click here for cut-sheet

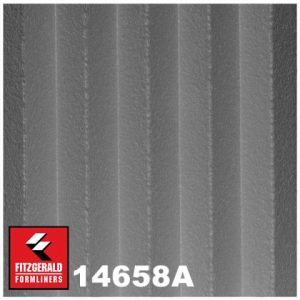

14658A Fluted Rib - 0.75" Deep, 2.625" on Center

VinyLok™
Styrene - Single use.
ABS Plastic - Up to 10 reuses.

Max Depth: 0.750"
On Center: 2.625"
Peak: 0.0"
Valley: 0.0"
Draft: 1.3125"



Part Size:
7.875" Wide Coverage, lengths up to 40'

Click here for cut-sheet

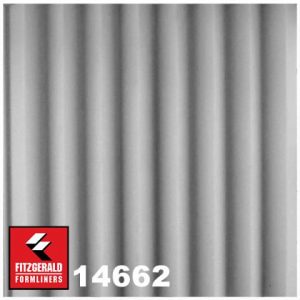

14662 Fluted Rib - 0.75" Deep, 1.5" on Center

VinyLok™
Styrene - Single use.
ABS Plastic - Up to 10 reuses.

Max Depth: 0.750"
On Center: 1.5"
Peak: 0.0"
Valley: 0.0"
Draft: 0.75"



Part Size:
6" Wide Coverage, lengths up to 40'

Click here for cut-sheet

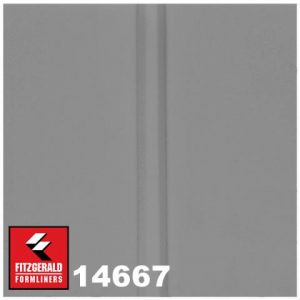

14667 Fluted Rib - 0.75" Deep, 12" on Center

VinyLok™
Styrene - Single use.
ABS Plastic - Up to 10 reuses.

Max Depth: 0.750"
On Center: 12.0"
Peak: 0.5"
Valley: 10.75"
Draft: 0.375"



Part Size:
12" Wide Coverage, lengths up to 40'

Click here for cut-sheet
