GrayLastic™ Patterns (Stone & Rock)

GrayLastic™ Extended-Use Elastomeric Formliners - Page 1 of 5

DESIGN BY PATTERN

GrayLastic™ Pattern: Stone & Rock (68 Results Found) 1 >  2 >  3 > 4 > 5

Click to go to pattern - 16972 | 16980 | 16982 | 16983 | 16984 | 16985 | 16985-S | 16986 | 16987 | 16988 | 16989 | 16993 | 16994 | 16995 | 16997 | 16997

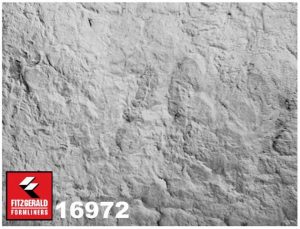

16972 West Virginia Aged Sandstone - Large Blocks with aged surface, 1.625" deep

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1.625"
Notes: Large Individual Blocks with 0.5" mortar joint on all sides.

Part Size:
24" W x 12" H
24" W x 24" H
48" W x 24" H
72" W x 24" H

Click here for cut-sheet





16980 Yosemite Rock - Striated Rock Face, 0.75" deep

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 0.750
Notes:
Pattern matched all four sides, 20' urethane tool can be dammed to required length.

Part Size:
67" W x 92" H

48" W x 240" H

Click here for cut-sheet

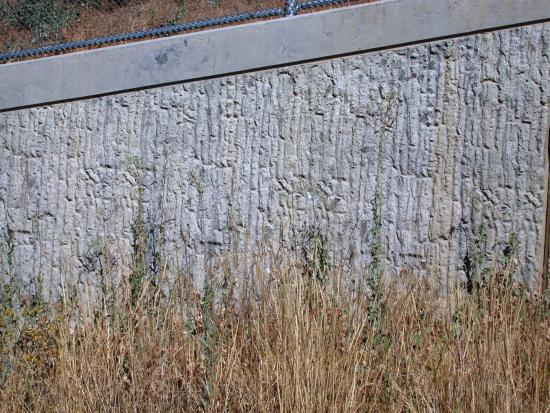

16980 Yosemite Rock - El Dorado District, Placerville, CA

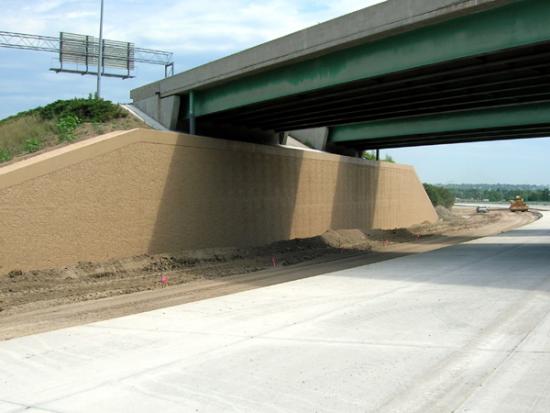

16980 Yosemite Rock - I-80, Lincoln, NE




16982 Arizona Flagstone - Large irregular cut rock, 0.75" deep

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 0.750
Stone Size: 11"-24" W x 8"-12" H
Grout Width: 1" to 2"
Notes:
Match points all four sides, panels can be turned in any direction.

Part Size:
120" W x 48" H

Click here for cut-sheet

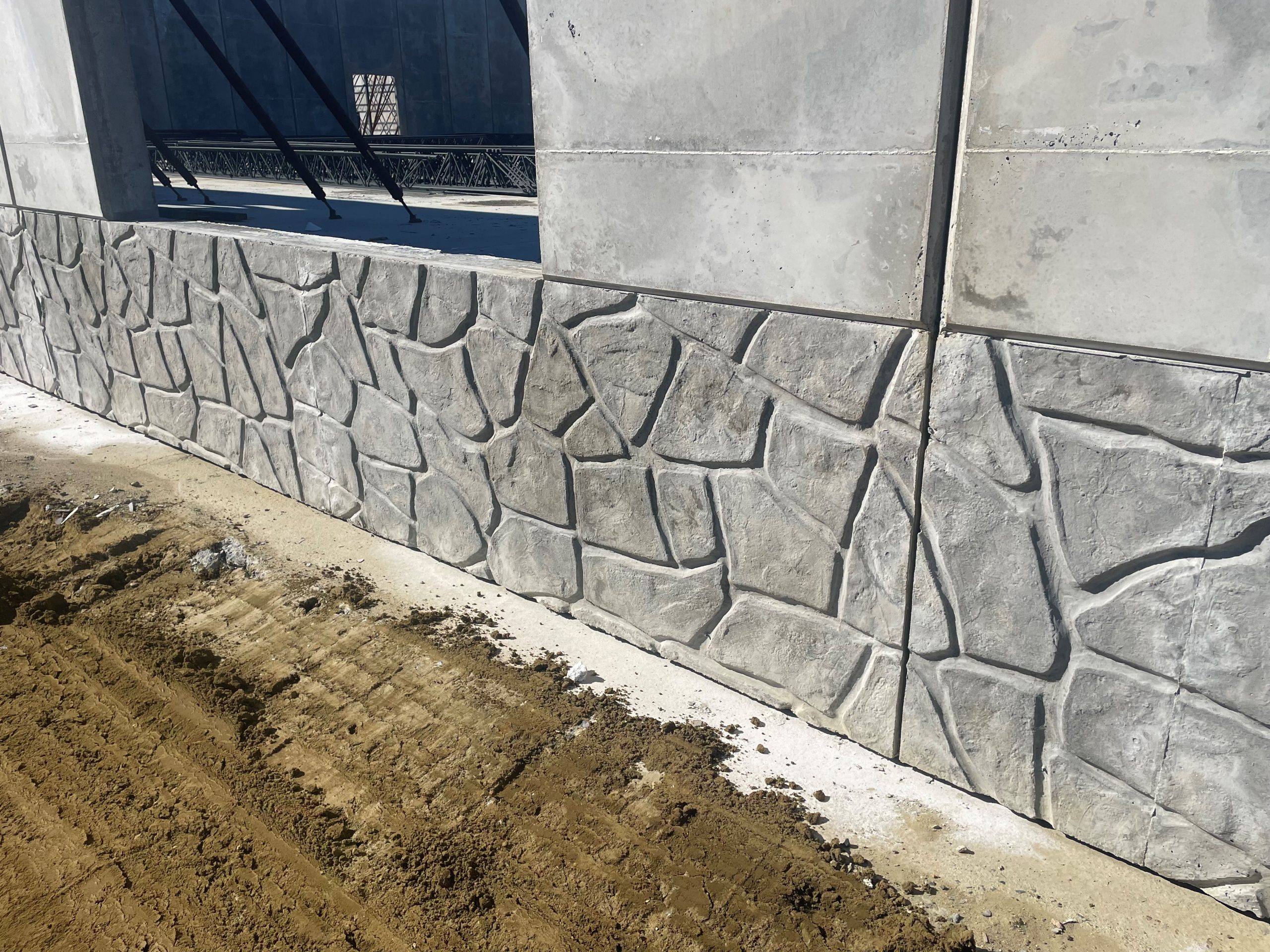

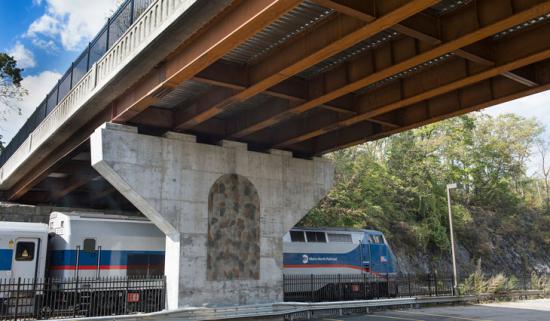

16982 New Hamburg Bridge, New Hamburg, NY Distributed by AH Harris

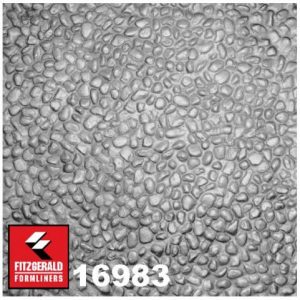

16983 1" Round Stone - 0.375" Max depth, Smooth round stones, 1" maximum.

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 0.375"

Part Size:
48"W. x 120"L.

Click here for cut-sheet

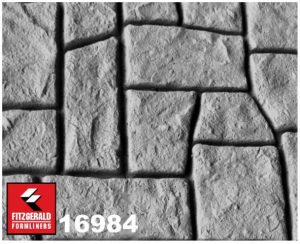

16984 Aged Maryland Ashlar - Ashlar stone weathered surface, 1.5" deep

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1.500
Stone Size: 9"-20" W x 6"-17" H
Notes:
Matchpoints on all sides

Part Size:
96" W x 48" H

Click here for cut-sheet

16984 Aged Maryland Ashlar - Texas: Hass Anderson Construction
16984 Aged Maryland Ashlar w/ Stars in Bushhammer Background - Highway US 67, Glen Rose, TX: Concho Construction
16984 Aged Maryland Ashlar - Cast in Place Bridge

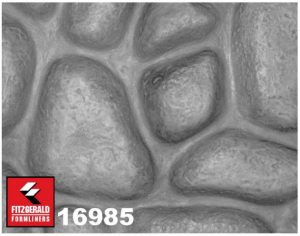

16985 Indiana River Rock - Random cobble stone, 1.5" deep

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1.500
Stone Size: 5" - 12"
Notes:
Matchpoints on all sides. See pattern 17916 for 2.25" max. depth

Part Size:
96" W x 48" H

Click here for cut-sheet

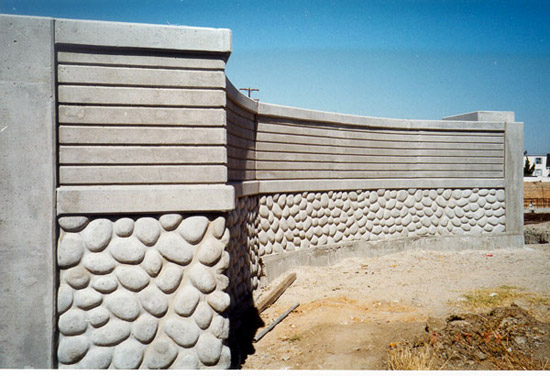

16985 Indiana River Rock (bottom) & 14641 Fluted Rib (top)

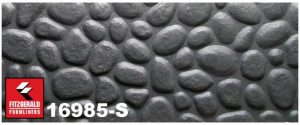

16985-S Indiana River Rock - Shallow - Random cobble stone, 0.75" deep

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 0.750
Stone Size: 3" - 10" W Radius

Part Size:
120"W x 48"H

Click here for cut-sheet

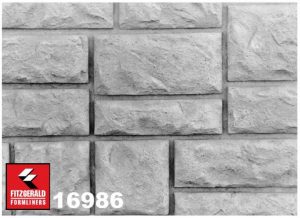

16986 Georgetown Ashlar - Linear cut ashlar, 1.5" deep

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1.500
Stone Size: 9"-29" W x 5"-11" H
Grout Width: 0.75"
Notes:
See pattern 16999 for 1.125" deep Ashlar See pattern 17000 for 1" deep Ashlar See pattern 17027 for 0.75" deep Ashlar Match points on all four sides

Part Size:
96" W x 48" H, part A & B

Click here for cut-sheet

6986 Georgetown Ashlar - Bridge Island
16986 Georgetown Ashlar - MSE Wall: Reinforced Earth
16986 Georgetown Ashlar - Sanford Children's Hospital, Sioux Falls, SD: Gage Brothers

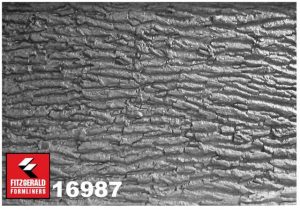

16987 Fractured Granite - Striated Rock Face, 1" deep

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1.000"

Part Size:
48" W x 120" H

Click here for cut-sheet

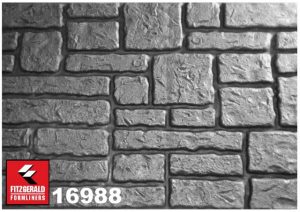

16988 Missouri Old Cut Ashlar - Aged texture, 1.5" deep

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1.500"
Stone Size: 7"-34.5"W. x 5"-14"H.
Grout Width: 1.0"
Notes:
Part A aligns with part B

Part Size:
Part A & B

48" W x 48" H

60" W x 30" H

Click here for cut-sheet

16988 Missouri Old Cut Ashlar
16988 Missouri Old Cut Ashlar
16988 Missouri Old Cut Ashlar - Cincinatti, Ohio: Kenwood

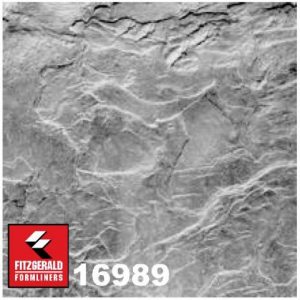

16989 Split Slate - Random pattern, 0.25" deep

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 0.250"
Notes:
Texture only, no grouts See patterns 16979 and 17912 for variations with grouts.

Part Size:
192" W x 48" H

168" W x 72" H

Click here for cut-sheet

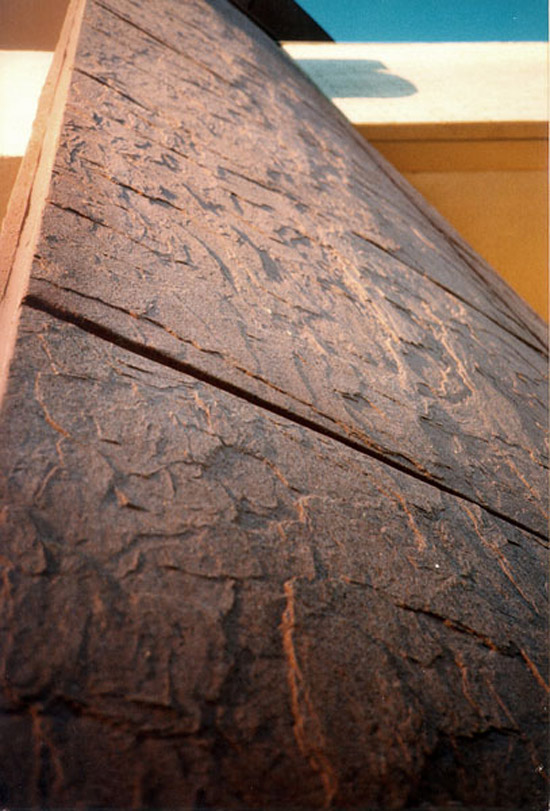

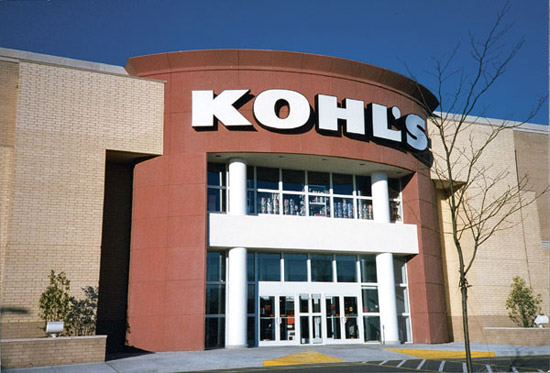

16989 Split Slate - Kohl's
16989 Colorado Split Slate




16993 Philadelphia Ashlar - 0.75" max depth

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 0.750"
Notes:
No grout, also available 1.25" Deep, see pattern 17929

Part Size:
144.312" W x 30.875" H

Click here for cut-sheet

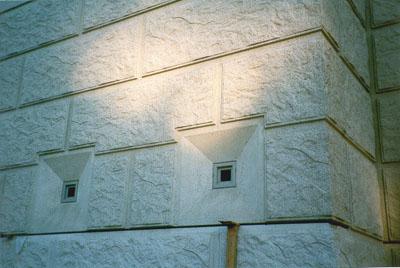

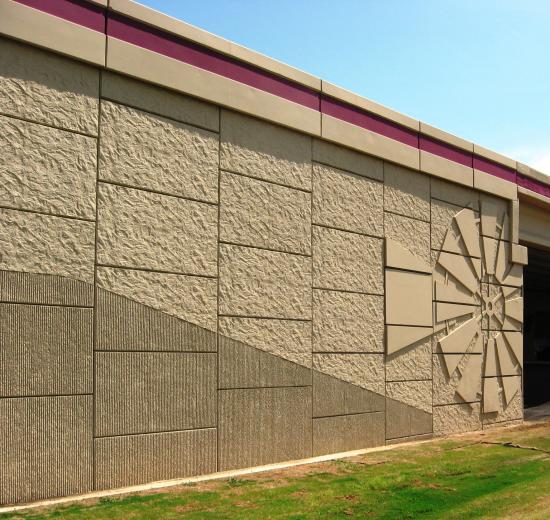

16993 Philadelphia Ashlar - Grapvine Mills Blvd, Texas: HDR Engineering

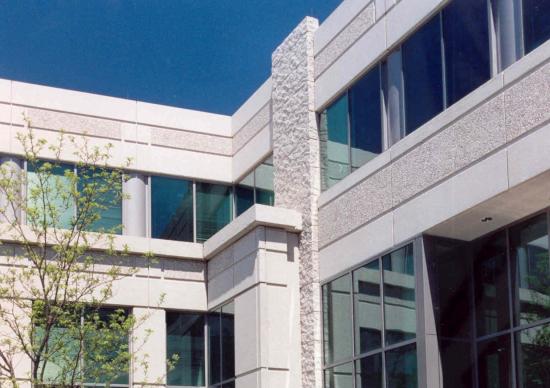

16993 Philadelphia Ashlar, Chesterbrook Building: Enterprise Precast
16993 Philadelphia Ashlar - Federal Correctional Facility, Philadelphia, PA: High Concrete

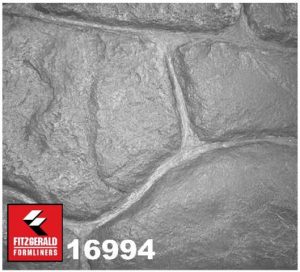

16994 Sutter's Mill Rock - Large bolders, 1" - 2.75" deep

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1.000" - 2.750"
Stone Size: 20"-47"W. x 15"-33"H.
Grout Width: 1.5" to 2.5"
Notes:
There is a 0.375" x 0.375" bevel around perimeter of pattern, no match points

Part Size:
144" W x 30" H
144" W x 60" H

Click here for cut-sheet

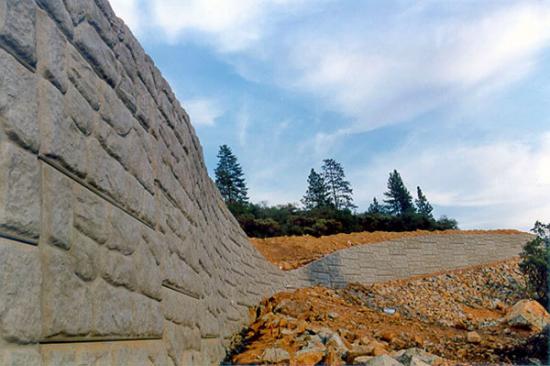

16994 Sutter's Mill Rock - Slattery Skanska

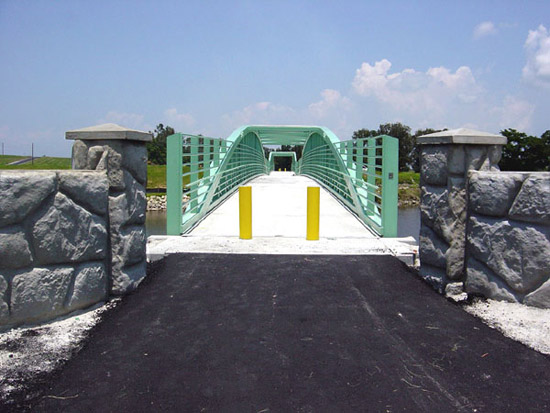

16994 Sutters Mill Rock

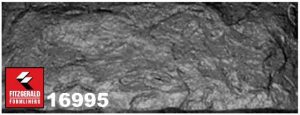

16995 Utah Quarried Sandstone Blocks - Large Blocks, 3.875" deep

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 3.875"
Notes:
Large Individual Blocks with 0.5" grout around perimeter

Part Size:
24" W x 24" H
48" W x 24" H

Click here for cut-sheet





16997 Long Island Ashlar - Large Stone Ashlar, 12.5" to 70" wide stones, 1.5" deep

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1.500"
Stone Size: 12.5"-70"W. x 5"-21"H.
Notes:
Match points on all four sides

Part Size:
360" W x 48" H

Click here for cut-sheet

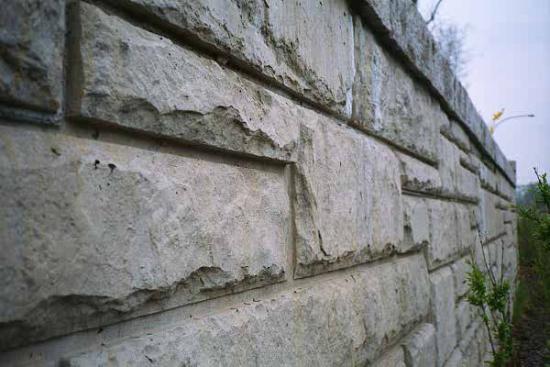

16997 Long Island Ashlar - Cast in Place Wall

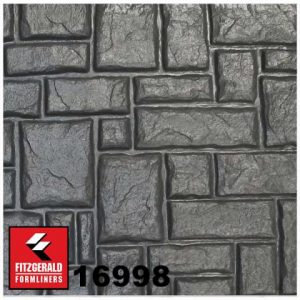

16998 Texas Ashlar Narrow

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Notes:
This pattern was created for columns, note vertical end treatment.  See Pattern 17917 for variation on this pattern end treatment.

Part Size:
90" W x 144" H

90" W x   96" H

70"W. x 144" H

70" W x   96" H

66" W x 144" H

66" W x   96" H

Click here for cut-sheet

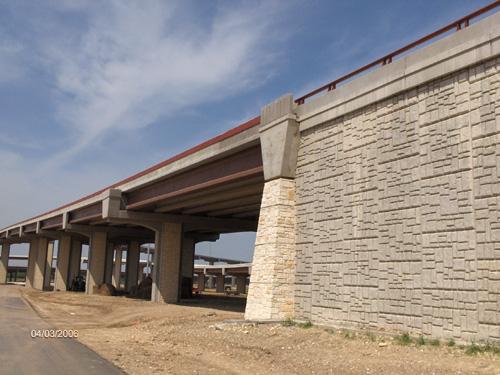

16998 Texas Ashlar - State Highway 45, Texas
