GrayLastic™ Pattern: Fractured Rib (18 Results Found) 1 >  2

Click to go to pattern - 16950 | 16951 | 16953 | 16954 | 16956 | 16958 | 16959 | 16960 | 16961 | 16963 | 16964 | 16968 | 16969 | 18000 | 18001 | 18003

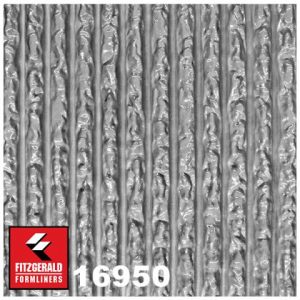

16950 Adam's Rib - 0.75" Deep, 1.5" on Center

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 0.75"

On Center: 1.5"

Peak: 0.5"

Valley: 0.5"

Draft: 0.25"

Part Size:
48"W. x 240"L.

Also Available in 16' 5-1/2"W. x 2' 8-15/16"L. Upon Request

Click here for cut-sheet

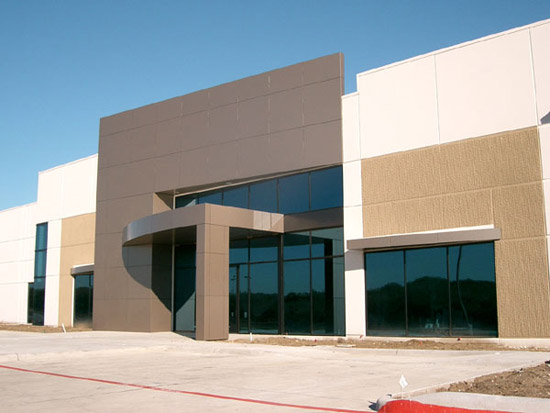

16950 Adam's Rib - Prefab Utility Building, Colorado: Four Corners Precast
16950 Adam's Rib - Silverton Industrial Park, Flowermound, TX

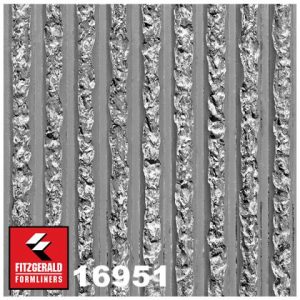

16951 Sahara Fin - 1.0" Deep, 2.0" on Center

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1"

On Center: 2"

Peak: 0.5"

Valley: 0.5"

Draft: 0.5"

Part Size:
48"W. x 312"L.

Click here for cut-sheet

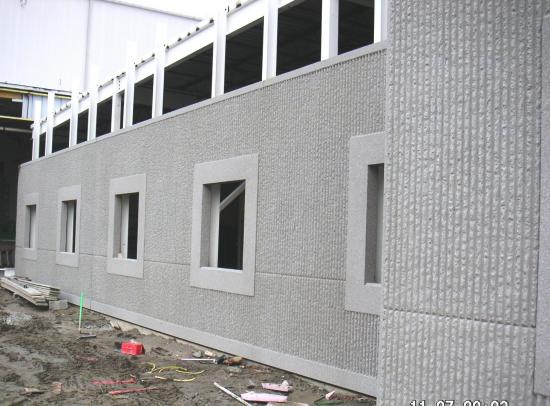

16951 Sahara Fin - National Precast Michigan Safety Building 2008

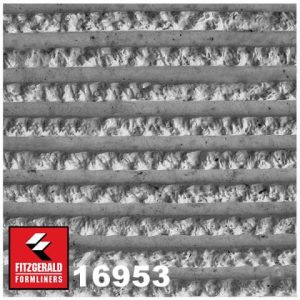

16953 Cypress Fin - 1.5" Deep, 3" on Center

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1.5"

On Center: 3"

Peak: 1"

Valley: 1"

Draft: 0.5"

Part Size:
48"W. x 192"L.

Click here for cut-sheet

16953 Cypress Fin, Graylastic Urethane. I-91 / I-15 interchange Corona, CA Photo Credit Atkinson / Walsh JV
16953 Cypress Fin, Graylastic Urethane. I-91 / I-15 interchange Corona, CA Photo Credit Atkinson / Walsh JV
16953 Cypress Fin, Graylastic Urethane. I-91 / I-15 interchange Corona, CA Photo Credit Atkinson / Walsh JV

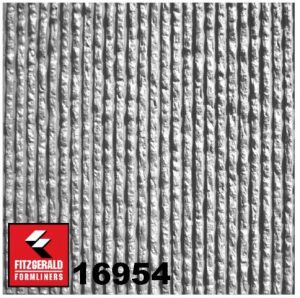

16954 Jutland Fin- 0.625" Deep, 1" on Center

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 0.625"

On Center: 1"

Peak: 0.5"

Valley: 0.25"

Draft: 0.125"

Part Size:
48"W. x 192"L.

Click here for cut-sheet

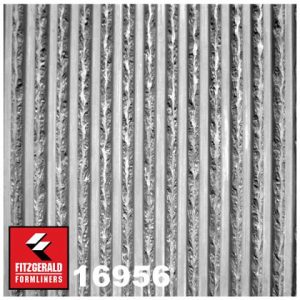

16956 Corps Fin - 1.25" Deep, 2" on Center

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1.25"

On Center: 2"

Peak: 0.75"

Valley: 0.75"

Draft: 0.25"

Part Size:
48"W. x 120"L.

Click here for cut-sheet

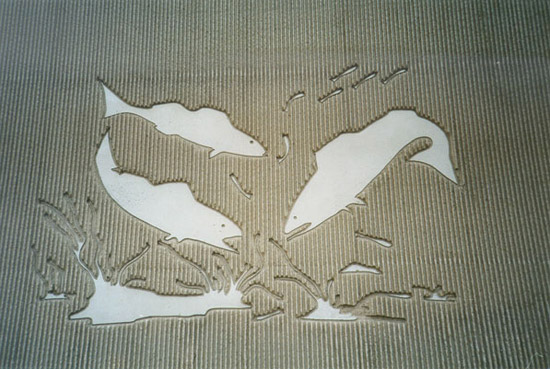

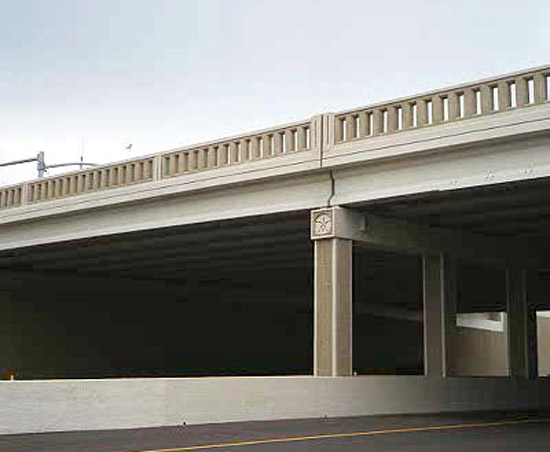

16956 Corps Fin - Corpus Christi, TX: Bay Construction
16956 Corps Fin - Corpus Christi, TX: Bay Construction
16956 Corps Fin with Sand Dials in Caps

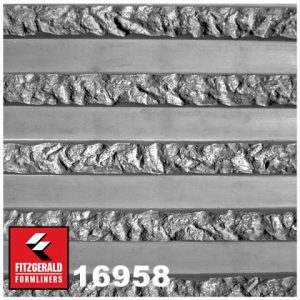

16958 Manchester Fin - 1.5" deep fractured fin, 6" on Center

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1.5"

On Center: 6"

Peak: 2"

Valley: 3"

Draft: 0.5"

Part Size:
48"W. x 240"Long

Click here for cut-sheet

Project: Apple Offsite Mitigation Location: Cupertino, CA Contractor: Graniterock Const Pattern: 16958 Manchester Fin
Project: Apple Offsite Mitigation Location: Cupertino, CA Contractor: Graniterock Const Pattern: 16958 Manchester Fin
16958 Manchester Fin - Hammer Lane, Stockton, CA

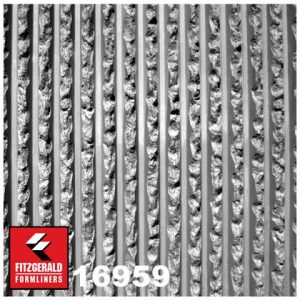

16959 Walnut Fin - 1.5" Deep, 2" on Center

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1.5"

On Center: 2"

Peak: 0.5"

Valley: 0.5"

Draft: 0.5"

Part Size:
48"W. x 144"L. AND 48"W. x 288"L.

Click here for cut-sheet

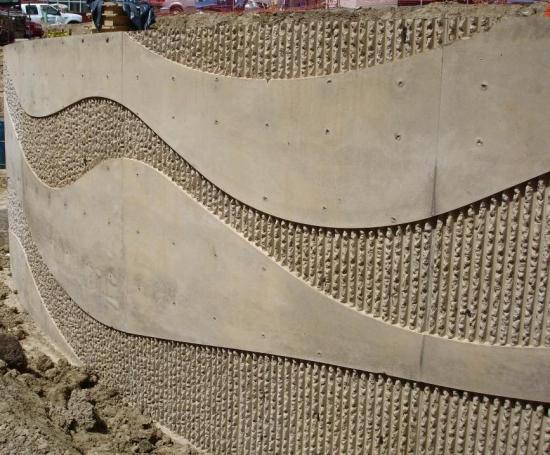

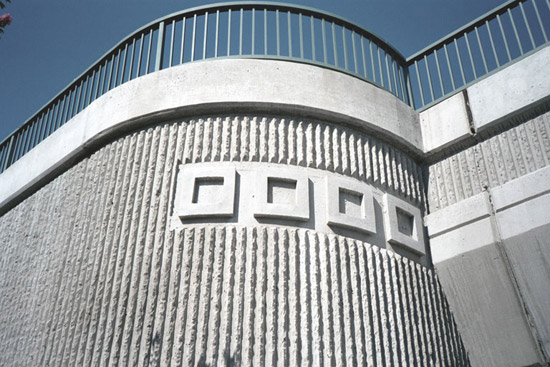

16959 Walnut Fin with Custom Geometric Graphics - Hammer Lane, Stockton, CA

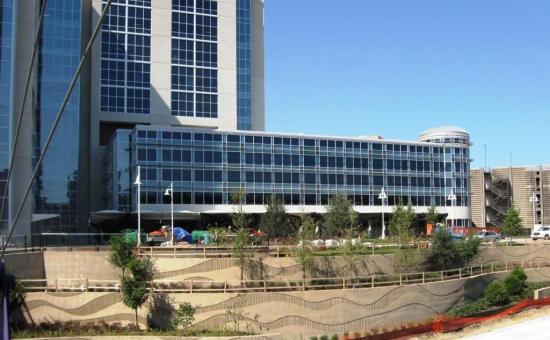

16959 Walnut Fin - Children's Hospital, Dallas, TX
16959 Walnut Fin - Children's Hospital, Dallas, TX




16960 Waco Rope - 0.5" deep rope rip-out, 1.0625" on Center

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 0.5"

On Center: 1.0625"

Peak: 0.5"

Valley: 0.5"

Part Size:
48"W. x 94.25"L.

Click here for cut-sheet

Notes: 1/2 rope

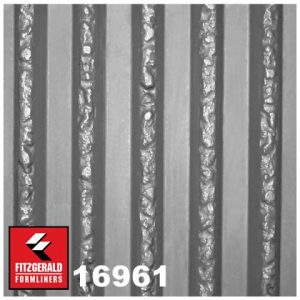

16961 Cordova Fin (Flute) - 1.5" Deep, 3.428" on Center

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1.5"

On Center: 3.428"

Peak: 1"

Valley: 1.5"

Draft: 0.5"

Part Size:
48"W. x 120"L.

Click here for cut-sheet

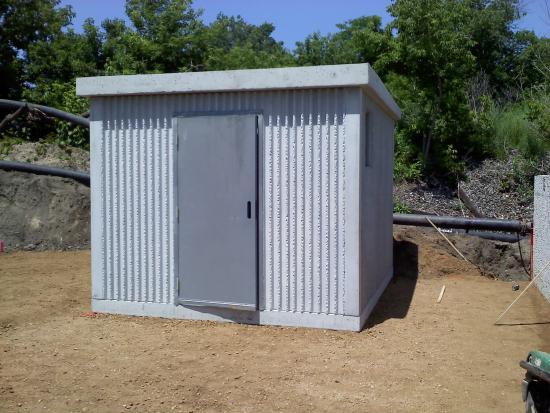

16961 Cordova Fin - Utility Building, MI: Advance Concrete




16963 Chestnut Fin - 1" Deep, 2.5" on Center

S-16963-GR

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1"

On Center: 2.5"

Peak: 0.875"

Valley: 0.875" (Varies)

Draft: 0.5"

Part Size:
48"W. x 120"L.

Click here for cut-sheet

16961 Cordova Fin - Utility Building, MI: Advance Concrete

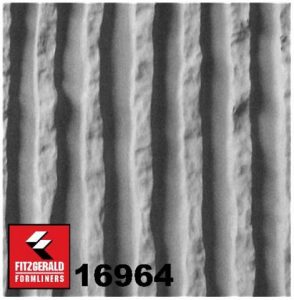

16964 San Diego Fin - 1" Deep, 2" on Center

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1"

On Center: 2"

Peak: 0.75"

Valley: 0.75"

Draft: 0.25"

Part Size:
48"W. x 288"L.

Click here for cut-sheet

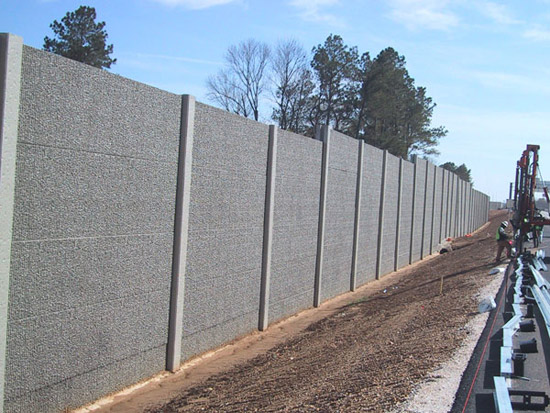

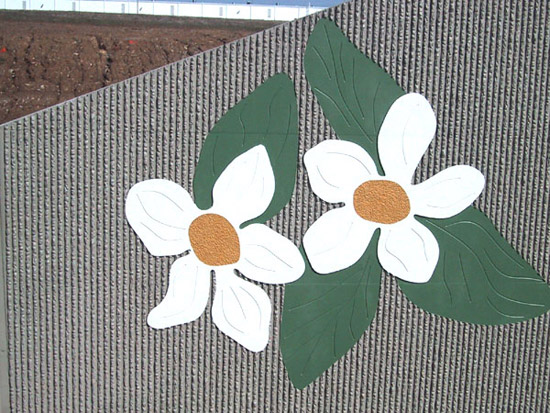

16964 San Diego Fin with Magnolia Graphics - Post and Panel Wall, MS: CPI Concrete Products, Inc.
16964 San Diego Fin with Magnolia Graphics - Post and Panel Wall, MS: CPI Concrete Products, Inc.

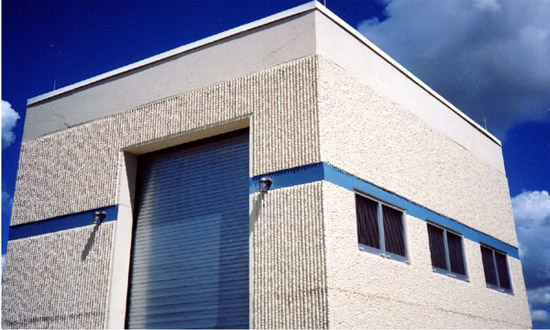

16964 San Diego Fin - Pump Station 361, Loxahatchee, FL: Mussin Brothers, Inc.

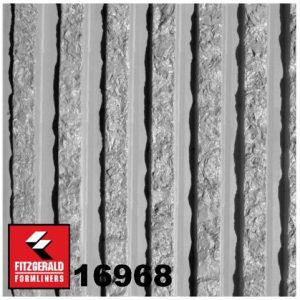

16968 Tuscon Fin - 1.25" split faced texture fin

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1.25"

On Center: 4."

Peak: 1.875"

Valley: 1.875"

Draft: 0.125"

Part Size:
72"W. x 120"L.

Click here for cut-sheet

Notes: 1/2 flute matching

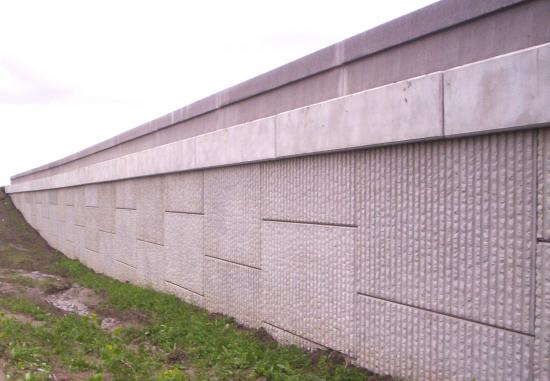

16968 Tuscon Fin - TH 101,Minnesota: Tensar MSE walls

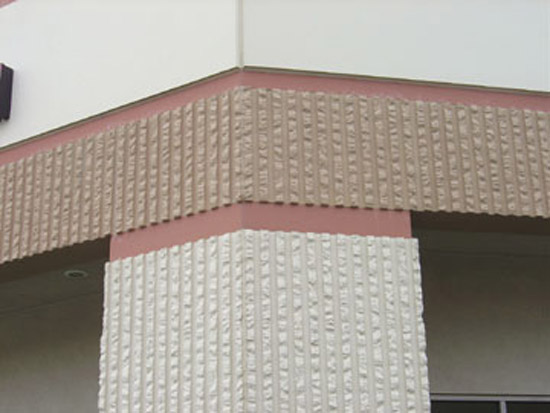

16968 Tuscon Fin - Riverside, CA
16968 Tuscon Fin - Riverside, CA

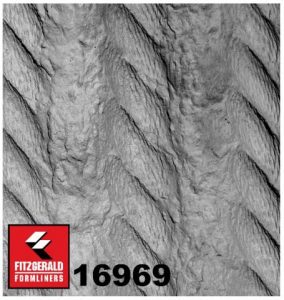

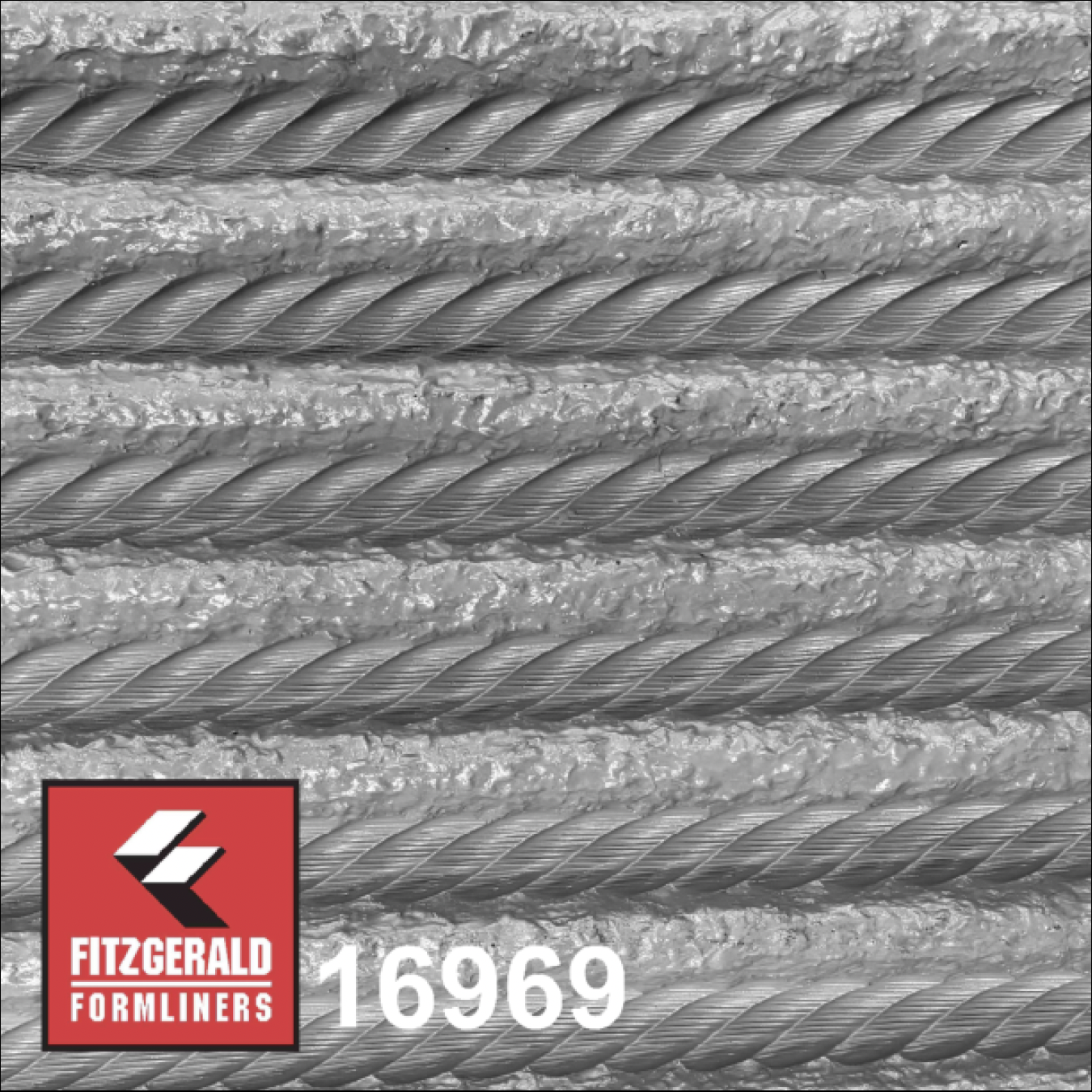

16969 Davison Highway Rope - 1.687" Deep, 2" rip-out rope texture, 4" on Center

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1.6875"

On Center: 4"

Peak: 2"

Part Size:
48"W. x 96"L.

Click here for cut-sheet

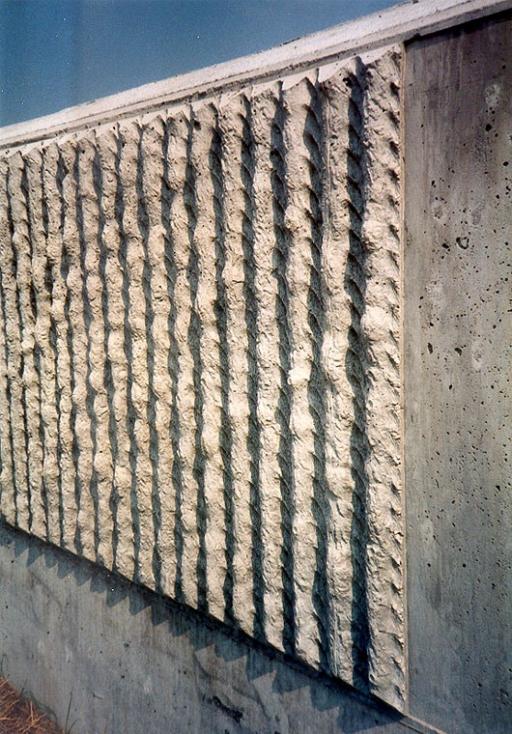

16969 Davison Highway Rope - CIP Davison Freeway, Detroit, MI




18000 Adam's Rib - 1" Deep, 1.5" on Center

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1."

On Center: 1.5"

Peak: 0.5"

Valley: 0.5"

Draft: 0.25"

Part Size:
48"W. x 288"L.

48"W. x 120"L.

Click here for cut-sheet

Notes: See pattern 16950 for similar dimensions in plastic material.





18001 Columbus Fin (Flute) - 1.25" Deep, 2" on Center

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1.25"

On Center: 2"

Peak: 0.75"

Valley: 0.75"

Draft: 0.25"

Part Size:
48"W. x 192"L.

Click here for cut-sheet

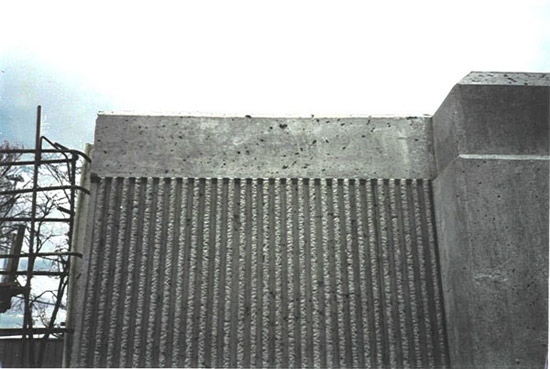

18001 Columbus Fin, KoKo Sing Wall

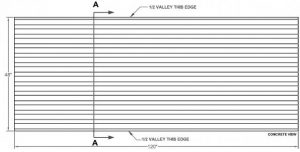

18003 Florida Fin - 2" Deep, 4" on Center

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 2"

On Center: 4"

Peak: 1.875"

Valley: 1.875"

Draft: 0.125"

Part Size:
48"W. x 120"L.

Click here for cut-sheet
