VinyLok™ Patterns (Max. Depth 1.25″ – 1.5″)

VinyLok™ Interlocking Extruded Plastic Formliners


Design by Max. Depth...


VinyLok Max. Depth: 1.25" - 1.5" (15 of 15 Results Found)

Click to go to pattern - 14301 | 14302 | 14303 | 14306 | 14314 | 14318 | 14322 | 14323 | 14356 | 14641 | 14643 | 14706 |  14716 | 14816 | 14818 | 14821

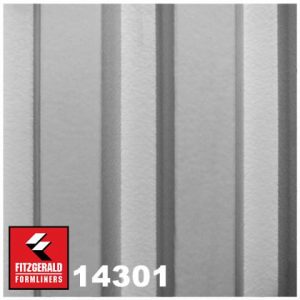

14301 Fluted Rib - 1.5" Deep, 3.5" on Center

VinyLok™
Styrene - Single use.
ABS Plastic - Up to 10 reuses.

Max Depth: 1.500"
On Center: 3.5"
Peak: 1"
Valley: 1.5"
Draft: .5"



Part Size:
7" Wide Coverage, lengths up to 40'

Click here for cut-sheet





14302 Fluted Rib - 1.5" Deep, 4" on Center

14302

VinyLok™
Styrene - Single use.
ABS Plastic - Up to 10 reuses.

Max Depth: 1.500"
On Center: 4"
Peak: 1.5"
Valley: 1.5"
Draft: .5"



Part Size:
8" Wide Coverage, lengths up to 40'

Click here for cut-sheet

14302 Fluted Rib - Life Touch Building, Kansas City, KS

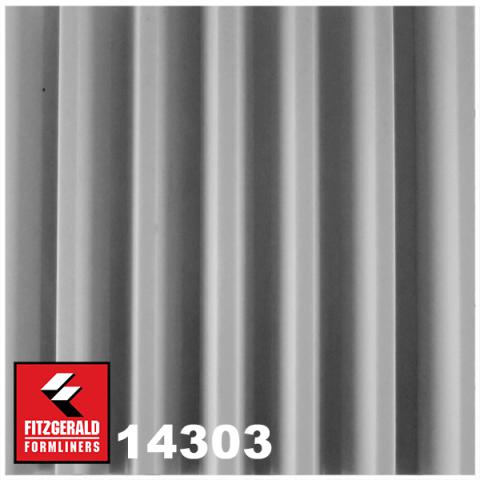

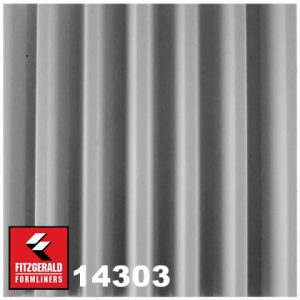

14303 Fluted Rib - 1.5" Deep, 2" on Center

VinyLok™
Styrene - Single use.
ABS Plastic - Up to 10 reuses.

Max Depth: 1.500"
On Center: 2"
Peak: 0.5"
Valley: 0.5"
Draft: .5"



Part Size:
6" Wide Coverage, lengths up to 40'

Click here for cut-sheet

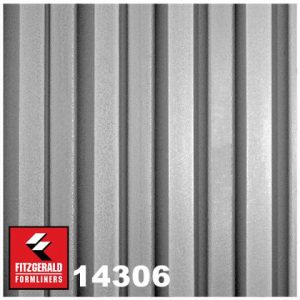

14306 Fluted Rib - 1.5" Deep, 3" on Center

VinyLok™
Styrene - Single use.
ABS Plastic - Up to 10 reuses.

Max Depth: 1.500"
On Center: 3"
Peak: 1"
Valley: 1"
Draft: .5"



Part Size:
6" Wide Coverage, lengths up to 40'

Click here for cut-sheet

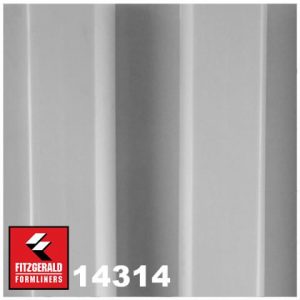

14314 Fluted Rib - 1.5" Deep, 6" on Center

VinyLok™
Styrene - Single use.
ABS Plastic - Up to 10 reuses.

Max Depth: 1.500"
On Center: 6"
Peak: 2.5"
Valley: 2.5"
Draft: .5"



Part Size:
6" Wide Coverage, lengths up to 40'

Click here for cut-sheet





14318 Fluted Rib - 1.5" Deep, 3.5" on Center

VinyLok™
Styrene - Single use.
ABS Plastic - Up to 10 reuses.

Max Depth: 1.500"
On Center: 3.5"
Peak: 1.5"
Valley: 1.5" and 7.875"
Draft: .5"



Part Size:
14.375" Wide Coverage, lengths up to 40'

Click here for cut-sheet





14322 Fluted Rib - 1.5" Deep, 5" on Center

VinyLok™
Styrene - Single use.
ABS Plastic - Up to 10 reuses.

Max Depth: 1.5"
On Center: 5"
Peak: 1.5"
Valley: 2.5"
Draft: 0.5"

Part Size:
5" Wide Coverage, lengths up to 40'

Click here for cut-sheet

14322 Fluted Rib with 17944 Arizona Maze - US Route 60, Tempe, AZ: CS Construction




14323 Fluted Rib - 1.5" Deep, 6" on Center

VinyLok™
Styrene - Single use.
ABS Plastic - Up to 10 reuses.

Max Depth: 1.500"
On Center: 6"
Peak: 3.5"
Valley: 1.25"
Draft: .625"



Part Size:
6" Wide Coverage, lengths up to 40'

Click here for cut-sheet

14323 Fluted Rib - Flowermound, TX: Potter Concrete
14323 Fluted Rib - Flowermound, TX: Potter Concrete

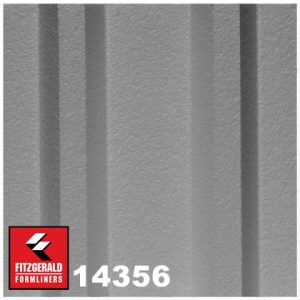

14356 Fluted Rib - 1.5" Deep, 6" on Center

VinyLok™
Styrene - Single use.
ABS Plastic - Up to 10 reuses.

Max Depth: 1.500"
On Center: 6"
Peak: 1.125"
Valley: 3.312"
Draft: .782"



Part Size:
6" Wide Coverage, lengths up to 40'

Click here for cut-sheet

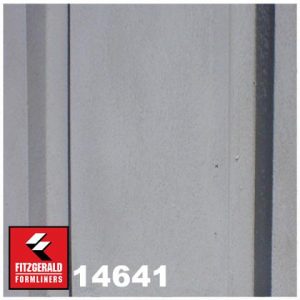

14641 Fluted Rib - 1.5" Deep, 8" on Center

VinyLok™
Styrene - Single use.
ABS Plastic - Up to 10 reuses.

Max Depth: 1.500"
On Center: 8"
Peak: 6.5"
Valley: 1.0"
Draft: 0.25"



Part Size:
8" Wide Coverage, lengths up to 40'

Click here for cut-sheet

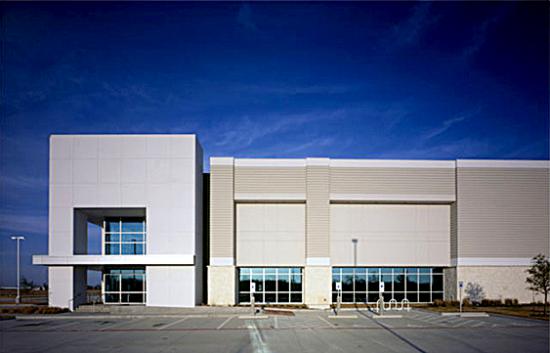

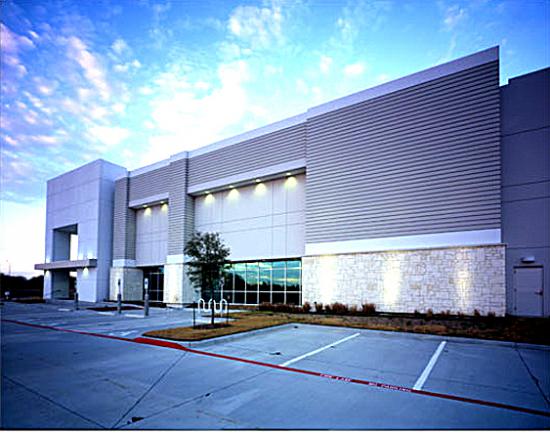

14641 Freeport North Office Building Coppell TX Distributer CMC Inc Construction TAS Commercial Conctrete Architect Pross Design Group
14641 Freeport North Office Building Coppell TX Distributer CMC Inc Construction TAS Commercial Conctrete Architect Pross Design Group

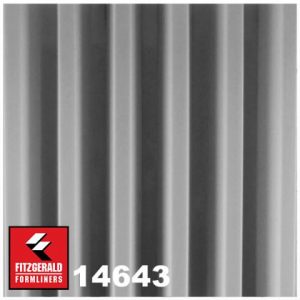

14643 Fluted Rib - 1.5" Deep, 2" on Center

VinyLok™
Styrene - Single use.
ABS Plastic - Up to 10 reuses.

Max Depth: 1.500"
On Center: 2.0"
Peak: 0.625"
Valley: 0.625"
Draft: 0.375"



Part Size:
6" Wide Coverage, lengths up to 40'

Click here for cut-sheet

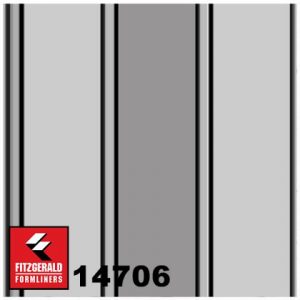

14706 Fluted Rib - 1.5" Deep, 7.2" on Center

VinyLok™
Styrene - Single use.
ABS Plastic - Up to 10 reuses.

Max Depth: 1.500"
On Center: 7.2"
Peak: 2.25"
Valley: 2.25"
Draft: 1.35"



Part Size:
7.2" Wide Coverage, lengths up to 40'

Click here for cut-sheet





14716 L1 Fluted Rib - 1.5" Deep, 12" on Center

VinyLok™
Styrene - Single use.
ABS Plastic - Up to 10 reuses.

Max Depth: 1.500"
On Center: 12.0"
Peak: 1"
Valley: 10.5"
Draft: .25"

Part Size:
12" Coverage, lengths up to 40'

Click here for cut-sheet

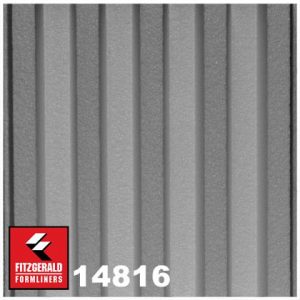

14816 Fluted Rib - 1.5" Deep, 2.5" on Center

VinyLok™
Styrene - Single use.
ABS Plastic - Up to 10 reuses.

Max Depth: 1.500"
On Center: 2.5"
Peak: 1.0"
Valley: 1.0"
Draft: 0.25



Part Size:
5" Wide Coverage, lengths up to 40'

Click here for cut-sheet

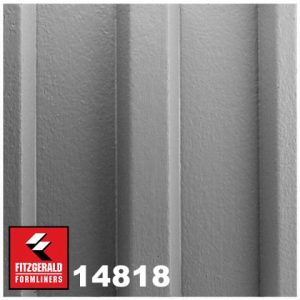

14818 Fluted Rib - 1.5" Deep, 6" on Center

VinyLok™
Styrene - Single use.
ABS Plastic - Up to 10 reuses.

Max Depth: 1.500"
On Center: 6"
Peak: 1.25"
Valley: 3.5"
Draft: 0.625



Part Size:
6" Wide Coverage, lengths up to 40'

Click here for cut-sheet

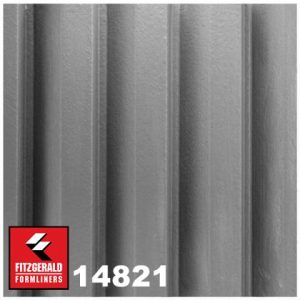

14821 Fluted Rib - 1.5" Deep, 3.5" on Center

VinyLok™
Styrene - Single use.
ABS Plastic - Up to 10 reuses.

Max Depth: 1.500"
On Center: 3.5"
Peak: 0.5"
Valley: 1.375"
Draft: 0.25, 1.375



Part Size:
7" Wide Coverage, lengths up to 40'

Click here for cut-sheet
