GrayLastic™ Patterns (Fluted Rib)

GrayLastic™ Extended-Use Elastomeric Formliners - Page 1 of 2

DESIGN BY PATTERN

GrayLastic™ Pattern: Fluted Rib (28 Results Found)  1 > 2

Click to go to pattern - 14302 |14304 | 14305 | 14310 | 14316 | 14322 | 14323 | 14327 | 14329 | 14332 | 14335 | 14345 | 14382 |  14383 | 14384 | 14385 | 14390

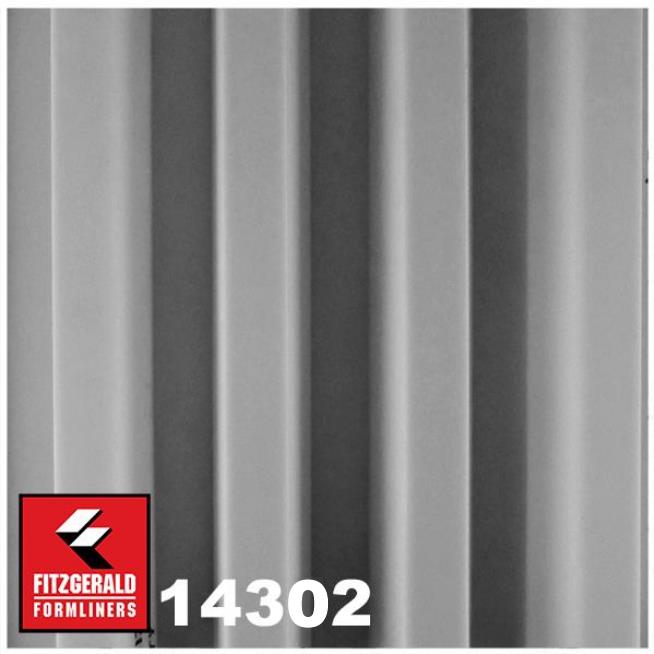

14302 Fluted Rib - 1.5" Deep, 4" on Center

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1.500"
On Center: 4.0"
Peak: 1.5"
Valley: 1.5"
Draft: 0.50"

Part Size:
48.0"w. x 96"h.
48.0"w. x 120"h.
48.0"w. x 240"h.

Click here for cut-sheet

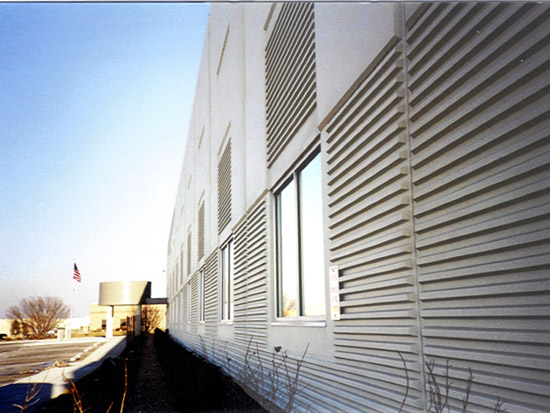

14302 Fluted Rib - Life Touch Building, Kansas City, KS

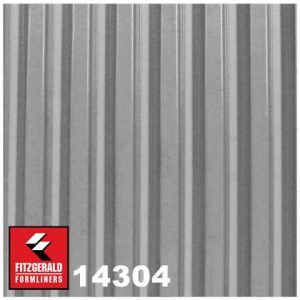

14304 Fluted Rib - 0.75" Deep, 2" on Center

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 0.750"
On Center: 2.0"
Peak: 0.75"
Valley: 0.75"
Draft: 0.25"

Part Size:
48"W. x 120"L.

Click here for cut-sheet

Notes:
For a 1" Deep, 2" on Center, see pattern 14448

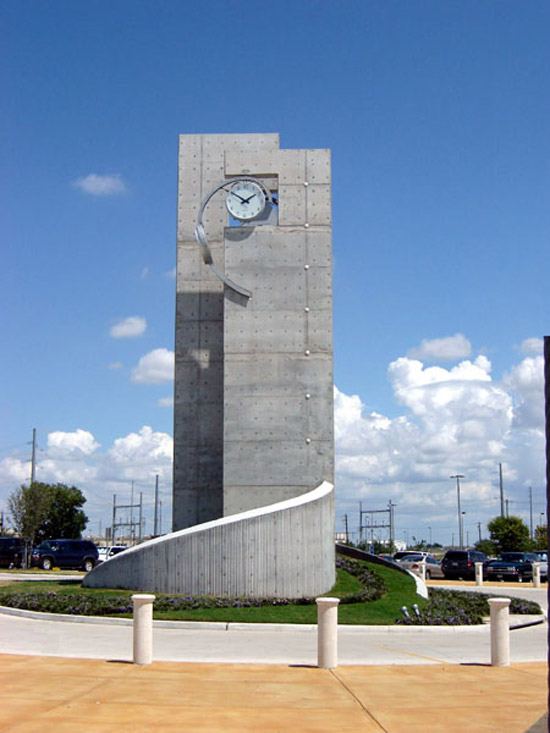

14304 Fluted Rib - Techridge Park & Ride Facility, Austin, TX: Mitchell Enterprises, Ltd.

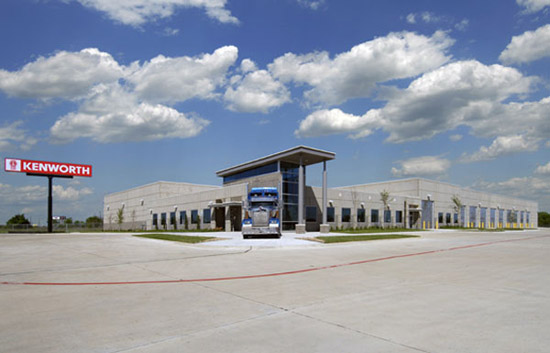

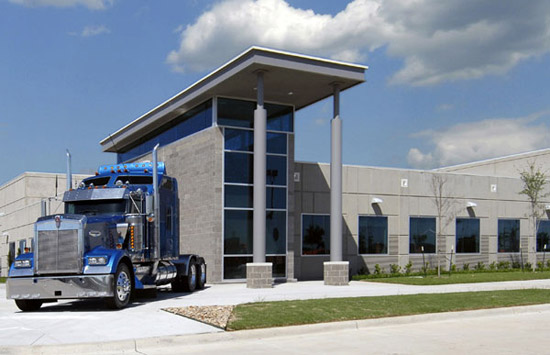

14304 Fluted Rib - Kenworth Overland Park, KS: Sedalco Construction
14304 Fluted Rib - Kenworth Overland Park, KS: Sedalco Construction

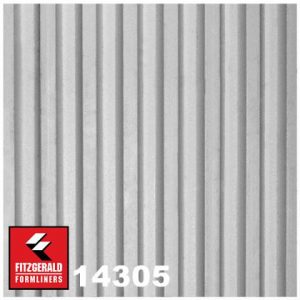

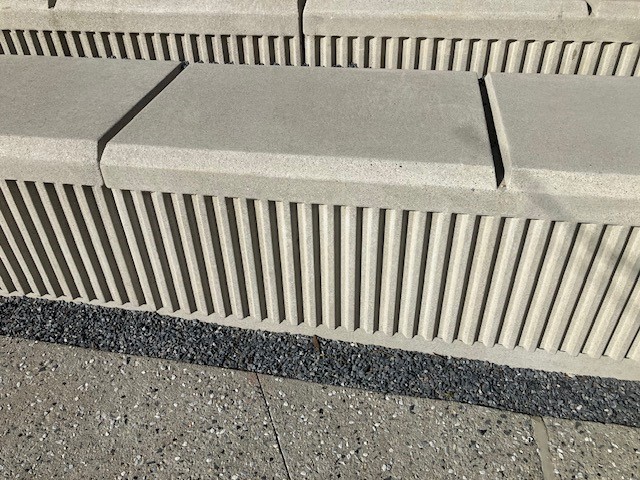

14305 Fluted Rib - 0.5" Deep, 1.5" on Center

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 0.500"
On Center: 1.5"
Peak: 0.50"
Valley: 0.50"
Draft: 0.25"

Part Size:
48"W. x 360"L.

Click here for cut-sheet

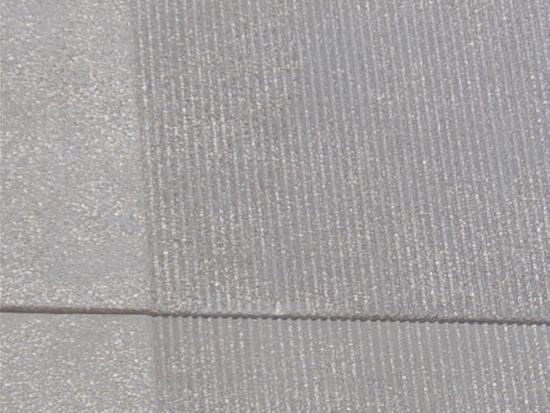

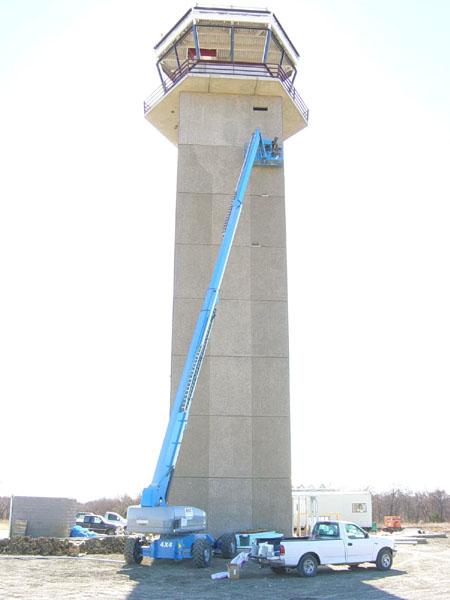

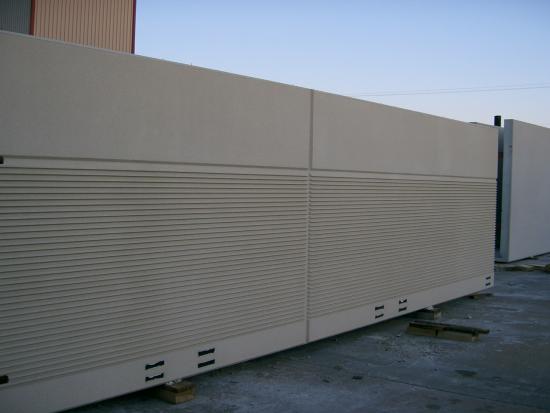

14305 Fluted Rib - Arlington Air Traffic Control Tower, Arlington, TX: Enterprise Precast
14305 Fluted Rib - Arlington Air Traffic Control Tower, Arlington, TX: Enterprise Precast

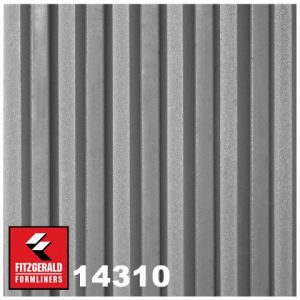

14310 Fluted Rib - 0.75" Deep, 1.5" on Center

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 0.750"
On Center: 1.5"
Peak: 0.50"
Valley: 0.50"
Draft: 0.25"

Part Size:
48"W. x 120"L.

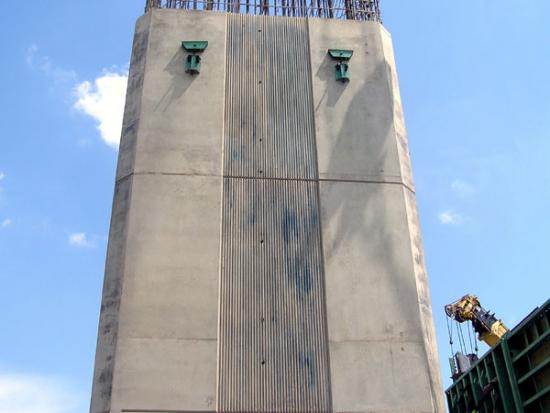

14310 Fluted Rib - Bridge Pier
14310 Fluted Rib - Blue Cross Blue Shield Building, Dallas, TX

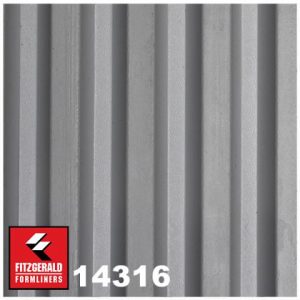

14316 Fluted Rib - Vac-U-Form 1.0" Deep, 2" on Center GrayLastic / VinyLok 0.75" Deep, 2" on Center

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 0.750"
On Center: 2.0"
Peak: 0.50"
Valley: 0.75"
Draft: 0.375"

Part Size:
48"W. x 252"L.

Click here for cut-sheet

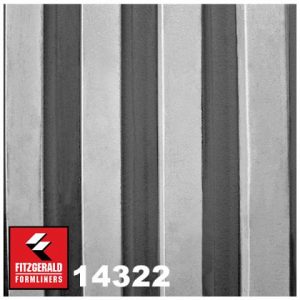

14322 Fluted Rib - 1.5" Deep, 5" on Center

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1.500"
On Center: 5.0"
Peak: 1.50"
Valley: 2.50"
Draft: 0.50"

Part Size:
45"W. x 252"L.

Click here for cut-sheet

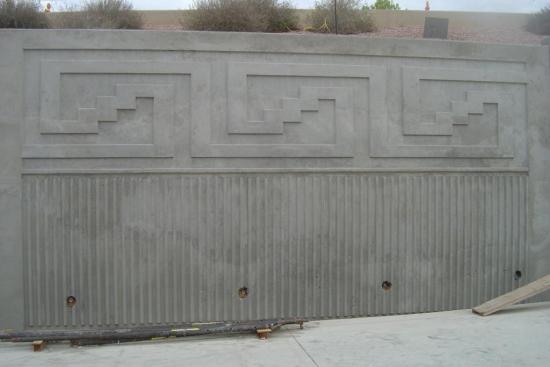

14322 Fluted Rib with 17944 Arizona Maze - US Route 60, Tempe, AZ: CS Construction

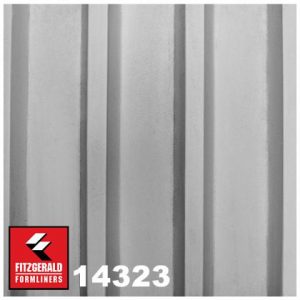

14323 Fluted Rib - 1.5" Depth, 6.0" on Center

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1.500"
On Center: 6.0"
Peak: 3.50"
Valley: 1.25"
Draft: 0.625"

Part Size:
6" coverage, lengths up to 40'

Click here for cut-sheet

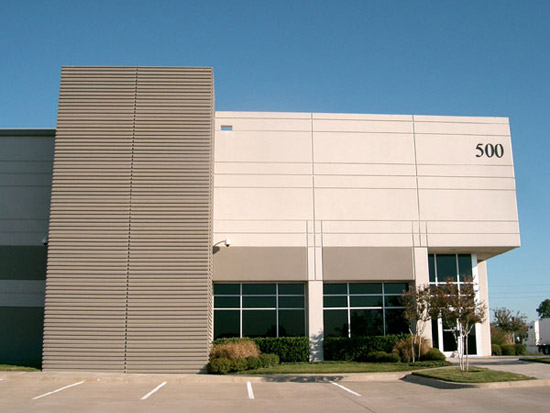

14323 Fluted Rib - Flowermound, TX: Potter Concrete

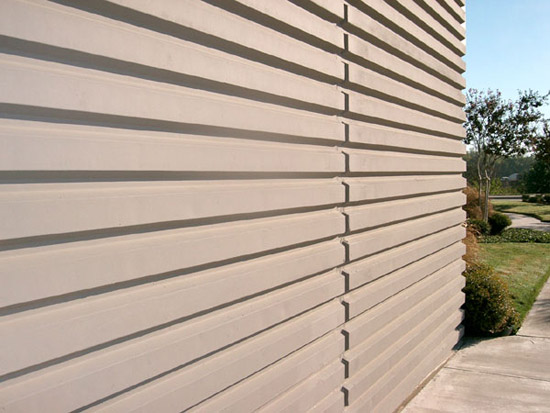

14323 Fluted Rib - Flowermound, TX: Potter Concrete

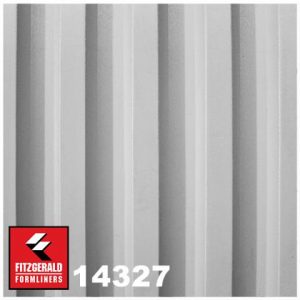

14327 Fluted Rib - 1" Deep, 4" on Center

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1.000"
On Center: 4.0"
Peak: 1.50"
Valley: 1.50"
Draft: 0.50"

Part Size:
48"W. x 96"L.

Click here for cut-sheet

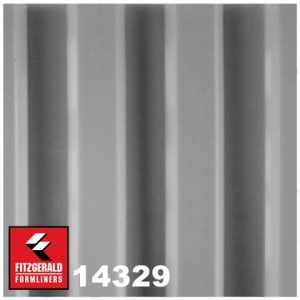

14329 Fluted Rib - 0.75" Deep, 0.25" draft, 4" on Center

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 0.750"
On Center: 4.0"
Peak: 1.75"
Valley: 1.75"
Draft: 0.25"

Part Size:
48"W. x 120"L.

Click here for cut-sheet

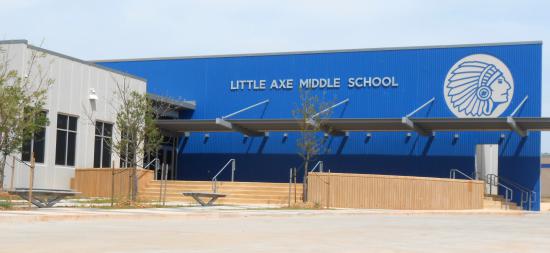

14329 VL and custom indian head Little Axe Middle School, JTC Concrete in Norman,OK

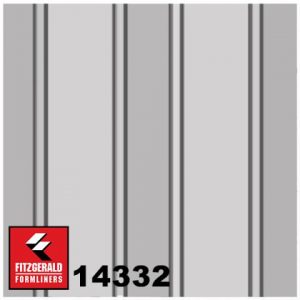

14332 Fluted Rib - 1.5" Deep, 6" on Center

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1.500"
On Center: 6.0"
Peak: 3.0"
Valley: 2.0"
Draft: 0.50"

Part Size:
60"W. x 120"L.

Click here for cut-sheet

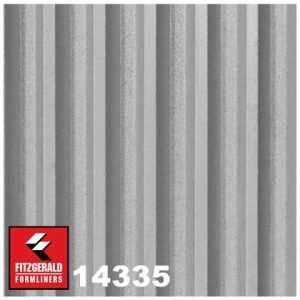

14335 Fluted Rib - 0.5" Deep, 1.25" on Center

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 0.500"
On Center: 1.25"
Peak: 0.75"
Valley: 0.375"
Draft: 0.28125"

Part Size:
120"W. x 48"H.
Ribs run in 48" direction

Click here for cut-sheet

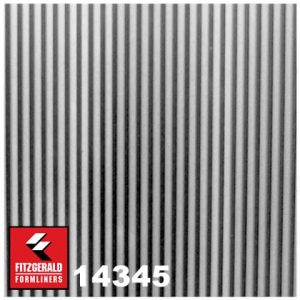

14345 Fluted Rib - 0.25" Deep, 0.5" on Center

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 0.250"
On Center: 0.50"
Peak: 0.25"
Valley: 0.125"
Draft: 0.0625"

Part Size:
48"W. x 192"L.

Click here for cut-sheet





14382 Norfolk Rib - 0.5" - 1" deep random reveals

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1.000"
On Center: Random
Peak: 0.875" to 2.875" Random
Valley: 0.875" to 3" Random

Part Size:
48"W. x 240"L.

Click here for cut-sheet

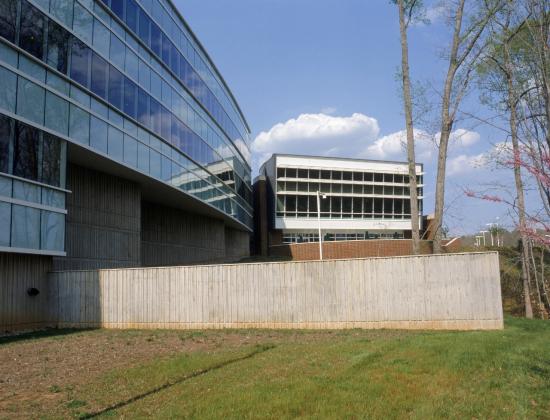

14382 Fluted Rib - National Ground Intelligence Center, Charlottesville, VA




14383 Texas Two Step - 0.25" Deep, high/low with 0.125" Steps

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 0.250"
On Center: Random
Peak: 1" - 1.5" Random
Valley: 1" - 1.5" Random

Part Size:
48"W. x 120"L.

Click here for cut-sheet

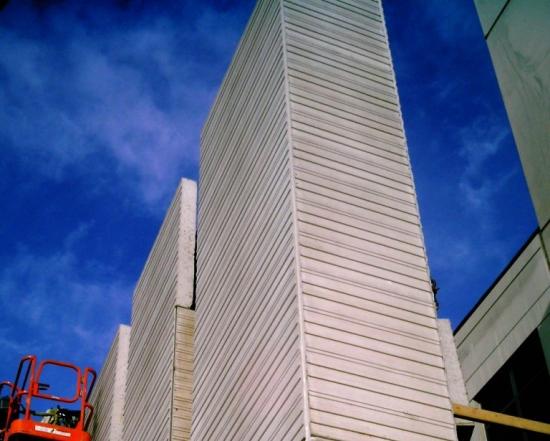

14383 Texas Two Step - Trinity Hospital

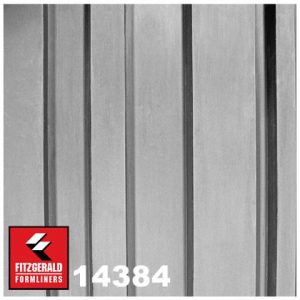

14384 Fluted Rib ADOT Rustication - 1.5" deep random rib

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1.500"
On Center: Random
Peak: 2" to 7" Random
Valley: 1.5" - 5.5" Random
Draft: 0.25"

Part Size:
48"W. x 120"L.

Click here for cut-sheet

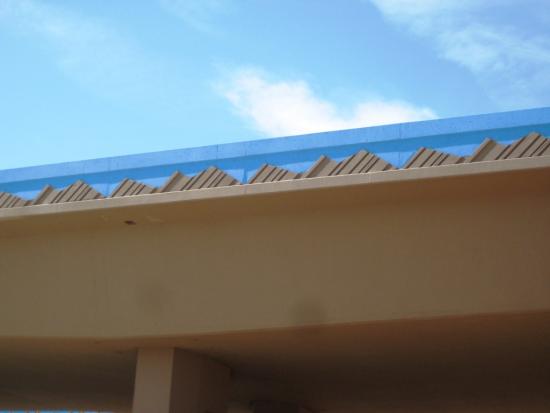

14384 Fluted Rib - Mountain Scene Barrier, Twin Buttes, AZ: Austin Bridge

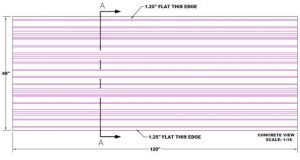

14385 Portland Rib - 1.5" deep random ribs, repeats on 24" centers

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1.500"
On Center: Random
Peak: 75" - 2.75" Random
Valley: 0.5" to 2.5" Random
Draft: 0.88", 0.375"

Part Size:
48"W. x 240"L.

Click here for cut-sheet





14390 Sine Wave - 1" Deep, 2" on Center

S-14390

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1"
On Center: 2"
Radius: 0.5"

Part Size:
48"W. x 120"H.

Click here for cut-sheet
