GrayLastic Patterns: Masonry (13 Results Found)

Click to go to pattern - 16941 | 16946 | 16948 | 16970 | 16971 | 16973 | 16974 | 16977 | 17001 | 17974 | 18040 | 18048 | 18050

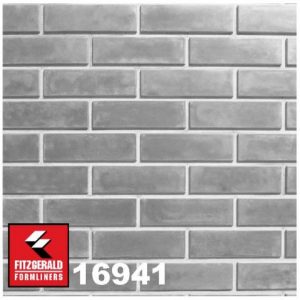

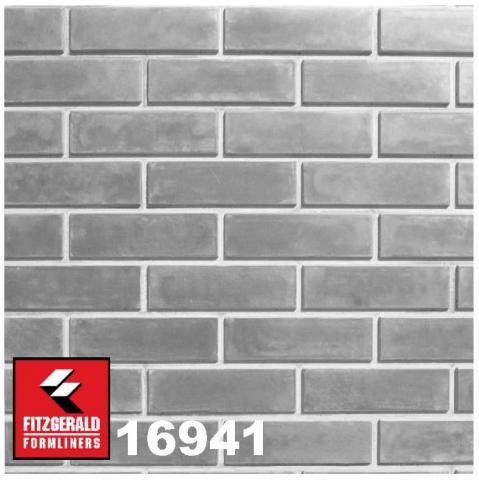

16941 8" Smooth Brick - Running bond brick

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 0.250"
Block Size: 7.625"W. x 2.25"H.
Notes: 0.41" horizontal mortar joint, 0.375" vertical mortar joint

Part Size:
96"W. x 48"H.

Click here for cut-sheet

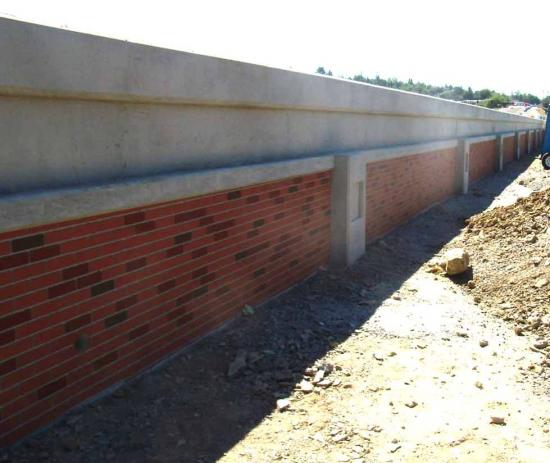

16941 Modular Brick - Canada: La Farge Precast
16941 Modular Brick - Canada: La Farge Precast
16941 Modular Brick - Placer County, California: RNR Construction




16946 4" x 16" Classic Slumpstone - Running bond brick

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 0.375"
Block Size: 15.625"W. x 3.625"H. with 0.375" mortar joints

Part Size:
48"W. x 120"H.

Click here for cut-sheet

16946 Classic Slumpstone: Precast Engineering
16946 Classic Slumpstone: Precast Engineering




16948 12" Smooth Brick - Running bond brick

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 0.375"
Block Size: 11.5"W. x 3.5"H. with 0.375" mortar joints

Part Size:
144"W. x 48"H.

Click here for cut-sheet

16948 Smooth Brick - Durisol Precast Sound galleryWalls




16970 8" x 16" Splitfaced Stacked Block

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 0.750"
Block Size: 15.625"W. x 7.625"H. with 0.375" mortar joint

Part Size:
96"W. x 48"H.

Click here for cut-sheet





16971 8" x 16" Splitfaced Block - Running bond block

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 0.750"
Block Size: 15.625"W. x 7.625"H. with 0.375" mortar joint

Part Size:
96"W. x 48"H.

Click here for cut-sheet

16971 Split Faced Running Bond Block, Home Depot, Castle Rock, CO
16971 Split-Faced Running Bond Block - Home Depot, Castle Rock, CO
16971 Split Faced Running Bond Block




16973 Arizona Splitfaced Block Grooved - 3.187" wide fluted splitfaced block, 1" deep.

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1.000"
Notes: 3.187" fluted splitfaced block with 0.75" smooth grooves, see pattern 18045 for modified stacked block version of this pattern.

Part Size:
48"W. x 120"L.

Click here for cut-sheet





16974 2" Splitfaced Block - 2" wide vertical stacked block

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 0.750"
Notes: 2"W. x 7.625"H. split faced block with 1.75" wide groove

Part Size:
96"W. x 48"H.

Click here for cut-sheet





16977 8" x 8" Splitfaced Block - Stacked block

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 0.500"
Block Size: 7.5"W. x 7.5"H. with 0.5" mortar joints

Part Size:
120"W. x 48"H.

Click here for cut-sheet

16977 8" x 8" Split Face Block




17001 4" x 16" Slumpstone - Running bond block

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1.1250"
Block Size: 16"W. x 4"H.

Part Size:
48"W. x 120"H. - Note configuration of panel

Click here for cut-sheet





17974 32" x 15" Smooth Block - Smooth Running Bond Block

p17974

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 0.75"

Block Size: 31"W. x 14"H.

Wide Grout: 1"

Part Size:
128"W. x 90"H.

Click here for cut-sheet





18040 8" Sand Texture Brick - Running Bond Brick

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 0.6250"
Block Size: 7.625"W. x 2.625"H. with 0.375" mortar joints

Part Size:
240"W. x 48"H.

Click here for cut-sheet





18048 18" x 12" Split Face Block - Running Bond

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 0.875" from top of stone to bottom of grout
Block Size: 18"W. x 12"H.

Part Size:
144"W. x 48"H.

Click here for cut-sheet





18050 Smooth Stacked Block

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 0.125"
Block Size: 16" W x 8" H

Part Size:
96"W. x 48"H.

Click here for cut-sheet
