Vac-U-Form™ Patterns (Fractured Rib)

Vac-U-Form™ Vacuum-Formed Plastic Formliners


Design by Pattern...


Vac-U-Form Patterns: Fractured Rib (21 of 21 Results Found)

Click to go to pattern - 16950 | 16951 | 16952 | 16953 | 16954 | 16955 | 16956 | 16957 | 16958 | 16959 | 16960 | 16961 |  16962A | 16962B | 16963 | 16965 | 16966 | 16967 | 16968 | 18005 | 18015


16950 Adam's Rib - 0.75" Deep, 1.5" on Center

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.750"
On Center: 1.5"
Peak: 0.5"
Valley: 0.5"
Draft: 0.25"

Part Size:
48"W. x 120"

Click here for cut-sheet

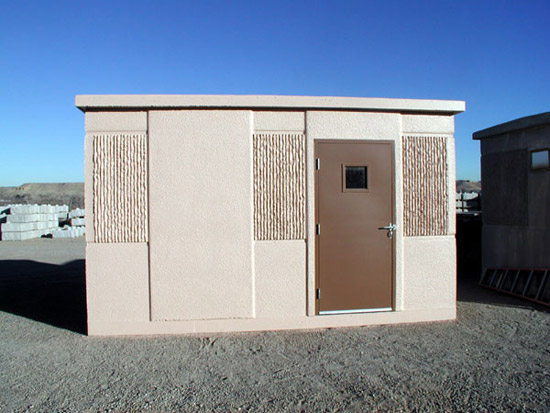

16950 Adam's Rib - Prefab Utility Building, Colorado: Four Corners Precast

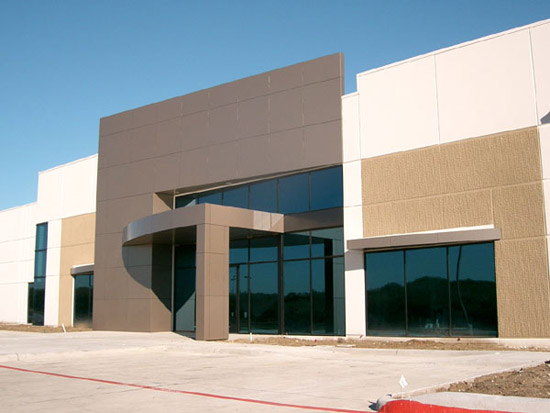

16950 Adam's Rib - Silverton Industrial Park, Flowermound, TX

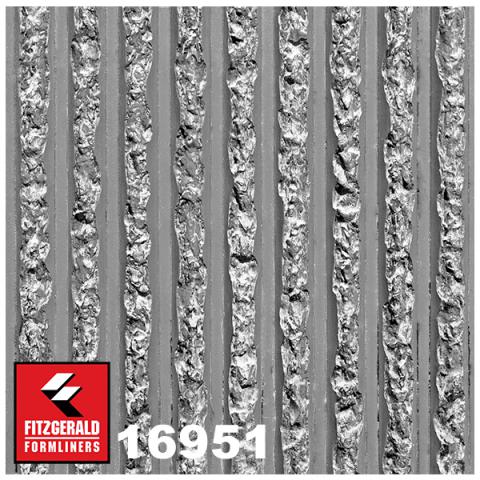

16951 Sahara Fin - 1.0" Deep, 2.0" on Center

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 1.0"
On Center: 2.0"
Peak: 0.5"
Valley: 0.5"
Draft: 0.50"

Part Size:
48"W. x 120"L.

Click here for cut-sheet

16951 Sahara Fin - National Precast Michigan Safety Building 2008

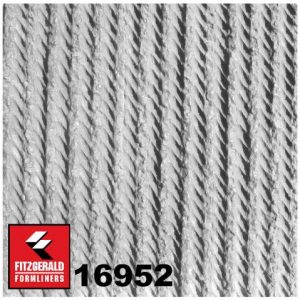

16952 Laramie Rope - 0.5" deep rope rip-out, 2" on Center

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.500"
On Center: 2.0"
Peak: 0.875"
Valley: 1.125"

Part Size:
48"W. x 120"L.

Click here for cut-sheet

Sky Harbor-Sky Train- Phoenix, AZ: Kiewit/McCarthy JV
Sky Harbor-Sky Train- Phoenix, AZ: Kiewit/McCarthy JV
Sky Harbor-Sky Train- Phoenix, AZ: Kiewit/McCarthy JV




16953 Cypress Fin - 1.5" Deep, 3.0" on Center

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 1.500"
On Center: 3.0"
Peak: 1.0"
Valley: 1.0"
Draft: 0.5"

Part Size:
47.75"W. x 120"L.

Click here for cut-sheet

16953 Cypress Fin, Graylastic Urethane. I-91 / I-15 interchange Corona, CA Photo Credit Atkinson / Walsh JV
16953 Cypress Fin, Graylastic Urethane. I-91 / I-15 interchange Corona, CA Photo Credit Atkinson / Walsh JV
16953 Cypress Fin, Graylastic Urethane. I-91 / I-15 interchange Corona, CA Photo Credit Atkinson / Walsh JV




16954 Jutland Fin - 0.625" Deep, 1.0" on Center

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.625"
On Center: 1.0"
Peak: 0.5"
Valley: 0.25"
Draft: 0.125"

Part Size:
48"W. x 120"L.

Click here for cut-sheet

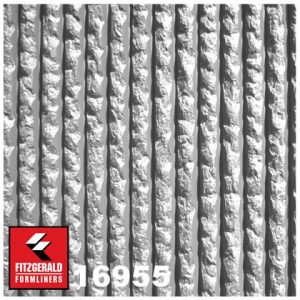

16955 Berkley Rib - 1” deep, 2” on center

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 1.000"
On Center: 2.0"
Peak: 1.0"
Valley: 0.50"
Draft: 0.25"

Part Size:
48"W. x 120"L.

Click here for cut-sheet





16956 Corps Fin - 1.25" Deep, 2" on Center

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 1.250"
On Center: 2.0"
Peak: 0.75"
Valley: 0.75"
Draft: 0.25"

Part Size:
48"W. x 120"L.

Click here for cut-sheet

16956 Corps Fin - Corpus Christi, TX: Bay Construction
16956 Corps Fin - Corpus Christi, TX: Bay Construction

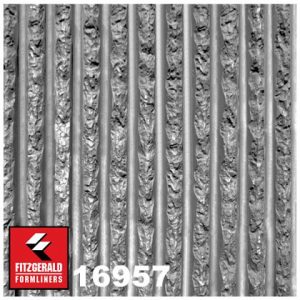

16957 Harvard Fin - 1.5" Deep, 2.25" on Center

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 1.500"
On Center: 2.25"
Peak: 0.75"
Valley: 0.50"
Notes: 1/2 flute matching

Part Size:
48.5"W. x 120"L.

Click here for cut-sheet





16958 Manchester Fin - 1.5" deep fractured fin, 6" on Center

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 1.500"
On Center: 6.0"
Peak: 2.0"
Valley: 3.0"
Draft: 0.50"

Part Size:
47.5"W. x 119.5"L.
Backing Strips Required

Click here for cut-sheet

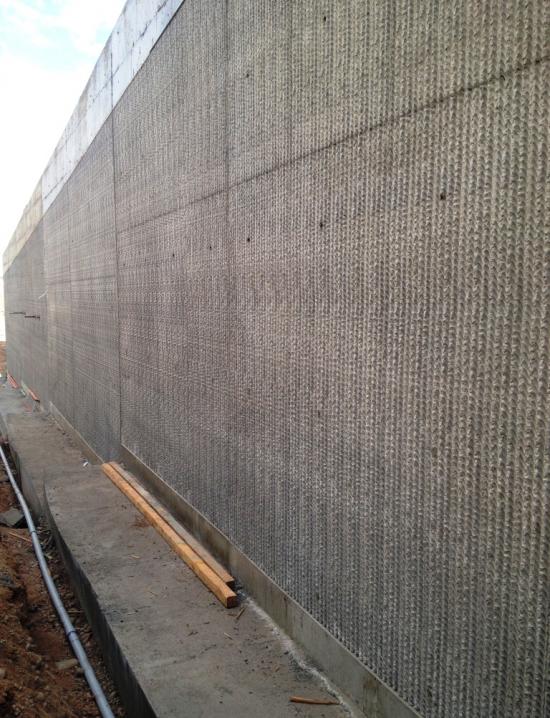

Project: Apple Offsite Mitigation Location: Cupertino, CA Contractor: Graniterock Const Pattern: 16958 Manchester Fin
Project: Apple Offsite Mitigation Location: Cupertino, CA Contractor: Graniterock Const Pattern: 16958 Manchester Fin
16958 Manchester Fin - Hammer Lane, Stockton, CA




16959 Walnut Fin - 1.5" Deep, 2" on Center

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 1.500"
On Center: 2.0"
Peak: 0.5"
Valley: 0.5"
Draft: 0.50"

Part Size:
48"W. x 120"L.

Click here for cut-sheet

16959 Walnut Fin with Custom Geometric Graphics - Hammer Lane, Stockton, CA
16959 Walnut Fin - Children's Hospital, Dallas, TX
16959 Walnut Fin - Children's Hospital, Dallas, TX




16960 Waco Rope - 0.5" deep rope rip-out, 1.0625" on Center

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.500"
On Center: 1.0625"
Peak: 0.50"
Valley: 0.50"
Notes: 1/2 rope

Part Size:
46.75"W. x 94"L.

Click here for cut-sheet





16961 Cordova Fin (Flute) - 1.5" Deep, 3.428" on Center

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 1.500"
On Center: 3.428"
Peak: 1.0"
Valley: 1.50"
Draft: 0.50"

Part Size:
48"W. x 120"L.
Backing Strips Required

Click here for cut-sheet

16961 Cordova Fin - Utility Building, MI: Advance Concrete

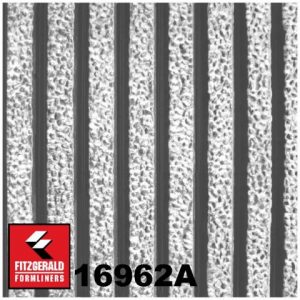

16962A Modified Logsdon Fin - 1.5" deep exposed aggregate fin, 3.5" on Center

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 1.500"
On Center: 3.5"
Peak: 2.0"
Valley: 0.50"
Draft: 0.50"

Part Size:
48"W. x 120"L.
Backing Strips Required

Click here for cut-sheet

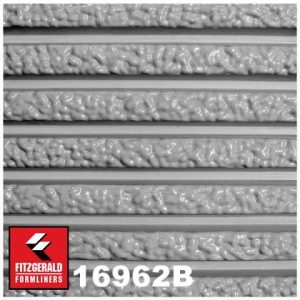

16962B Logsdon Fin - 1.5" deep exposed aggregate fin, 3.428" on Center

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 1.500"
On Center: 3.428"
Peak: 2.0"
Valley: 0.66"
Draft: 0.384"
Notes: 1/2 flute matching

Part Size:
48"W. x 119.125"L.
Backing Strips Required

Click here for cut-sheet

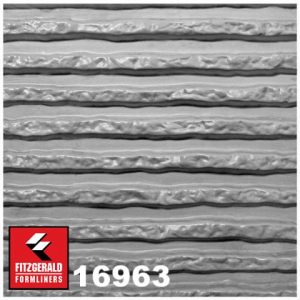

16963 Chestnut Fin - 1" Deep, 2.5" on Center

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 1.000"
On Center: 2.5"
Peak: 0.875"
Valley: 0.875"
Draft: 0.50"
Notes: 1/2 flute matching

Part Size:
48"W. x 119.5"L.

Click here for cut-sheet

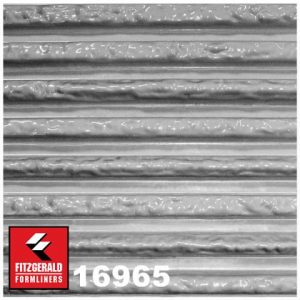

16965 Vedder Fin (Flute) - 0.75" Deep, 1.25"on center

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.750"
On Center: 1.25"
Peak: 0.375"
Valley: 0.50"
Draft: 0.1875"
Notes: 1/2 flute matching

Part Size:
48"W. x 120"L.

Click here for cut-sheet

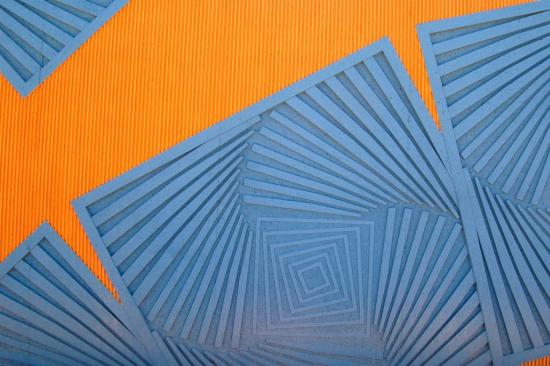

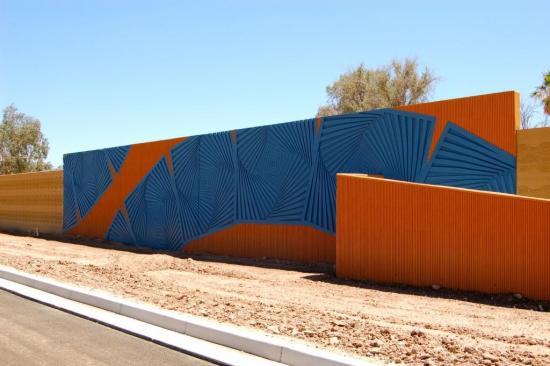

Power Road from Pecos Rd- Santan Frwy in Gillbert, AZ. Custom Art Wall and wave panels utilizing pids #16965 Vedder Fin and #16992 Heavy Sandblast.
Power Road from Pecos Rd- Santan Frwy in Gillbert, AZ. Custom Art Wall and wave panels utilizing pids #16965 Vedder Fin and #16992 Heavy Sandblast.

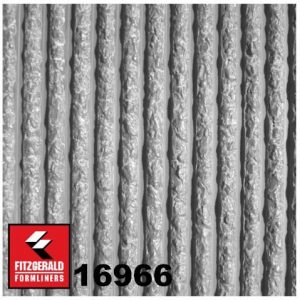

16966 Virginia Fin (Flute) - 1" Deep, 2" on Center

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 1.000"
On Center: 2.0"
Peak: 1.0"
Valley: 0.50"
Draft: 0.25"
Notes: 1/2 flute matching

Part Size:
48"W. x 120"L.

Click here for cut-sheet

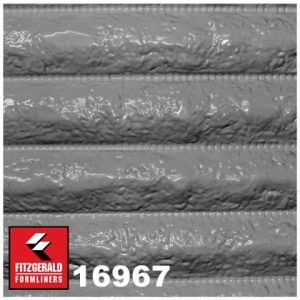

16967 Rebar Rip-out Rib - 1.25" Deep, #6 rebar rip-out, 5" on Center

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 1.250"
On Center: 5.0"
Peak: 0.75" #6 rebar
Valley: 0.50"
Notes: 1/2 rebar

Part Size:
45"W. x 120"L.

Click here for cut-sheet

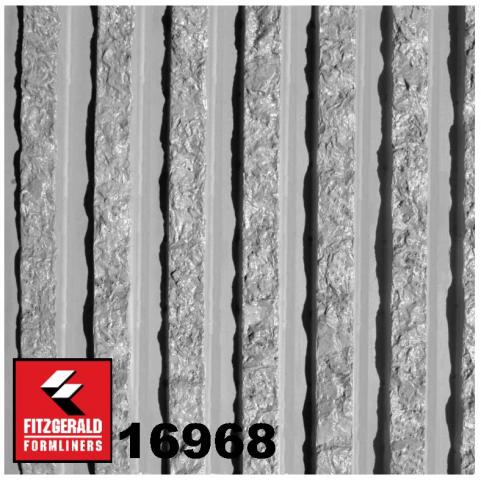

16968 Tuscon Fin - 1.25" split faced texture fin

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 1.250"
On Center: 4.0"
Peak: 1.875"
Valley: 1.875"
draft: 0.125"
Notes: 1/2 flute matching

Part Size:
45"W. x 120"L.
Backing Strips Required

Click here for cut-sheet

16968 Tuscon Fin - TH 101,Minnesota: Tensar MSE walls
16968 Tuscon Fin - Riverside, CA
16968 Tuscon Fin - Riverside, CA

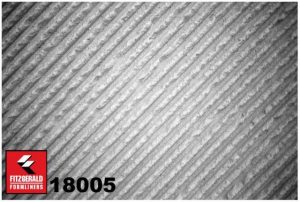

18005 Chevron Fin - 1" deep. 2.5" on Center; based on fractured fin pattern 16963

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 1.000"
On Center: 2.5"
Peak: 0.875"
Valley: 0.875"
draft: 0.375"
Notes: based on pattern 16963

Part Size:
96"W. x 48" High

Click here for cut-sheet

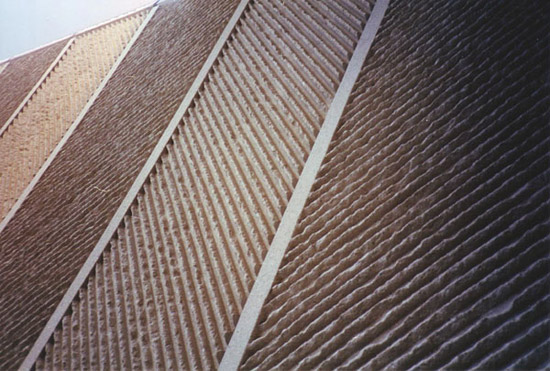

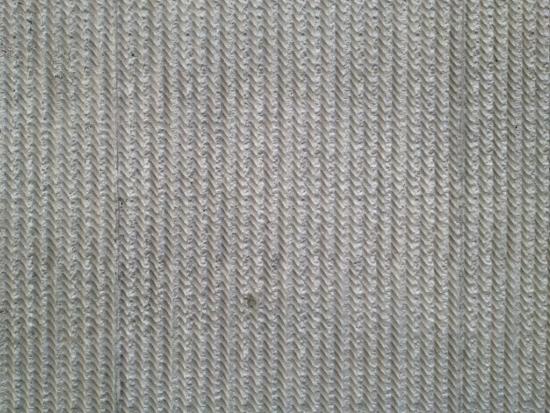

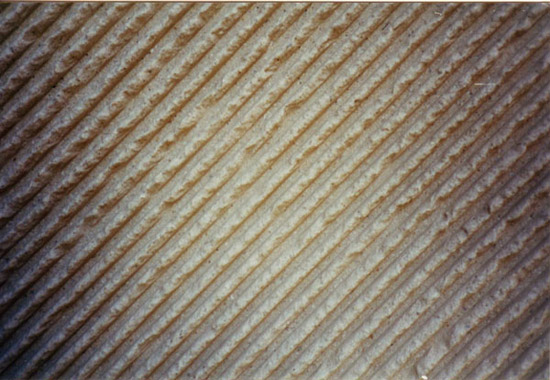

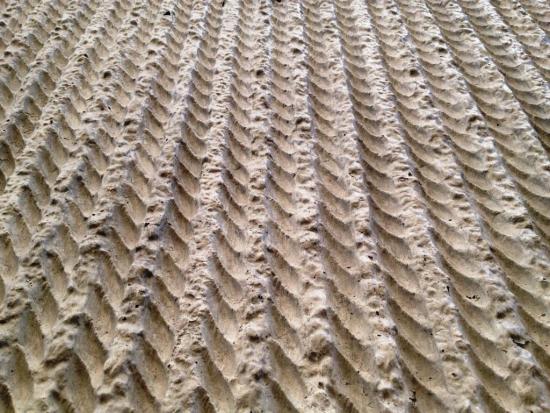

18005 Chevron Fin
18005 Chevron Fin

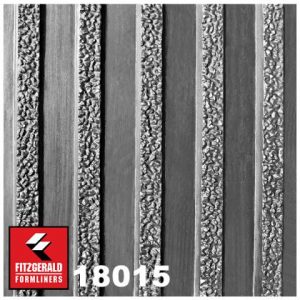

18015 Coastal Fin - 1.5" Deep, 6" on Center

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 1.500"
On Center: 6.0"
Peak: 3.0"
Valley: 2.0"
draft: 0.50"

Part Size:
48"W. x 120" Long

Click here for cut-sheet
