FitzLok® Interlocking Seamless Plastic Formliners - Page 1 of 3


FitzLok® Interlocking Seamless Plastic Formliners (34 Results Found) 1 > 2 > 3

Click to go to pattern - 16940LP | 16941LP | 16947LP | 16948LP | 16949-S LP | 16949-T LP | 16971LP | 16977LP | 16984LP | 16985LP | 16986LP | 16988LP | 16997LP | 16999LP | 17002LP | 17003LP


16940LP 4" x 12" Wire Brick
1/2 Running Bond Brick / Tool Joint
Finger Joint

16940LP

FitzLok®
Styrene - Single use.

Max Depth:
0.25"

Brick Size:
11.625"W x 3.5"H

Part Size:
120.125"W x 48.375"H

Part Coverage:
96"W x 48"H
(32 ft²)

Mortar Joints:
0.5" Horizontal
0.375" Vertical

Click here for cut-sheet

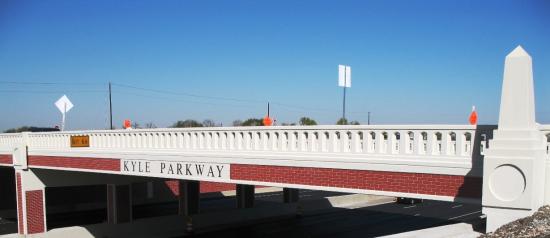

16940 Wire Brick - Kyle Parkway Bridge, Lubbock,TX: Heldenfels Precast







16941LP 8" Smooth Brick (Modular)
1/2 Running Bond Brick / Rake Joint
Finger Joint

16941LP

Fitzlok®
Styrene - Single use.

Max Depth:
0.25"

Brick Size:
7.625"W x 2.25"H

Part Size:
100.375"W x 48.375"H

Part Coverage:
96"W x 48"H
(32 ft²)

Mortar Joints:
0.417" Horizontal
0.375" Vertical

Click here for cut-sheet

16941 Modular Brick Precast wall for Harry Truman Parking Structure in Chicago, IL

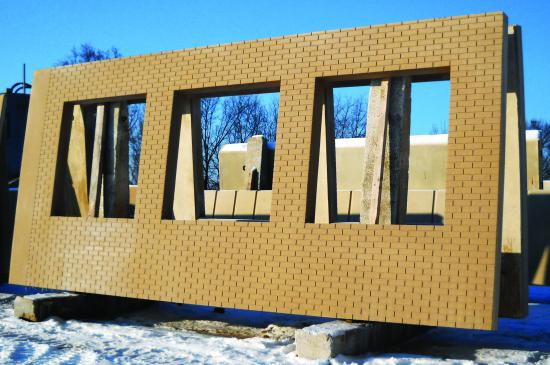

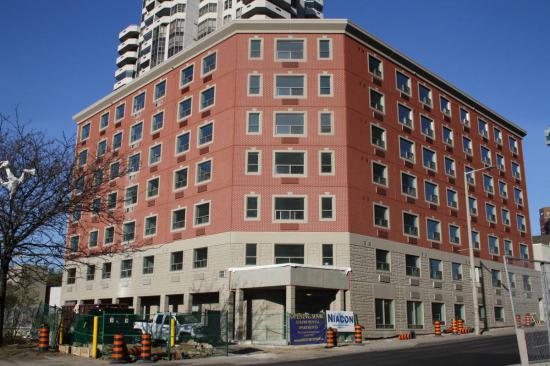

16941LP Fitzlok Stubbes PC Jackson St Apartments Summer 2015 Hamilton, ON







16947LP 8" Used Brick (Modular)
1/2 Running Bond Brick / Rake Joint
Finger Joint

16947LP

Fitzlok®
Styrene - Single use.

Max Depth:
0.25"

Brick Size:
7.625"W x 2.25"H

Part Size:
100.375"W x 48.375"H

Part Coverage:
96"W x 48"H
(32 ft²)

Mortar Joints:
0.417" Horizontal
0.375" Vertical

Click here for cut-sheet







16948LP 12" Smooth Utility Brick
1/2 Running Bond Brick / Tool Joint
Finger Joint

16948LP

Fitzlok®
Styrene - Single use.

Max Depth:
0.375"

Block Size:
11.625"W x 3.625"H

Part Size:
102.375"W x 48.375"H

Part Coverage:
96"W x 48"H
(32 ft²)

Mortar Joints:
0.375" Horizontal
0.375" Vertical

Click here for cut-sheet

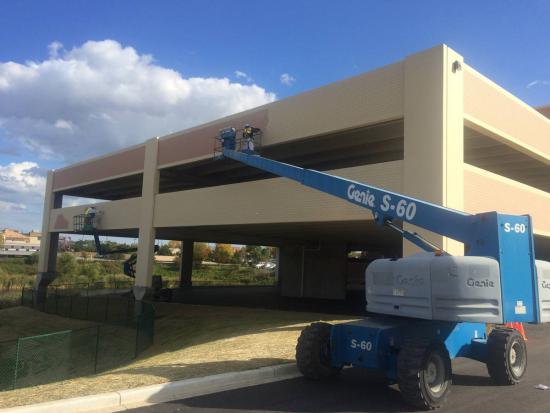

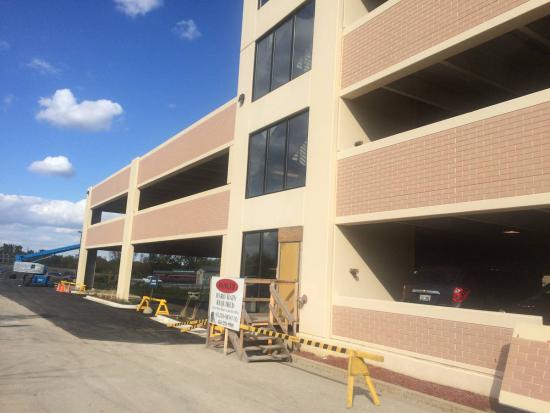

FitzLok 16948LP 12" x 4" Smooth Brick

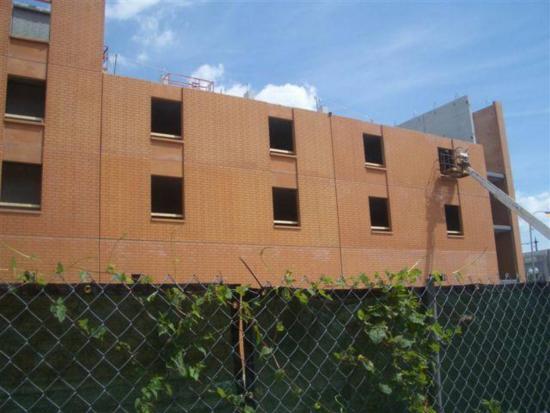

FitzLok 16948LP 12" x 4" Smooth Brick
FitzLok 16948LP 12" x 4" Smooth Brick







16949-S-LP 8" x 16" Smooth Block
1/2 Running Bond Block / Tool Joint
Finger Joint

16949-S-LP

FitzLok®
Styrene - Single use.

Max Depth:
0.25"

Block Size:
15.625"W x 7.625"H

Part Size:
104.375"W x 48.375"H

Part Coverage:
96"W x 48"H
(32 ft²)

Mortar Joints:
0.375" Horizontal
0.375" Vertical

Click here for cut-sheet







16949-T-LP 8" x 16" CMU Textured Block
1/2 Running Bond Block / Tool Joint
Finger Joint

16949-T-LP

FitzLok®
Styrene - Single use.

Max Depth:
0.25"

Block Size:
15.625"W x 7.625"H

Part Size:
104.375"W x 48.375"H

Part Coverage:
96"W x 48"H
(32 ft²)

Mortar Joints:
0.375" Horizontal
0.375" Vertical

Click here for cut-sheet







16971LP 8" x 16" Splitfaced Block
1/2 Running Bond Block / Rake Joint
Finger Joint

16971LP

FitzLok®
Styrene - Single use.

Max Depth:
0.75"

Block Size:
15.625"W x 7.625"H

Part Size:
104.375"W x 48.375"H

Part Coverage:
96"W x 48"H
(32 ft²)

Mortar Joints:
0.375" Horizontal
0.375" Vertical

Click here for cut-sheet







16977LP 8" x 8" Stacked Splitfaced Block
Rake Joint

FitzLok®
Styrene - Single use.

Max Depth:
0.5"

Block Size:
7.625"W x 7.625"H

Part Size:
120.375"W x 48.375"H

Part Coverage:
120"W x 48"H
(40 ft²)

Mortar Joints:
0.375" Horizontal
0.375" Vertical

Click here for cut-sheet

16977 8" x 8" Split Face Block







16984LP Aged Maryland Ashlar
Ashlar Stone, Weathered Surface
2 Designs Available - A & B

16984LP

FitzLok®
Styrene - Single use.

Max Depth:
1.50"

Stone Sizes:
9"-20"W x 6"-17"H

Part Size:
101.3"W x 51.3"H

Part Coverage:
96"W x 48"H
(32 ft²)

Click here for cut-sheet

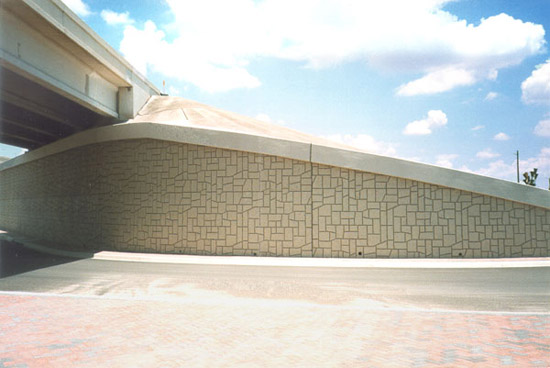

16984 Aged Maryland Ashlar - Texas: Hass Anderson Construction

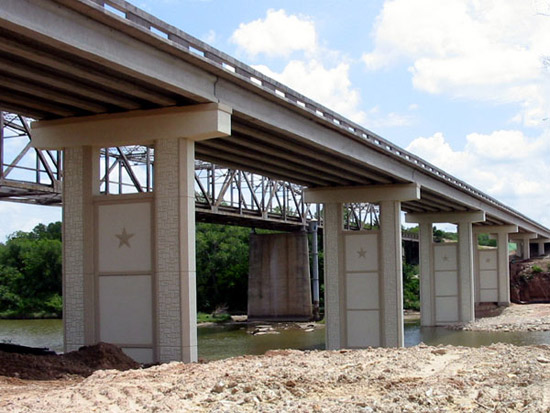

16984 Aged Maryland Ashlar w/ Stars in Bushhammer Background - Highway US 67, Glen Rose, TX: Concho Construction

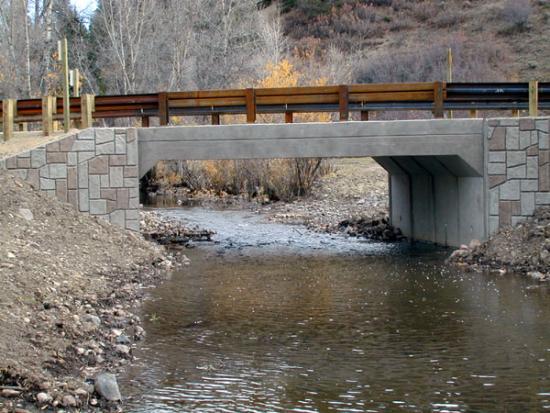

16984 Aged Maryland Ashlar - Cast in Place Bridge







16985LP Indiana River Rock
Random Cobble Stone

16985LP

FitzLok®
Styrene - Single use.

Max Depth:
1.50"

Stone Sizes:
5"-12"W

Part Size:
101"W x 52.5"H

Part Coverage:
96"W x 48"H
(32 ft²)

Click here for cut-sheet







16986LP Georgetown Ashlar
Linear Cut Ashlar Block
2 Designs Available - A & B

16986LP

FitzLok®
Styrene - Single Use.

Max Depth:
1.50"

Block Sizes:
9"-29"W x 5"-15"H

Part Size:
95.5"W x 53"H

Part Coverage:
96"W x 48"H
(32 ft²)

Mortar Joints:
0.75" Horizontal
0.75" Vertical

Click here for cut-sheet

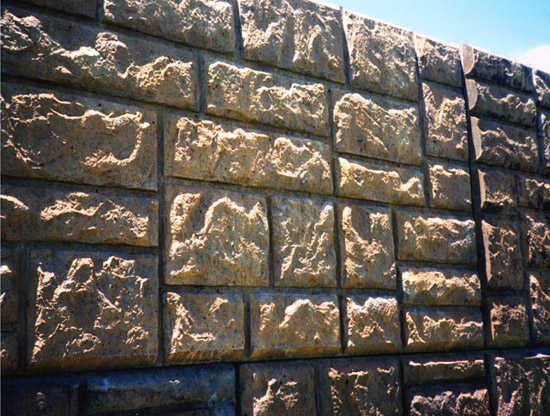

6986 Georgetown Ashlar - Bridge Island

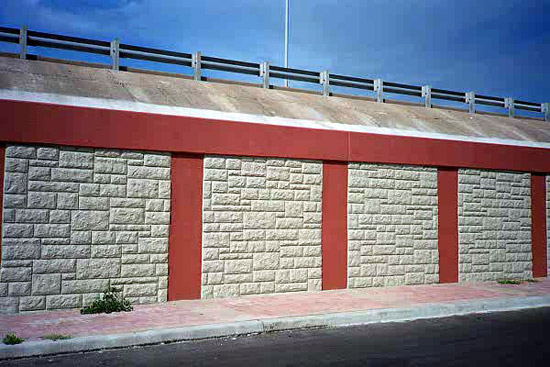

16986 Georgetown Ashlar - MSE Wall: Reinforced Earth

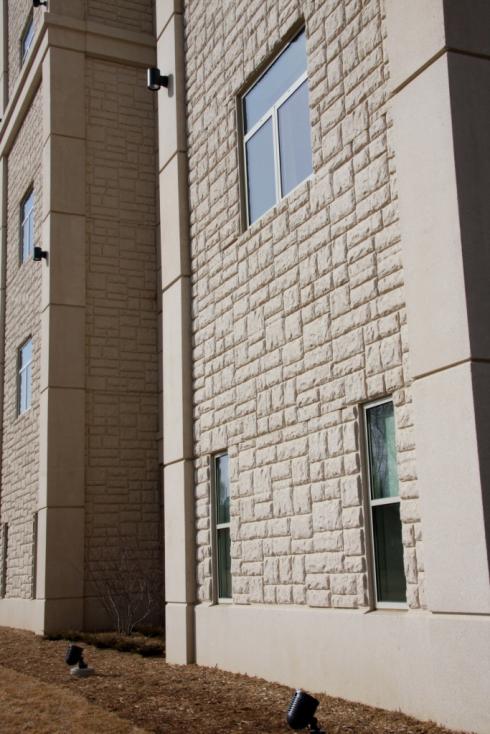

16986 Georgetown Ashlar - Sanford Children's Hospital, Sioux Falls, SD: Gage Brothers







16988LP Missouri Old Cut Ashlar
Aged Texture
2 Designs Available - A & B

16988LP

FitzLok®
Styrene - Single Use.

Max Depth:
1.50"

Block Size:
7"-34.5"W x 5"-14"H

Part Size:
106"W x 53"H

Part Coverage:
96"W x 48"H
(32 ft²)

Mortar Joints
1" Horizontal
1" Vertical

Click here for cut-sheet

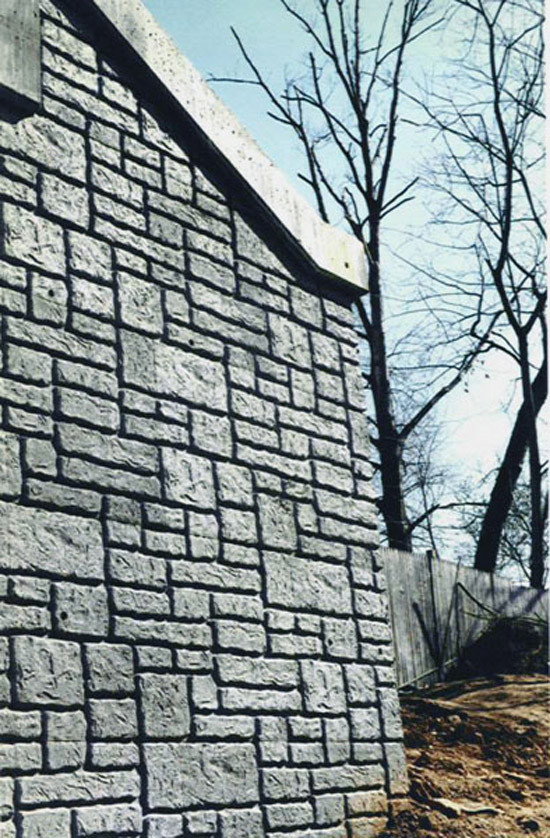

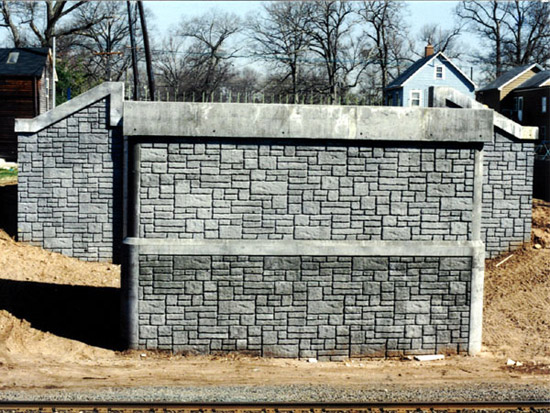

16988 Missouri Old Cut Ashlar
16988 Missouri Old Cut Ashlar

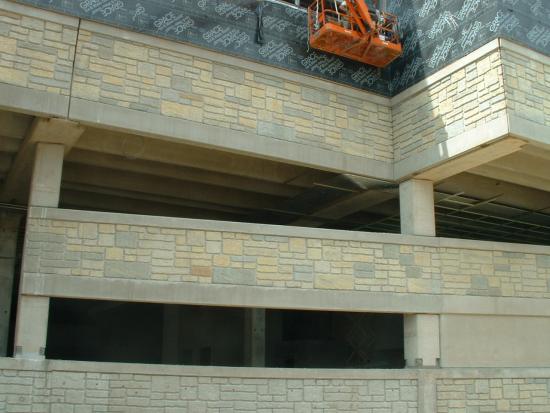

16988 Missouri Old Cut Ashlar - Cincinatti, Ohio: Kenwood







16997LP Long Island Ashlar
Aged Texture
2 Designs Available - A & B

16997A LP and 16997B LP

FitzLok®
Styrene - Single use.

Max Depth:
1.50"

Stone Sizes:
12.5"-70"W x 3"-21"H

Part Size:
120"W x 48"H

Part Coverage:
114"W x 42"H
(33 ft²)

Nominal Grout:
0.875"

Click here for cut-sheet







16999LP Georgia Ashlar
Linear Cut Ashlar Block
2 Designs Available - A & B

16999LP Georgia Ashlar

FitzLok®
Styrene - Single use.

Max Depth:
1.125"

Block Size:
7"-28"W x 3"-12"H

Part Size:
106"W x 53"H

Part Coverage:
96"W x 48"H
(32 ft²)

Mortar Joints:
0.75" Horizontal
0.75" Vertical

Click here for cut-sheet

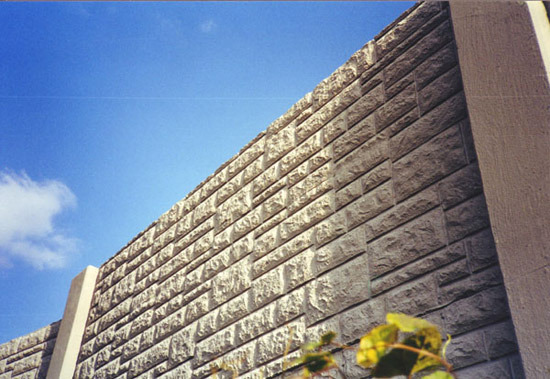

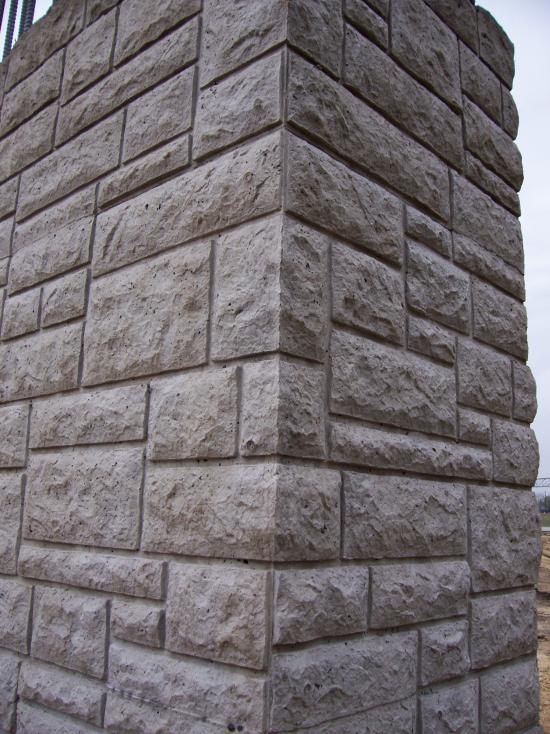

16999 Georgia Ashlar - Corner matched column
16999 Georgia Ashlar - Post & Panel Wall







17002LP Austin Ashlar
Random Rough Stacked Rock
2 Designs Available - A & B

17002LP

FitzLok®
Styrene - Single use.

Max Depth:
1.0"

Stone Sizes:
3"-16"W x 2"-14"H

Part Size:
40.375"W x 20.375"H

Part Coverage:
96"W x 48"H
(32 ft²)

Click here for cut-sheet

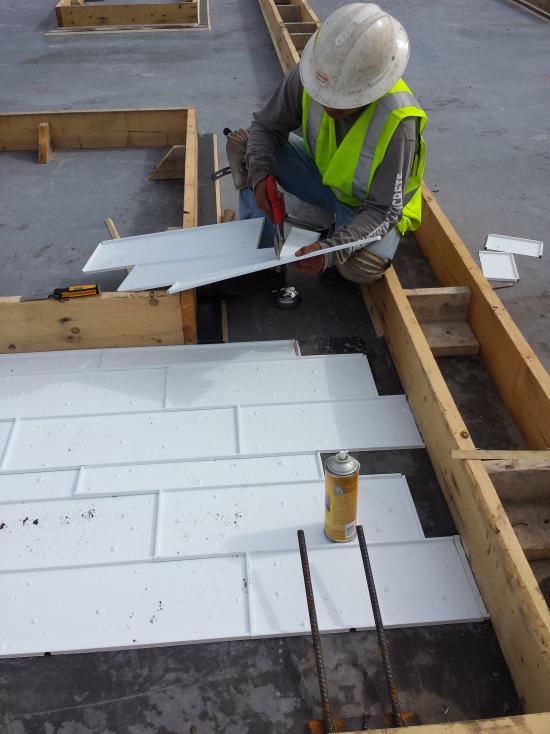

17003LP FitzLok Mankato Quarried Stone

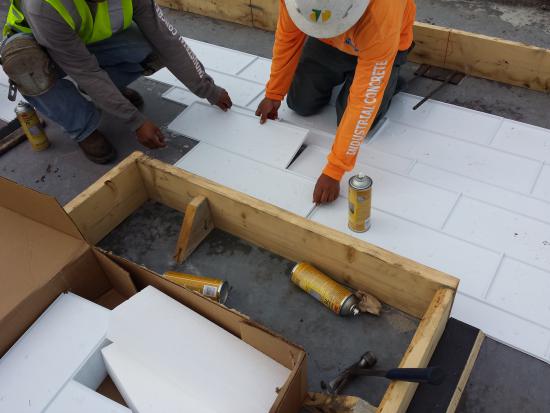

17003LP FitzLok Mankato Quarried Stone







17003LP Mankato Quarried Stone
Random Field Stone
1/3 - 2/3 Running Bond / Rake Joint

17003LP

FitzLok®
Styrene - Single use.

Max Depth:
0.375"

Stone Sizes:
23.625"W x 3.625"-9.625"H

Part Size:
112.375"W x 48.375"H

Part Coverage:
96"W x 48"H
(32 ft²)

Click here for cut-sheet

17003LP FitzLok Mankato Quarried Stone
17003LP FitzLok Mankato Quarried Stone
