Vac-U-Form™ Patterns (Stone & Rock)

Vac-U-Form™ Vacuum-Formed Plastic Formliners


Design by Pattern...


Vac-U-Form Patterns: Stone & Rock (30 Results Found)  1 > 2 >

Click to go to pattern - 16979 | 16980 | 16982 | 16983 | 16984 | 16985 | 16986 | 16989 | 16999 | 17000 | 17002 | 17004 |  17008 | 17009 | 17033

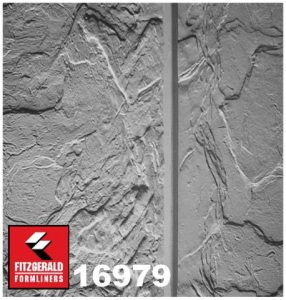

16979 Colorado Split Slate with 1" Chamfer (4x5) - 5' wide x 4'high split face panels, 0.25" deep pattern texture.

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.250"
Notes: 1" grout in center, 0.5" at perimeter, creates 5' wide x 4' high block pattern. See patterns 17912 and 16989 for variations of this pattern.

Part Size:
120"W. x 48"H.

Click here for cut-sheet

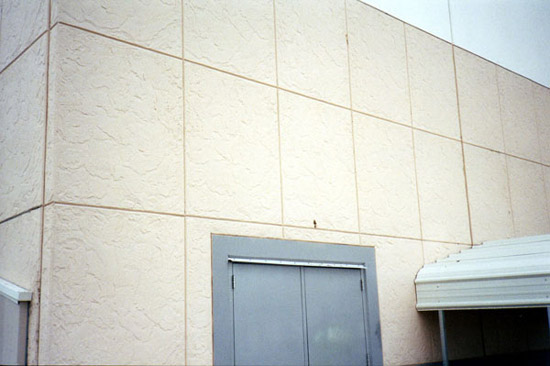

16979 Split Slate

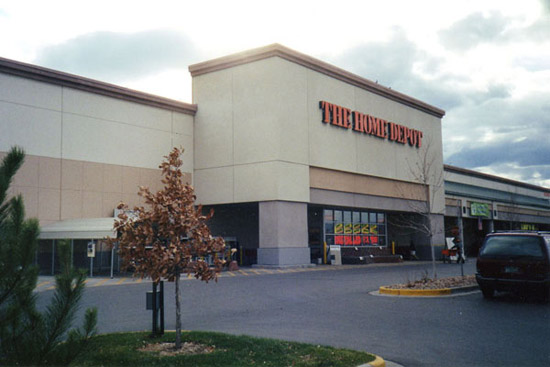

16979 Colorado Split Slate - Home Depot




16980 Yosemite Rock - Striated Rock Face, 0.75" deep

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.750"
Notes: Pattern matched all four sides, 20' urethane tool can be dammed to required length.

Part Size:
48"W. x 120"H.

Click here for cut-sheet

16980 Yosemite Rock - I-80, Lincoln, NE
16980 Yosemite Rock - El Dorado District, Placerville, CA




16982 Arizona Flagstone - Large irregular cut rock, 0.75" deep

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.750"
Stone Size: 11"-24" W x 8"-12" H
Grout Width: 1" to 2"
Notes: Match points all four sides, panels can be turned in any direction.

Part Size:
120"W. x 48"H.

Click here for cut-sheet

16982 New Hamburg Bridge, New Hamburg, NY Distributed by AH Harris




16983 1" Round Stone - 0.375" Max depth, Smooth round stones, 1" maximum.

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.375"

Part Size:
48"W. x 120" Long

Click here for cut-sheet





16984 Aged Maryland Ashlar - Ashlar stone weathered surface, 1.5" deep

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 1.500"
Stone Size: 9"-20" W x 6"-17" H
Notes: Matchpoints on all sides

Part Size:
96"W. x 48" H

Click here for cut-sheet

16984 Aged Maryland Ashlar - Texas: Hass Anderson Construction
16984 Aged Maryland Ashlar w/ Stars in Bushhammer Background - Highway US 67, Glen Rose, TX: Concho Construction
16984 Aged Maryland Ashlar - Cast in Place Bridge




16985 Indiana River Rock - Random cobble stone, 1.5" deep

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 1.500"
Stone Size: 9"-20" W x 6"-17" H
Notes: Matchpoints on all sides

Part Size:
96"W. x 48" H

Click here for cut-sheet

16985 Indiana River Rock (bottom) & 14641 Fluted Rib (top)




16986 Georgetown Ashlar - Linear cut ashlar, 1.5" deep

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 1.500"
Stone Size: 9"-29" W x 5"-11" H
Grout Width: 0.75"
Notes: See pattern 16999 for 1.125" deep Ashlar See pattern 17000 for 1" deep Ashlar See pattern 17027 for 0.75" deep Ashlar Match points on all four sides

Part Size:
120"W. x 48" H

Click here for cut-sheet

6986 Georgetown Ashlar - Bridge Island
16986 Georgetown Ashlar - MSE Wall: Reinforced Earth
16986 Georgetown Ashlar - Sanford Children's Hospital, Sioux Falls, SD: Gage Brothers




16989 Split Slate - Random pattern, 0.25" deep

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.250"
Notes: Texture only, no grouts See patterns 16979 and 17912 for variations with grouts.

Part Size:
48"W. x 120" H

Click here for cut-sheet

16989 Split Slate - Kohl's
16989 Colorado Split Slate

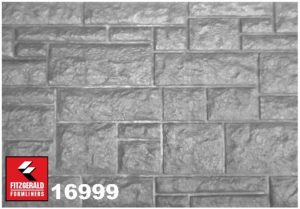

16999 Georgia Ashlar - Linear cut ashlar block, 1.125" deep

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 1.125"
Stone Size: 7"-28"W. x 3"-12"H.
Notes: Match points on all four sides

Part Size:
96"W. x 48" H

Click here for cut-sheet

16999 Georgia Ashlar - Corner matched column
16999 Georgia Ashlar - Post & Panel Wall

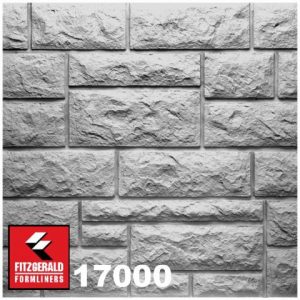

17000 Florida Ashlar - Linear cut ashlar stone, 1" deep

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 1.000"
Stone Size: 7"-28"W. x 3"-12"H.
Notes: This pattern has continuous grout at 2' high mark, it is good for barrier rails. Match points on all four sides

Part Size:
96"W. x 48" H

Click here for cut-sheet

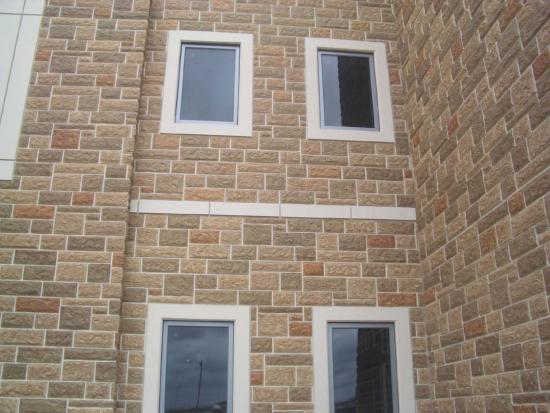

17000 Florida Ashlar - Post & Panel Wall
17000 Florida Ashlar - FLDOT RMTC Building: Haskell

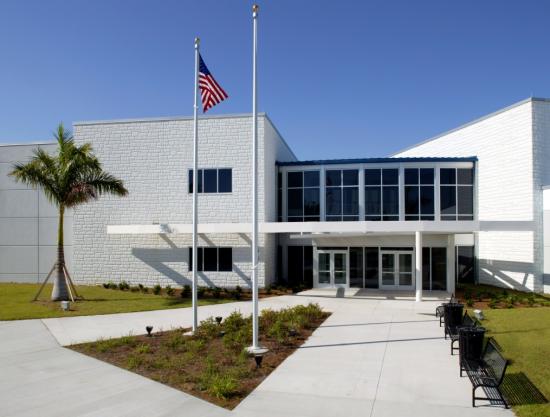

2011 TCA Tilt-Up Achievement galleryAward - Municipal Division > 17000 Florida Ashlar - Army Ready Reserve Center, Norman, OK: Korte Construction

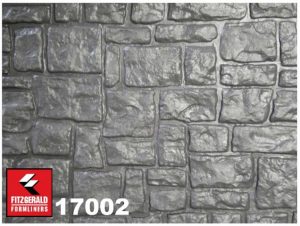

17002 Austin Ashlar - Rough cut ashlar, 1" max depth

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 1.000"
Stone Size: 3" - 16"W. x 2" - 14"H.

Part Size:
96"W. x 48" H

Click here for cut-sheet

17002 Austin Ashlar - Austin, TX
17002 Austin - Austin, TX

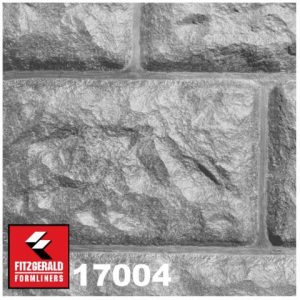

17004 Liberty Island Stone - 16"H. Course,
Heavy texture, random cut stone, 2.75" or 1.625" depths available

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 2.75" or 1.625"
Stone Size: 23.25"-71.25" W x 15.25" H
Notes: Also available in 9", 12" and 24" coursing, see patterns 17022, 17009 and  17918. Match points on all four sides.

Part Size:
17004A- 96"W. x 48"H. x 1.625" Deep

 17004B- 96"W. x 48"H. x 1.625" Deep

Only available in shallow depth

Click here for cut-sheet

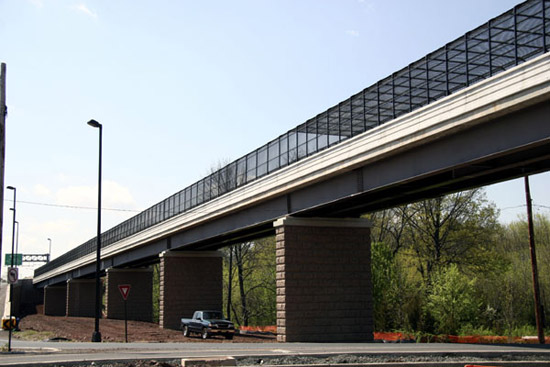

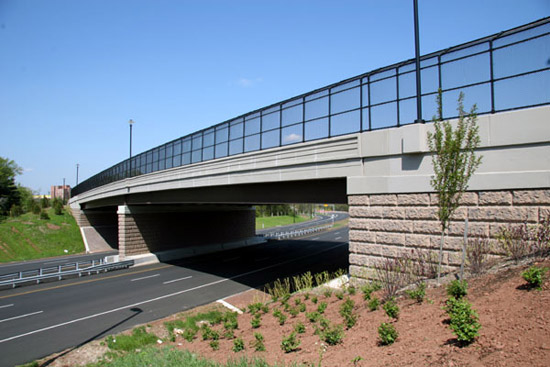

17004 Liberty Island (shallow) - Route 18 Extension - The Missing Link; Received 7 Achievement galleryAwards New Jersey DOT, Slattery Skanska, Inc and Gannett Fleming, Inc. Photo by JMS Visual Communications

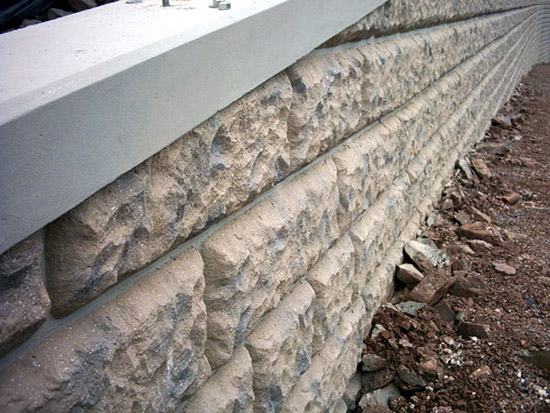

17004 Liberty Island (shallow) - Route 18 Extension - The Missing Link; Received 7 Achievement galleryAwards New Jersey DOT, Slattery Skanska, Inc and Gannett Fleming, Inc. Photo by JMS Visual Communications
17004 Liberty Island (shallow) - Route 18 Extension - The Missing Link; Received 7 Achievement galleryAwards New Jersey DOT, Slattery Skanska, Inc and Gannett Fleming, Inc. Photo by JMS Visual Communications

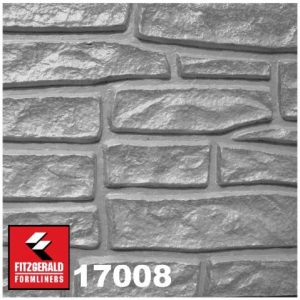

17008 Brayman Drystack - Drystack stone, 0.75" deep

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.750"
Stone Size: 6.5" - 29"W. x 1.5"- 7"H.
Notes: Match points on all four sides

Part Size:
96" W x 48" H

Click here for cut-sheet

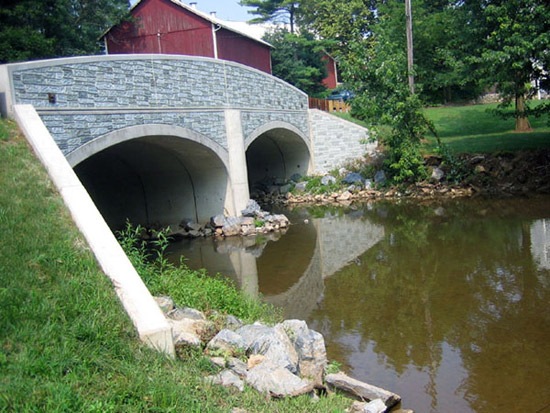

17008 Brayman Drystack - Canton, OH

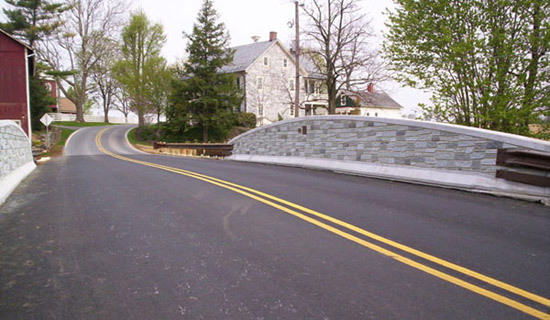

17008 Brayman Drystack - Ephrata, PA - Mar-Allen Concrete Product, Inc.
17008 Brayman Drystack- Ephrata, PA - Mar-Allen Concrete Product, Inc.

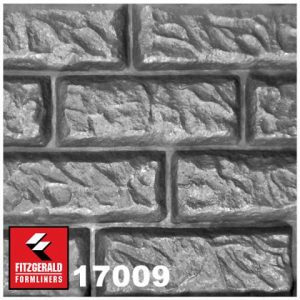

17009 Liberty Island Stone - 12"H. Course
Heavy texture, random cut stone, 1.625" & 3" deep in urethane, 3" deep in plastic

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 1.625" deep in urethane, 3" deep in plastic
Stone Size: 24" - 52" W x 11" - 11.25" H
Notes: Also available in 16" and 24" coursing, see patterns 17004 and 17918. Match points on all four sides

Part Size:
96" W x 48" H x 3" Deep

Click here for cut-sheet

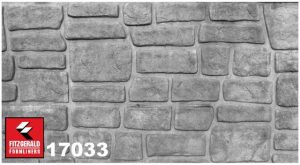

17033 Sierra Drystack (shallow) - Drystack stone, 1.25" deep

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 1.250"
Stone Size: 6" - 17"W. x 3" - 9"H.
Notes: See Pattern 17933 for a deeper version of this pattern.

Part Size:
96" W x 48" H

Click here for cut-sheet

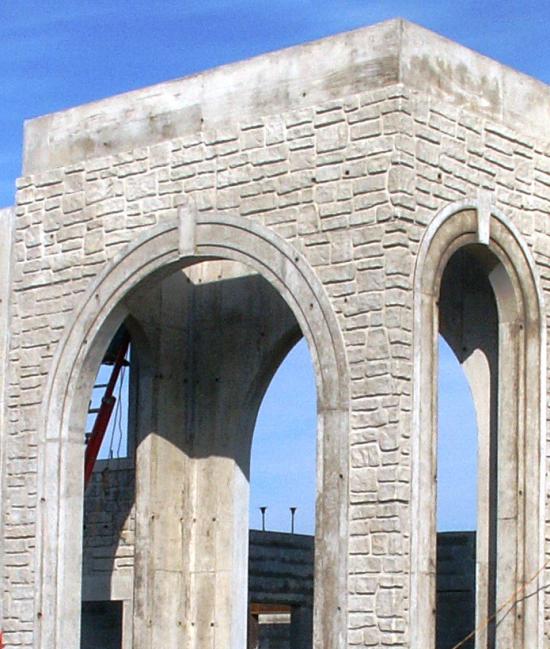

17033 Sierra Drystack (Shallow) with arch
