GrayLastic™ Patterns (Geometric)

GrayLastic™ Extended-Use Elastomeric Formliners


Design by Pattern...



GrayLastic™ Pattern: Geometric (36 Results Found)  1 > 2 >

Click to go to pattern - 14657 | 15000A | 15000B | 15001 | 15002 | 15004 | 15005A | 15014 | 15015 | 15017 | 15031 | 15036A |  15036B | 15036C | 15057 | 15058 |15200A

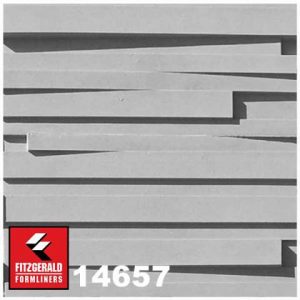

14657 Gladstone Rib - Random depth, up to 3" with sloping planes

GrayLastic
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 3.00"
On Center: 5 7/8" to 9" Wide Planks
Peak: Varying slopes within each plank

Part Size:
95.375"W. x 95.375"L.

Part A, B, C

Click here for cut-sheet

Notes:

Project name: APB Bldg - Smyrna TN - Hillwood Const
Project name: APB Bldg - Smyrna TN - Hillwood Const
Project name: APB Bldg - Smyrna TN - Hillwood Const
14657 Gladstone Rib; Miami International Tradeport; Customer- Construction Materials LTD; 2014

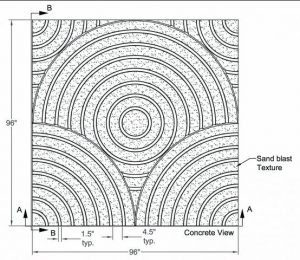

15000A Swirl

GrayLastic
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1.500"
Draft: 1.218"

Part Size:
96"W. x 96"L.

Click here for cut-sheet

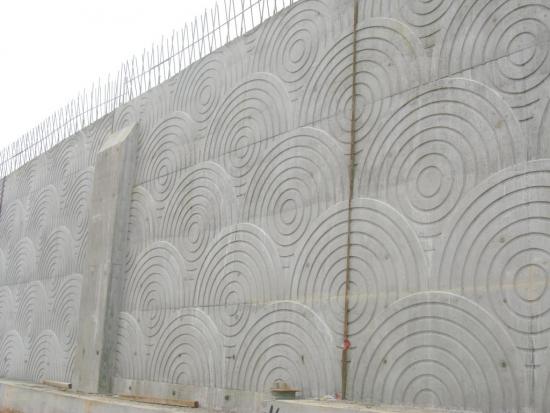

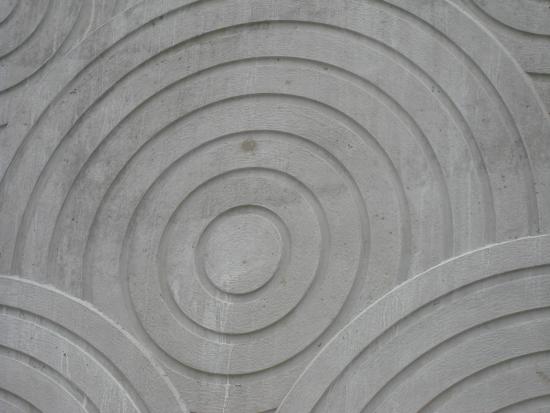

15000A Swirl - San Diego, California
15000A Swirl Close Up - San Diego, California

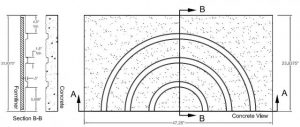

15000B Buttress Swirl

GrayLastic
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 0.625"

Part Size:
47.25" Wide x 23.9375"H.

Click here for cut-sheet





15001 Arizona Aztec - 1.5" deep graphics on smooth background

GrayLastic
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1.500"

Part Size:
120"W. x 32"H.

Part A and B

110 Wide x 32"H. each part

Click here for cut-sheet

Notes: Part A and B pattern matched panels

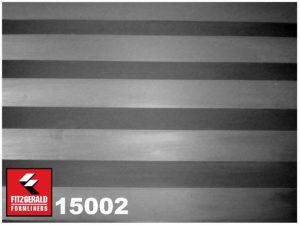

15002 6" March Lane - 1" Deep, 6" on Center

GrayLastic
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1.000"
On Center: 6.0"
Draft: 3.00"

Part Size:
48"W. x 120" Long

Flutes run in the 120" direction

Click here for cut-sheet

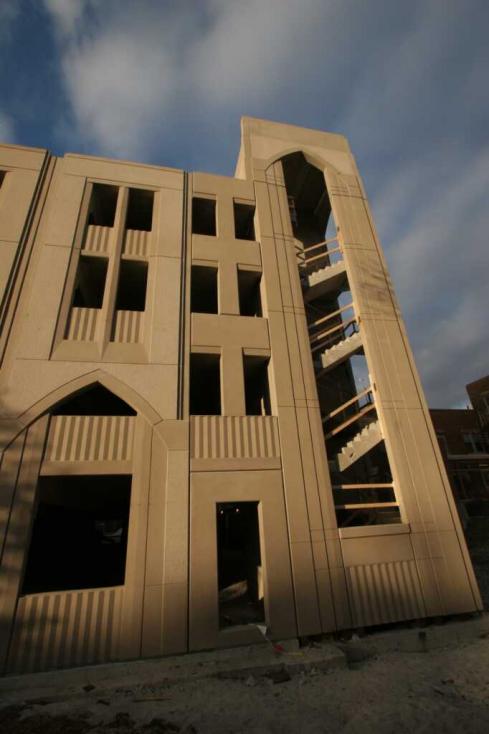

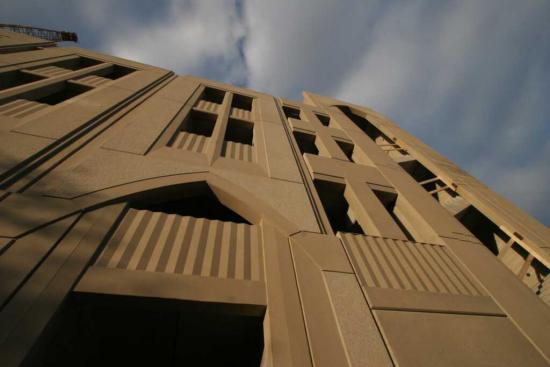

Custom 15002 March Lane - Dominican Parking Garage, Chicago, Illinois: JW Peters
Custom 15002 March Lane - Dominican Parking Garage, Chicago, Illinois: JW Peters

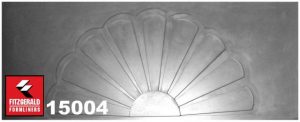

15004 Sun - 1.5" deep sun burst on smooth background

GrayLastic
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1.500"

Part Size:
104"W. x 42"H.

Click here for cut-sheet

Part Size:
This pattern was created for a barrier rail, can also be used as a wall topper and mixed and matched with other patterns.

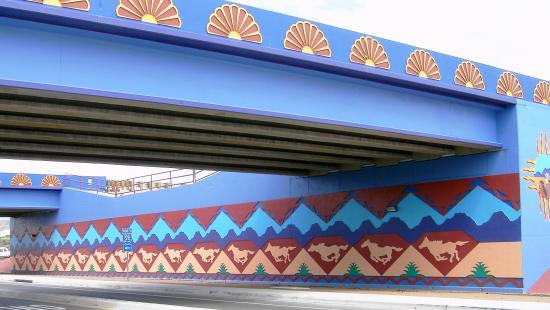

15004 Sun - Dona Ana Interchange, Las Cruces, NM
15004 Sun - Dona Ana Interchange Barrier Rail, Las Cruces, NM

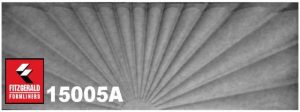

15005A Sun Burst

GrayLastic
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 2.000"

Part Size:
Part A: 117.5"W. x 24"H.

Part B: 8"W. x 56"H.

Click here for cut-sheet

Notes:
This pattern was created for a barrier rail, can also be used as a wall topper and mixed and matched with other patterns.  Pattern 15005B was created for use on pilasters.

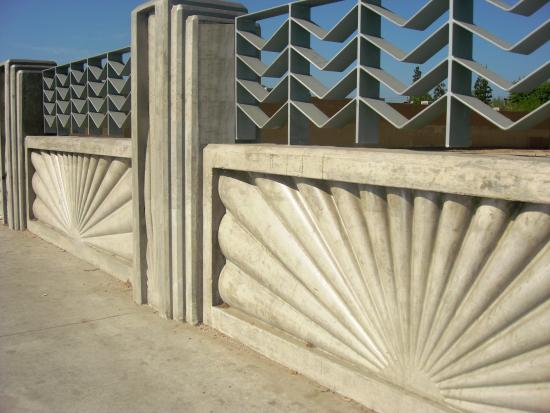

15005A Sun Burst - Canoga Park, California
15005A Sun Burst - Canoga Park, California




15014 Bridge Rail - 1.5" Deep with smooth graphics on sandblast background

GrayLastic
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1.750" to 1.5"

Part Size:
126"W. x 32"H.

Click here for cut-sheet

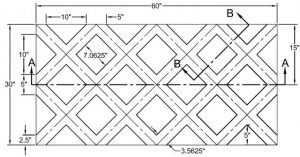

15015 Diamond Pattern - 0.5" deep

GrayLastic
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 0.500"

Part Size:
60"W. x 30"H.

Click here for cut-sheet

Notes:
Pattern matched panels

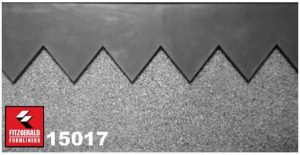

15017 16" Zig Zag

GrayLastic
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1.500"

Part Size:
96"W. x 42"H.

Click here for cut-sheet

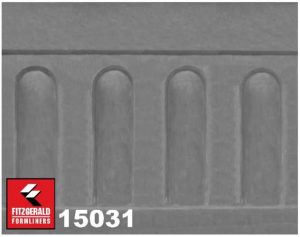

15031 Northern Barrier Rail

GrayLastic
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 2.000"

Part Size:
108"W. x 47"H.

Click here for cut-sheet

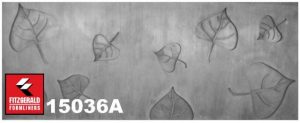

15036A Fallen Leaves A - Random Falling Leaves

GrayLastic
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1.000"

Part Size:
120"W. x 48"H.

Click here for cut-sheet

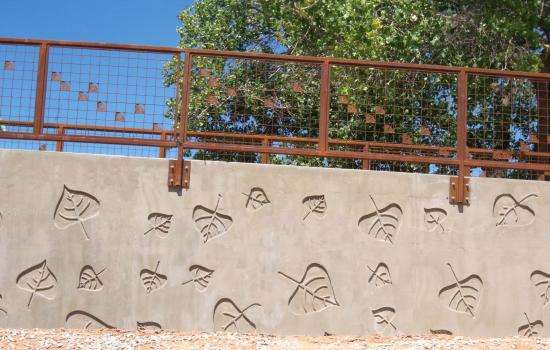

15036 Fallen Leaves - I-40 & RG Bike Trail, Albuquerque, NM: AS Horner

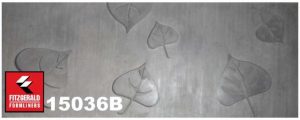

15036B Fallen Leaves B - Random Falling Leaves

GrayLastic
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1.000"

Part Size:
120"W. x 48"H.

Click here for cut-sheet

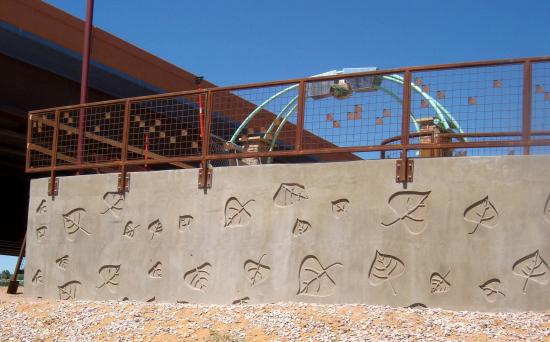

15036 Fallen Leaves - I-40 & RG Bike Trail, Albuquerque, NM: AS Horner

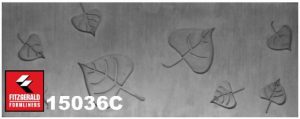

15036C Fallen Leaves C

GrayLastic
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1.000"

Part Size:
120"W. x 48"H.

Click here for cut-sheet

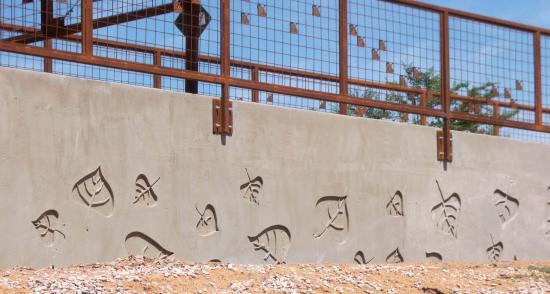

15036 Fallen Leaves - I-40 & RG Bike Trail, Albuquerque, NM: AS Horner




15057 Aloha Wave Barrier Rail - Raised Ribbon

15057

GrayLastic
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 0.75"

Draft: 10º

Part Size:
96"W. x 42"H.

Click here for cut-sheet





15058 Aloha Wave Barrier Rail - Recessed Ribbon

15058

GrayLastic
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 0.75"

Draft: 10º

Part Size:
96"W. x 42"H.

Click here for cut-sheet





15200A Rail Window Block Out C411-A

GrayLastic
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 5.000"

Part Size:
11" W x 27" H

Click here for cut-sheet
