DESIGN BY PATTERN

GrayLastic™ Pattern: Geometric (39 Results Found)  1 > 2 > 3

Click to go to pattern - 15059 | 15060 | 15061 | 15200A | 15200B | 15200C | 15252 | 15405 | 17937 | 17938A | 17939 | 17944 | 17945 | 17946 | 17947 | 17948 | 17949 | 17950 | 17951


15059 Westchester Barrier Rail -
Closed Window Barrier Rail

15059-GL Westchester Barrier Rail

GrayLastic™
Elastomeric Urethane - Up to 100 uses.

Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 2.5"

Part Size: 94.5"W. x 34"H.

Click here for cut-sheet





15060 4" x 4" Squares - 0.5" Deep

15060 4

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood.

Add 1.125" to liner thickness.

Max Depth: 0.5"

Part Size:
96"W. x 24"H.

Click here for cut-sheet





15061 Kew Gardens - 1.5" Deep Diagonal Rib

S-15061-GR Kew Gardens

GrayLastic™
Elastomeric Urethane - Up to 100 uses.

Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1.5"

Part Size:
60"W. x 30"H.

Click here for cut-sheet

15061 Kew Gardens 1
15061 Kew Gardens, 1.5" deep diagonal rib
15061 Kew Gardens 2
15061 Kew Gardens, 1.5" deep diagonal rib

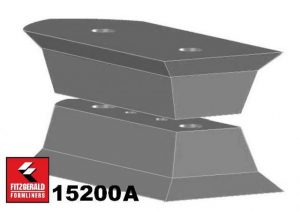

15200A Rail Window Block Out C411-A

GrayLastic™
Elastomeric Urethane - Up to 100 uses.

Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 5"

Part Size:
11" W x 27" H

Click here for cut-sheet

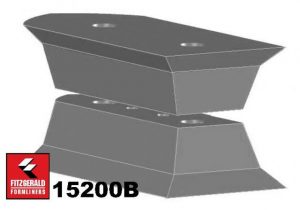

15200B Rail Window Block Out - C - 411 Window Block Out, Type B

GrayLastic™
Elastomeric Urethane - Up to 100 uses.

Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Part Size:
11"W. x 27"H.

Click here for cut-sheet





15200C Rail Window Block Out - T - 411 Window Block Out, Type C

GrayLastic™
Elastomeric Urethane - Up to 100 uses.

Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Part Size:
11"W. x 27"H.

Click here for cut-sheet

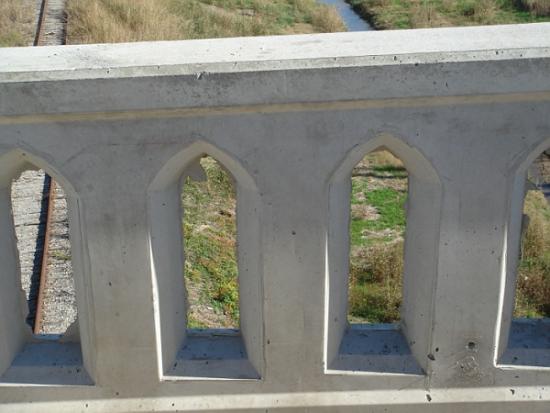

15200C Rail Window Block Out




15252 Random Flair - A1 & A2 - 1" Deep

S-15252

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood.
Add 1.125" to liner thickness.

Max Depth: 1"
Draft: 15º

Part Size:
72"W. x 144"H.

Click here for cut-sheet

15200C Rail Window Block Out




15405 Estrella Wave - 0.75" Deep

15405 Estrella Wave formliner

GrayLastic™
Elastomeric Urethane - Up to 100 uses.

Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 0.75"

Part Size:
96"W. x 48"H.

Click here for cut-sheet

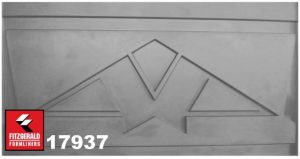

17937 Stealth Graphic

GrayLastic™
Elastomeric Urethane - Up to 100 uses.

Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1"

Part Size:
78.741"W. x 42.125"H.

Click here for cut-sheet





17938A Bridge Rail - Arch outline r= 42", 0.375" deep

GrayLastic™
Elastomeric Urethane - Up to 100 uses.

Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 0.375"

Part Size:
66"W. x 23"H.

Notes:
0.25" x 0.25" 'V' groove, square outline, 0.375" deep

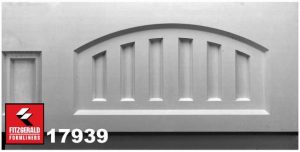

17939 Arch Bridge Rail

GrayLastic™
Elastomeric Urethane - Up to 100 uses.

Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 2"

Part Size:
66"W. x 33"H.

Click here for cut-sheet

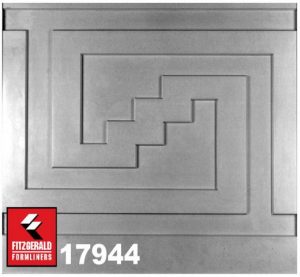

17944 Arizona Maze Design

GrayLastic™
Elastomeric Urethane - Up to 100 uses.

Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1.5"

Part Size:
120"W. x 86"H.

Click here for cut-sheet

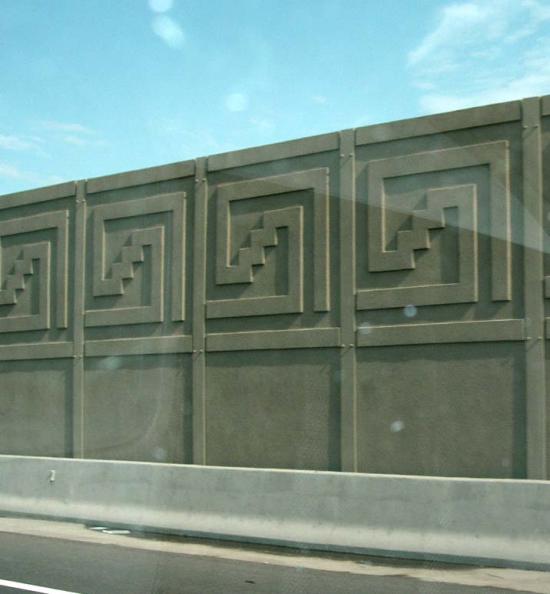

17944 Arizona Maze - US 60 Superstition Freeway, Phoenix, AZ
17944 Arizona Maze Design - Loops 202, AZ: Kiewit Sundt JV

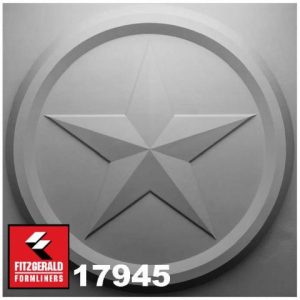

17945 Texas Star - Raised beveled star inside a radius reveal

GrayLastic™
Elastomeric Urethane - Up to 100 uses.

Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 2"

Part Size:
62"W. x 62"H.

Click here for cut-sheet

Notes:
2" depth from peak of star to back plane

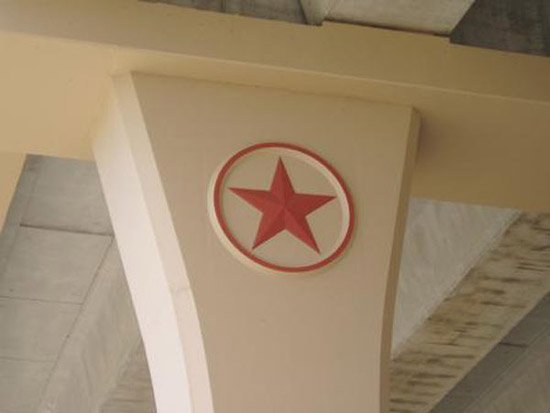

17945 Texas Star
17945 Texas Star




17946 Arizona Santan

GrayLastic™
Elastomeric Urethane - Up to 100 uses.

Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1.5"

Part Size:
120"W. x 42"H.

Click here for cut-sheet

Notes:
Bottom 10" can be dammed off if required

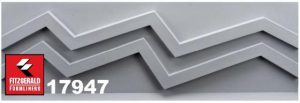

17947 Arizona Zig Zag - Double zig zag pattern

GrayLastic™
Elastomeric Urethane - Up to 100 uses.

Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1.5"

Part Size:
60"W. x 20"H.

Click here for cut-sheet





17948 Long Beach Wave

GrayLastic™
Elastomeric Urethane - Up to 100 uses.

Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Part Size:
36"W. x 36"H.
48"W. x 33"H.

Click here for cut-sheet

17948 Long Beach Wave - Long Beach Pier, CA

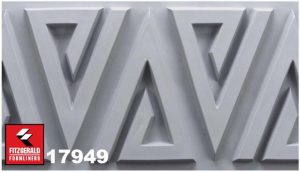

17949 Estrella Triangular Maze

GrayLastic™
Elastomeric Urethane - Up to 100 uses.

Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1.5"

Part Size:
96"W. x 19"H.

Click here for cut-sheet

14382 Fluted Rib - National Ground Intelligence Center, Charlottesville, VA

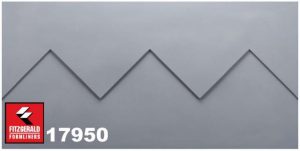

17950 Sawtooth Cap

GrayLastic™
Elastomeric Urethane - Up to 100 uses.

Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 0.75"

Part Size:
36"W. x 12"H.
72"W. x 36"H.

Click here for cut-sheet





17951 California Art Deco - Random pattern

GrayLastic™
Elastomeric Urethane - Up to 100 uses.

Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 0.5"

Part Size:
186"W. x 60"H.

Part A & B

Click here for cut-sheet

17951 California Art Deco & Sandblast Combination - I-10 Tucson: Austin Bridge & Road Constuction




17952 Tucson Pueblo Deco - Multi-level pattern

GrayLastic™
Elastomeric Urethane - Up to 100 uses.

Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 3.5"

Part Size:
36"W. x 36"H.

Click here for cut-sheet

17952 Tucson Pueblo Deco - I-10, Tucson, AZ: Granite Construction Co.
17952 Tucson Pueblo Deco - I-10, Tucson, AZ: Granite Construction Co.




17961 36" Diameter Star

GrayLastic™
Elastomeric Urethane - Up to 100 uses.

Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 2"

Part Size:
48" W x 48" H

Click here for cut-sheet





20003 Western Range Grass - Blades of grass on smooth background

20003 Western Range Grass

GrayLastic™
Elastomeric Urethane - Up to 100 uses.

Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 0.75"

Part Size:
20003A & B  106.5" Wide x 56"H.

20003-20  82" Wide x 20"H.

Click here for cut-sheet

Project: Old Mountain View-Alviso Rd Bridge Location: Sunnyvale, CA Contractor: Granite Const Pattern: 20003 Western Range Grass and custom bird
20003 Western Range Grass - Hill Galleria Parking Garage, Texas: North American Precast Company
20003 Western Range Grass - Mandarin Orient / City Center, Las Vegas, NV
20003 Western Range Grass - Hill Country Galleria Parking Garage, Texas: North American Precast Company




20007 Brea Canyon Windmill Logo

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1.500"

Part Size:
48" Wide x 48"H.

Click here for cut-sheet
