VinyLok™ Patterns (Max. Depth 1.75″ – 2.0″)

VinyLok™ Interlocking Extruded Plastic Formliners


Design by Max. Depth...


VinyLok™ Max. Depth: 1.75" - 2.0" (5 of 5 Results Found)

Click to go to pattern - 14312 | 14317 | 14443 | 14665 | 14666

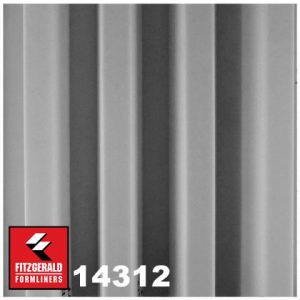

14312 Fluted Rib - 1.75" Deep, 2.75" on Center

VinyLok™
Styrene - Single use.
ABS Plastic - Up to 10 reuses.

Max Depth: 1.750"
On Center: 2.75"
Peak: 1.0"
Valley: 1.0"
Draft: 0.375"

Part Size:
2.75" Wide Coverage, lengths up to 40'

Click here for cut-sheet

14312 Fluted Rib

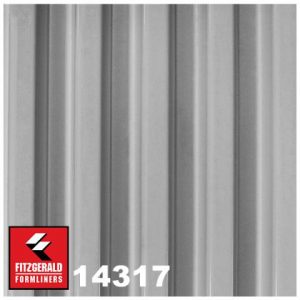

14317 Fluted Rib - 2" Deep, 4" on Center

VinyLok™
Styrene - Single use.
ABS Plastic - Up to 10 reuses.

Max Depth: 2.0"
On Center: 4"
Peak: 1.5"
Valley: 1.5"
Draft: .5"



Part Size:
4" Wide Coverage, lengths up to 40'

Click here for cut-sheet

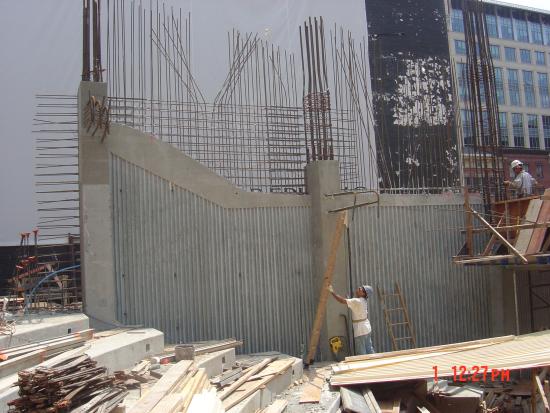

14317 Fluted Rib - Shakespeare Theatre, Washington, D.C.: Clark Construction

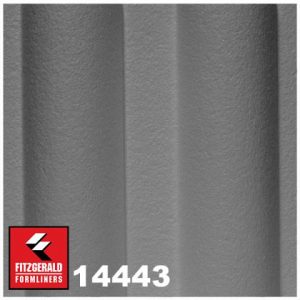

14443 Fluted Rib - 2" Deep, 6" on Center

VinyLok™
Styrene - Single use.
ABS Plastic - Up to 10 reuses.

Max Depth: 2.000"
On Center: 6"
Peak: 2" radius rib
Valley: 1.75"



Part Size:
6" Wide Coverage, lengths up to 40'

Click here for cut-sheet

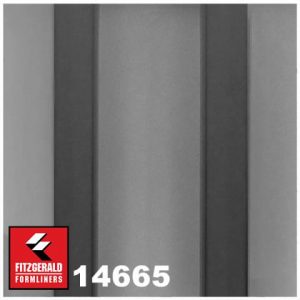

14665 Fluted Rib - 2" Deep, 6" on Center

VinyLok™
Styrene - Single use.
ABS Plastic - Up to 10 reuses.

Max Depth: 2.000"
On Center: 6.0"
Peak: 1.5"
Valley: 4.0"
Draft: 0.25"



Part Size:
6" Wide Coverage, lengths up to 40'

Click here for cut-sheet

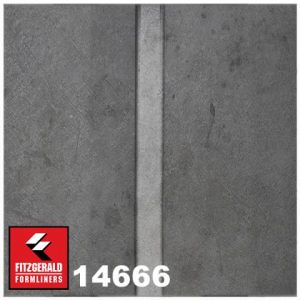

14666 Fluted Rib - 2" Deep, 12" on Center

VinyLok™
Styrene - Single use.
ABS Plastic - Up to 10 reuses.

Max Depth: 2.000"
On Center: 12.0"
Peak: 10.0"
Valley: 1.5"
Draft: 0.25"



Part Size:
12" Wide Coverage, lengths up to 40'

Click here for cut-sheet
