VinyLok™ Patterns (Max. Depth 0.5″)

VinyLok™ Interlocking Extruded Plastic Formliners



Design by Max. Depth...


VinyLok™ Max. Depth: 0.5" (14 of 14 Results Found)

Click to go to pattern - 14305 | 14313 | 14326 | 14335 | 14339 | 14361 | 14386 | 14393 | 14541 | 14543 | 14655 | 14663 | 14668 | 14817


14305 Fluted Rib - 0.5" Deep, 1.5" on Center

VinyLok™
Styrene - Single use.
ABS Plastic - Up to 10 reuses.

Max Depth: 0.5"
On Center: 1.5"
Peak: 0.5"
Valley: 0.5"
Draft: 0.25"

Part Size:
6" Wide Coverage, lengths up to 40'

Click here for cut-sheet

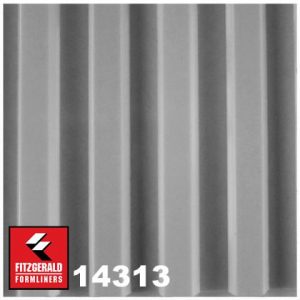

14313 Fluted Rib - 0.5" Deep, 2.625" on Center

VinyLok™
Styrene - Single use.
ABS Plastic - Up to 10 reuses.

Max Depth: 0.5"
On Center: 2.625"
Peak: 1.0625"
Valley: 1.0625"
Draft: 0.25"

Part Size:
5.25" Wide Coverage, lengths up to 40'

Click here for cut-sheet

14302 Fluted Rib - Life Touch Building, Kansas City, KS




14326 Fluted Rib - 0.5" Deep, 8.0" on Center

14326

VinyLok™
Styrene - Single use.
ABS Plastic - Up to 10 reuses.

Max Depth: 0.5"
On Center: 8"
Peak: 0.5"
Valley: 7.25"
Draft: 0.125"

Part Size:
16" Wide Coverage, lengths up to 40'

Click here for cut-sheet





14335 Fluted Rib - 0.5" Deep, 1.25" on Center

VinyLok™
Styrene - Single use.
ABS Plastic - Up to 10 reuses.

Max Depth: 0.5"
On Center: 1.25"
Peak: 0.375"
Valley: 0.3125"
Draft: 0.28125"

Part Size:
6.25" Wide Coverage, lengths up to 40'

Click here for cut-sheet





14339 Fluted Rib - 0.5" Deep, 2" on Center

VinyLok™
Styrene - Single use.
ABS Plastic - Up to 10 reuses.

Max Depth: 0.5"
On Center: 2"
Peak: 0.875"
Valley: 0.875"
Draft: 0.125"

Part Size:
6" Wide Coverage, lengths up to 40'

Click here for cut-sheet

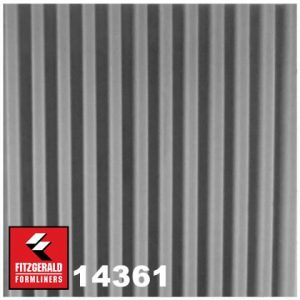

14361 Fluted Rib - 0.5" Deep, 1" on Center

VinyLok™
Styrene - Single use.
ABS Plastic - Up to 10 reuses.

Max Depth: 0.5"
On Center: 1"
Peak: 0.375"
Valley: 0.375"
Draft: 0.125"

Part Size:
6" Wide Coverage, lengths up to 40'

Click here for cut-sheet





14386 Fluted Rib - 0.5" Deep, 12" on Center

VinyLok™
Styrene - Single use.
ABS Plastic - Up to 10 reuses.

Max Depth: 0.5"
On Center: 12"
Peak: 11"
Valley: 0.5"
Draft: 0.25"

Part Size:
12" Wide Coverage, lengths up to 40'

Click here for cut-sheet

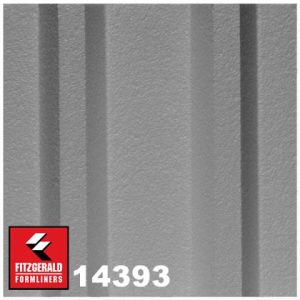

14393 Fluted Rib - 0.5" Deep, 4" on Center

VinyLok™
Styrene - Single use.
ABS Plastic - Up to 10 reuses.

Max Depth: 0.500"
On Center: 4"
Peak: 0.75"
Valley: 1.75"
Draft: 0.75"

Part Size:
8" Wide Coverage, lengths up to 40'

Click here for cut-sheet





14541 Fluted Rib - 0.5" Deep, 6" on Center

VinyLok™
Styrene - Single use.
ABS Plastic - Up to 10 reuses.

Max Depth: 0.5"
On Center: 6"
Peak: 4.5"
Valley: 0.5"
Draft: 0.5"

Part Size:
12" Wide Coverage, lengths up to 40'

Click here for cut-sheet

Notes:
0.75" flat section on one side of panel is overlapped by 4.5" flat on opposite side. Installed panel width is 48".

14541 Fluted Rib - Little Santa Monica Theatre, Santa Monica, CA
14541 Fluted Rib - Little Santa Monica Theatre, Santa Monica, CA




14543 Fluted Rib - 0.5" Deep, 6" on Center

S-14543-VL

VinyLok™
Styrene - Single use.
ABS Plastic - Up to 10 reuses.

Max Depth: 0.5"
On Center: 6"
Peak: 1"
Valley: 4.75"
Draft: 0.125"

Part Size:
12" Coverage, lengths up to 40'

Click here for cut-sheet





14655 Fluted Rib - 0.5" Deep, 2" on Center

VinyLok™
Styrene - Single use.
ABS Plastic - Up to 10 reuses.

Max Depth: 0.5"
On Center: 6"
Peak: 2"
Valley: 0.25"
Draft: 0.0625"

Part Size:
6" Wide Coverage, lengths up to 40'

Click here for cut-sheet





14663 Fluted Rib - 0.5" Deep, 1" on Center

14663

VinyLok™
Styrene - Single use.
ABS Plastic - Up to 10 reuses.

Max Depth: 0.5"
On Center: 1"
Draft: 0.5"

Part Size: 6" Coverage, lengths up to 40'

Click here for cut-sheet





14668 Fluted Rib - 0.5" Deep, 8" on Center

VinyLok™
Styrene - Single use.
ABS Plastic - Up to 10 reuses.

Max Depth: 0.5"
On Center: 8"
Valley: 7"
Draft: 0.5"

Part Size:
8" Wide Coverage, lengths up to 40'

Click here for cut-sheet

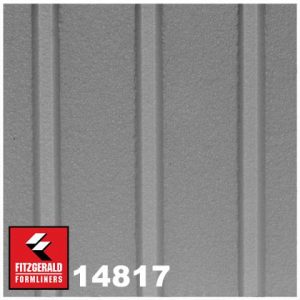

14817 Fluted Rib - 0.5" Deep, 4" on Center

VinyLok™
Styrene - Single use.
ABS Plastic - Up to 10 reuses.

Max Depth: 0.5"
On Center: 4"
Peak: 0.5"
Valley: 3"
Draft: 0.25"

Part Size:
8" Wide Coverage, lengths up to 40'

Click here for cut-sheet
