VinyLok™ Patterns (Max. Depth 1.0″)

VinyLok™ Interlocking Extruded Plastic Formliners


Design by Max. Depth...


VinyLok Max. Depth: 1.0" (13 of 13 Results Found)

Click to go to pattern - 14308 | 14321 | 14327 | 14328 | 14341 | 14346 | 14350 | 14448 | 14640 | 14704 | 14712 | 14815E |  14815F

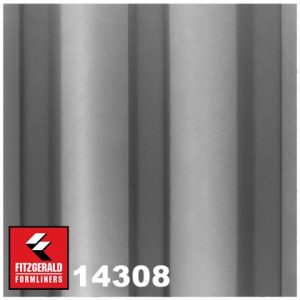

14308 Fluted Rib - 1" Deep, 4" on Center

VinyLok™
Styrene - Single use.
ABS Plastic - Up to 10 reuses.

Max Depth: 1.000"
On Center: 4"
Peak: 2.5"
Valley: 1.0"
Draft: 0.25"



Part Size:
8" Wide Coverage, lengths up to 40'

Click here for cut-sheet

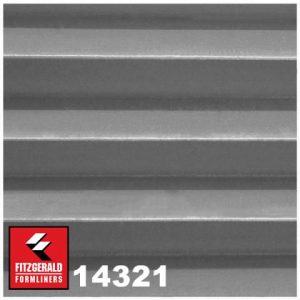

14321 Fluted Rib - 1" Deep, 1.5" on Center

VinyLok™
Styrene - Single use.
ABS Plastic - Up to 10 reuses.

Max Depth: 1.000"
On Center: 1.5"
Peak: 0"
Valley: 0"
Draft: 0.75"



Part Size:
9" Wide Coverage, lengths up to 40'

Click here for cut-sheet

Notes:
This is also available in .75" deep, pattern 14658

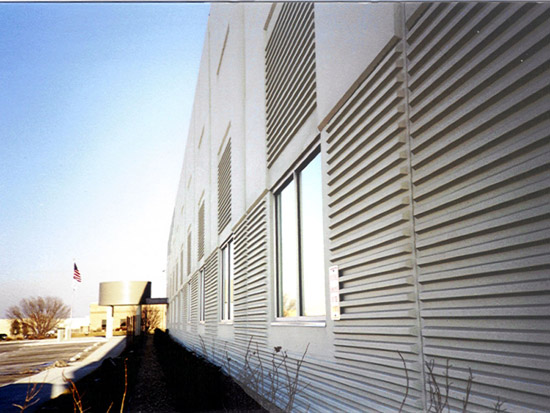

14302 Fluted Rib - Life Touch Building, Kansas City, KS




14327 Fluted Rib - 1" Deep, 4" on Center

VinyLok™
Styrene - Single use.
ABS Plastic - Up to 10 reuses.

Max Depth: 1.000"
On Center: 4"
Peak: 1.5"
Valley: 1.5"
Draft: 0.5"



Part Size:
8" Wide Coverage, lengths up to 40'

Click here for cut-sheet

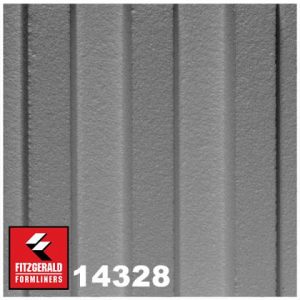

14328 Fluted Rib - 1" Deep, 4" on Center

VinyLok™
Styrene - Single use.
ABS Plastic - Up to 10 reuses.

Max Depth: 1.000"
On Center: 4"
Peak: 1.75"
Valley: 1.75"
Draft: 0.25"



Part Size:
8" Wide Coverage, lengths up to 40'

Click here for cut-sheet

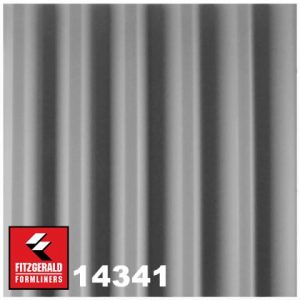

14341 Fluted Rib - 1" Deep, 2.125" on Center

VinyLok™
Styrene - Single use.
ABS Plastic - Up to 10 reuses.

Max Depth: 1.000"
On Center: 2.125"
Peak: 0.5"
Valley: 0.5"
Draft: 0.5625"



Part Size:
6.375" Wide Coverage, lengths up to 40'

Click here for cut-sheet

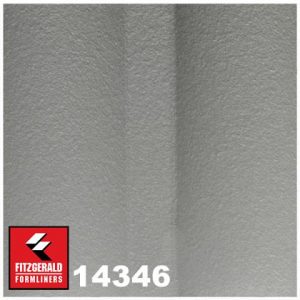

14346 Fluted Rib - 1" Deep, 8" on Center

VinyLok™
Styrene - Single use.
ABS Plastic - Up to 10 reuses.

Max Depth: 1.000"
On Center: 8.0"
Peak: 5° radius
Valley: 2.0"



Part Size:
8" Wide Coverage, lengths up to 40'

Click here for cut-sheet

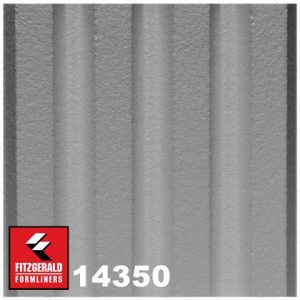

14350 Fluted Rib - 1" Deep, 3" on Center

VinyLok™
Styrene - Single use.
ABS Plastic - Up to 10 reuses.

Max Depth: 1.000"
On Center: 3.000"
Peak: 1.5"
Valley: 0.5"
Draft: 0.5"

Part Size:
6" Wide Coverage, lengths up to 40'

Click here for cut-sheet

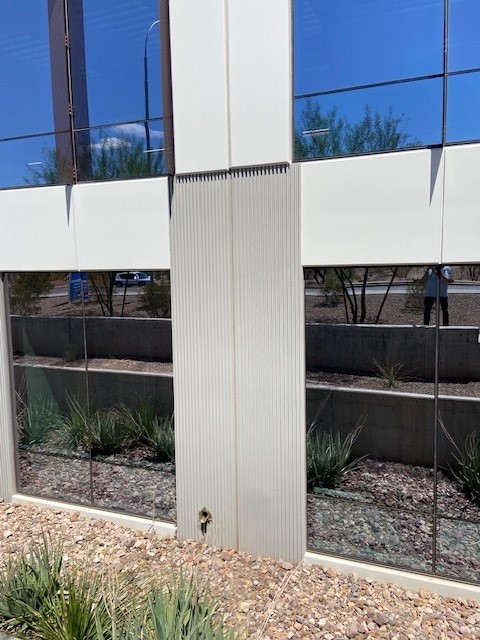

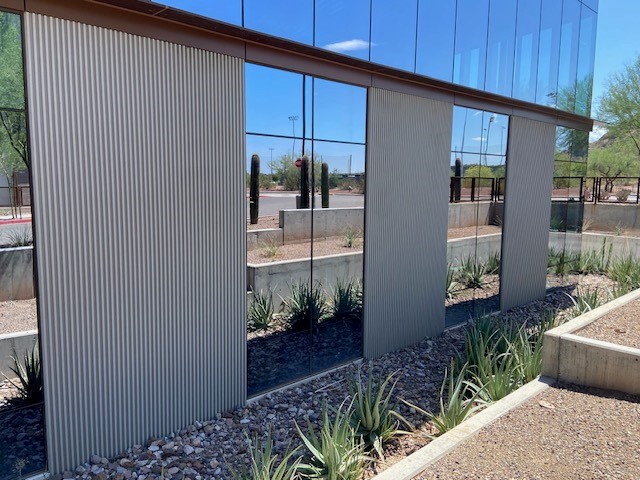

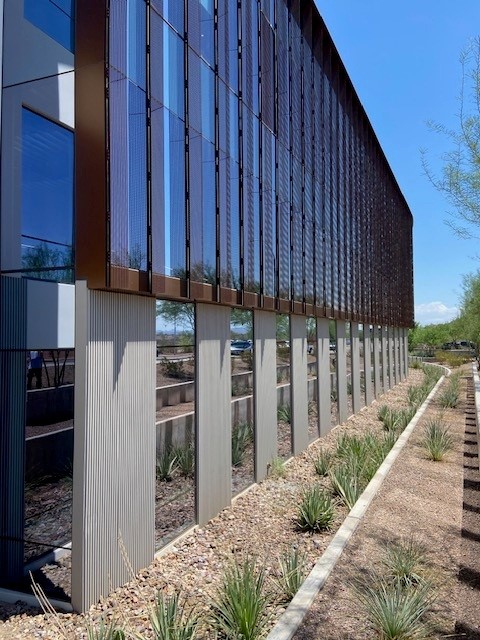

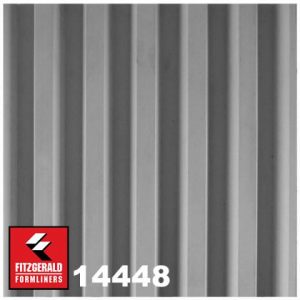

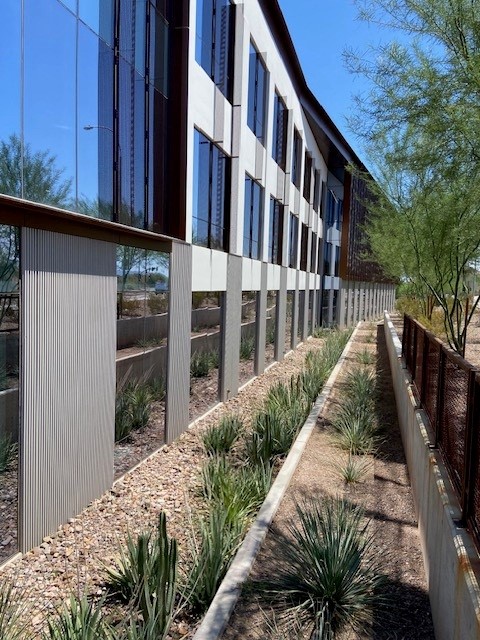

14448 Fluted Rib - 1" Deep, 2" on Center

VinyLok™
Styrene - Single use.
ABS Plastic - Up to 10 reuses.

Max Depth: 1.000"
On Center: 2.000"
Peak: 0.75"
Valley: 0.75"
Draft: 0.25"

Part Size:
6" Wide Coverage, lengths up to 40'

Click here for cut-sheet

Notes:
For a 0.75" Deep, 2" on Center, see pattern 14304





14640 Fluted Rib - 1" Deep, 4.75" on Center

VinyLok™
Styrene - Single use.
ABS Plastic - Up to 10 reuses.

Max Depth: 1.000"
On Center: 4.75"
Peak: 2.0"
Valley: 2.0"
Draft: 0.375"

Part Size:
9.5" Wide Coverage, lengths up to 40'

Click here for cut-sheet

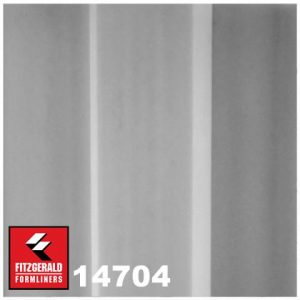

14704 Fluted Rib - 1" Deep, 7.2" on Center

VinyLok™
Styrene - Single use.
ABS Plastic - Up to 10 reuses.

Max Depth: 1.000"
On Center: 7.2"
Peak: 3.1"
Valley: 3.1"
Draft: 0.5"

Part Size:
7.2" Wide Coverage, lengths up to 40'

Click here for cut-sheet

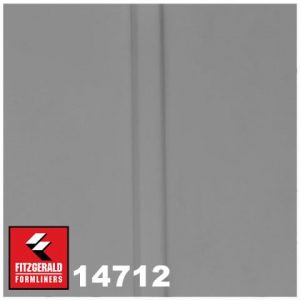

14712 Fluted Rib - 1" Deep, 8" on Center

VinyLok™
Styrene - Single use.
ABS Plastic - Up to 10 reuses.

Max Depth: 1.000"
On Center: 8"
Peak: 0.875"
Valley: 7.0"
Draft: 0.1875"

Part Size:
8" Wide Coverage, lengths up to 40'

Click here for cut-sheet

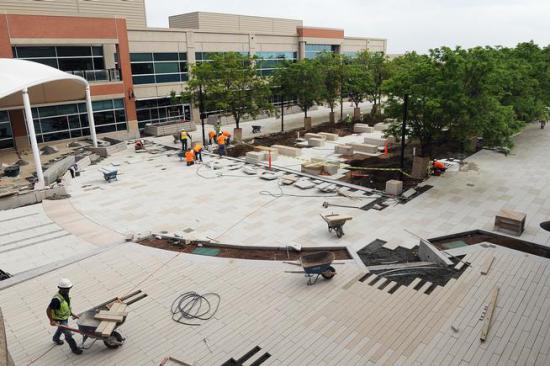

14712 VL Lakewood Civic Center, Lakewood, CO Newstrom Davis Construction Photo Denver Post

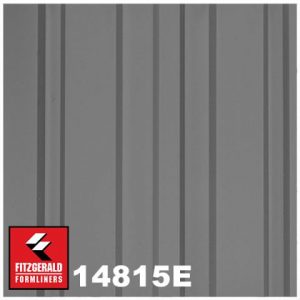

14815E Random Rib (Fluted Rib)- 1" deep

VinyLok™
Styrene - Single use.
ABS Plastic - Up to 10 reuses.

Max Depth: 1.000"

Part Size:
9" Wide Coverage, lengths up to 40'

Click here for cut-sheet

14815E, 14815F Manetti Shrem Museum of Art, UC Davis, Davis, CA
Manetti Shrem Museum of Art, UC Davis, Davis, CA
14815E, 14815F Manetti Shrem Museum of Art, UC Davis, Davis, CA
Manetti Shrem Museum of Art, Davis, CA
14815E, 14815F Manetti Shrem Museum of Art, UC Davis, Davis, CA
Manetti Shrem Museum of Art, Davis, CA

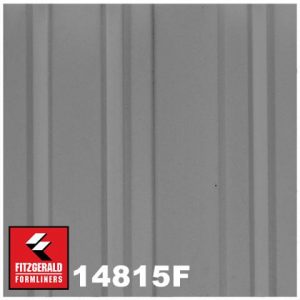

14815F Random Rib (Fluted Rib)- 1" deep

VinyLok™
Styrene - Single use.
ABS Plastic - Up to 10 reuses.

Max Depth: 1.000"

Part Size:
9" Wide Coverage, lengths up to 40'

Click here for cut-sheet

14815E, 14815F Manetti Shrem Museum of Art, UC Davis, Davis, CA
Manetti Shrem Museum of Art,Davis, CA
Manetti Shrem Museum of Art, Davis, CA
Manetti Shrem Museum of Art, Davis, CA
Manetti Shrem Museum of Art, Davis, CA
