GrayLastic™ Patterns (Stone & Rock) 3

GrayLastic™ Extended-Use Elastomeric Formliners

DESIGN BY PATTERN

GrayLastic™ Pattern: Stone & Rock (69 Results Found) 1 >  2 >  3 > 4 > 5

Click to go to pattern - 17032 | 17033 | 17034 | 17035 | 17036 | 17037 | 17038 | 17050 | 17051 | 17066 | 17910 | 17911 | 17915 | 17916 | 17917 | 17918

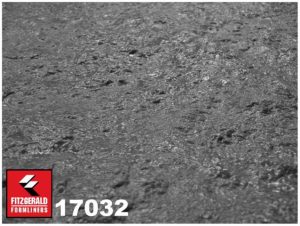

17032 Light Granite - Light Random Rock Texture, 0.375" deep

GrayLastic
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 0.375"

Part Size:
96" W x 48" H

Click here for cut-sheet





17033 Sierra Drystack (shallow) - Drystack stone, 1.25" deep

GrayLastic
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1.250"
Stone Size: 6" - 17"W. x 3" - 9"H.
Notes: See Pattern 17933 for a deeper version of this pattern.

Part Size:
288" W x 48" H

Click here for cut-sheet

17033 Sierra Drystack (Shallow) with arch




17034 Liberty Island Stone 1.625" Depth, 14.5"H. Course - Random Cut Stone, Heavy Texture Face

GrayLastic
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth:1.625"
Stone Size: 12" - 36" W x 14.5" H
Grout Width: 0.75"

Part Size:
60" W x 30.5" H

Click here for cut-sheet

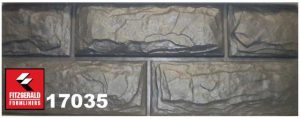

17035 Large Cut Stone, 18"H. course - Random stacked field stone

GrayLastic
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 4.750"
Stone Size: 48" W x 17" H

Part Size:
96" W x 36" H

Click here for cut-sheet

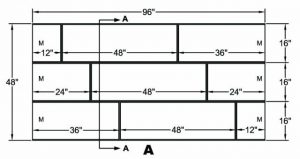

17036 Liberty Island Stone 2" Depth, 16"H. Course - Random Cut Stone, Heavy Texture Face

GrayLastic
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 2.000"
Stone Size: 24" - 48" W x 16" H
Grout Width: 0.75"

Part Size:
96" W x 48" H

Click here for cut-sheet

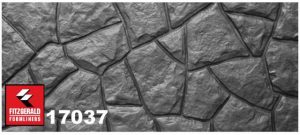

17037 Mt. Hood Stone - 1.625" deep Random Stone

GrayLastic
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1.750"
Stone Size: 9.5" - 27.5" W x 12" - 30" H

Part Size:
120" W x 48" H

Click here for cut-sheet

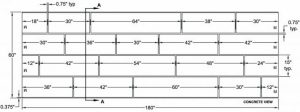

17038 Rough Cut Stone 3" Deep, 14.25"H. Course - Random Field Stone

GrayLastic
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 3.000"
Stone Size: 30" - 60" W x 14.25" H
Grout Width: 0.75"

Part Size:
180" W x 60" H

Click here for cut-sheet

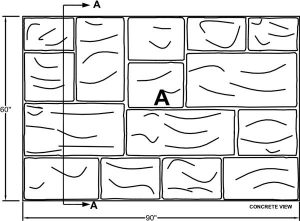

17050 Ontario Ashlar - Linear Cut Ashlar Block

GrayLastic
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1.50"
Stone Size: 13-33" W 9-19" H
Grout Width: 0.75"

Part Size:
90"W x 60" H

Click here for cut-sheet

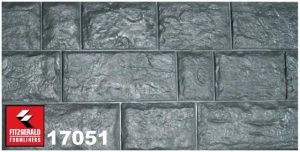

17051 Liberty Island Stone 1.5" Depth, 16"H. Course - Random cut stone, heavy texture face

GrayLastic
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1.500"
Stone Size: 12"-36" W x 16" H
Grout Width: 0.375"

Part Size:
192" W x 48" H

Click here for cut-sheet


17066 Kentucky Ashlar - Linear Cut Ashlar Stone

GrayLastic
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1.000"
Stone Size: 5.75"-24" W 2.5"- 9" H
Grout Width: 0.5"

Part Size:
96" W x 48" H

Click here for cut-sheet


17910 Antietam Drystack - Random rough stacked rock, 2" deep

GrayLastic
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 2.000"
Stone Size: 6"-24" W x 3"-9" H
Notes:
Urethane pattern can be dammed at 4', 8', 16' and 24' and maintain match points.

Part Size:
288" W x 48" H

Click here for cut-sheet

17910 Antietam Drystack- Pennsylvania: Contech Bridge
17910 Antietam Drystack - Retaining Wall
17910 Antietam Drystack - Terra Lago

17911 San Diego Dry Stack - Random stacked field stone, 1.5" deep

GrayLastic
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1.5" for urethane; 1.375" for plastic
Stone Size: 8"-33" W x 3"-9" H
Notes:
Urethane pattern can be dammed at 8', 16' and 24' and maintain match points.

Part Size:
288" W x 48" H

Click here for cut-sheet

17911 San Diego Drystack - Marquette, MI: Contech Bridge
17911 San Diego Drystack - Rail Runner, Santa Fe, NM: HNTB
17911 San Diego Drystack - Woodman Rd., Colorado Springs, CO: Edward Kraemer & Sons / The Reinforced Earth Co.

17915 Petaluma Fieldstone - Random rough stacked rock, 1.5" Deep

GrayLastic
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1.500"
Stone Size: 2.5" - 18" W x 2" - 12" H
Notes:
Match points top to bottom/side to side

Part Size:
96" W x 48" H

Click here for cut-sheet

Project: Holman Hwy Round About Location: Monterey, CA Contractor: Granite Const Pattern: 17915 Petaluma Fieldstone “Modified”
NDOT 3433 Barrier- Granite Const, Reno NV #17915 Petaluma Fieldstone
NDOT 3433 Barrier- Granite Const, Reno NV #17915 Petaluma Fieldstone
NDOT 3433 Barrier- Granite Const, Reno NV #17915 Petaluma Fieldstone

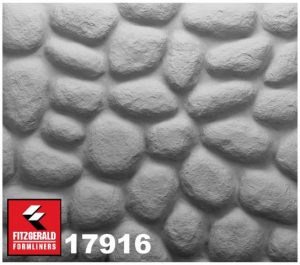

17916 Colorado River Rock (2.25" depth) - Random cobble stone, 2.25" deep

GrayLastic
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 2.250"
Stone Size: 4" - 10"
Notes:
Match top to bottom and side to side, see pattern 16985 for 1.5" depth, slightly larger stones

Part Size:
144" W x 48" H

Click here for cut-sheet

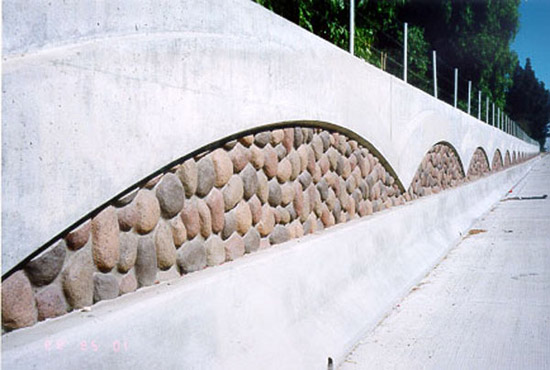

17916 Colorado River Rock - California

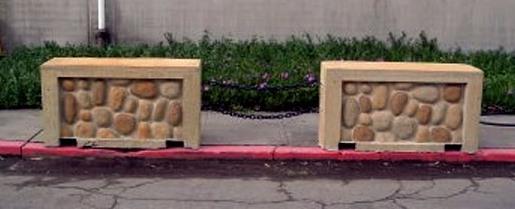

17916 Colorado River Rock - Barrier Wall Blocks

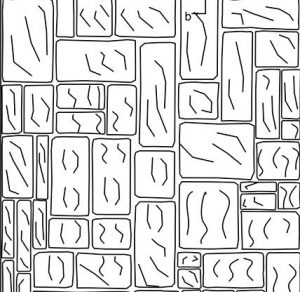

17917 Lone Star Ashlar - Random Cut Stone, Heavy Texture Face

GrayLastic
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1.620"

Part Size:
Part A: 58.5" W x 144" H

Part B: 82.5" W x 144" H

Part C: 40.5" W x 144" H

Part D: 28.5" W x 144" H

Click here for cut-sheet


17918 Liberty Island Modified, 24"H. Course - Heavy texture, random cut stone, 2.75" deep.

GrayLastic
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 2.75"
Stone Size: 24"- 72"W. x 24"H. Coursing
Notes:
Also available in 9", 12" and 16" coursing, see patterns 17022, 17009 and  17004. Match points on all four sides.

Part Size:
Part B and C

96" W x 48" H

Click here for cut-sheet

17918 Liberty Island Stone - Retaining Wall, Illinois: Newfield Construction
17918 Liberty Island Stone - Retaining Wall, Illinois: Newfield Construction
