DESIGN BY PATTERN

GrayLastic™ Pattern: Stone & Rock (68 Results Found) 1 >  2 > 3 > 4 > 5

Click to go to pattern - 16999 | 17000 | 17002 | 17003 | 17004 | 17007 | 17009 | 17014 | 17024 | 17026 | 17027 | 17028 | 17030 | 17031


16999 Georgia Ashlar - Linear cut ashlar block, 1.125" deep

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1.125"
Stone Size: 7"-28"W. x 3"-12"H.
Notes:
Match points on all four sides

Part Size:
96" W X 48" H
192" W x 48" H

Click here for cut-sheet

16999 Georgia Ashlar - Corner matched column
16999 Georgia Ashlar - Post & Panel Wall




17000 Florida Ashlar - Linear cut ashlar stone, 1" deep

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1.000"
Stone Size: 7"-28"W. x 3"-12"H.
Notes:
This pattern has continuous grout at 2' high mark, it is good for barrier rails. Match points on all four sides

Part Size:
192" W x 48" H

Click here for cut-sheet

17000 Florida Ashlar - Post & Panel Wall
17000 Florida Ashlar - FLDOT RMTC Building: Haskell
2011 TCA Tilt-Up Achievement galleryAward - Municipal Division > 17000 Florida Ashlar - Army Ready Reserve Center, Norman, OK: Korte Construction




17002 Austin Ashlar - Rough cut ashlar, 1" max depth

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1.000"
Stone Size: 3" - 16"W. x 2" - 14"H.

Part Size:
Part A: 96" W x 48" H
Part B: 120"W x 60" H with full stones around panel perimeter

Click here for cut-sheet

17002 Austin Ashlar - Austin, TX
17002 Austin - Austin, TX




17003 Mankato Stone - Random Field Stone, 0.313" deep

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 0.313"
Stone Size: 8" -48" W x 4" - 10" H
Grout Width: 0.5"

Part Size:
96" W x 46" H

Click here for cut-sheet





17004 Liberty Island Stone,16"H. Course - Heavy texture, random cut stone, 2.75" or 1.625" depths available

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 2.75" or 1.625"
Stone Size: 23.25"-71.25" W x 15.25" H
Notes:
Also available in 9", 12" and 24" coursing, see patterns 17022, 17009 and  17918. Match points on all four sides.

Part Size:
96" W x 48" H,
Available in two depths, 2.75"or 1.625"

Click here for cut-sheet

17004 Liberty Island (shallow) - Route 18 Extension - The Missing Link; Received 7 Achievement galleryAwards New Jersey DOT, Slattery Skanska, Inc and Gannett Fleming, Inc. Photo by JMS Visual Communications
17004 Liberty Island (shallow) - Route 18 Extension - The Missing Link; Received 7 Achievement galleryAwards New Jersey DOT, Slattery Skanska, Inc and Gannett Fleming, Inc. Photo by JMS Visual Communications
17004 Liberty Island (shallow) - Route 18 Extension - The Missing Link; Received 7 Achievement galleryAwards New Jersey DOT, Slattery Skanska, Inc and Gannett Fleming, Inc. Photo by JMS Visual Communications

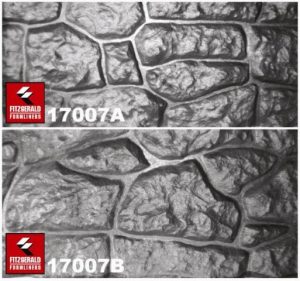

17007 Random Field Stone - Large Heavy Textured Stones, 3.75" deep

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 3.750"
Stone Size: 10" - 44"

Part Size:
Part A and B

120" W x 48" H

Click here for cut-sheet





17009 Liberty Island Stone, 12"H. Course - Heavy texture, random cut stone, 1.625" & 3" deep in urethane, 3" deep in plastic

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1.625" deep in urethane, 3" deep in plastic
Stone Size: 24" - 52" W x 11" - 11.25" H
Notes:
Also available in 16" and 24" coursing, see patterns 17004 and 17918. Match points on all four sides

Part Size:
96" W x 48" H x 1.625" deep
96" W x 48" H x 3" deep

Click here for cut-sheet

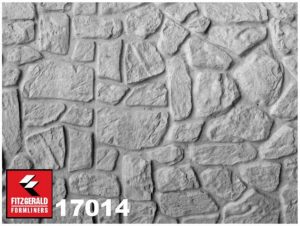

17014 Colonial Stone - Random Field Stone, 1.5" deep

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1.500"
Stone Size: 8" - 24" W x 4" - 20" H
Grout Width: 0.25" - 1.5"

Part Size:
Part A: 144" W x 66" H

Part B: 144" W x 56.125" H

Part C: 60" W x 60" H

Click here for cut-sheet

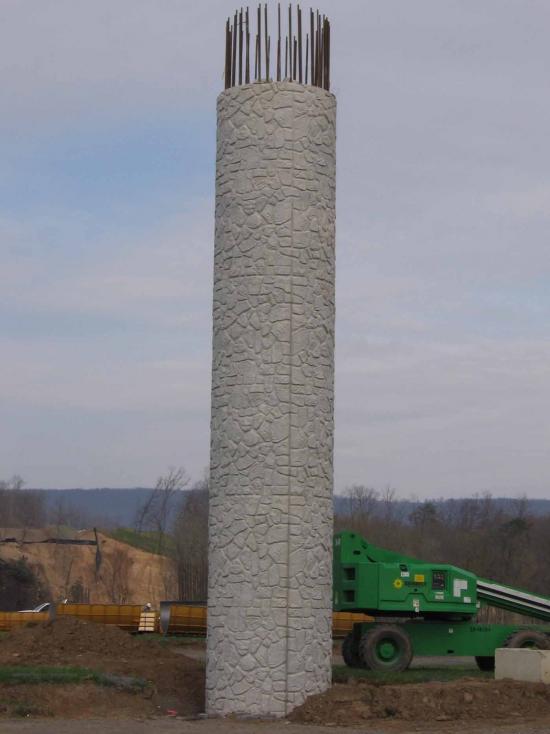

17014 Colonial Stone on round column
17014 Colonial Stone- Round Column formwork with liner




17024 Random Cut Stone, 9"H. Course - Heavy texture, random cut stone, 2.5" deep

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 2.500"
Stone Size: 12"-54" W x 9" H

Part Size:
96" W x 45" H

Click here for cut-sheet





17026 Random Cut Stone, 24"H. Course - Heavy texture, random cut stone

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 3.0"
Stone Size: 30" - 42" W x 24" H
Grout Width: .75" - 1.125"

Part Size:
96" W x 48" H

Click here for cut-sheet

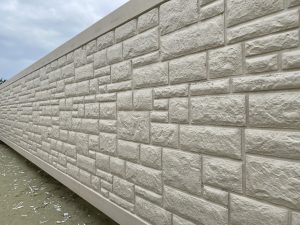

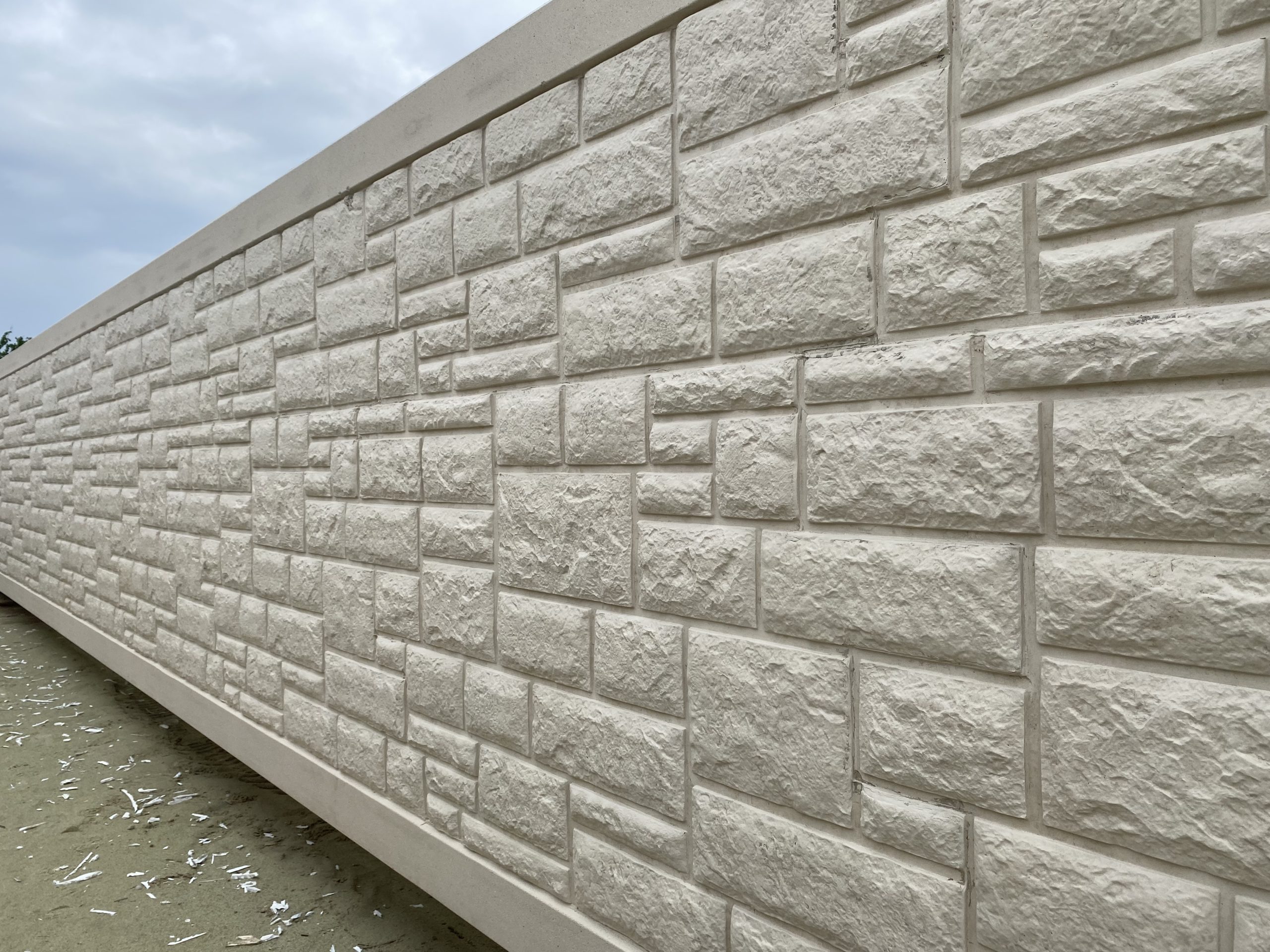

17027 3/4" Ashlar - Linear Cut Ashlar Block

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 0.750"
Stone Size: 7"- 28" W
3"- 12" H

Part Size:
220.5 W X 48" H

Click here for cut-sheet

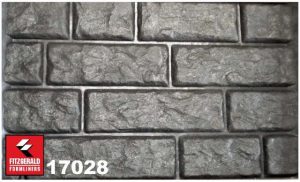

17028 Random Cut Stone,14.75"H. Course - Heavy texture, random cut stone, 3" deep

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 3.000"
Stone Size: 14.75" H x 28" to 72" W

Part Size:
96" W x 44.25" H

Click here for cut-sheet

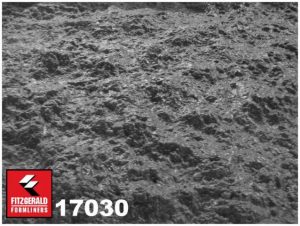

17030 Heavy Granite - Heavy Random Rock Texture, 1" deep

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1.000"
Notes:
Match points on all four sides

Part Size:
96" W x 48" H96" W x 48" H

Click here for cut-sheet

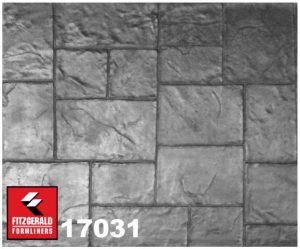

17031 Ashlar Slate - Ashlar 0.25" deep

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 0.250"
Grout Width: 0.25"

Part Size:
102.75" W x 35.1875" H

Click here for cut-sheet
