Vac-U-Form Patterns: Fluted Rib (40 Results Found)  1 > 2 > 3 >

Click to go to pattern - 14301 | 14302 | 14304 | 14305 | 14306 | 14307 | 14309 | 14310 | 14315 | 14316 | 14317 | 14319 |  14321 | 14322 | 14323


14301 Fluted Rib - 1.5" deep, 3.5" on center

Vac-U-Form
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 1.500"
Center: 3.5"
Peak: 1"
Valley: 1.5"
Draft: 0.50"

Part Size:
45.5" Wide x 120"
Long - Backing Strips Required

Click here for cut-sheet





14302 Fluted Rib - 1.5" deep, 4" on center

Vac-U-Form
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 1.500"
Center: 4.0"
Peak: 1.5"
Valley: 1.5"
Draft: 0.50"

Part Size:
48.0" Wide x 96"
48.0" Wide x 120"
Vac-u-form requires backing strips

Click here for cut-sheet

14302 Fluted Rib - Life Touch Building, Kansas City, KS




14304 Fluted Rib - 0.75" deep, 2" on center

Vac-U-Form
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.750"
Center: 2.0"
Peak: 0.75"
Valley: 0.75"
Draft: 0.25"
Notes: For a 1" deep, 2" on center, see pattern 14448

Part Size:
48.0" Wide x 96"
48.0" Wide x 120"

Click here for cut-sheet

14304 Fluted Rib - Techridge Park & Ride Facility, Austin, TX: Mitchell Enterprises, Ltd.
14304 Fluted Rib - Kenworth Overland Park, KS: Sedalco Construction
14304 Fluted Rib - Kenworth Overland Park, KS: Sedalco Construction




14305 Fluted Rib - 0.5" deep, 1.5" on center

Vac-U-Form
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.500"
Center: 1.5"
Peak: 0.5"
Valley: 0.5"
Draft: 0.25"

Part Size:
48.0" Wide x 120"

Click here for cut-sheet

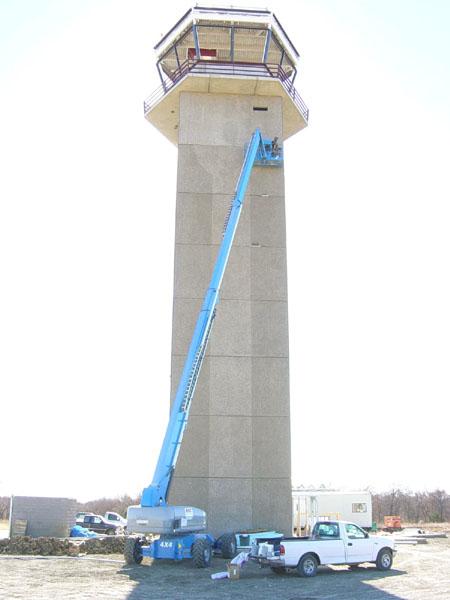

14305 Fluted Rib - Arlington Air Traffic Control Tower, Arlington, TX: Enterprise Precast
14305 Fluted Rib - Arlington Air Traffic Control Tower, Arlington, TX: Enterprise Precast




14306 Fluted Rib - 1.5" deep, 3" on center

Vac-U-Form
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 1.500"
Center: 3.0"
Peak: 1.0"
Valley: 1.0"
Draft: 0.50"

Part Size:
48.0" Wide x 120"
Backing Strips Required

Click here for cut-sheet





14307 Fluted Rib - 0.75" deep, 4" on center

Vac-U-Form
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.750"
Center: 4.0"
Peak: 2.5"
Valley: 1.0"
Draft: 0.25"

Part Size:
48.0" Wide x 120"

Click here for cut-sheet

14307 VL DFW Global Logistics Centre completed Dec 2013 Dist CMC Inc




14309 Fluted Rib - 0.75" deep, 3" on center

Vac-U-Form
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.750"
Center: 3.0"
Peak: 1.75"
Valley: 0.75"
Draft: 0.25"

Part Size:
48.0" Wide x 96"
48.0" Wide x 120"

Click here for cut-sheet

14307 VL DFW Global Logistics Centre completed Dec 2013 Dist CMC Inc




14310 Fluted Rib - 0.75" deep, 1.5" on center

Vac-U-Form
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.750"
Center: 1.5"
Peak: 0.50"
Valley: 0.50"
Draft: 0.25"

Part Size:
48.0" Wide x 120"

Click here for cut-sheet

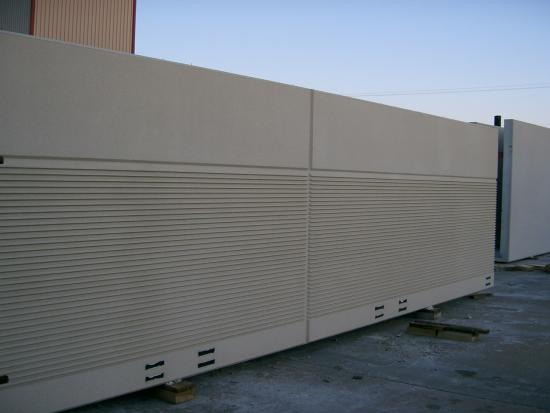

14310 Fluted Rib - Bridge Pier
14310 Fluted Rib - Blue Cross Blue Shield Building, Dallas, TX




14315 Fluted Rib - 0.75" deep, 3.0" on center

Vac-U-Form
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.750"
Center: 3.0"
Peak: 1.0"
Valley: 1.0"
Draft: 0.50"

Part Size:
48.0" Wide x 120"

Click here for cut-sheet





14316 Fluted Rib - Vac-U-Form 1.0" deep, 2" on center GrayLastic / VinyLok 0.75" deep, 2" on center

Vac-U-Form
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.750"
Center: 2.0"
Peak: 0.50"
Valley: 0.75"
Draft: 0.375"

Part Size:
48.0" Wide x 120"

Click here for cut-sheet

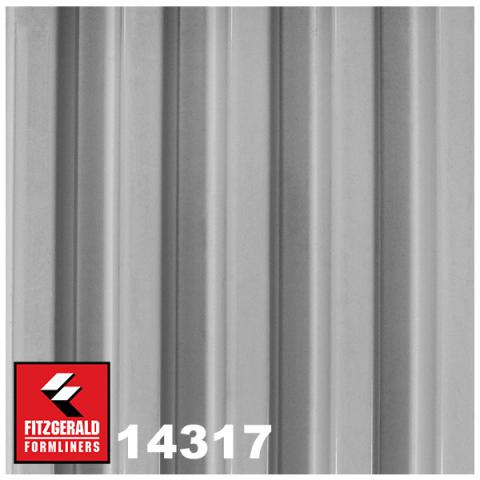

14317 Fluted Rib - 2" deep, 4" on center

Vac-U-Form
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 2.000"
Center: 4.0"
Peak: 1.50"
Valley: 1.50"
Draft: 0.50"

Part Size:
48.0" Wide x 120"
Backing Strips Required

Click here for cut-sheet

14317 Fluted Rib - Shakespeare Theatre, Washington, D.C.: Clark Construction

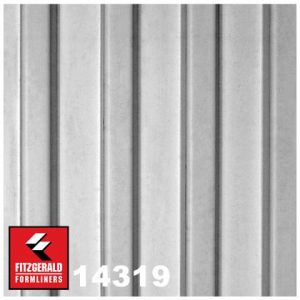

14319 Fluted Rib - 1.25" deep, 4" on center

Vac-U-Form
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 1.250"
Center: 4.0"
Peak: 1.25"
Valley: 2.25"
Draft: 0.250"

Part Size:
48.0" Wide x 120"
Backing Strips Required

Click here for cut-sheet

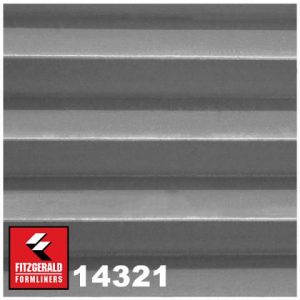

14321 Fluted Rib - 1.0" deep, 1.5" on center

Vac-U-Form
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 1.000"
Center: 1.5"
Draft: 0.750"
Notes: This is also available in .75" deep, pattern 14658

Part Size:
48.0" Wide x 120"

Click here for cut-sheet





14322 Fluted Rib - 1.5" deep, 5.0" on center

Vac-U-Form
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 1.500"
Center: 5.0"
Peak: 1.50"
Valley: 2.50"
Draft: 0.50"

Part Size:
45.0" Wide x 120" Long
Backing Strips Required

Click here for cut-sheet

14322 Fluted Rib with 17944 Arizona Maze - US Route 60, Tempe, AZ: CS Construction




14323 Fluted Rib - 1.5" deep, 6.0" on center

Vac-U-Form
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 1.500"
Center: 6.0"
Peak: 3.50"
Valley: 1.25"
Draft: 0.625"

Part Size:
48.0" Wide x 120" Long

Click here for cut-sheet

14323 Fluted Rib - Flowermound, TX: Potter Concrete
14323 Fluted Rib - Flowermound, TX: Potter Concrete
