Vac-U-Form™ Patterns (Fluted Rib)

Vac-U-Form™ Vacuum-Formed Plastic Formliners


Design by Pattern...


Vac-U-Form Patterns: Fluted Rib (48 Results Found) 1 > 2 > 3

Click to go to pattern - 14324 | 14327 | 14331 | 14333 | 14335 | 14339 | 14342 | 14347 | 14352B | 14353 | 14380 | 14381 | 14382 | 14383 | 14384 |  14386 | 14388 | 14389


14324 Fluted Rib - 0.75" Deep, 3" on Center

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.750"
On Center: 3.0"
Peak: 0.75"
Valley: 1.75"
Draft: 0.25"

Part Size:
48"W. x 120"L.

Click here for cut-sheet





14327 Fluted Rib - 1" Deep, 4" on Center

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 1.000"
On Center: 4.0"
Peak: 1.5"
Valley: 1.5"
Draft: 0.50"

Part Size:
48"W. x 96"L.

Click here for cut-sheet

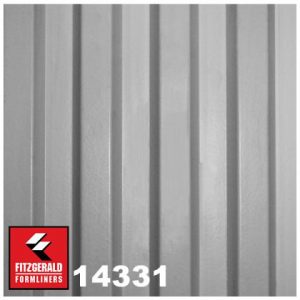

14331 Fluted Rib - 0.75" Deep, 4" on Center

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.750"
On Center: 4.0"
Peak: 1.5"
Valley: 1.5"
Draft: 0.50"

Part Size:
48"W. x 96"L.

Click here for cut-sheet





14333 Fluted Rib - 0.75" Deep, 4" on Center

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 1.5"
On Center: 5.0"
Peak: 1.5"
Valley: 2.5"
Draft: 0.5"

Part Size:
45"W. x 96"L.

Click here for cut-sheet

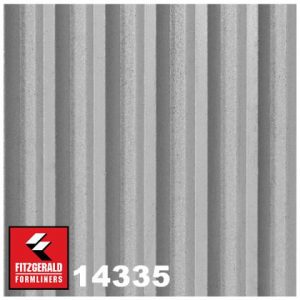

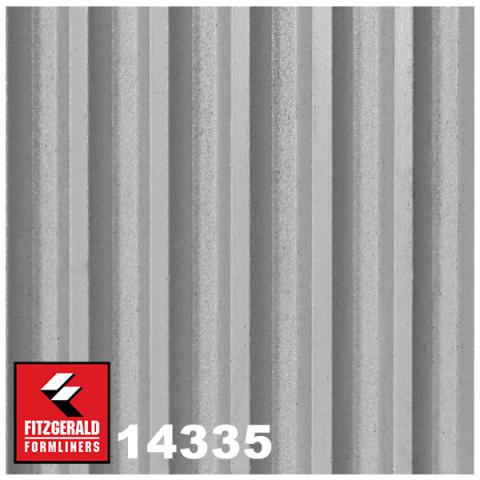

14335 Fluted Rib - 0.5" Deep, 1.25" on Center

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.500"
On Center: 1.25"
Peak: 0.375"
Valley: 0.3125"
Draft: 0.28125"

Part Size:
48"W. x 120"L.

Click here for cut-sheet

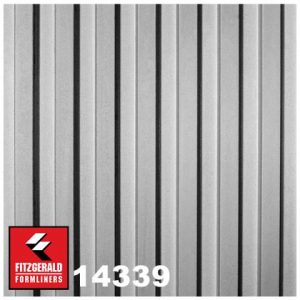

14339 Fluted Rib - 0.5" Deep, 2" on Center

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.500"
On Center: 2.0"
Peak: 0.875"
Valley: 0.875"
Draft: 0.125"

Part Size:
48"W. x 120"L.

Click here for cut-sheet

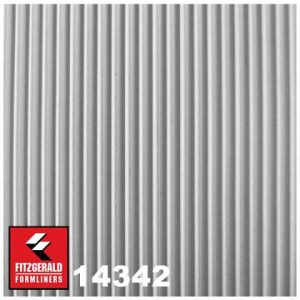

14342 Fluted Rib - 0.25" Deep, 0.5" on Center

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.250"
On Center: 0.50"

Part Size:
48"W. x 120"L.

Click here for cut-sheet

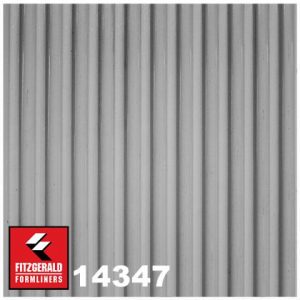

14347 Fluted Rib - 0.5" Deep, 1.5" on Center

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.500"
On Center: 1.5"
Peak: 0.75"
Valley: 0.75"
Notes: See patterns 14342 for .25" deep and pattern 17943 for .75" deep

Part Size:
48"W. x 120"L.

Click here for cut-sheet





14352B Fluted Rib - 0.75" Deep, 4" on Center

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.75"
On Center: 4.0"
Peak: 1.125"
Valley: 1.50"
Draft: 0.50" & 0.875"

Part Size:
48"W. x 120"H.

Click here for cut-sheet





14353 Fluted Rib - 0.5" Deep Random Fluted Rib

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.5"
On Center: 4", 6", and 8"
Peak: o.5"
Valley: 2.5", 4.5", and 6.5"
Draft: 0.5"

Part Size:
120"W. x 36"H.

Click here for cut-sheet

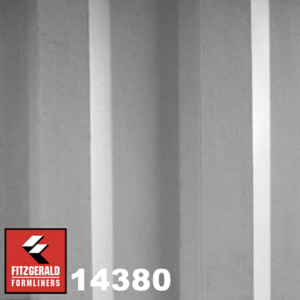

14380 Fluted Rib - 0.75" Deep, 6" on Center

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.750"
On Center: 6.0"
Peak: 2.50"
Valley: 2.0"
Draft: 0.75"

Part Size:
48"W. x 120"L.
Backing strips required.

Click here for cut-sheet

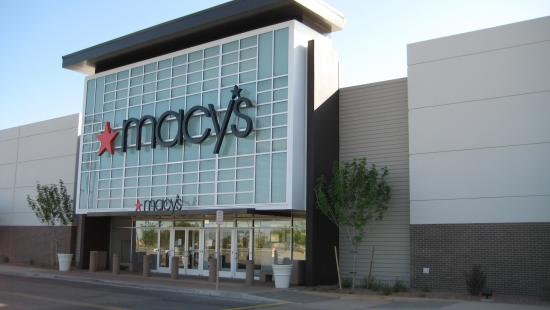

14380 Fluted Rib & 11301 BrickMaster Combination - Macy's, Gilbert, AZ: Riggs Contracting

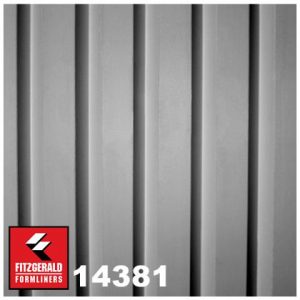

14381 Fluted Rib - 0.75" Deep, 3.428" on Center

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.750"
On Center: 3.428"
Peak: triangle peak
Valley: 2.0"
Draft: 0.75"

Part Size:
48"W. x 120"L.
Backing strips required.

Click here for cut-sheet





14382 Fluted Rib - 0.5"-1" deep random reveals

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 1.000"
On Center: 0.5" - 1" deep random reveals
Peak: 0.875" to 2.875" Random
Valley: 0.875" to 3" Random

Part Size:
48"W. x 120"L.
Backing strips required.

Click here for cut-sheet

14382 Fluted Rib - National Ground Intelligence Center, Charlottesville, VA




14383 Fluted Rib - 0.25" Deep, high/low with 0.125" Steps

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.250"
On Center: 4.0"
Peak: 1.0" - 1.50" random
Valley: 1.0" - 1.50" random

Part Size:
48"W. x 119.625"L.
Backing strips required.

Click here for cut-sheet

14383 Texas Two Step - Trinity Hospital




14384 Fluted Rib ADOT Rustication - 1.5" Deep Random Rib

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 1.500"
On Center: 4.0"
Peak: 2" to 7" Random
Valley: 1.5" - 5.5" Random
Draft: 0.250"

Part Size:
48"W. x 120"L.
Backing strips required.

Click here for cut-sheet

14384 Fluted Rib - Mountain Scene Barrier, Twin Buttes, AZ: Austin Bridge

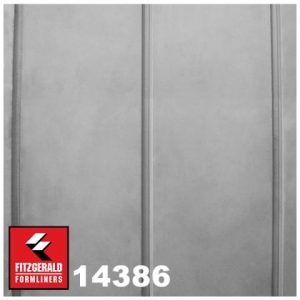

14386 Fluted Rib - 0.5" Deep, 12" on Center

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.500"
On Center: 12.0"
Peak: 11.0"
Valley: 0.50"
Draft: 0.250"

Part Size:
14386A: 48"W. x 96"L.

Click here for cut-sheet

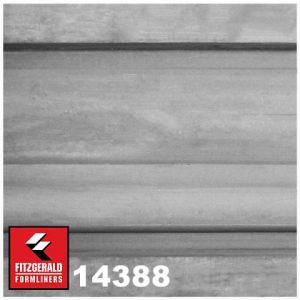

14388 Crown Molding (Fluted Rib)

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.750"
On Center: N/A
Peak: N/A
Valley: N/A
Draft: N/A

Part Size:
120"W. x 8.5625"H.

Click here for cut-sheet

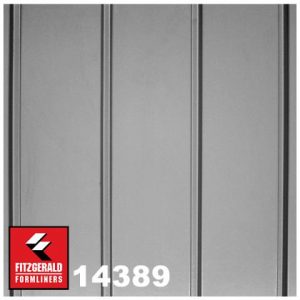

14389 Fluted Rib - 0.75" Deep, 6" on Center

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.750"
On Center: 6.0", 6.5"
Peak: 0.50"
Valley: 5.25"
Draft: 0.125"

Part Size:
120"W. x 48.875"L.

Click here for cut-sheet
