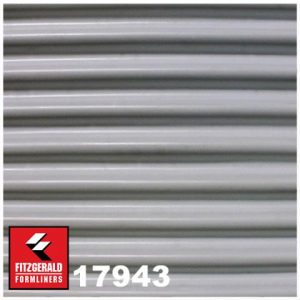

17943

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.750"
On Center: 2.0"
Peak: 0.50" radius
Notes: See pattern 14347 for .5" deep; pattern 14342 for .25" deep.

Part Size:
48.0"W. x 96"L.
48.0"W. x 120"L.

Click here for cut-sheet

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 0.750"
On Center: 2.0"
Peak: 0.5" radius

Part Size:
48"W. x 120"L.

Click here for cut-sheet

Notes:
See pattern 14347 for .5" deep; pattern 14342 for .25" deep.
