Vac-U-Form™ Patterns (Fluted Rib)

Vac-U-Form™ Vacuum-Formed Plastic Formliners - Page 3 of 3

DESIGN BY PATTERN

Vac-U-Form Patterns: Fluted Rib (55 Results Found) 1 > 2 > 3

Click to go to pattern - 14391 | 14394 | 14396 | 14415A | 14415B | 14420 | 14448 | 14494A | 14494B | 14495 | 14496 | 14541 | 14542 | 14653 | 14655 | 14656 | 14674 | 14675 | 14699 | 17934 | 17943

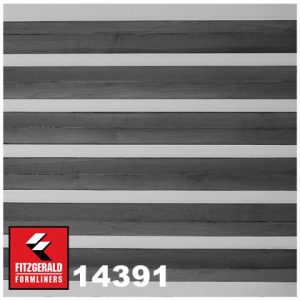

14391 Six Horizontal Flutes

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 1.000"
On Center: 2.8"
Peak: 2.0"
Valley: 0.8"
Draft: 1.0"

Part Size:
45.5"W. x 96" Long

Click here for cut-sheet

14394 Fluted Rib - 0.75" Deep, 6" on Center

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.75"
On Center: 6"
Peak: 4"
Valley: 1"
Draft: 0.5"

Part Size:
48"W. x 120"L.

Click here for cut-sheet

14396 Fluted Rib - 0.75" Deep, 8" on Center

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.75"
On Center: 8"
Peak: 3"
Valley: 4"
Draft: 0.5"

Part Size:
48"W. x 120"L.

Click here for cut-sheet

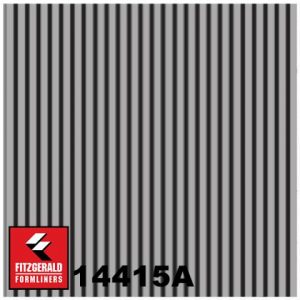

14415A Sine Wave - 0.25" Deep, 0.5" on Center

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.250"
On Center: 0.5"
Peak: 0.25"
Valley: 0.25"

Part Size:
48.0"W. x 96"

Click here for cut-sheet

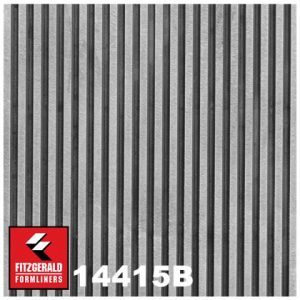

14415B Sine Wave - 0.1875" Deep, 0.5" on Center

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.1875"
On Center: 0.5"
Peak: 0.25"
Valley: 0.25"

Part Size:
120"W. x 48"H.

Click here for cut-sheet

14420 Fluted Rib - 0.75" Deep Random Fluted Rib

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.75"
Draft: 0.125"
Peak: 1.5" - 7.25"
Valley: 2.25" - 6.25"

Part Size:
48.0"W. x 120"

Click here for cut-sheet

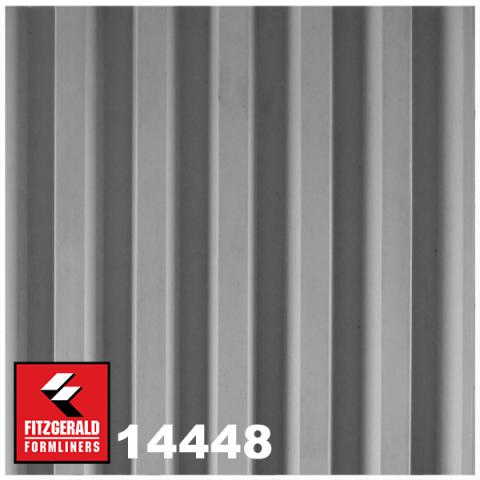

14448 Fluted Rib - 1.0" Deep, 2.0" on Center

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 1.000"
On Center: 2.0"
Peak: 0.75"
Valley: 0.75"
Draft: 0.25"
Notes: For a 0.75" Deep, 2" on Center, see pattern 14304

Part Size:
48.0"W. x 120"

Click here for cut-sheet

14494A San Diego Fluted Rib -
0.75" - 1.5" Deep Random Reveals

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 1.5"
On Center: Random
Peak: 1" - 2.25"
Valley: Varies
Draft: 10º

Part Size:
48"W. x 96"H.

Click here for cut-sheet

14494B San Diego Fluted Rib -
0.75" - 1.5" Deep Random Reveals

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 1.5"
On Center: Random
Peak: 1" - 2.25"
Valley: Varies
Draft: 10º

Part Size:
48"W. x 96"H.

Click here for cut-sheet

14495 Fluted Rib - 1" Deep, 8" On Center

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 1"
On Center: 8"
Peak: 3.5"
Valley: 4"
Draft: 0.25"

Part Size:
48"W. x 120"H.

Click here for cut-sheet

14496 Fluted Rib - 1" Deep, 16" On Center

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 1"
On Center: 16"
Peak: 7.5"
Valley: 8"
Draft: 0.25"

Part Size:
48"W. x 120"H.

Click here for cut-sheet

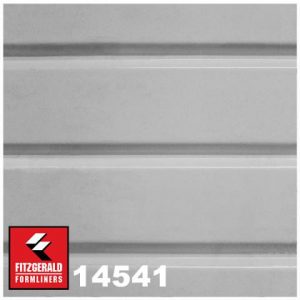

14541 Fluted Rib - 0.5" Deep, 6.0" on Center

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.500"
On Center: 6.0"
Peak: 4.5"
Valley: 0.5"
Draft: 0.50"
Notes: 0.75" flat section on one side of panel is overlapped by 4.5" flat on opposite side. Installed panel width is 48".

Part Size:
48.0"W. x 120"L.

Click here for cut-sheet

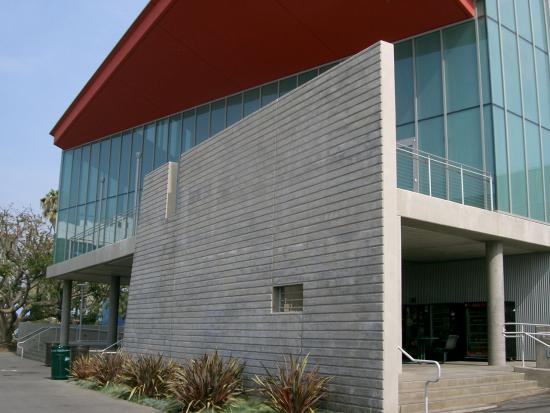

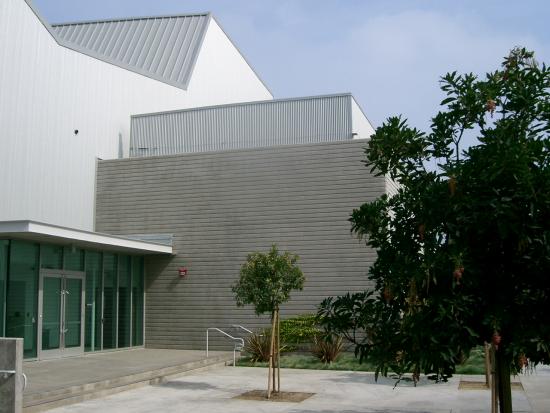

14541 Fluted Rib - Little Santa Monica Theatre, Santa Monica, CA

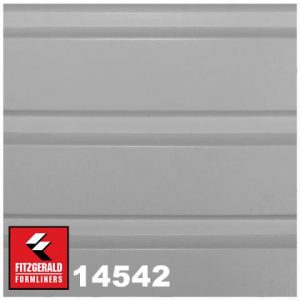

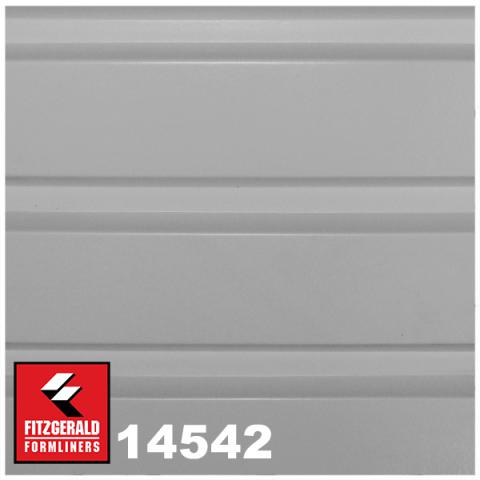

14542 Fluted Rib - 0.75" Deep, 6.0" on Center

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.750"
On Center: 6.0"
Peak: 4.0"
Valley: 1.0"
Draft: 0.50"

Part Size:
48.0"W. x 120"L.

Click here for cut-sheet

14653 Fluted Rib - 0.75" Deep, 7.5" on Center

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.750"
On Center: 7.5"
Peak: 3.5"
Valley: 3.5"
Draft: 0.25"

Part Size:
45" W x 120" H

Click here for cut-sheet

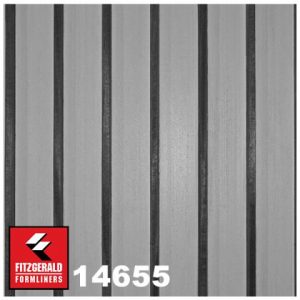

14655 Fluted Rib - 0.5" Deep, 2.0" on Center

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.500"
On Center: 2.0"
Peak: 0.25"
Valley: 1.625"
Draft: 0.0625"

Part Size:
48.0"W. x 120"L.

Click here for cut-sheet

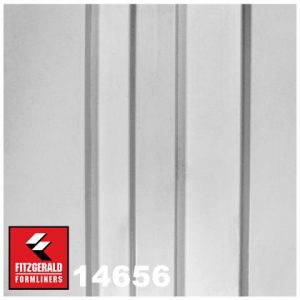

14656 Fluted Rib - 0.75" deep, random

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.750"
On Center: random 6.0", 8.0", 12.0"
Peak: 6.0", 8.0", 12.0"
Valley: 3.125"
Valley: 3.125"
Draft: 0.4375"

Part Size:
38.0"W. x 120"L.
Backing Strips Required

Click here for cut-sheet

14674 Sine Wave - 1" Deep, 6" on Center

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 1"
On Center: 6"
Peak: 3"
Valley: 3"

Part Size:
60"W. x 120"H.

Click here for cut-sheet

14675 Sine Wave - 0.5" Deep, 2" on Center

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.5"
On Center: 2"
Peak: 1"
Valley: 1"

Part Size:
60"W. x 120"H.

Click here for cut-sheet

14699 Fluted Rib - 0.5" Deep, 12" on Center

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.5"
On Center: 12"
Peak: 0.5"
Valley: 11.25"
Draft: 0.125"

Part Size:
48"W. x 120"H.

Click here for cut-sheet

17934 DC Wave - 0.375" deep

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.375"

Part Size:
48.0"W. x 120"L.

Click here for cut-sheet

17943 Sine Wave - 0.75" Deep, 2" on Center

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.750"
On Center: 2.0"
Peak: 0.50" radius
Notes: See pattern 14347 for .5" deep; pattern 14342 for .25" deep.

Part Size:
48.0"W. x 96"L.
48.0"W. x 120"L.

Click here for cut-sheet
