GrayLastic™ Patterns (Fluted Rib)

GrayLastic™ Extended-Use Elastomeric Formliners - Page 2 of 2

DESIGN BY PATTERN

GrayLastic™ Pattern: Fluted Rib (31 Results Found) 1 > 2

Click to go to pattern - 14448 | 14549 | 14550 | 14551 | 14641 | 14644 | 14652 | 14658 | 14702| 17012 | 17934 | 17934C | 17943 | 18030

14448 Fluted Rib - 1" Deep, 2" on Center

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood.

Add 1.125" to liner thickness.

Max Depth: 1"
On Center: 2"
Peak: 0.75"
Valley: 0.75"
Draft: 0.25"

Part Size:
48"W. x 120"H.

Click here for cut-sheet

14549

14549 Running Scallop - 0.125" Deep, 0.5" on Center

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 0.125"
On Center: 0.5"
Peak: 0.3125"

Part Size:
36"W. x 152.75"H.
35.5"W. x 47"H.

Click here for cut-sheet

14550

14550 Running Scallop - 0.28125" Deep, 2" on Center

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 0.28125" (9/16")
On Center: 2"
Radius: 2"

Part Size:
48"W. x 96"H.

Click here for cut-sheet

14551

14551 Running Scallop - 1" Deep, 8" on Center

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1"
On Center: 8"
Peak Radius: 7.5"
Valley Radius: 1"

Part Size:
48"W. x 96"H.

Click here for cut-sheet

14641

14641 Fluted Rib - 1.5" Deep, 8" on Center

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1.500"
On Center: 8.0"
Peak: 6.5"
Valley: 1.0"
Draft: 0.25"

Part Size:
48"W. x 192"L.

Click here for cut-sheet

14641 Freeport North Office Building Coppell TX Distributer CMC Inc Construction TAS Commercial Conctrete Architect Pross Design Group

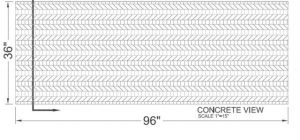

14644 IL DOT Fluted Rib - 1.5" Deep, 7.203" on Center

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1.500"
On Center: 7.203"
Peak: 1.828"
Valley: 1.625"
Draft: 1.875"

Part Size:
36"W. x 96"L.

Click here for cut-sheet

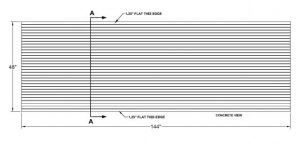

14652 Random Fluted Rib - Ranges from 0.75" to 1.5" deep

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1.500"
On Center: Random
Peak: 1.5 varying heights
Valley: 1.5 varying heights
Draft: 0.25", 0.125"

Part Size:
48"W. x 144"L.

Part A and B

Click here for cut-sheet

Notes:
Part A and B must be used together to achieve side to side match points.

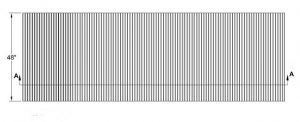

14658B Saw Tooth - 0.75" Deep, 2.605" on Center

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 0.750"
On Center: 2.605"
Peak: .25" radius
Valley: .25" radius

Part Size:
143.25"W. x 48"H.

Flutes run in the 48" direction

Click here for cut-sheet

14702 Fluted Rib - 1" Deep, 1.25" on Center

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1"
On Center: 1.25"
Draft: 0.25"

Part Size:
47.5"W. x 96"H.

Click here for cut-sheet

17012 Tule Lake Random Striation - 0.375" deep

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood.
Add 1.125" to liner thickness.

Max Depth: 0.375"
Draft: Varies
On Center: Varies
Peak: Varies
Valley: Varies

Part Size:
48"W. x 120"L.

Click here for cut-sheet

17934G

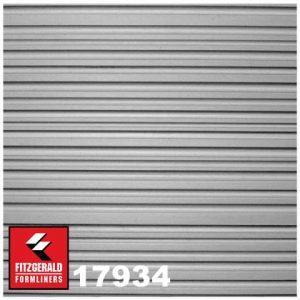

17934 DC Wave - 0.375" deep

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 0.375"

Part Size:
48"W. x 120"L.

Click here for cut-sheet

17934CG

17934C DC Wave Random Striation - 0.375" deep

GrayLastic™
Elastomeric Urethane - up to 100 uses.
Mold bonded to 0.75" plywood. Add 1.125" to liner thickness.

Nominal Depth: 0.1875"
Max Depth: 0.375"
On Center: Varies
Peak: Varies
Valley: Varies

Part Size:
48"W. x 120"H.

Click here for cut-sheet

17943 Sine Wave - 0.75" Deep, 2" on Center

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 0.750"
On Center: 2.0"
Peak: 0.5" radius

Part Size:
48"W. x 120"L.

Click here for cut-sheet

Notes:
See pattern 14347 for .5" deep; pattern 14342 for .25" deep.

18030 Random Smooth Wave - 1.125" Depth

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1.125"
On Center: Varies
Peak: Varies
Valley: Varies

Part Size: 48"W. x 120"H.

Click here for cut-sheet
