Vac-U-Form™ Vacuum-Formed Plastic Formliners - Page 4 of 4

DESIGN BY PATTERN

Vac-U-Form Patterns: Fluted Rib (58 Results Found)   1 > 2 > 3 > 4

Click to go to pattern - 14674 | 14675 | 14677 | 14678 | 14699 | 17934 | 17943 | 18030

14674 Sine Wave - 1" Deep, 6" on Center

S-14674

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 1"
On Center: 6"
Peak: 3"
Valley: 3"

Part Size:
60"W. x 120"H.

Click here for cut-sheet

14674 Sine Wave
14674 Sine Wave




14675 Sine Wave - 0.5" Deep, 2" on Center

S-14675

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.5"
On Center: 2"
Peak: 1"
Valley: 1"

Part Size:
60"W. x 120"H.

Click here for cut-sheet




14677 Fluted Rib - 0.75" Deep, 12" on Center

14677-VF

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.75"
On Center: 12"
Peak: 0.75"
Valley: 9.75"
Draft: 0.75"

Part Size:
48"W x 120"H

Click here for cut-sheet




14678 Fluted Rib - 0.75" Deep, 6" on Center

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.75"
On Center: 6"
Peak: 1.875"
Valley: 4"
Draft: 0.0625"

Part Size:
48"W x 120"H

Click here for cut-sheet




14699 Fluted Rib - 0.5" Deep, 12" on Center

S-14699

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.5"
On Center: 12"
Peak: 0.5"
Valley: 11.25"
Draft: 0.125"

Part Size:
48"W x 120"H

Click here for cut-sheet




17934 DC Wave - 0.375" deep

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.375"

Part Size:
48.0"W. x 120"L.

Click here for cut-sheet

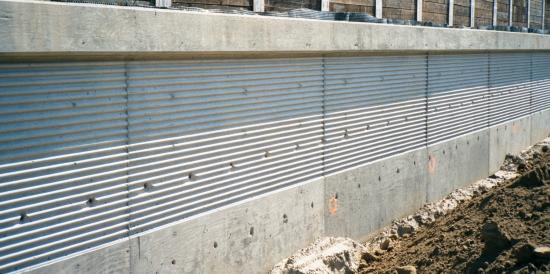

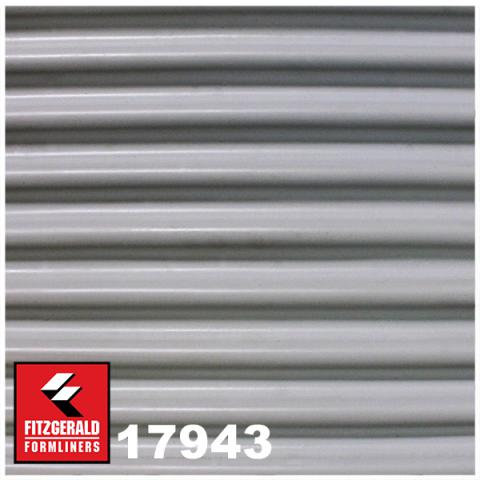

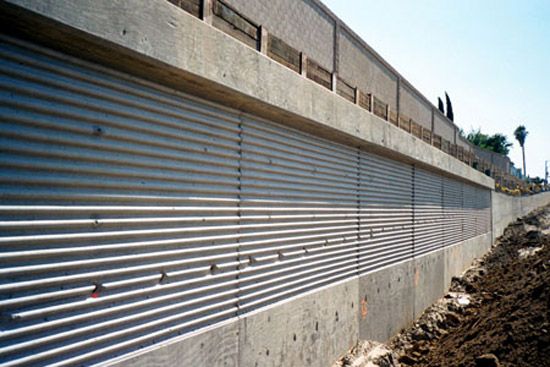

17943 Sine Wave - 0.75" Deep, 2" on Center

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.750"
On Center: 2.0"
Peak: 0.50" radius
Notes: See pattern 14347 for .5" deep; pattern 14342 for .25" deep.

Part Size:
48.0"W. x 96"L.
48.0"W. x 120"L.

Click here for cut-sheet

17943 Sine Wave
17943 Sine Wave pid

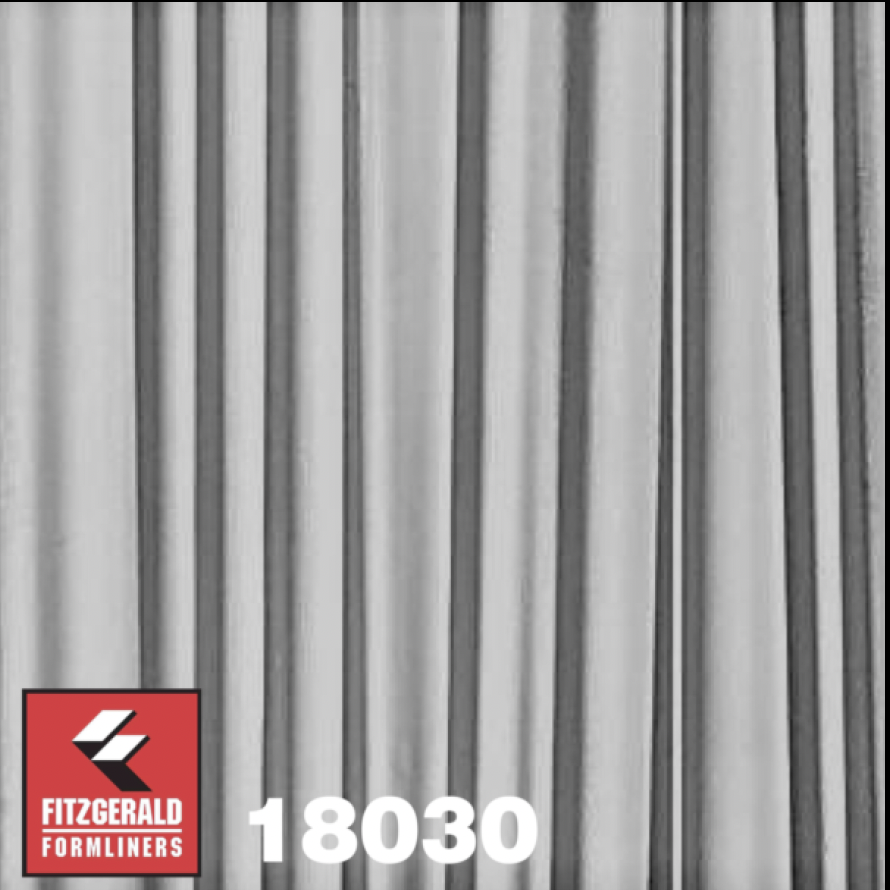

18030 Random Smooth Wave - 1.125" Depth

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 1.125"
On Center: Varies
Peak: Varies
Valley: Varies

Part Size: 48"W x 120"H

Click here for cut-sheet
