GrayLastic™ Patterns (Wooden Plank)

Home » GrayLastic™ Patterns (Wooden Plank)

GrayLastic™ Extended-Use Elastomeric Formliners - Page 1 of 1

DESIGN BY PATTERN

GrayLastic™ Patterns: Wooden Plank (13 Results Found)

Click to go to pattern - 14823 | 16020 | 16021 | 16027 | 16915 | 16917 | 16919 | 16920 | 16921 | 16923 | 16927 | 16936 | 16938

14823 Rustic Reeds - 0.5625" Deep, Wooden Plank

GrayLastic™
Elastomeric Urethane - Up to 100 uses.

Mold-bonded to 0.75" plywood.

Add 1.125" to liner thickness.

Max Depth: 0.5625"

Part Size:
120"W. x 48"H.

Click here for cut-sheet




16020 Rough Sawn Plank - Rough Grain Plank

16020 Wooden Plank GrayLastic formliner

GrayLastic™
Elastomeric Urethane - Up to 100 uses.

Mold-bonded to 0.75" plywood.

Add 1.125" to liner thickness.

Max Depth: 0.125"
Board Width: 4.364"
Grain: Rough

Part Size:
120"W. x 48"H.

Click here for cut-sheet

Sacramento Railyards- Sacramento, CA: Granite Construction
Sacramento Railyards- Sacramento, CA: Granite Construction




16021 1.5" Wide Plank, Random Depth - 1.5" Wide Plank, Random Depth

GrayLastic™
Elastomeric Urethane - Up to 100 uses.

Mold-bonded to 0.75" plywood.

Add 1.125" to liner thickness.

Max Depth: 0.75"
Grain: Fine
Plank Width: 1.5"

Part Size:
48" Wide x 120" H

Click here for cut-sheet

16021 Wide Depth Random Depth Wooden Plank, Vac-U-Form Look Cinema Dallas, TX 2014 TCA Outstanding Achievement Award Winner
16021 Wooden Plank Wide Depth Random Depth VacUForm Logistics Centre - Coppell, TX
16021 Wide Depth Random Depth Wooden Plank, Vac-U-Form Look Cinema Dallas, TX 2014 TCA Outstanding Achievement Award Winner

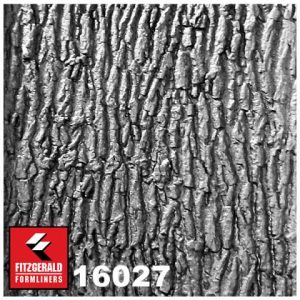

16027 Tree Bark - Striated Tree Bark- Oak, 1" deep

GrayLastic™
Elastomeric Urethane - Up to 100 uses.

Mold-bonded to 0.75" plywood.

Add 1.125" to liner thickness.

Max Depth: 1"

Part Size:
48"W x 120"H

Click here for cut-sheet




16915 Weathered Plank - 8" Wide, Heavy Grain Wooden Plank

16915 Weathered Plank

GrayLastic™
Elastomeric Urethane - Up to 100 uses.

Mold-bonded to 0.75" plywood.

Add 1.125" to liner thickness.

Max Depth: 0.125"
Grain: Heavy

Part Size: 48"W. x 120"H.

Click here for cut-sheet

Notes:
No interior butt joints.

No groove or space between boards.




16917 Barn Wood - 0.25" Deep, Light Random Grain Planks

16917 Barn Wood formliner

GrayLastic™
Elastomeric Urethane - Up to 100 uses.

Mold-bonded to 0.75" plywood.

Add 1.125" to liner thickness.

Max Depth: 0.25"
Board Width: 3"
Grain: Light

Part Size: 120"W. x 60"H.

Click here for cut-sheet

Notes:
Interior butt joints.

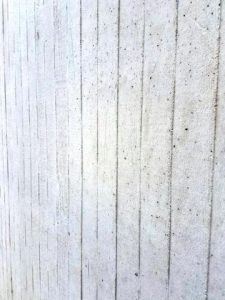

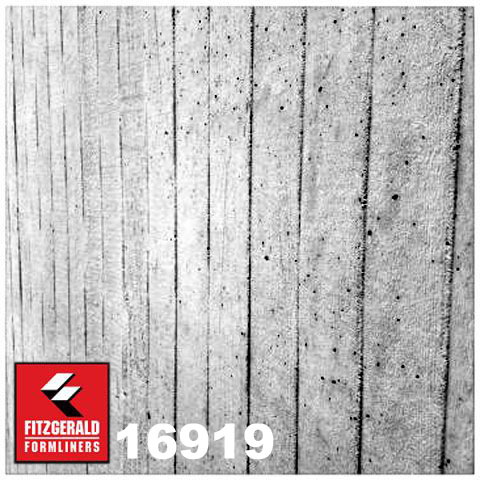

16919 San Diego Wood Plank - .125" deep with medium grain planks with fractured fin joints

GrayLastic™
Elastomeric Urethane - Up to 100 uses.

Mold-bonded to 0.75" plywood.

Add 1.125" to liner thickness.

Max Depth: 0.125"
Grain: Medium Grain with Fractured Fin Joint
Plank Width: 2.875"

Part Size:
120" W x 24" H

Click here for cut-sheet

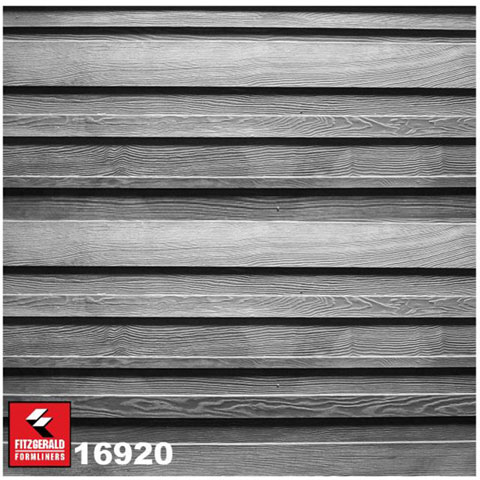

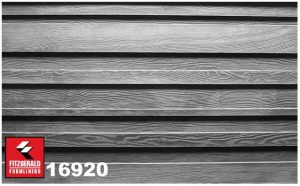

16920 Random Wood - 0.75" Deep, random width, medium grain planks

GrayLastic™
Elastomeric Urethane - Up to 100 uses.

Mold-bonded to 0.75" plywood.

Add 1.125" to liner thickness.

Max Depth: 0.75"
Grain: Medium
Plank Width: Random, from 1.5" to 7.25"

Part Size:
48"W. x 120"L.

Click here for cut-sheet

16920 Random Wood - Tower 333 , Bellevue, WA: Albrecht Birkenbuel
16920 Random Wood - Tower 333, Bellevue, WA: Albrecht Birkenbuel




16921 4" Cedar Plank - 0.25" deep cedar plank with 0.5" 'V' groove

GrayLastic™
Elastomeric Urethane - Up to 100 uses.

Mold-bonded to 0.75" plywood.

Add 1.125" to liner thickness.

Max Depth: 0.25"
Grain: Light
Plank Width: 4"




16923 Barn Wood - 0.25" Deep, heavy random grain planks with uneven plane.

GrayLastic™
Elastomeric Urethane - Up to 100 uses.

Mold-bonded to 0.75" plywood.

Add 1.125" to liner thickness.

Max Depth: 0.25"
Grain: Heavy
Plank Width: Random, 3.5" - 6.875"

Part Size:
48"W. x 144"L.

Click here for cut-sheet

16923 Barn Wood. 6th St Residence Life Building. Tucson, AZ
16923 Barn Wood Vac-U-Form. Bartholomew Municipal Pool. Austin, TX
16923 Barn Wood. Iowa State Fair Grounds. Des Moines, IA




16927 Grape Stake - 0.75" deep rough split plank texture with uneven surface

GrayLastic™
Elastomeric Urethane - Up to 100 uses.

Mold-bonded to 0.75" plywood.

Add 1.125" to liner thickness.

Max Depth: 0.75"
Grain: Heavy
Plank Width: 2.375" - 2.4375"

Part Size:
48"W. x 120"L.

Click here for cut-sheet

I-10 & SR 90-Borderland Const, AZ Standard #16927 Grape Stake
I-10 & SR 90-Borderland Const, AZ Standard #16927 Grape Stake

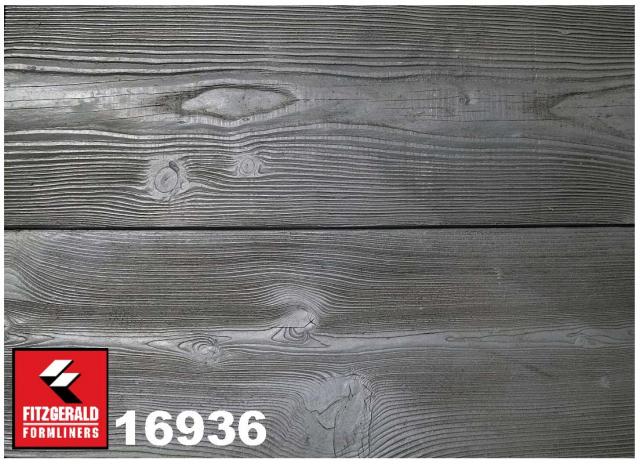

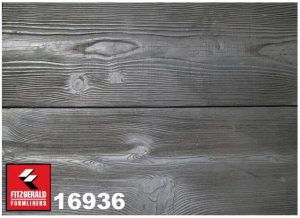

16936 Deep Heavy Random Grain Planks - From 8.75" to 13.375" wide, 0.75" deep

GrayLastic™
Elastomeric Urethane - Up to 100 uses.

Mold-bonded to 0.75" plywood.

Add 1.125" to liner thickness.

Max Depth: 0.75"
Grain: Heavy
Plank Width: 8.75" - 13.375"
Slope: Uneven plane

Part Size: 48"W. x 96"L.

Notes: No Interior Butt Joints

Click here for cut-sheet

Project: Top Golf Location: Nashville, TN Pattern: 16936 Large Rustic Plank
Project: Top Golf Location: Nashville, TN Pattern: 16936 Large Rustic Plank




16938 Random Plank - 1.5" wide, 0.75" max depth

GrayLastic™
Elastomeric Urethane - Up to 100 uses.

Mold-bonded to 0.75" plywood.

Add 1.125" to liner thickness.

Max Depth: 0.75"
Peak: 1.5"
Valley: 1.5"

Part Size:
48" W x 96" L or
48" W x 240" L

Click here for cut-sheet

JE Dunn Building: Enterprise Precast Concrete
16938 1.5 plank, JE Dunn Building: Parking Structure: Coreslab
16938 1.5 plank, JE Dunn building: Parking Structure: Coreslab
