Vac-U-Form™ Vacuum-Formed Plastic Formliners - Page 1 of 2

DESIGN BY PATTERN

Vac-U-Form™ Patterns: Wooden Plank (19 Results Found) 1 > 2

Click to go to pattern - 16020 | 16021 | 16913 | 16914 | 16920 | 16921 | 16922 | 16923 | 16924 | 16925 | 16926 | 16926LP | 16927 | 16928 | 16930 | 16932

16020 Rough Sawn Plank - 0.125" Deep, 4.364" wide planks

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.125"
Grain: Rough sawn plank
Plank Width: 4.364"
Slope: Uneven plane

Part Size:
48"W. x 120"L.

Click here for cut-sheet

Sacramento Railyards- Sacramento, CA: Granite Construction
Sacramento Railyards- Sacramento, CA: Granite Construction

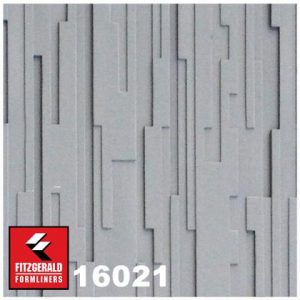

16021 1.5" Wide Plank, Random Depth - 1.5" Wide Plank, Random Depth

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.750"
Grain: Fine
Plank Width: 1.5"
Notes: Wood backing strips are needed.

Part Size:
48" Wide x 120" H

Click here for cut-sheet

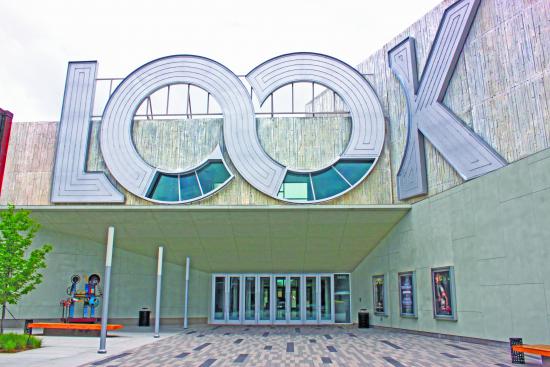

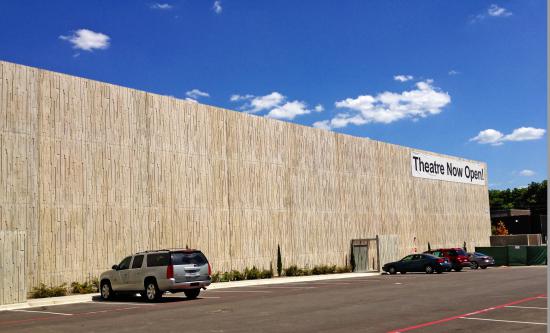

16021 Wide Depth Random Depth Wooden Plank, Vac-U-Form Look Cinema Dallas, TX 2014 TCA Outstanding Achievement Award Winner
16021 Wooden Plank Wide Depth Random Depth VacUForm Logistics Centre - Coppell, TX
16021 Wide Depth Random Depth Wooden Plank, Vac-U-Form Look Cinema Dallas, TX 2014 TCA Outstanding Achievement Award Winner




16913 Weathered Plank - 11" Wide Weathered Plank

16913 Weathered Plank

Vac-U-Form™
Styrene - Single Use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.5"
On Center: 12"
Board Width: 11"
Groove: 0.5"
Valley: 11"
Draft: 0.25"
Grain: Heavy

Part Size: 48"W. x 96"H.

Click here for cut-sheet




16920 Random Wood - 0.75" Deep, random width, medium grain planks

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.750"
Grain: Medium
Plank Width: 1.5"
Notes: Random, from 1.5" to 7.25

Part Size:
48"W. x 120"L.
Backing strips required.

Click here for cut-sheet

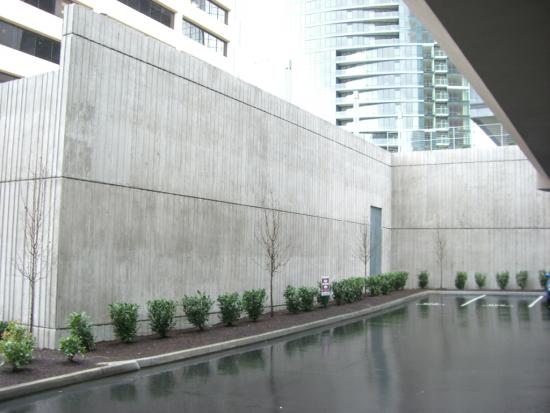

16920 Random Wood - Tower 333 , Bellevue, WA: Albrecht Birkenbuel
16920 Random Wood - Tower 333, Bellevue, WA: Albrecht Birkenbuel

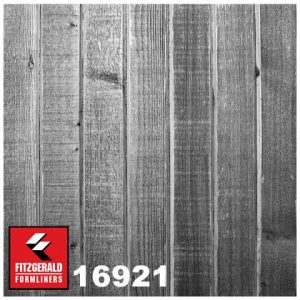

16921 4" Cedar Plank - 0.25" deep cedar plank with 0.5" 'V' groove

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.250"
Grain: Light
Plank Width: 4.0"

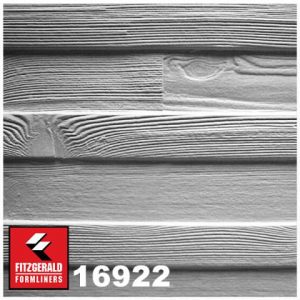

16922 Sacramento Plank - 0.25" Deep, alternating 2.5" and 3.5" wide planks

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.250"
Grain: Medium
Plank Width: Alternating 2.5" and 3.5"

Part Size:
48"W. x 120"L.
Backing Strips Required

Click here for cut-sheet

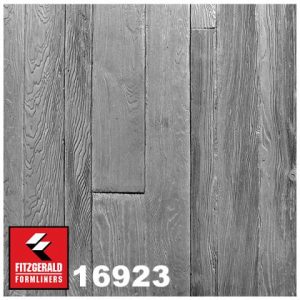

16923 Barn Wood - 0.25" Deep, heavy random grain planks with uneven plane.

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.250"
Grain: Heavy
Plank Width: Random, from 3.5" up to 6.875"

Part Size:
48"W. x 120"L.
Backing Strips Required

Click here for cut-sheet

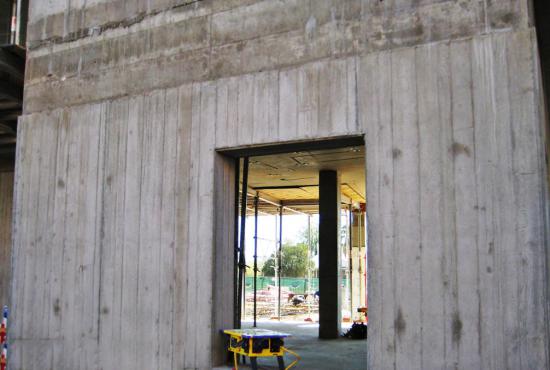

16923 Barn Wood. 6th St Residence Life Building. Tucson, AZ

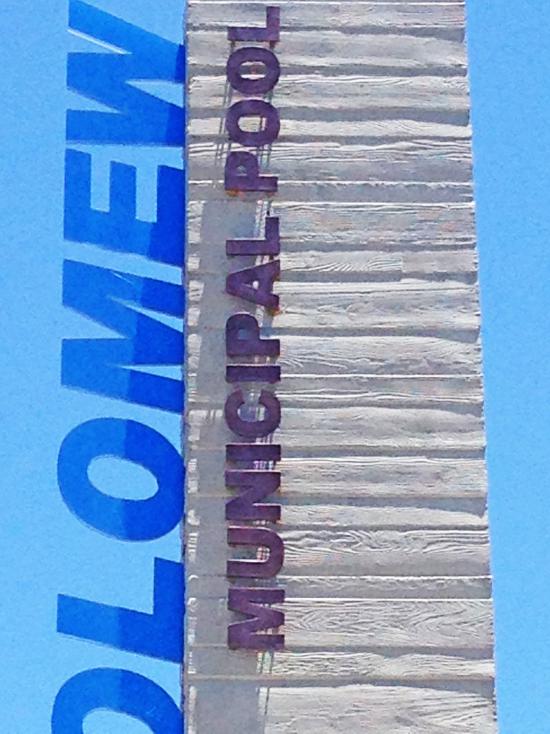

16923 Barn Wood Vac-U-Form. Bartholomew Municipal Pool. Austin, TX

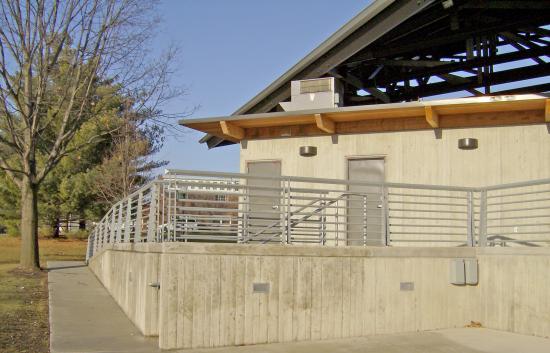

16923 Barn Wood. Iowa State Fair Grounds. Des Moines, IA

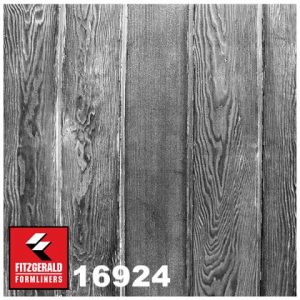

16924 7.25 Weathered Plank - 0.375" deep heavy grain planks

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.375"
Grain: Heavy
Plank Width: 7.25", 0.5" groove

Part Size:
48"W. x 120"L.

Click here for cut-sheet




16925 Weathered Plank - 0.125" deep heavy grain random width.

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.125"
Grain: Heavy
Plank Width: Random

Part Size:
48"W. x 120"L.

Click here for cut-sheet

16925 Weathered Plank with real wood planks placed on top - Nordic Natural, Watsonville, CA: Ausonio, Inc
16925 Weathered Plank with real wood planks placed on top- Nordic Natural, Watsonville, CA: Ausonio, Inc

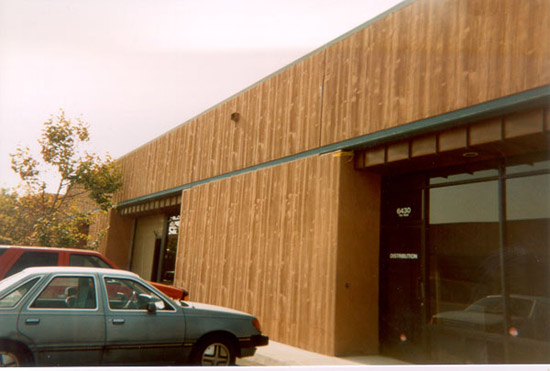

16925 Weathered Plank - Tilt Up Building




16926 5" Cedar Plank - 0.25" Deep, light grain cedar plank with 0.5" 'V' groove.

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.250"
Grain: Light
Plank Width: 5.0", 0.5" V groove

Part Size:
45"W. x 120"L.

Click here for cut-sheet




16926LP 5" Wood Plank - 0.25" Deep, Medium To Light Grain Cedar Plank

16926LP

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.25"
Board Width: 5.0"
Groove: 0.5" “V” Groove Seams
Grain: Medium to Light

No Interior Butt Joints

Part Size:
120"W. x 45"H.

Click here for cut-sheet

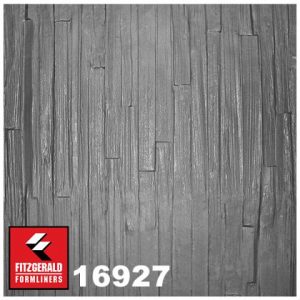

16927 Grape Stake - 0.75" deep rough split plank texture with uneven surface

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.750"
Grain: Heavy
Plank Width: 2.375" to 2.4375"

Part Size:
48"W. x 120"L.

Click here for cut-sheet

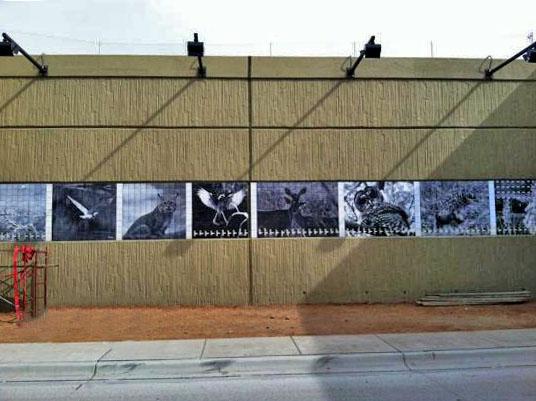

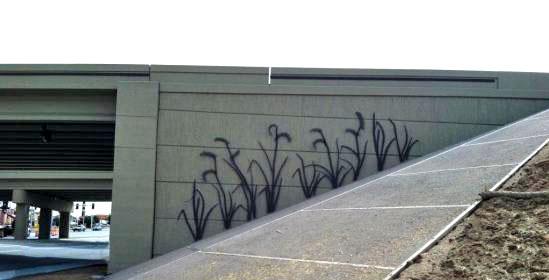

I-10 & SR 90-Borderland Const, AZ Standard #16927 Grape Stake
I-10 & SR 90-Borderland Const, AZ Standard #16927 Grape Stake

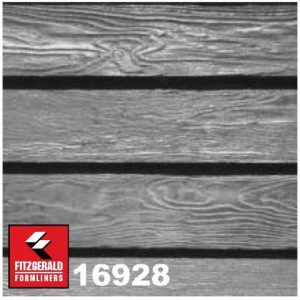

16928 6" Ship Lap - 1" deep lap with medium grain.

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 1.000"
Grain: Medium
Plank Width: 6.0"
Notes: Additional backing required.

Part Size:
120"W. x 48"H.
Backing Strips Required

Click here for cut-sheet

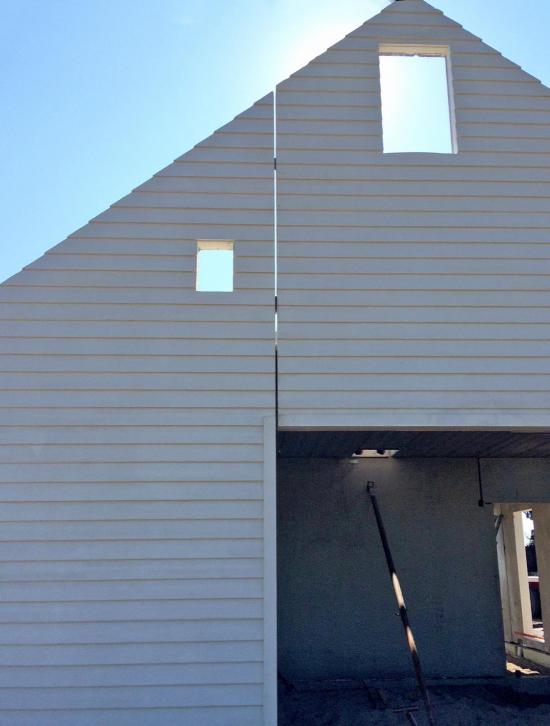

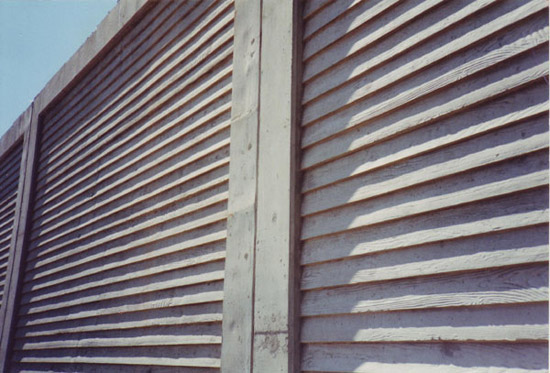

16928 6" Ship Lap
16928 6" Ship Lap

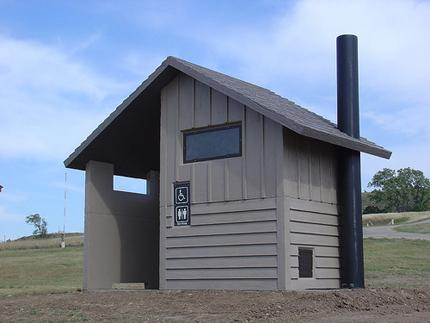

16928 6" Ship Lap - Public Restroom: CXT Precast

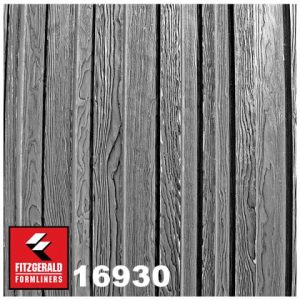

16930 Rough Sawn Plank - 0.875" Deep, heavy grain with random width planks.

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.875"
Grain: Heavy
Plank Width: Random, from 1.5" to 4"

Part Size:
48"W. x 120" Long
Backing Strips Required

Click here for cut-sheet

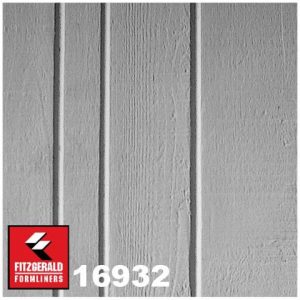

16932 Light Grain 1/4" 'V' Groove - Random 2", 4", 6" wide planks

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.250"
Grain: Light
Plank Width: Random, 2", 4", 6"
Notes: 'V' Groove and Horizontal Butt Joints

Part Size:
48"W. x 120" Long

Click here for cut-sheet

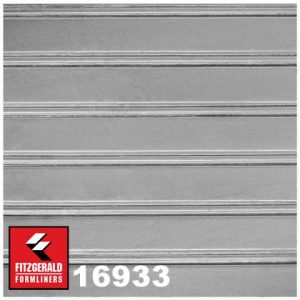

16933 Beadboard

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.0875"
On Center: 1.625"

Part Size:
120"W. x 48" H

Click here for cut-sheet

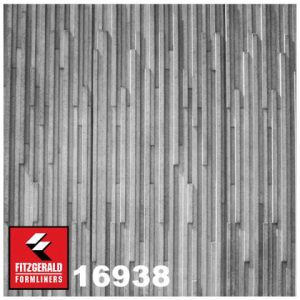

16938 Random Plank - 1.5" wide, 0.75" max depth

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.750"
Peak: 1.50"
Valley: 1.50"

Part Size:
120"W. x 48" H
PLASTIC IS NOT INTENDED FOR CIP APPLICATION.

Click here for cut-sheet

JE Dunn Building: Enterprise Precast Concrete

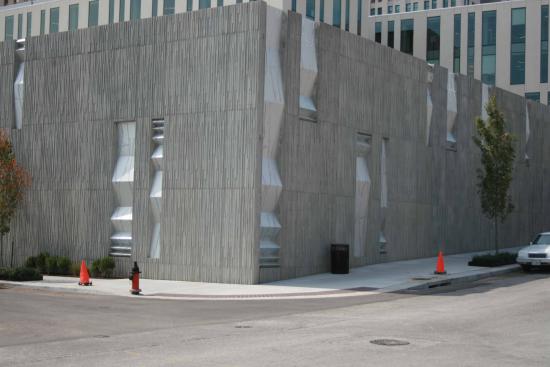

16938 1.5 plank, JE Dunn Building: Parking Structure: Coreslab
16938 1.5 plank, JE Dunn building: Parking Structure: Coreslab

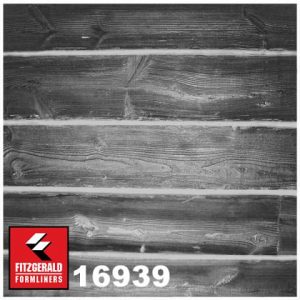

16939 Weathered Plank - 8" wide boards

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.250"
Plank Width: 8"

Part Size:
48"W. x 120" Long

Click here for cut-sheet

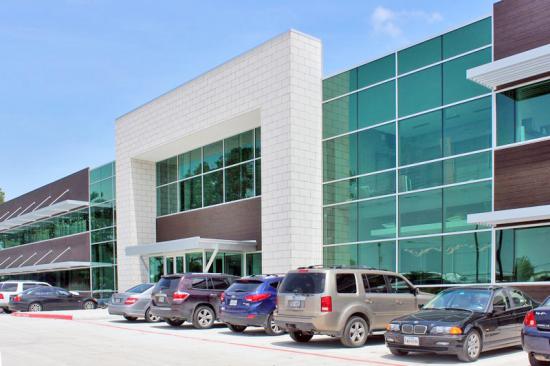

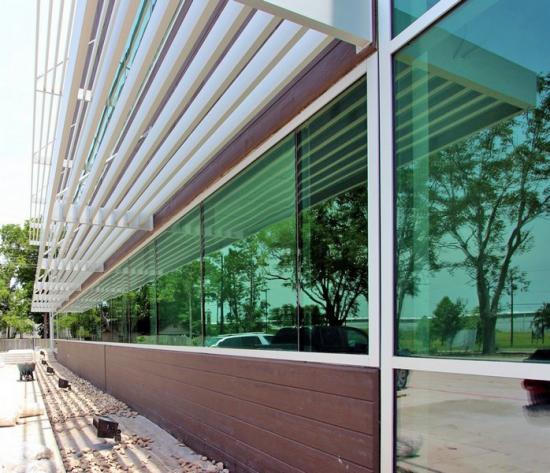

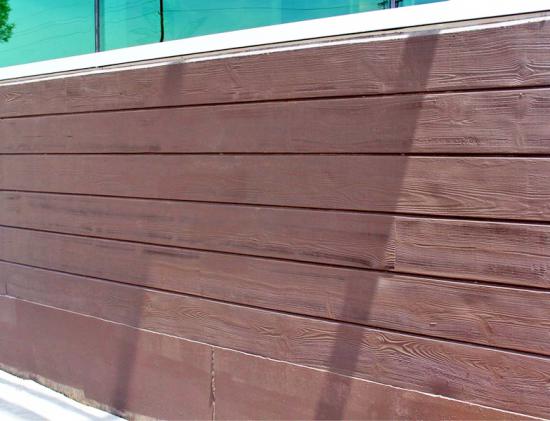

VacUForm 16939, GC Dmac Construction, Concrete installation Pena Concrete, Distributor WhiteCap, Ellen Lighting, Houston TX, Tilt up, 2015, Photo Credit tilt-up.org
VacUForm 16939, GC Dmac Construction, Concrete installation Pena Concrete, Distributor WhiteCap, Ellen Lighting, Houston TX, Tilt up, 2015, Photo Credit tilt-up.org
VacUForm 16939, GC Dmac Construction, Concrete installation Pena Concrete, Distributor WhiteCap, Ellen Lighting, Houston TX, Tilt up, 2015, Photo Credit tilt-up.org
