Vac-U-Form™ Vacuum-Formed Plastic Formliners

Design by Pattern...

Vac-U-Form Patterns: Geometric (11 of 11 Results Found)

Click to go to pattern - 15007 | 17936 | 17940 | 17941 | 17942 | 17951 | 17953A | 17953B | 17959 | 17973 | 20003

15007 Aloha Wave

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.750"
Notes: Part A & B make up random wave pattern

Part Size:
48"W. x 77 15/16"L.

Part A & B

Backing Strips Required

Click here for cut-sheet

Seven Clans Casino
15007 Aloha Wave - Public Storage, Maui, HI
15007 Aloha Wave- Public Storage, Maui, HI

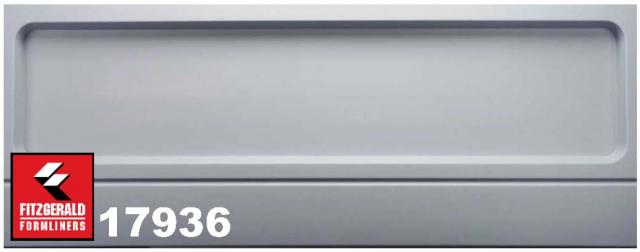

17936 Bridgerail Void Form

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 3.000"

Part Size:
87"W. x 34" High

Click here for cut-sheet




17940 4 Sided Pyramid (Square Facet Faces) - Double-diamond pattern, 2" deep

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 2.000"

Part Size:
96"W. x 48" High

Click here for cut-sheet

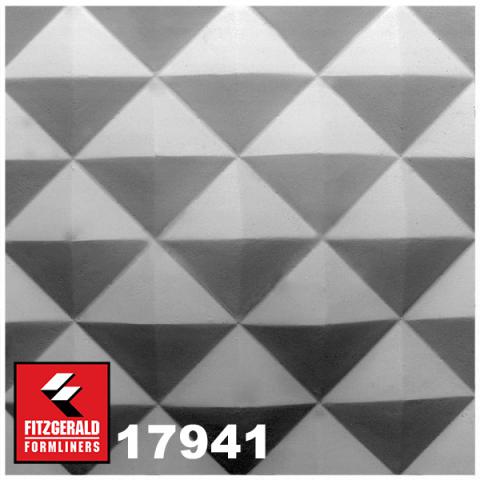

17941 4 Sided Pyramid (Triangular Facet Faces) - Single-diamond pattern, 1" deep

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 1.000"

Part Size:
96"W. x 48" High

Click here for cut-sheet

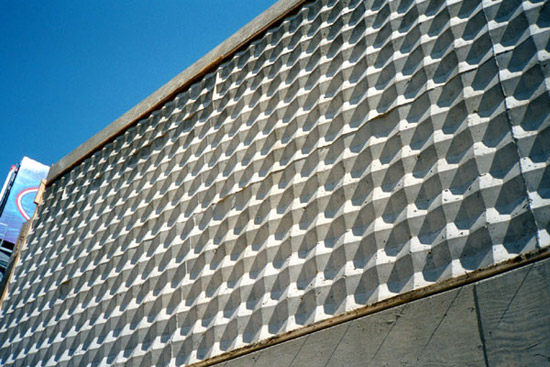

17941 Four Sided Pyramid

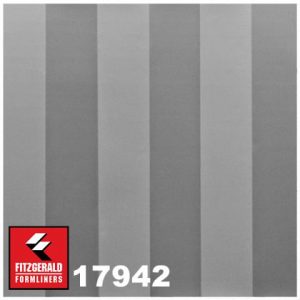

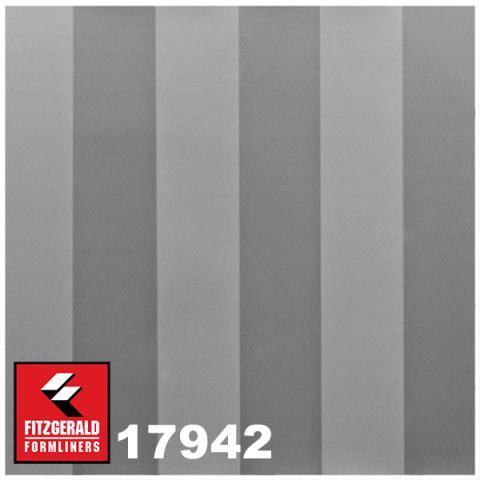

17942 March Lane 'V' Wave - 1" Deep, 8" on Center

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 1.000"
On Center: 8"

Part Size:
96"W. x 47.5" High

96.5"W. x 48"H. with perimeter skirt.

Flutes run in the 48" direction

Click here for cut-sheet

17942 March Lane - Dominican: JW Peters

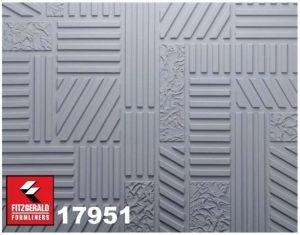

17951 California Art Deco - Random pattern

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.500"

Part Size:
120"W. x 48" High

Click here for cut-sheet

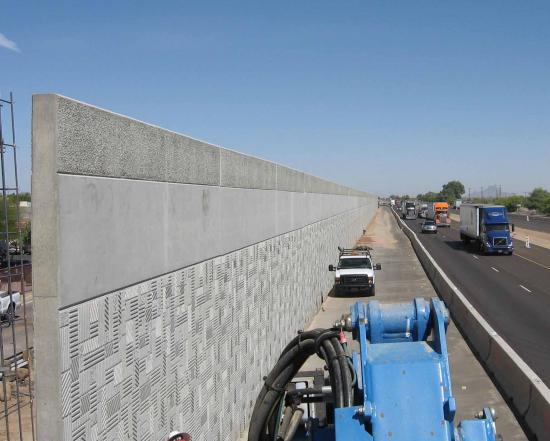

17951 California Art Deco & Sandblast Combination - I-10 Tucson: Austin Bridge & Road Constuction

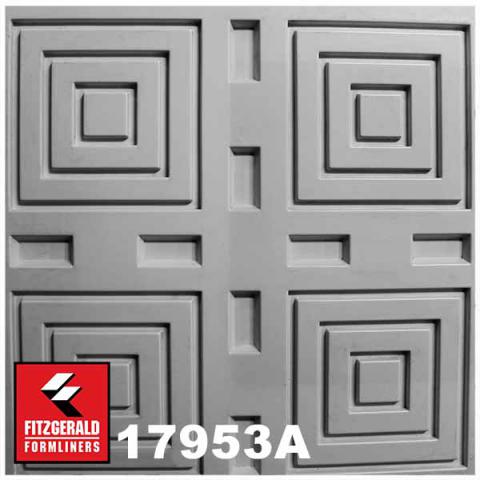

17953A Chomp - 1.125" deep grid pattern

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 1.125"
On Center: 26"
Notes: This pattern can mix and match with 17953B if desired

Part Size:
51"W. x 104" High

Click here for cut-sheet




17953B Chomp - 1.125" deep grid pattern

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 1.125"
On Center: 26"
Notes: This pattern can mix and match with 17953A if desired

Part Size:
104"W. x 16.25" High

Click here for cut-sheet

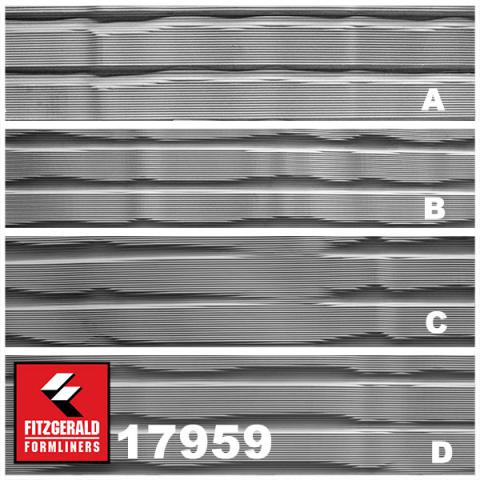

17959 Los Amigos Wave

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.884"
On Center: 5.257"
Notes: Part A, B, C, D stack and match

Part Size:
Part A
99.5"W. x 36.75"H.

Part B, C, D
99.5"W. x 42"H.

Click here for cut-sheet

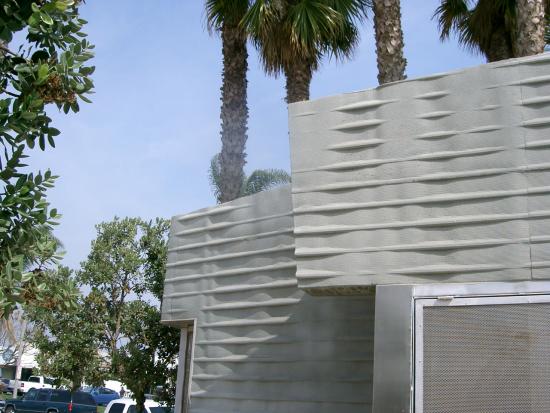

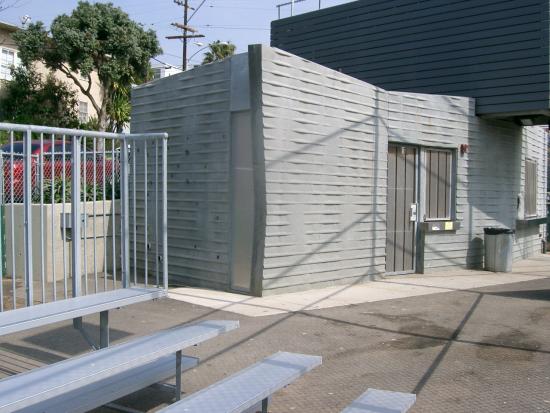

17959 Los Amigo Wave - Little Santa Monica, CA

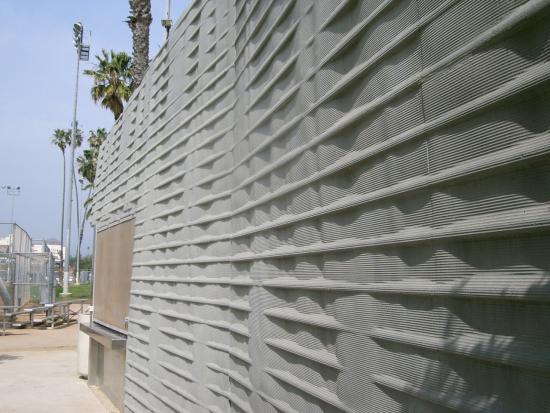

17959 Los Amigo Wave - Little Santa Monica, CA
pid 17959- Amigo Wave, Little Santa Monica, CA

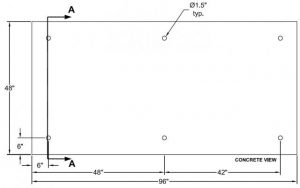

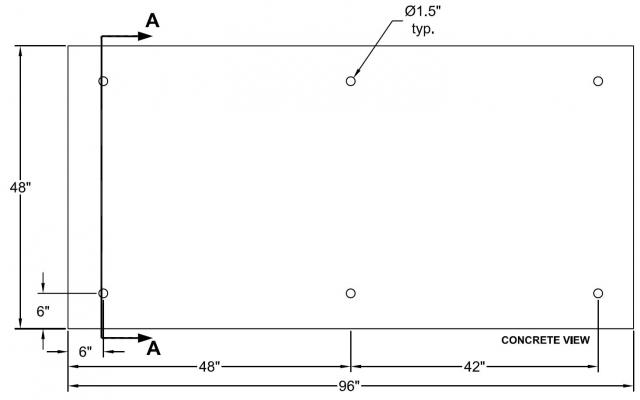

17973 Simulated Tie Hole Pattern

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.500"

Part Size:
17973A- 96"W. x 48"H.
Click here for cut-sheet

17973B- 90"W. x 48"H.
Click here for cut-sheet

17973C- 84"W. x 48"H.
Click here for cut-sheet

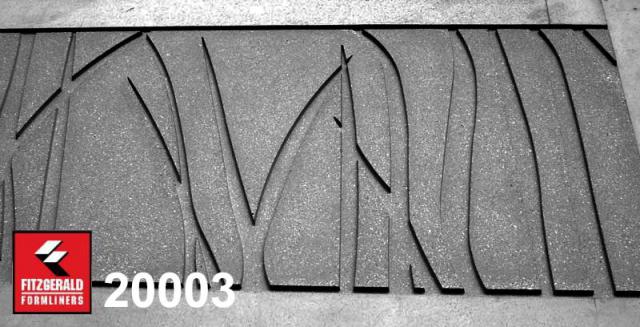

20003 Western Range Grass - Blades of grass on smooth background

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.750"

Part Size:
20003A-  106.5" W x 36" H
20003B-  106.5" W x 36" H

Click here for cut-sheet

Project: Old Mountain View-Alviso Rd Bridge Location: Sunnyvale, CA Contractor: Granite Const Pattern: 20003 Western Range Grass and custom bird

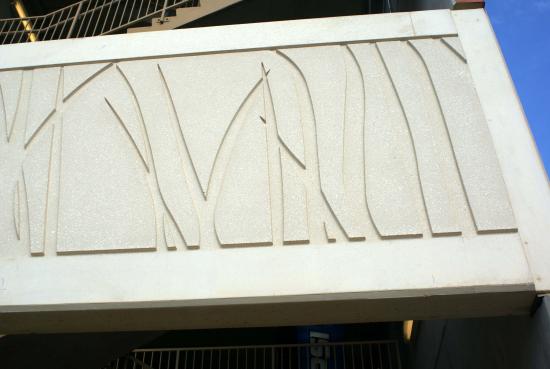

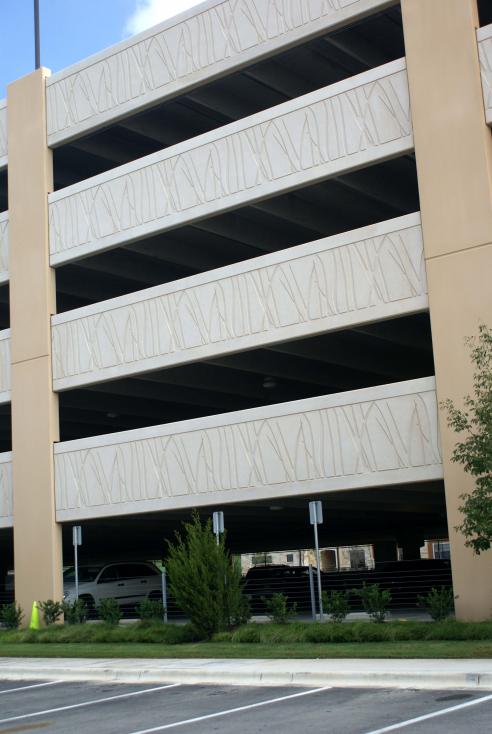

20003 Western Range Grass - Hill Galleria Parking Garage, Texas: North American Precast Company

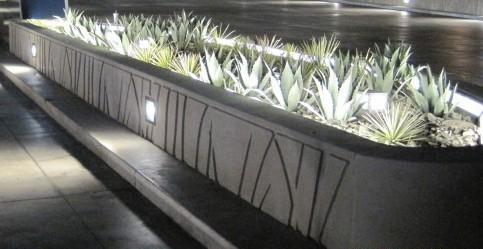

20003 Western Range Grass - Mandarin Orient / City Center, Las Vegas, NV
20003 Western Range Grass - Hill Country Galleria Parking Garage, Texas: North American Precast Company
