GrayLastic™ Patterns (Geometric)

Home » GrayLastic™ Patterns (Geometric)

GrayLastic™ Extended-Use Elastomeric Formliners - Page 3 of 3

DESIGN BY PATTERN

GrayLastic™ Pattern: Geometric (39 Results Found)  1 > 2 > 3

Click to go to pattern - 17952 | 17961 | 20003 | 20007

17952 Tucson Pueblo Deco - Multi-level pattern

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 3.500"

Part Size:
36"W. x 36"H.

Click here for cut-sheet

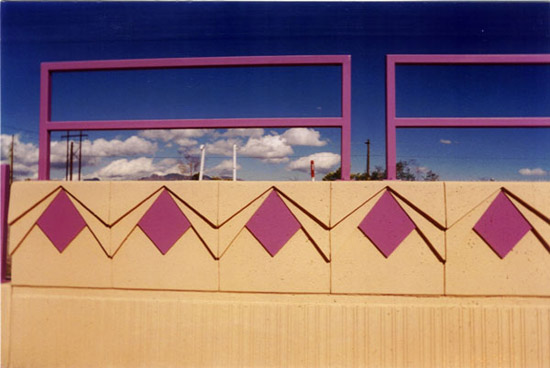

17952 Tucson Pueblo Deco - I-10, Tucson, AZ: Granite Construction Co.

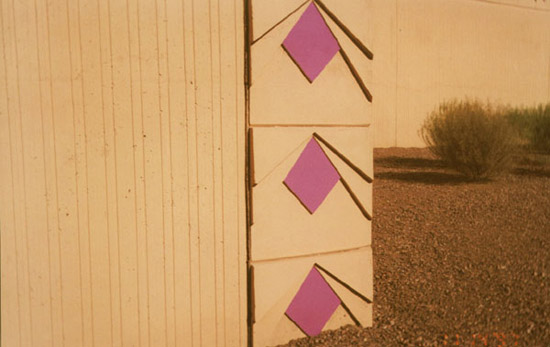

17952 Tucson Pueblo Deco - I-10, Tucson, AZ: Granite Construction Co.

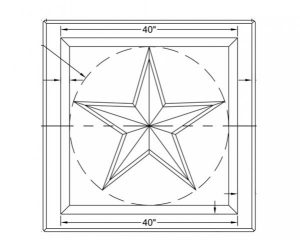

17961 36" Diameter Star

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 2.000"

Part Size:
48" W x 48" H

Click here for cut-sheet

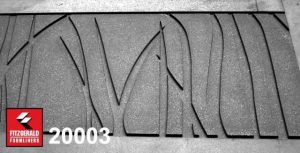

20003 Western Range Grass - Blades of grass on smooth background

20003 Western Range Grass

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 0.750"

Part Size:
20003A & B  106.5" Wide x 56"H.

20003-20  82" Wide x 20"H.

Click here for cut-sheet

Project: Old Mountain View-Alviso Rd Bridge Location: Sunnyvale, CA Contractor: Granite Const Pattern: 20003 Western Range Grass and custom bird

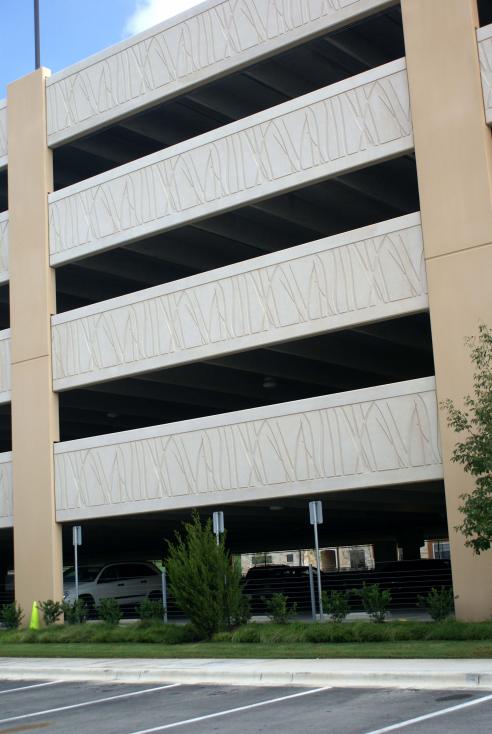

20003 Western Range Grass - Hill Galleria Parking Garage, Texas: North American Precast Company

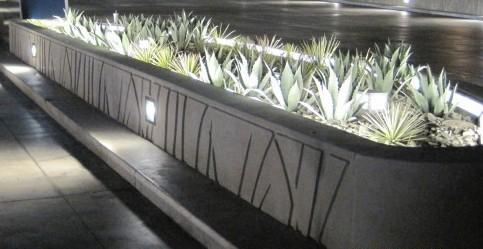

20003 Western Range Grass - Mandarin Orient / City Center, Las Vegas, NV
20003 Western Range Grass - Hill Country Galleria Parking Garage, Texas: North American Precast Company

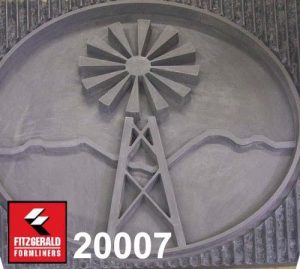

20007 Brea Canyon Windmill Logo

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1.500"

Part Size:
48" Wide x 48"H.

Click here for cut-sheet

GrayLastic™ Pattern: Geometric (39 Results Found) 1 > 2 > 3

Click to go to pattern - 17952 | 17961 | 20003 | 20007
