16959

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

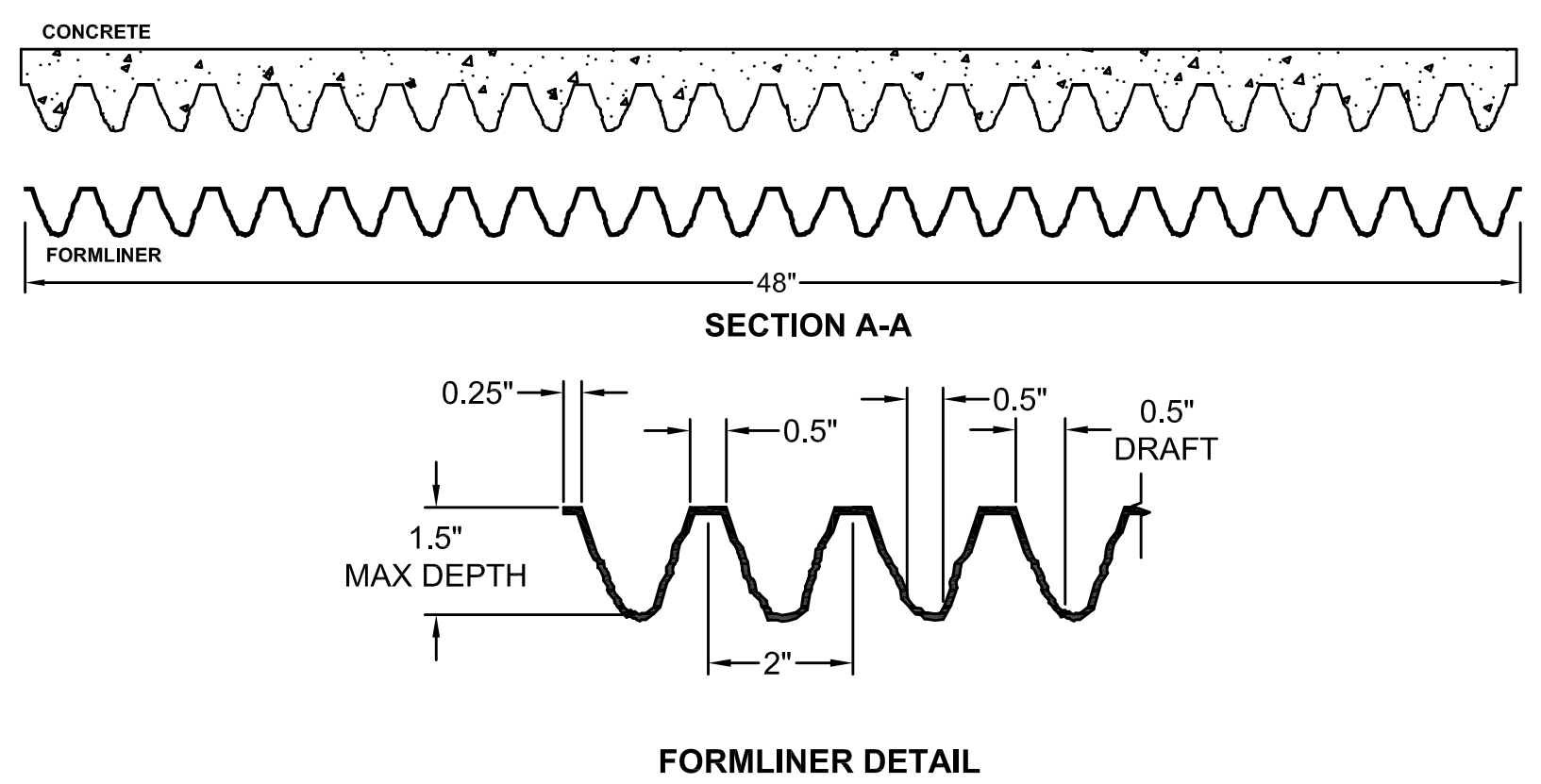

Max Depth: 1.500"
On Center: 2.0"
Peak: 0.5"
Valley: 0.5"
Draft: 0.50"

Part Size:
48"W. x 120"L.

Click here for cut-sheet

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1.500"
On Center: 2.0"
Peak: 0.50"
Valley: 0.50"
Draft: 0.50"

Part Size:
48"W. x 144"L. AND 48"W. x 288"L.

Click here for cut-sheet
