Vac-U-Form™ Patterns (Stone & Rock)

Vac-U-Form™ Vacuum-Formed Plastic Formliners


Design by Pattern...


Vac-U-Form Patterns: Stone & Rock (30 Results Found)  1 > 2 >

Click to go to pattern - 17034 | 17043A | 17048B | 17058 | 17066 | 17067 | 17910 | 17911 | 17912 | 17915 | 17918 | 17928 |  17982 | 17987 | 17991

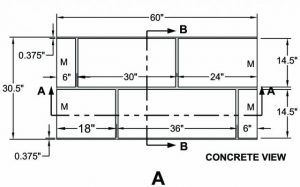

17034 Liberty Island Stone 1.625" Depth, 14.5" High Course - Random Cut Stone, Heavy Texture Face

Vac-U-Form
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 1.625"
Stone Size: 12" - 36" W x 14.5" H
Grout Width: 0.75"

Part Size:
108" W X 48.75" H

Click here for cut-sheet

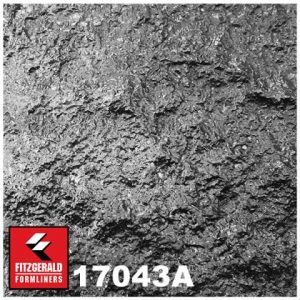

17043A Rough Ashlar - Random Rock

Vac-U-Form
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.750"

Part Size:
120" Wide x 48" High

Click here for cut-sheet





17048B Rough Ashlar - Random Rock

Vac-U-Form
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 2.000"

Part Size:
98" Wide x 48" High

Click here for cut-sheet

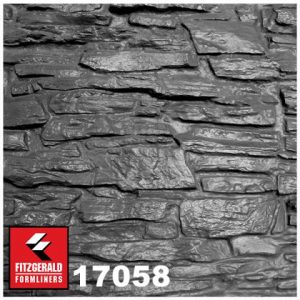

17058 Drystack Fieldstone

Vac-U-Form
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 1.250"

Part Size:
48" Wide x 120" H

Click here for cut-sheet





17066 Kentucky Ashlar - Linear Cut Ashlar Stone

Vac-U-Form
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 1.000"
Stone Size: 5.75"-24" W 2.5"- 9" H
Grout Width: 0.5"

Part Size:
96" Wide x 48" H

Click here for cut-sheet

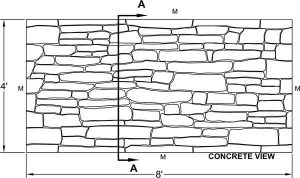

17067 Kentucky Drystack - Linear Cut Ashlar Stone

Vac-U-Form
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 1.500"
Stone Size: 5.75"- 24" W 2.5"- 9" H
Grout Width: 0.5"

Part Size:
96" Wide x 48" H

Click here for cut-sheet

16985 Indiana River Rock (bottom) & 14641 Fluted Rib (top)

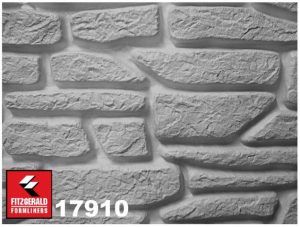

17910 Antietam Drystack - Random rough stacked rock, 2" deep

Vac-U-Form
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 2.000"
Stone Size: 6"-24" W x 3"-9" H
Notes: Urethane pattern can be dammed at 4', 8', 16' and 24' and maintain match points.

Part Size:
96" Wide x 48" H

Click here for cut-sheet

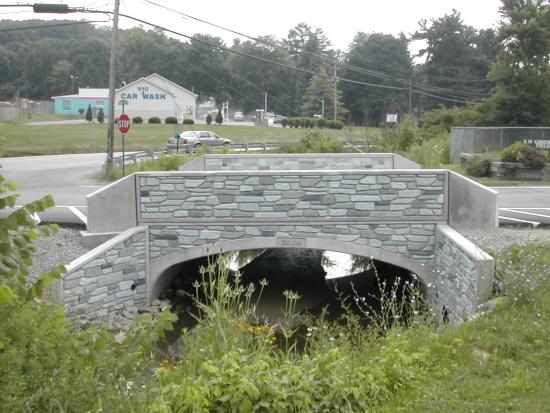

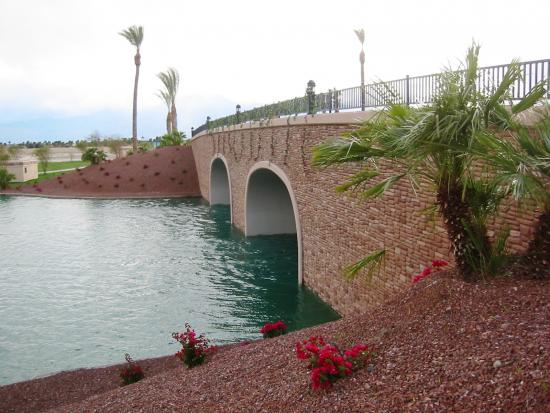

17910 Antietam Drystack- Pennsylvania: Contech Bridge
17910 Antietam Drystack - Terra Lago

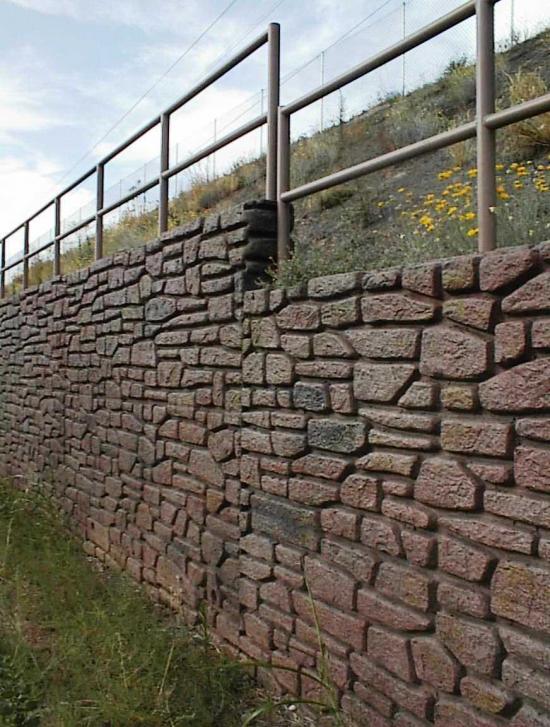

17910 Antietam Drystack - Retaining Wall

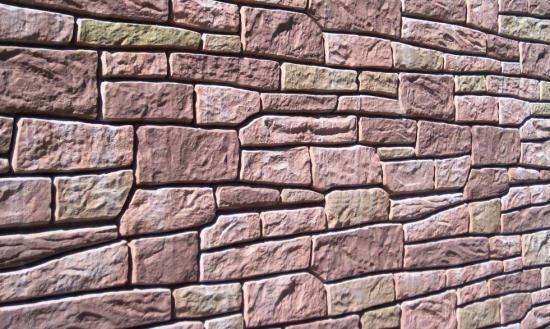

17911 San Diego Dry Stack - Random stacked field stone, 1.5" deep

Vac-U-Form
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 1.5" for urethane; 1.375" for plastic
Stone Size:8"-33" W x 3"-9" H
Notes: Urethane pattern can be dammed at 8', 16' and 24' and maintain match points.

Part Size:
96" Wide x 48" H

Click here for cut-sheet

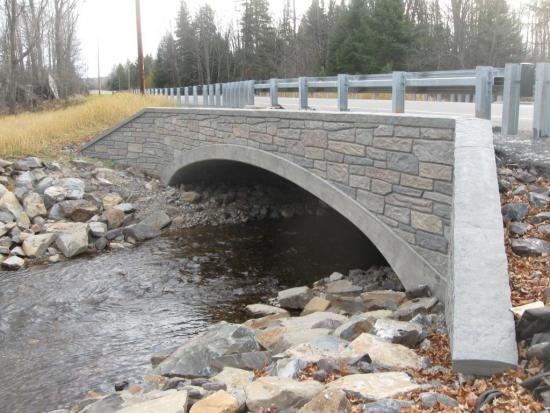

17911 San Diego Drystack - Marquette, MI: Contech Bridge

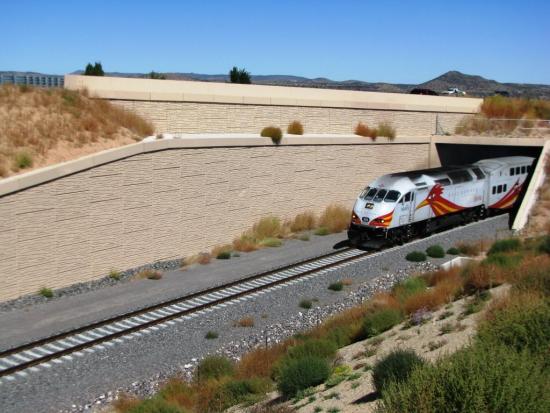

17911 San Diego Drystack - Rail Runner, Santa Fe, NM: HNTB
17911 San Diego Drystack - Woodman Rd., Colorado Springs, CO: Edward Kraemer & Sons / The Reinforced Earth Co.

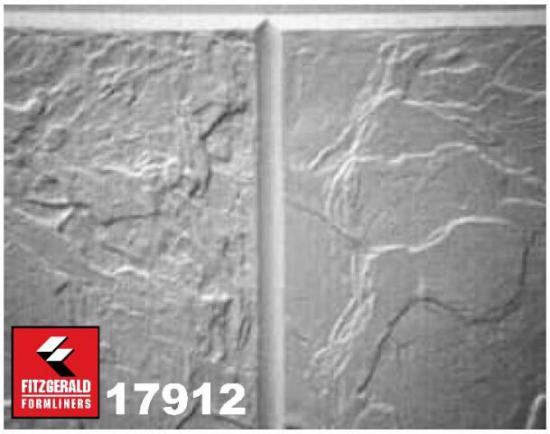

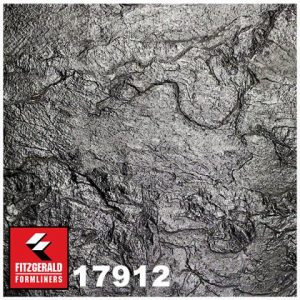

17912 Colorado Split Slate with 1" Chamfer - 4' x 4' split face panels, 0.25" deep pattern texture.

Vac-U-Form
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.250"
Notes: 1" chamfer in center, 0.5" at perimeter, creates 4' x 4' pattern. See patterns 16979 and 16989 for variations of this pattern.

Part Size:
96" Wide x 48" H

Click here for cut-sheet

View of chamfer

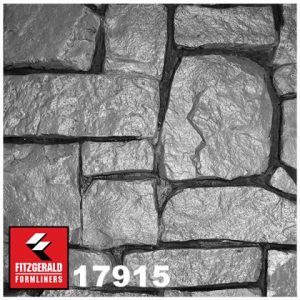

17915 Petaluma Fieldstone - Random rough stacked rock, 1.5" Deep

Vac-U-Form
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 1.500"
Stone Size: 2.5" - 18" W x 2" - 12" H
Notes: Match points top to bottom/side to side

Part Size:
95.8125" W x 47.75" H

Click here for cut-sheet

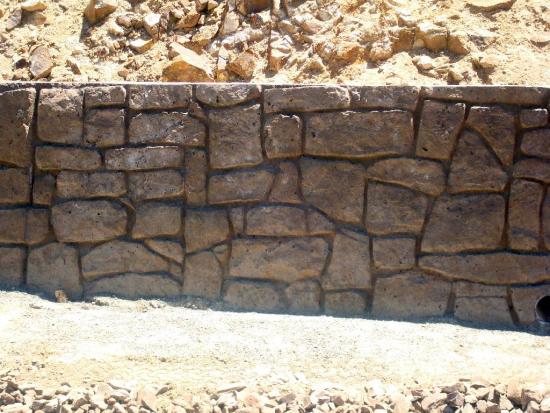

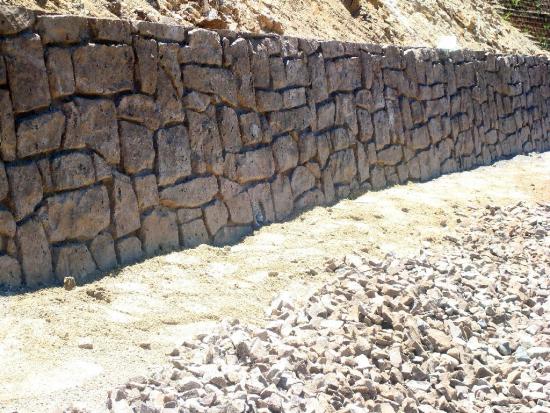

Project: Holman Hwy Round About Location: Monterey, CA Contractor: Granite Const Pattern: 17915 Petaluma Fieldstone “Modified”
NDOT 3433 Barrier- Granite Const, Reno NV #17915 Petaluma Fieldstone
NDOT 3433 Barrier- Granite Const, Reno NV #17915 Petaluma Fieldstone
NDOT 3433 Barrier- Granite Const, Reno NV #17915 Petaluma Fieldstone

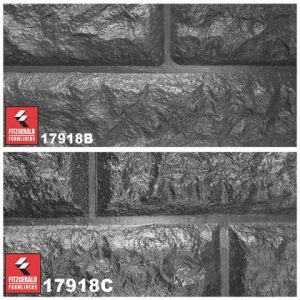

17918 Liberty Island Modified - 24" High Course
Heavy texture, random cut stone, 2.75" deep.

Vac-U-Form
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 2.750"
Stone Size: 24"- 72" Wide x 24" High Coursing
Notes: Also available in 9", 12" and 16" coursing, see patterns 17022, 17009 and  17004. Match points on all four sides.

Part Size:
Part B and C

96" W x 48" H

Click here for cut-sheet

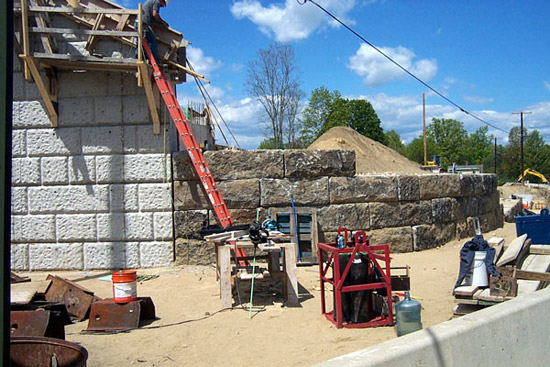

17918 Liberty Island Stone - Retaining Wall, Illinois: Newfield Construction
17918 Liberty Island Stone - Retaining Wall, Illinois: Newfield Construction

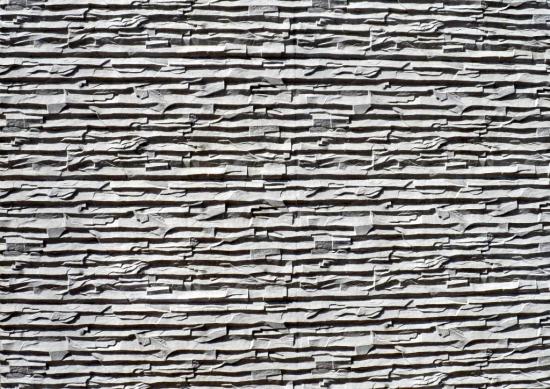

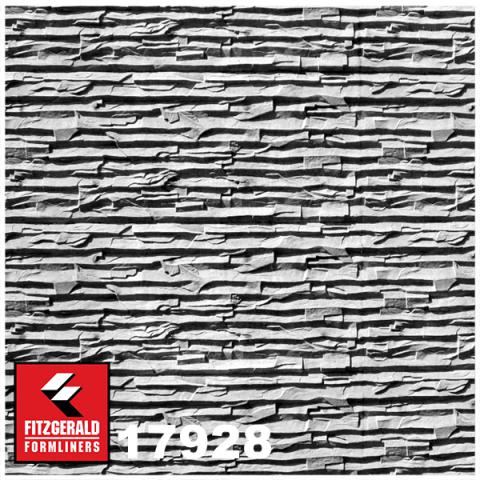

17928 Western Basalt - Heavy Texture Rock Face, 2" deep

Vac-U-Form
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 1.750" - 2.000"
Notes: Match points on all four sides.

Part Size:
120" wide x 48" high

Click here for cut-sheet

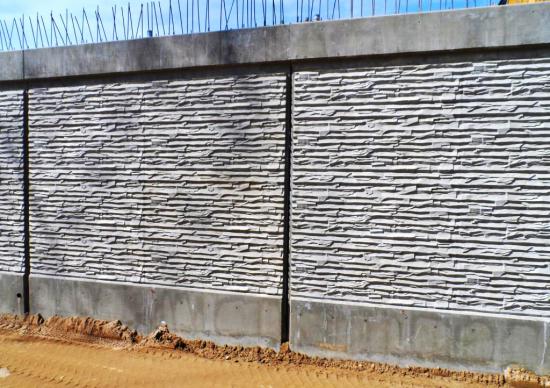

17928 Western Basalt. Fresno, CA. SR-99 Realignment. RNR Construction
17928 Western Basalt. Fresno, CA. SR-99 Realignment RNR Construction
White Tanks w/DBA Const- AZ #17928 Western Basalt

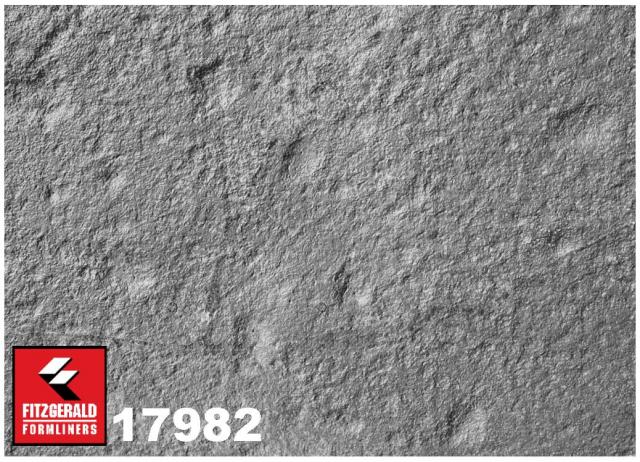

17982 Splitfaced Stone - Splitfaced texture, 0.25" deep

Vac-U-Form
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.250"
Notes: Texture only, no grout or match points.

Part Size:
120" W x 48" H

Click here for cut-sheet

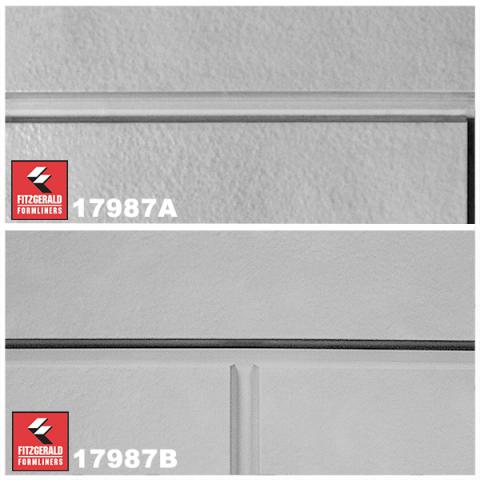

17987 Palm Desert Stone - Light sandstone texture, 0.75" deep.

Vac-U-Form
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.750"
Grout Width: 1"
Notes: Pattern parts A and B can mix and match OR be sold separately.

Part Size:
Part A:  71" W x 34" H

Part B: 71" W x 44" H

Click here for cut-sheet

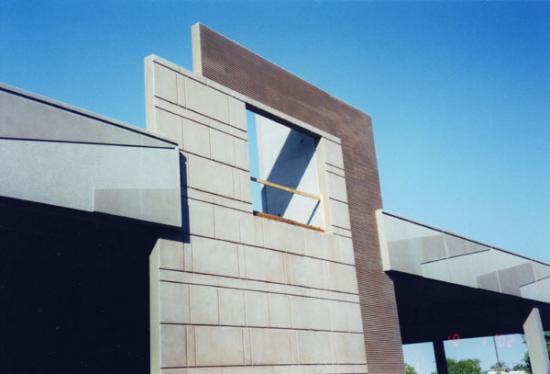

17987 Palm Desert Block & 14304 Fluted Rib - Westfield Parking Garage, Palm Springs, CA

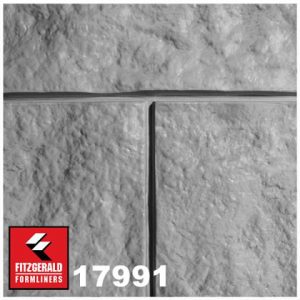

17991 Ohio Chisled Limestone - 16" x 24" Running Bond Block

Vac-U-Form
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.875"
Stone Size: 23.5" W x 15.5" H
Grout Width: 0.5"

Part Size:
17991A- 120" W x 48" H

 17991B- 120" W x 48" H

Click here for cut-sheet
