GrayLastic™ Extended-Use Elastomeric Formliners - Page 2 of 2

DESIGN BY PATTERN

GrayLastic™ Pattern: Fractured Rib (18 Results Found) 1 >  2

Click to go to pattern - 18006 | 18008

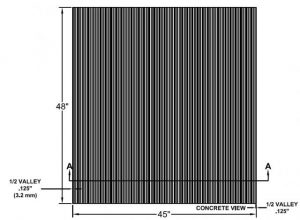

18006 Walsh Fractured Rib - 0.375" Deep, 0.625" on Center

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 0.375"

On Center: 0.625"

Peak: 0.25"

Valley: 0.25"

Part Size:
45"W. x 48"H.

Click here for cut-sheet




18008 Chestnut Grid - 2.5" smooth border on perimeter of pattern

GrayLastic™
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1"

On Center: 2.5"

Peak: 0.875"

Valley: 0.875"

Draft: 0.375"

Part Size:
48" x 48"

Click here for cut-sheet
