BrickMaster Patterns: (45 Results Found) 1 > 2 > 3 >

Click to go to pattern - 11303SB | 11303SCR | 11303SCT1 | 11303SCT2 | 11303SHC | 11304FP | 11305FP | 11306CR16 | 11306CR32 | 11306EC | 11306FP | 11306SCR |  11306SCT1 | 11306SCT2 | 11306SHC

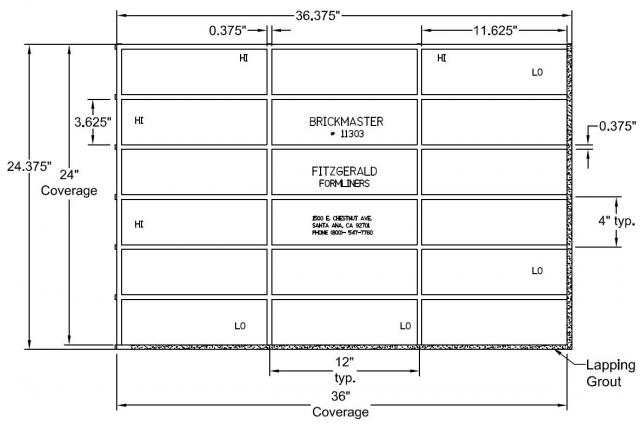

11303SB Utility (Jumbo) Stacked Bond (BrickMaster) - 11 5/8" x 3 5/8" Brick

BrickMaster - Single Use
Single-Use Thin Brick System

Part Size:
36.375" W x 24.375" H

Click here for cut-sheet

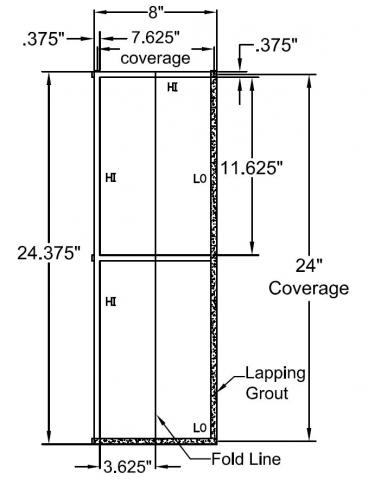

11303SCR Utility (Jumbo) Soldier Course Return (BrickMaster)

BrickMaster - Single Use
Single-Use Thin Brick System

Notes: Tooled Joint Illustrated Also Available in Raked Joint

Part Size:
8" W x 24.375" H

Click here for cut-sheet

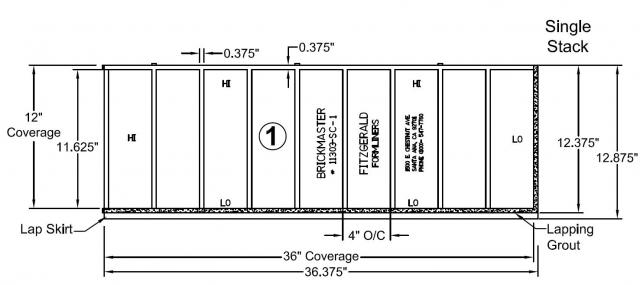

11303SCT1 Utility (Jumbo) Soldier Course Single-Stack (BrickMaster) - 3 5/8" x 11 5/8" Brick

BrickMaster - Single Use
Single-Use Thin Brick System

Notes: Tooled Joint Illustrated Single-Use Also Available in Raked Joint

Part Size:
36.375" W x 12.875" H

Click here for cut-sheet

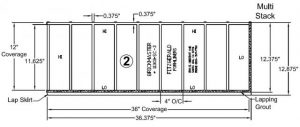

11303SCT2 Utility (Jumbo) Soldier Course Multi-Stack (BrickMaster) - 3 5/8" x 11 5/8" Brick

BrickMaster - Single Use
Single-Use Thin Brick System

Notes: Tooled Joint Illustrated Single-Use Also Available in Raked Joint

Part Size:
36.375" W x 12.875" H

Click here for cut-sheet

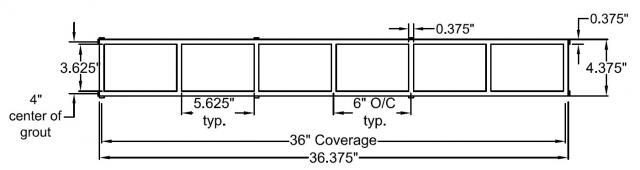

11303SHC Utility (Jumbo) Single Header Course (BrickMaster)

BrickMaster - Single Use
Single-Use Thin Brick System

Notes: Tooled Joint Illustrated Also Available in Raked Joint

Part Size:
36.375" W x 4.375" H

Click here for cut-sheet

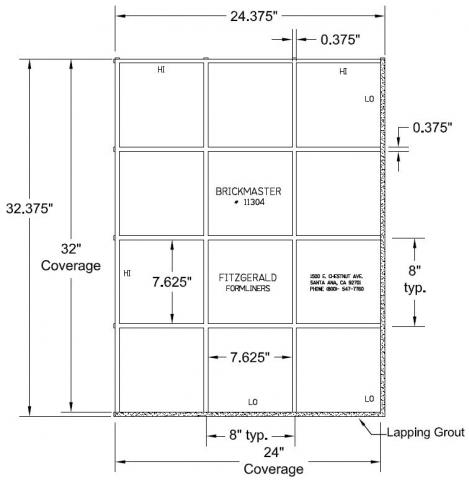

11304FP 8" x 8" Tile Field Panel (BrickMaster) - 7.625"  x 7.625" Brick

BrickMaster - Single Use
Single-Use Thin Brick System

Part Size:
24.375" W x 32.375" H

Click here for cut-sheet

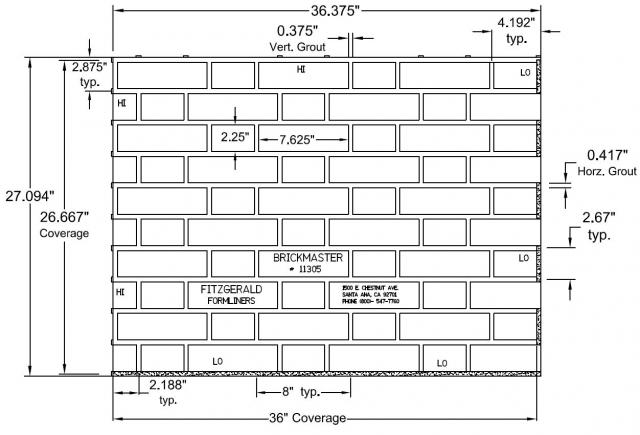

11305FP Flemish Field Panel (BrickMaster) - Full 2 1/4" x 7 5/8" Brick Half 2 1/4" x 3 5/8" Brick

BrickMaster - Single Use
Single-Use Thin Brick System

Part Size:
36.375" W x 27.094" H

Click here for cut-sheet

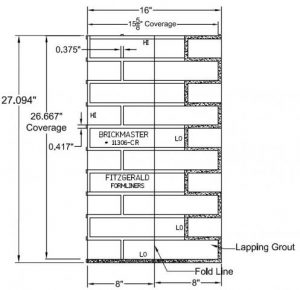

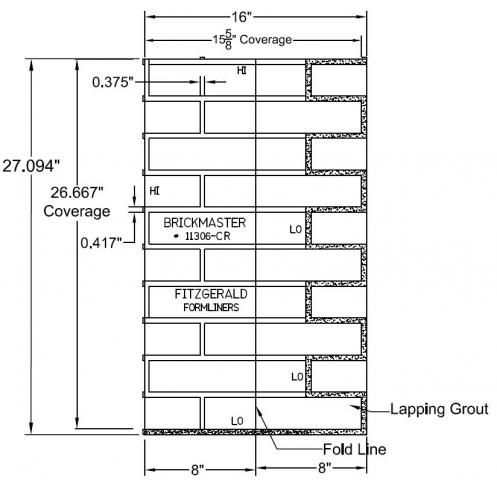

11306CR16 Norman Corner Panel 16" (BrickMaster)

BrickMaster - Single Use
Single-Use Thin Brick System

Notes:
*Requires Modular Corner Brick Tooled Joint Illustrated
Single-Use Also Available in Raked Joint

Part Size:
16" W x 27.094" H

Click here for cut-sheet

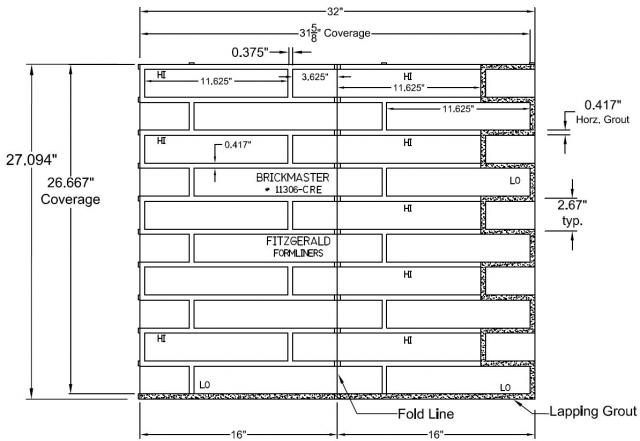

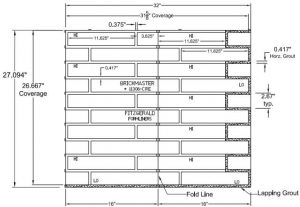

11306CR32 Norman Corner Panel 32" (BrickMaster) - 2 1/4" x 3 5/8" x 11 5/8" Brick *

BrickMaster - Single Use
Single-Use Thin Brick System

Notes:
*Accepts standard Norman Brick.
Tooled Joint Illustrated Single-Use Also Available in Raked Joint

Part Size:
32" W x 27.094" H

Click here for cut-sheet

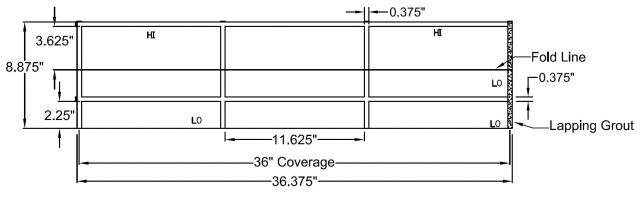

11306EC Norman Edge Cap (BrickMaster)

BrickMaster - Single Use
Single-Use Thin Brick System

Notes: Tooled Joint Illustrated Also Avilable in Raked Joint

Part Size:
36.375" W x 8.875" H

Click here for cut-sheet

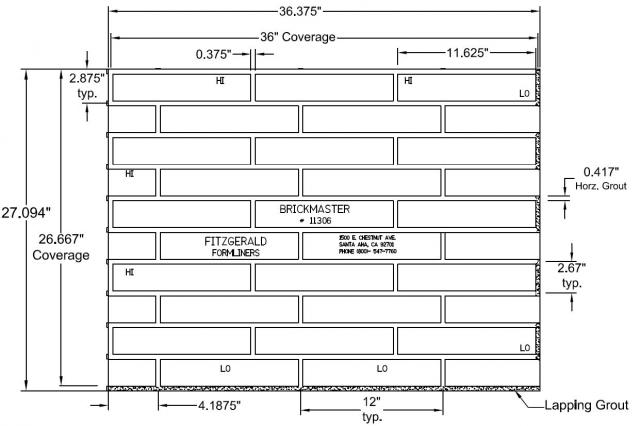

11306FP Norman 1/3-2/3 Two Row Repeat Field Panel (BrickMaster) - 2 1/4" x 11 5/8" Brick

BrickMaster - Single Use
Single-Use Thin Brick System

Notes: Tooled Joint Illustrated Single-Use Also Available in Raked Joint

Part Size:
36.375" W x 27.094" H

Click here for cut-sheet

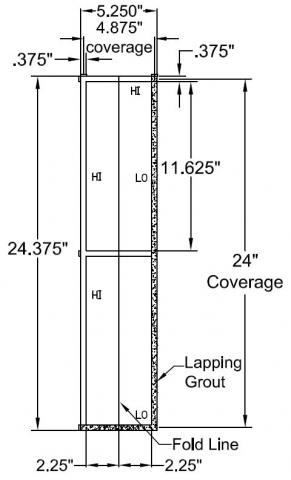

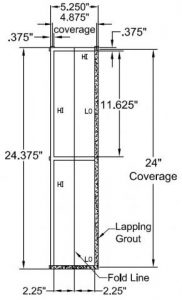

11306SCR Norman Soldier Course Return (BrickMaster)

BrickMaster - Single Use
Single-Use Thin Brick System

Notes: Tooled Joint Illustrated Also Available in Raked Joint

Part Size:
5.25" W x 24.375" H

Click here for cut-sheet

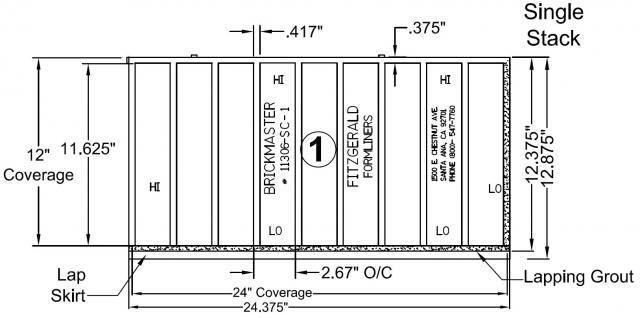

11306SCT1 Norman Soldier Course Single-Stack (BrickMaster) - 2 1/4" x 11 5/8" Brick

BrickMaster - Single Use
Single-Use Thin Brick System

Notes: Tooled Joint Illustrated Single-Use Also Available in Raked Joint

Part Size:
24.375" W x 12.875" H

Click here for cut-sheet

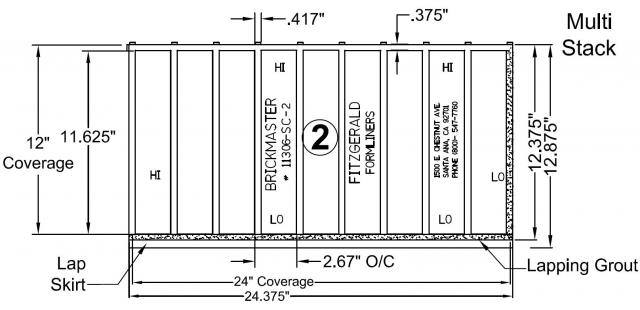

11306SCT2 Norman Soldier Course Multi-Stack (BrickMaster) - 2 1/4" x 11 5/8" Brick

BrickMaster - Single Use
Single-Use Thin Brick System

Part Size:
24.375" W x 12.875" H

Click here for cut-sheet

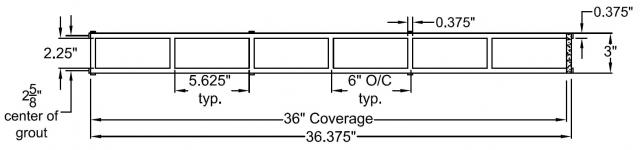

11306SHC Norman Single Header Course (BrickMaster)

BrickMaster - Single Use
Single-Use Thin Brick System

Notes: Tooled Joint Illustrated Single-Use Also Available in Raked Joint

Part Size:
36.375" W x 3 " H

Click here for cut-sheet
