BrickMaster™ Patterns

BrickMaster Patterns: (45 Results Found) 1 > 2 > 3 >

Click to go to pattern - 11302CR | 11302CRE | 11302EC | 11302FP | 11302SCR | 11302SCT1 | 11302SCT2 | 11302SHC | 11303CR1323 | 11303CR32 | 11303CRE1323 | 11303CRHalf | 11303EC | 11303FP | 11303FPHalf

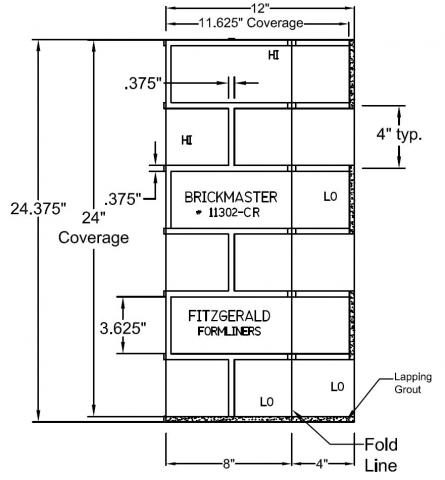

11302CR Closure (Economy) Corner Panel (BrickMaster) - 3 5/8" x 4 5/8" x 7 5/8" Brick

BrickMaster - Single Use
Single-Use Thin Brick System

Notes: Tooled Joint Illustrated Single-Use Also Available In Raked Joint

Part Size:
12" W x 24.375" H

Click here for cut-sheet

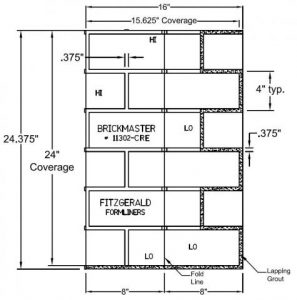

11302CRE Closure (Economy) Corner Panel-Extended (BrickMaster) - 3 5/8" x 3 5/8" x 7 5/8" Brick

BrickMaster - Single Use
Single-Use Thin Brick System

Notes:
Tooled Joint Illustrated
Single-Use Also Available in Raked Joint

Part Size:
16" W x 24.375" H

Click here for cut-sheet

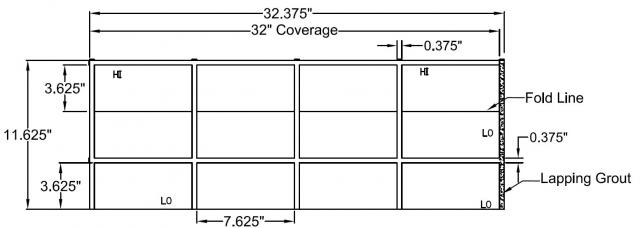

11302EC Closure (Economy) Edge Cap (BrickMaster)

BrickMaster - Single Use
Single-Use Thin Brick System

Notes: Tooled Joint Illustrated Also Available in Raked Joint

Part Size:
32.375" W x 11.625" H

Click here for cut-sheet

11302FP Closure (Economy) Running Bond Field Panel (BrickMaster) - 3 5/8" x 7 5/8" Brick

BrickMaster - Single Use
Single-Use Thin Brick System

Notes:
Tooled Joint Illustrated
Single-Use Also Available In Raked Joint

Part Size:
32.375" W x 24.375" H

Click here for cut-sheet

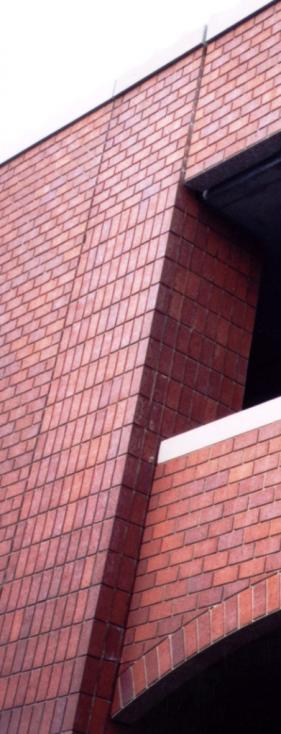

11302 Closure / Economy BrickMaster - Parking Garage, Campbell, CA.: Walters & Wolf Precast

11302SCR Closure (Economy) Soldier Course Return (BrickMaster)

BrickMaster - Single Use
Single-Use Thin Brick System

Notes: Tooled Joint Illustrated Also Available In Raked Joint

Part Size:
8" W x 16.375" H

Click here for cut-sheet

11302 Closure Soldier Course Return - Precast Campbell Parking Garage, CA: Walters & Wolf Precast

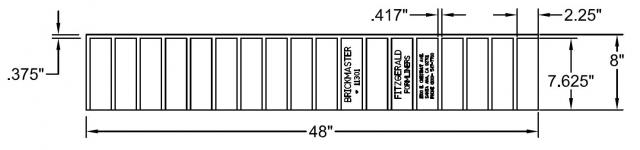

11302SCT1 Closure Soldier Course Single-Stack (BrickMaster) - 3 5/8" x 7 5/8" Brick

BrickMaster - Single Use
Single-Use Thin Brick System

Notes: Tooled Joint Illustrated Single-Use Also Available in Raked Joint

Part Size:
32.375" W x 8.875" H

Click here for cut-sheet

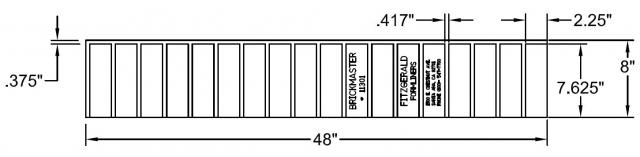

11302SCT2 Closure Soldier Course Multi-Stack (BrickMaster) - 3 5/8" x 7 5/8" Brick

BrickMaster - Single Use
Single-Use Thin Brick System

Notes: Tooled Joint Illustrated Single-Use Also Available in Raked Joint

Part Size:
32.375" W x 8.875" H

Click here for cut-sheet

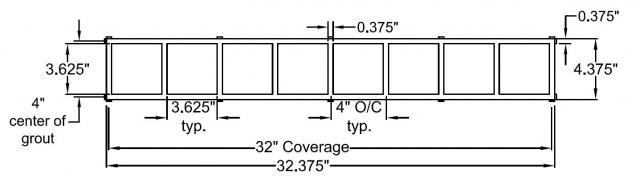

11302SHC Closure (Economy) Single Header Course (BrickMaster)

BrickMaster - Single Use
Single-Use Thin Brick System

Notes: Tooled Joint Illustrated Single-Use Also Available in Raked Joint

Part Size:
32.375" W x 4.375" H

Click here for cut-sheet

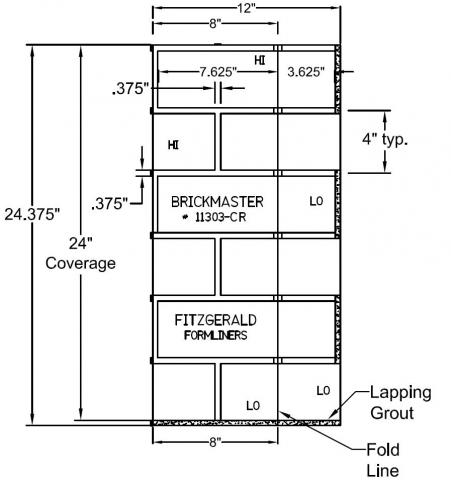

11303CR1323 Utility (Jumbo) 1/3-2/3 Two Row Repeat Corner Panel (BrickMaster) - 3 5/8" x 3 5/8" x 7 5/8" Brick*

BrickMaster - Single Use
Single-Use Thin Brick System

Notes: *Requires Closure Corner Brick Tooled Joint Illustrated Also Available in Raked Joint

Part Size:
12" W x 24.375" H

Click here for cut-sheet

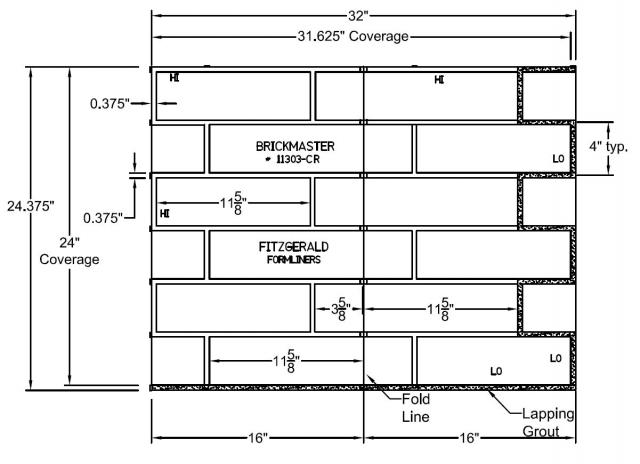

11303CR32 Utility 1/3-2/3 Two Row Repeat Corner Panel - 32" (BrickMaster) - 3 5/8" x 3 5/8" x 11 5/8" Brick*

BrickMaster - Single Use
Single-Use Thin Brick System

Notes: *Accepts Standard Closure Corner Brick Tooled Joint Illustrated Also Available in Raked Joint

Part Size:
32" W x 24.375" H

Click here for cut-sheet

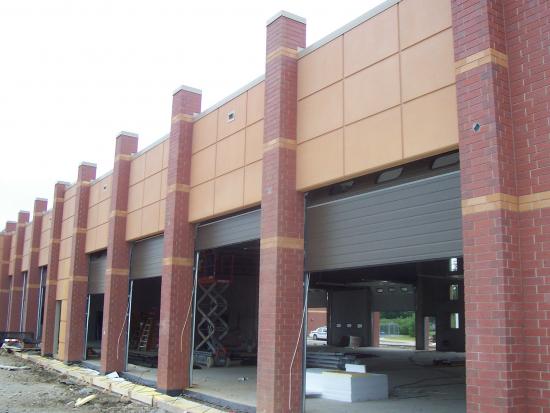

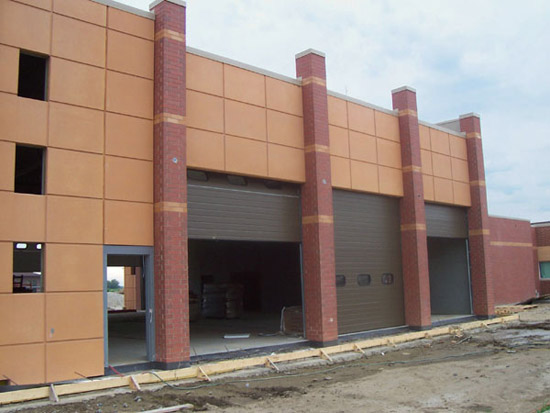

11303 Utility BrickMaster - Norwalk Fire Station: Enterprise Precast

11303CR32 Utility 1/3-2/3 Running Bond Corner Panel 32 - Norwalk Fire Station: Enterprise Precast

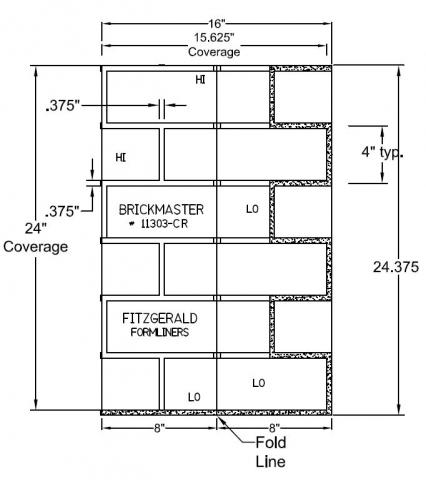

11303CRE1323 Utility 1/3-2/3 Two Row Repeat Corner Panel-Extended (BrickMaster) - 3 5/8" x 3 5/8" x 7 5/8" Brick*

BrickMaster - Single Use
Single-Use Thin Brick System

Notes: *Requires Closure Corner Brick Tooled Joint Illustrated Also Available in Raked Joint

Part Size:
16" W x 24.375" H

Click here for cut-sheet

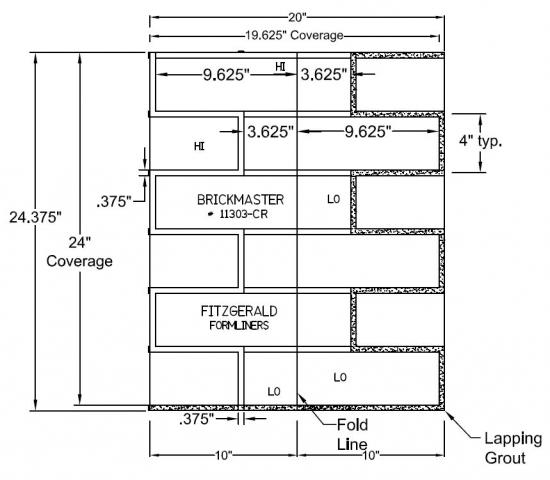

11303CRHalf Utility (Jumbo) 1/2 Running Bond Corner Panel (BrickMaster) - 3 5/8" x 3 5/8" x 9 5/8" Brick*

BrickMaster - Single Use
Single-Use Thin Brick System

Notes: *Requires Trimmed Utility Corner Brick Tooled Joint Illustrated Also Available in Raked Joint

Part Size:
20" W x 24.375" H

Click here for cut-sheet

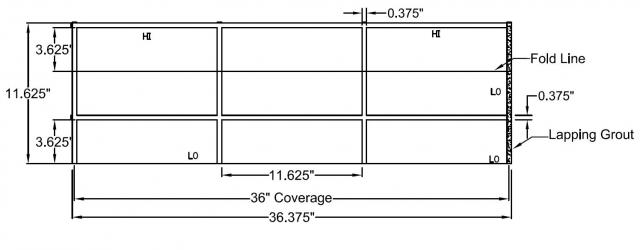

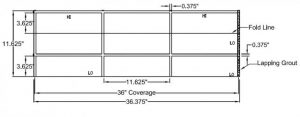

11303EC Utility (Jumbo) Edge Cap (BrickMaster)

BrickMaster - Single Use
Single-Use Thin Brick System

Notes: Tooled Joint Illustrated Also Available in Raked Joint

Part Size:
36.375" W x 11.625" H

Click here for cut-sheet

11303FP Utility (Jumbo) 1/3-2/3 Two Row Repeat Field Panel (BrickMaster) - 3 5/8" x 11 5/8" Brick

BrickMaster - Single Use
Single-Use Thin Brick System

Notes: Tooled Joint Illustrated Single-Use Also Available in Raked Joint

Part Size:
36.375" W x 24.375" H

Click here for cut-sheet

11303 Utility BrickMaster - Target, Boynton Beach, Florida

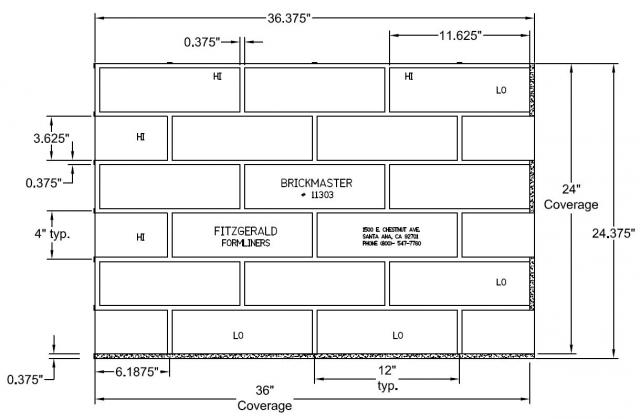

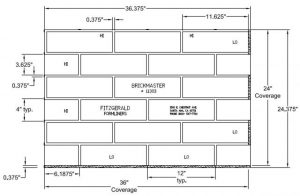

11303FPHalf Utility (Jumbo) 1/2 Running Bond Field Panel (BrickMaster) - 3 5/8" x 11 5/8" Brick

BrickMaster - Single Use
Single-Use Thin Brick System

Notes: Tooled Joint Illustrated Single-Use Also Available in Raked Joint

Part Size:
36.375" W x 24.375" H

Click here for cut-sheet
