BrickMaster™ Thin Brick System

BrickMaster Patterns: (45 Results Found)  1 > 2 > 3 >

Click to go to pattern - 05000 | 05001 | 11301CR | 11301CRE | 11301EC | 11301FP | 11301R22 | 11301R28 | 11301R33 | 11301R77 | 11301RLK | 11301SCR |  11301SCT1 | 11301SCT2 | 11301SHC

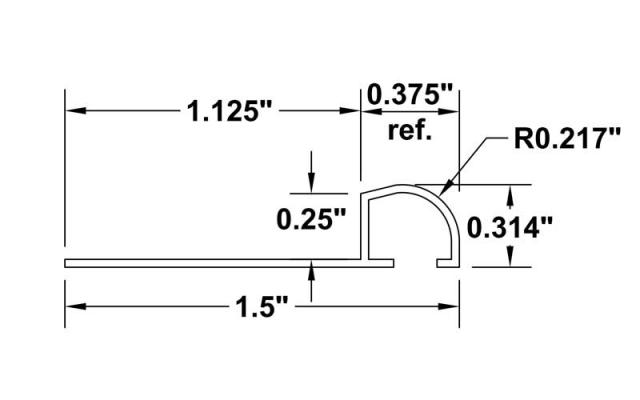

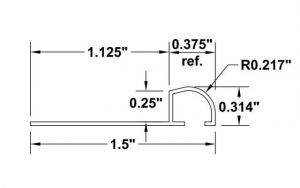

05000 Reveal Strip (BrickMaster) - .314" Depth, One Sided Radial Reveal

BrickMaster - Single Use
Single-Use Thin Brick System

Max Depth: 0.314"

Part Size:

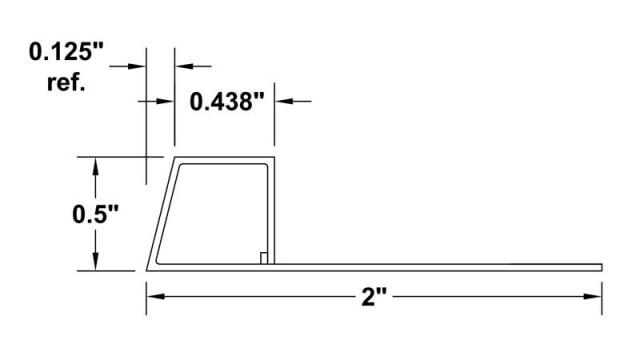

05001 Reveal Strip (BrickMaster) - 0.5" Depth, .438" Flat Top Reveal

BrickMaster - Single Use
Single-Use Thin Brick System

Max Depth: 0.5"

Part Size:
2.0"W., up to 40'L.

Click here for cut-sheet

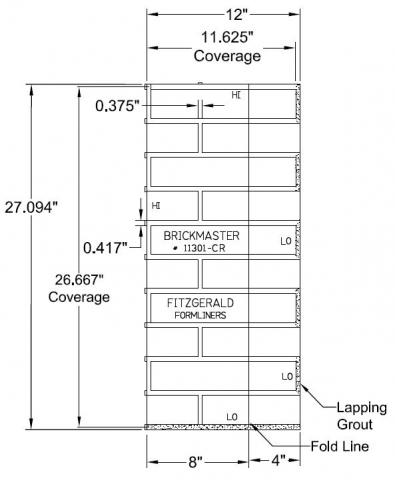

11301CR Modular Corner Panel (BrickMaster) - 2 1/4" x 3 5/8" x 7 5/8" Bricks

BrickMaster - Single Use
Single-Use Thin Brick System

Max Depth: 0.25"

Brick Size: 7.625"W. x 2.25"H., 3.625"W.

Mortar Joints: 0.417" Hort., 0.375"Vert.

Notes:
Tooled Joint Illustrated
Single-Use Also Available in Raked Joint

Part Size:
12"W. x 27.094"H.

Part Coverage:
11.813"W. x 26.667"H.

Click here for cut-sheet

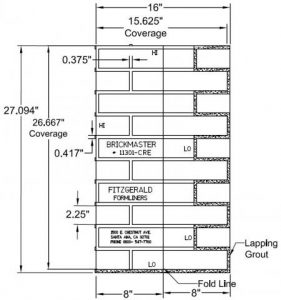

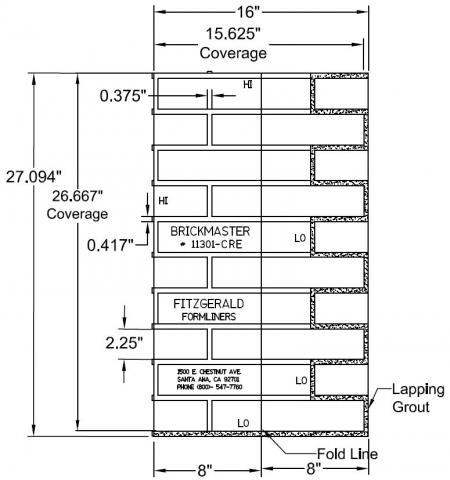

11301CRE Modular Corner Panel-Extended (BrickMaster) - 2 1/4" x 3 5/8" x 7 5/8" Brick

BrickMaster - Single Use
Single-Use Thin Brick System

Max Depth: 0.25"

Brick Size: 7.625"W. x 2.25"H., 3.625"W.

Mortar Joints: 0.417"Hort., 0.375"Vert.

Notes:
Tooled Joint Illustrated
Single-Use Also Available in Raked Joint

Part Size:
16"W. x 27"H.

Click here for cut-sheet

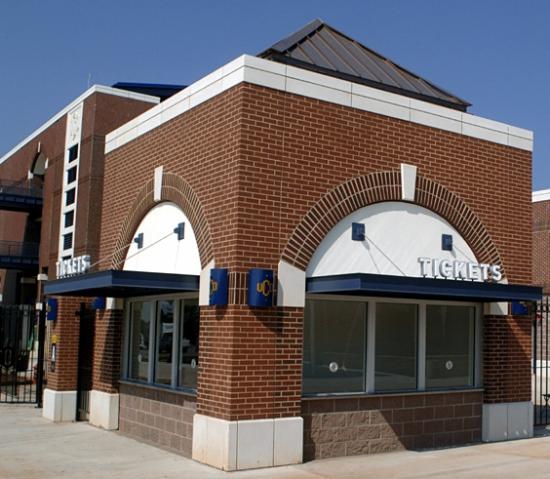

11301CRE Modular Corner Panel Extended - Wantland Stadium, University of Central Oklahoma: Coreslab

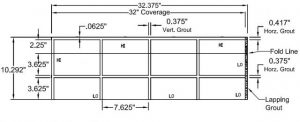

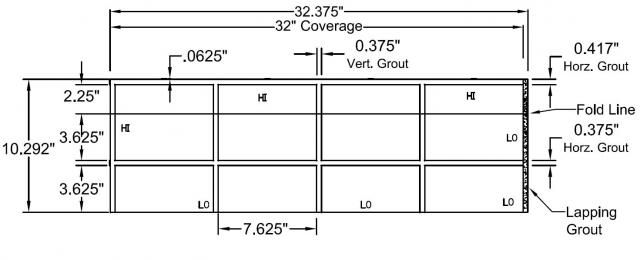

11301EC Modular Edge Cap (BrickMaster)

BrickMaster - Single Use
Single-Use Thin Brick System

Max Depth: 0.25"

Brick Size: 2.25"W. x 3.54"H.

Mortar Joints: 0.417"Hort., 0.375"Vert.

Notes:
Tooled Joint Illustrated
Single-Use Also Available in Raked Joint

Part Size:
32.375"W. x 10.292"H.

Part Coverage:
32"W. x 3.54"H.

Click here for cut-sheet

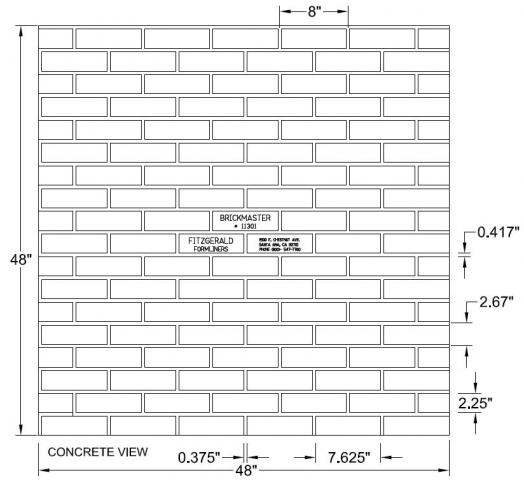

11301FP Modular Running Bond Field Panel (BrickMaster) - 2 1/4" x 7 5/8" Brick

BrickMaster - Single Use
Single-Use Thin Brick System

Max Depth: 0.25"

Brick Size: 7.625"W. x 2.25"H.

Mortar Joints: 0.417"Hort., 0.375"Vert.

Notes:
Tooled Joint Illustrated
Single-Use Also Available in Raked Joint

Part Size:
32.375"W. x 27.094"H.

Part Coverage: 32"W. x 26.667"H.

Click here for cut-sheet

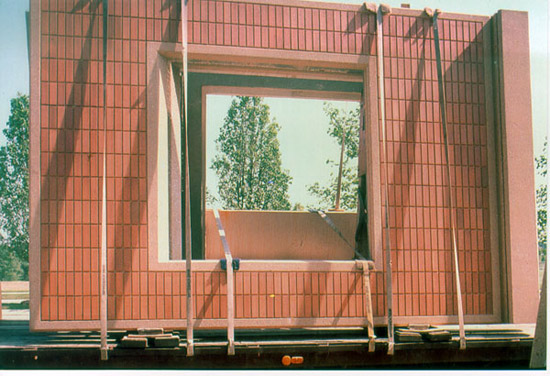

11301 Modular BrickMaster - Power Motive Corporation, Milliken, CO: Hall Irwin Construction Company

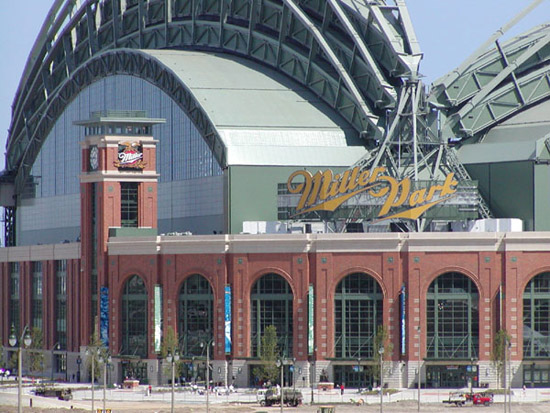

11301 Modular BrickMaster - Miller Park Stadium, Milwaukee, WI.

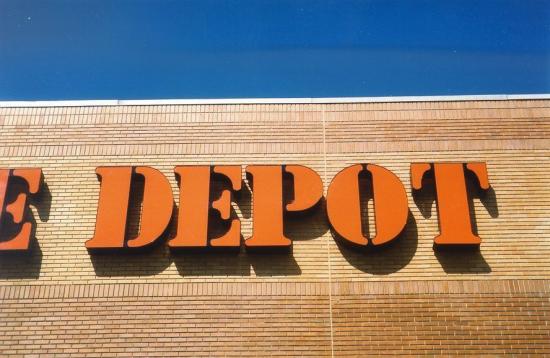

11301FP Modular Running Bond -Tilt Up Home Depot, Hamilton Hills, GA

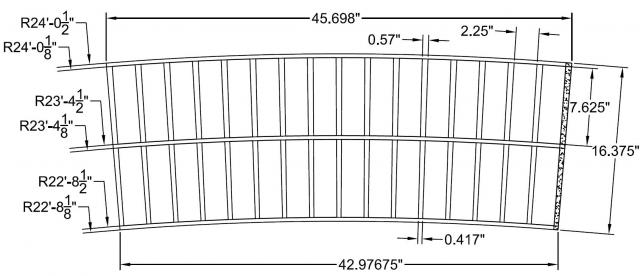

11301R22 Modular Arch R22'-8 1/2" (BrickMaster) - 2 1/4" x 7 5/8" Brick

BrickMaster - Single Use
Single-Use Thin Brick System

Max Depth: 0.25"
Brick Size: 2.25"W. x 7.625"H.
Mortar Joints: 0.417" Vert., 0.375" Hort.

Part Size:
45.896"W. x 16.375"H.

Click here for cut-sheet

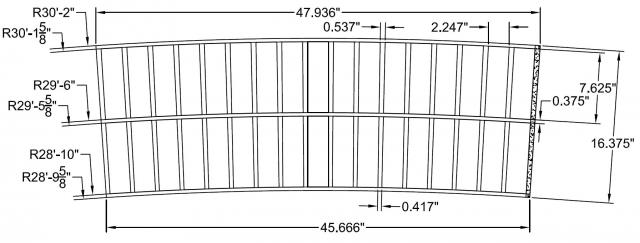

11301R28 Modular Arch R28'-10" (BrickMaster) - 2 1/4" x 7 5/8" Brick

11301R28 Modular Arch R28'-10

BrickMaster - Single Use
Single-Use Thin Brick System

Max Depth: 0.25"
Brick Size: 2.25"W. x 7.625"H.
Mortar Joints: 0.417" Vert., 0.375" Hort.

Part Size:
7.936"W. x 16.375"H.

Click here for cut-sheet

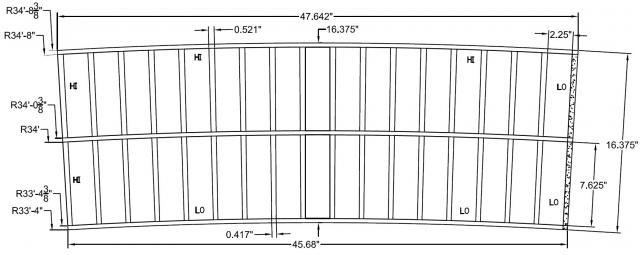

11301R33 Modular Arch R33'-4 3/8" (BrickMaster) - 2 1/4" x 7 5/8" Brick

BrickMaster - Single Use
Single-Use Thin Brick System

Max Depth: 0.25"
Brick Size: 2.25"W. x 7.625"H.
Mortar Joints: 0.417"Vert., 0.375"Hort.

Part Size:
47.642"W. x 16.375"H.

Click here for cut-sheet

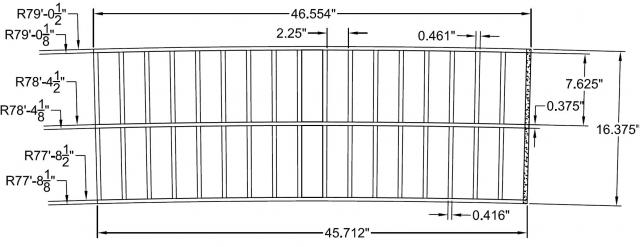

11301R77 Modular Arch R77'-8 1/2" (BrickMaster) - 2 1/4" x 7 5/8" Brick

BrickMaster - Single Use
Single-Use Thin Brick System

Max Depth: 0.25"
Brick Size: 2.25"W. x 7.625"H.
Mortar Joints: 0.417" Vert., 0.375" Hort.

Part Size:
46.554"W. x 16.375"H.

Click here for cut-sheet

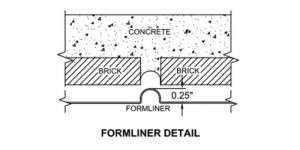

11301RLK Modular Rolok Single-Stack (BrickMaster)

BrickMaster - Single Use
Single-Use Thin Brick System

Max Depth: 0.500"
Notes:
Tooled Joint Illustrated
Single-Use Also Available in Raked Joint

Part Size:
32.375" W x 4.417" H

Click here for cut-sheet

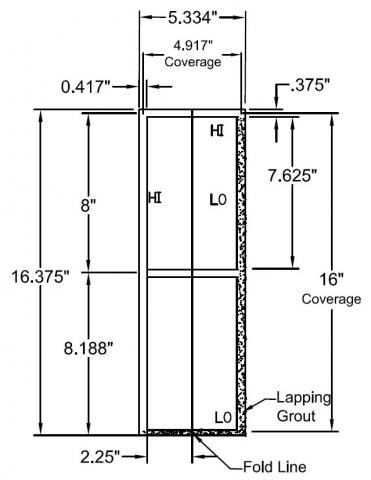

11301SCR Modular Soldier Course Return (BrickMaster)

BrickMaster - Single Use
Single-Use Thin Brick System

Notes:
Tooled joint Illustrated
Single-Use Also Available in Raked Joint

Part Size:
5.334" W x 16.375" H

Click here for cut-sheet

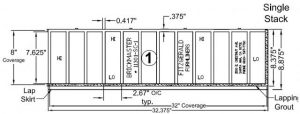

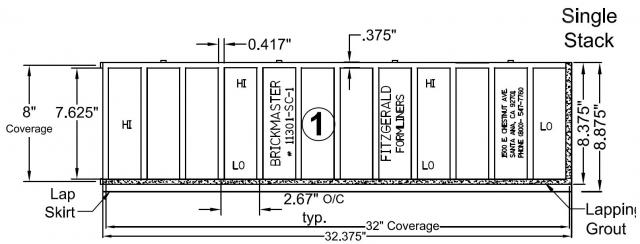

11301SCT1 Modular Soldier Course Single-Stack (BrickMaster) - 2 1/4" x 7 5/8" Brick

BrickMaster - Single Use
Single-Use Thin Brick System

Notes:
Tooled Joint Illustrated Single-Use Also Available in Raked Joint

Part Size:
32.375" W x 8.875" H

Click here for cut-sheet

11301SC-T1 Modular Soldier Course Single Stack - Tilt Up Home Depot, Hamilton Hills, GA.

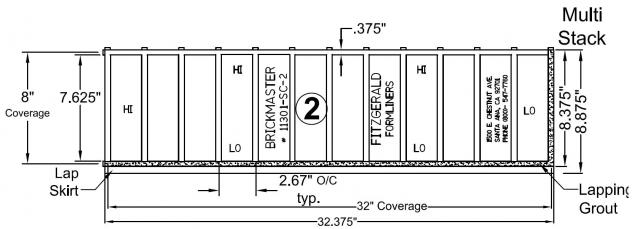

11301SCT2 Modular Soldier Course Multi-Stack (BrickMaster)

BrickMaster - Single Use
Single-Use Thin Brick System

Notes:
Tooled Joint Illustrated Single-Use Available In Raked Joint

Part Size:
32.375" W x 8.875" H

Click here for cut-sheet

11301SC-T2 Modular Soldier Course Multi-Stack

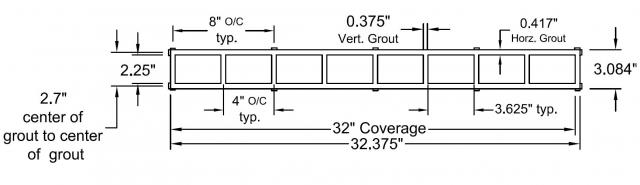

11301SHC Modular Single Header Course (BrickMaster)

BrickMaster - Single Use
Single-Use Thin Brick System

Notes:
Tooled Joint Illustrated
Single-Use Also Available in Raked Joint

Part Size:
32.375" W x 3.084" H

Click here for cut-sheet
