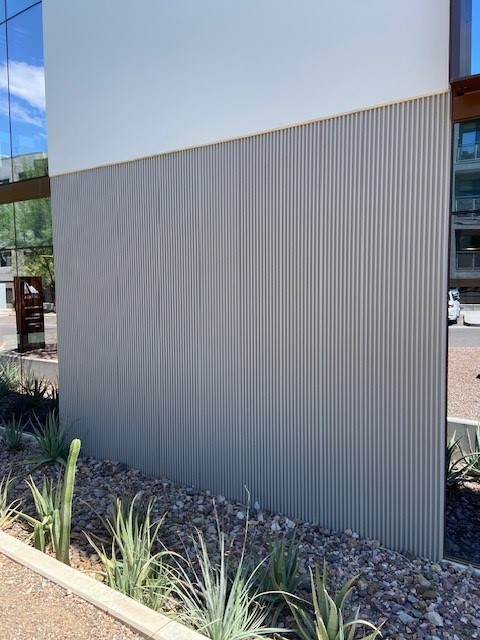

14448 Fluted Rib - 1" Deep, 2" on Center

VinyLok™
Styrene - Single use.
ABS Plastic - Up to 10 reuses.

Max Depth: 1.000"
On Center: 2.000"
Peak: 0.75"
Valley: 0.75"
Draft: 0.25"

Part Size:
6" Wide Coverage, lengths up to 48'

Click here for cut-sheet

Notes:
For a 0.75" Deep, 2" on Center, see pattern 14304



14448 Fluted Rib - 1.0" Deep, 2.0" on Center

Vac-U-Form™
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 1.000"
On Center: 2.0"
Peak: 0.75"
Valley: 0.75"
Draft: 0.25"
Notes: For a 0.75" Deep, 2" on Center, see pattern 14304

Part Size:
48.0"W. x 120"

Click here for cut-sheet

14448 Fluted Rib - 1.0" Deep, 2.0" on Center

GrayLastic™
Elastomeric Urethane - up to 100 uses.
Mold bonded to 0.75" plywood.
Add 1.25" to liner thickness.

Max Depth: 1"
On Center: 2"
Peak: 0.75"
Valley: 0.75"
Draft: 0.25"

Part Size:
48"W. x 120"H.

Click here for cut-sheet
