Vac-U-Form™ Vacuum-Formed Plastic Formliners


Design by Pattern...


Vac-U-Form Patterns: Masonry (20 of 20 Results Found)

Click to go to pattern - 16940 | 16941 | 16944 | 16945 | 16946 | 16947 | 16948 | 16949 | 16970 | 16971 | 16973 | 16974 |  16975 | 16976 | 16977 | 16978 | 17920 | 17923 | 17977 | 18045

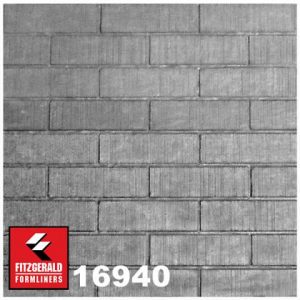

16940 4" x 12" Wire Brick

Vac-U-Form
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.250"
Block Size: 11.625" Wide x 3.5" High
Notes: 0.5" horizontal mortar joint and 0.375" vertical mortar joint.

Part Size:
120" Wide x 48" High
Long - Backing Strips Required

Click here for cut-sheet

16940 Wire Brick - Kyle Parkway Bridge, Lubbock,TX: Heldenfels Precast




16941 8" Smooth Brick - Running bond brick

Vac-U-Form
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.250"
Block Size: 7.625" Wide x 2.25" High
Notes: 0.41" horizontal mortar joint, 0.375" vertical mortar joint

Part Size:
96" Wide x 48" High

Click here for cut-sheet

16941 Modular Brick - Canada: La Farge Precast
16941 Modular Brick - Placer County, California: RNR Construction
16941 Modular Brick - Canada: La Farge Precast




16944 6" x 16" Large Slumpstone - Running bond brick

Vac-U-Form
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.375"
Block Size: 15.5" Wide x 5.5" High
Notes: 0.5" mortar joints

Part Size:
95.5" Wide x 48.125" High

Click here for cut-sheet





16945 4" x 16" Aged Slumpstone - Running bond brick

Vac-U-Form
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.375"
Block Size: 15.625" Wide x 3.625" High with 0.375" mortar joints

Part Size:
95.75" Wide x 47.75" High

Click here for cut-sheet





16946 4" x 16" Classic Slumpstone - Running bond brick

Vac-U-Form
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.375"
Block Size: 15.625" Wide x 3.625" High with 0.375" mortar joints

Part Size:
48" Wide x 120" High

Note configuration of the panel size

Click here for cut-sheet

16946 Classic Slumpstone: Precast Engineering
16946 Classic Slumpstone: Precast Engineering




16947 8" Used Brick - Running bond brick

Vac-U-Form
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.250"
Block Size: 7.625" Wide x 2.375 High with 0.375" - .5" mortar joints

Part Size:
48" Wide x 120" High

Note configuration of the panel size

Click here for cut-sheet

16947 Used Brick
#16947 Running bond Brick - Citadel Construction
#16947 Running bond Brick - Citadel Construction




16948 12" Smooth Brick - Running bond brick

Vac-U-Form
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.375"
Block Size: 11.5" Wide x 3.5" High with 0.375" mortar joints

Part Size:
48" Wide x 96" High

Note configuration of the panel size

Click here for cut-sheet

16948 Smooth Brick - Durisol Precast Sound galleryWalls

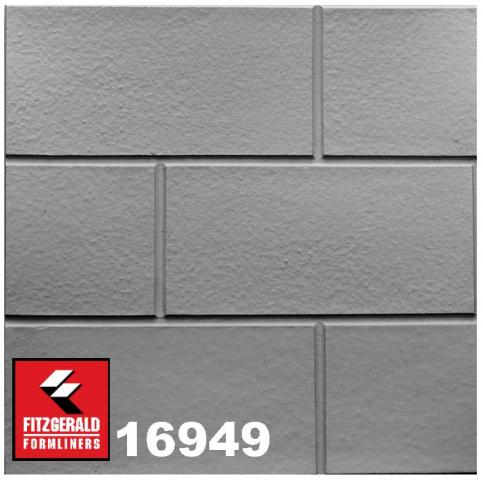

16949 8" x 16" Cinder Block - Running bond block

Vac-U-Form
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.250"
Block Size: 15.5" Wide x 7.5" High with 0.5" mortar joints

Part Size:
96" Wide x 48" High

Click here for cut-sheet





16970 8" x 16" Splitfaced Stacked Block

Vac-U-Form
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.750"
Block Size: 15.625" Wide x 7.625" High with 0.375" mortar joint

Part Size:
96" Wide x 48" High

Click here for cut-sheet





16971 8" x 16" Splitfaced Block - Running Bond Block

Vac-U-Form
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.750"
Block Size: 15.625" Wide x 7.625" High with 0.375" mortar joint

Part Size:
96.125" Wide x 48.125" High

Click here for cut-sheet

16971 Split Faced Running Bond Block, Home Depot, Castle Rock, CO
16971 Split-Faced Running Bond Block - Home Depot, Castle Rock, CO
16971 Split Faced Running Bond Block




16973 Arizona Splitfaced Block Grooved - 3.187" wide fluted splitfaced block, 1" deep

Vac-U-Form
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 1.000"
Draft: 0.625"
Notes: 3.187" fluted splitfaced block with 0.75" smooth grooves, see pattern 18045 for modified stacked block version of this pattern.

Part Size:
120" Wide x 48" High

Note panel configuration

Click here for cut-sheet





16974 2" Splitfaced Block - 2" wide vertical stacked block

Vac-U-Form
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.750"
Draft: 0.125"
Notes: 2" Wide x 7.625" High split faced block with 1.75" wide groove

Part Size:
120" Wide x 48" High

Note panel configuration

Click here for cut-sheet





16975 Undersized Splitfaced Block - Running bond block

Vac-U-Form
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.750"
Block Size: 15.5" Wide x 7.5" High with 0.5" mortar joints

Part Size:
94.25" Wide x 47.5" High

Click here for cut-sheet





16976 12" x 12" Splitfaced Block (Medium Texture) - Stacked block

Vac-U-Form
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.375"
Block Size: 11.5" Wide x 11.5" High with 0.5" mortar joints

Part Size:
120" Wide x 48" High

Click here for cut-sheet





16977 8" x 8" Splitfaced Block - Stacked block

Vac-U-Form
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.500"
Block Size: 7.5" Wide x 7.5" High with 0.5" mortar joints

Part Size:
120" Wide x 48" High

Click here for cut-sheet

16977 8" x 8" Split Face Block




16978 8" x 8" Cordera Spanish Tile - Stacked tile with light diagonal striations, 0.12" deep

Vac-U-Form
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.120"
Block Size: 7.5" Wide x 7.5" High with 0.5" mortar joints

Part Size:
120" Wide x 48" High

Click here for cut-sheet





17920 4" x 16" Splitfaced Running Bond Block

Vac-U-Form
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.750"
Block Size: 15.5" Wide x 3.5" High with 0.5" mortar joints

Part Size:
96" Wide x 48" High

Click here for cut-sheet

17920 Split Face Running Bond Block
17920 Split Face Running Bond Block
17920 Split Face Running Bond Block




17923 8" x 8" Stacked Cinder Block

Vac-U-Form
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.125"
Block Size: 7.625" Wide x 7.625" Wide with 0.375 mortar joints

Part Size:
96" Wide x 48" High

Click here for cut-sheet





17977 12" x 12" Smooth Tile

Vac-U-Form
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 0.375"
Block Size: 11.5" Wide x 11.5" High with 0.5" grout

Part Size:
120" Wide x 48" High

Click here for cut-sheet





18045 Sonora Block - 8" Splitfaced Stacked Block Rib

Vac-U-Form
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 1.000"
Block Size: 15.625" wide x 7.875" high

Part Size:
48" Wide x 120" High

Click here for cut-sheet
