GrayLastic™ Extended-Use Elastomeric Formliners


Design by Pattern...



GrayLastic™ Pattern: Stone & Rock (69 Results Found)  1 > 2 > 3 > 4 > 5 >

Click to go to pattern - 17982 | 17983 | 17983-M | 17984 | 17985 | 17986 | 17991 | 17993 | 17997


17982 Splitfaced Stone - Splitfaced texture, 0.25" deep

GrayLastic
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 0.250"
Notes:
Texture only, no grout or match points.

Part Size:
192.5" W x 48" H

Click here for cut-sheet





17983 Ohio Chiseled Limestone - Limestone texture, 1" deep

GrayLastic
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1.000"
Notes:
1" mortar joint around perimeter.

Part Size:
64" W x 36" H

Also Available in 16' 5-1/2" W x 2' 6-5/8" H Upon Request

Click here for cut-sheet





17983-M Ohio Chiseled Limestone - Modified - Limestone texture, 1" deep

GrayLastic
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1.000"
Stone Size: 23.25"- 47.25" W x 23.25" - 24" H
Grout Width: 0.75"

Part Size:
95.25" W x 48" H

Click here for cut-sheet





17984 Chicago Ashlar - Ashlar Stone, weathered surface, 1.25" deep

GrayLastic
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1.250"
Stone Size: 7"-19" W x 6"-16" H
Notes:
Match points on all four sides.

Part Size:
144" W x 48" H

Click here for cut-sheet





17985 King's Canyon Stone - Random Stone

GrayLastic
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 2.500"
Stone Size: 4" - 20" Wide by 3" - 15" High

Part Size:
128.9" W x 48" H

Click here for cut-sheet

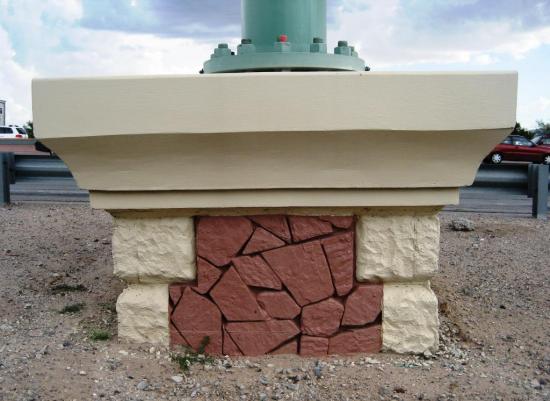

17985 King's Canyon Stone & 17004 Liberty Island Stone Combination - El Paso Loop, Texas

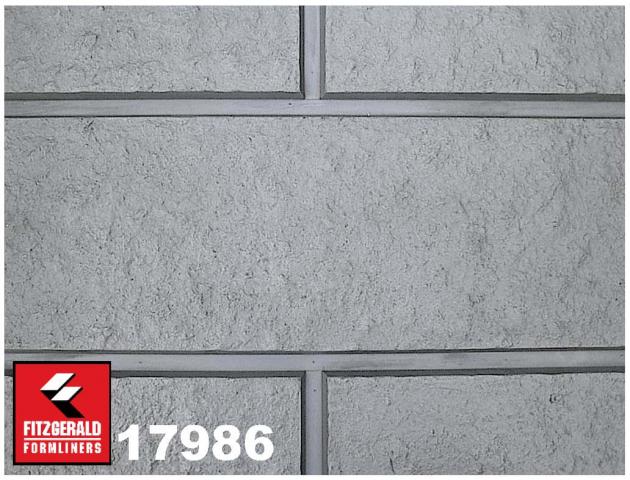

17986 Aged Benicia Block - Large interlocking splitfaced blocks, 1" deep

GrayLastic
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1.000"
Stone Size: 48" W x 16" H
Grout Width: 1.0"
Notes:
Maximum height from grout to top of block is 1".

Part Size:
96" W x 48" H

Click here for cut-sheet





17991 Ohio Chisled Limestone - 16" x 24" Running Bond Block

GrayLastic
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 0.875"
Stone Size: 23.5" W x 15.5" H
Grout Width: 0.5"

Part Size:
120" W x 48" H

Click here for cut-sheet

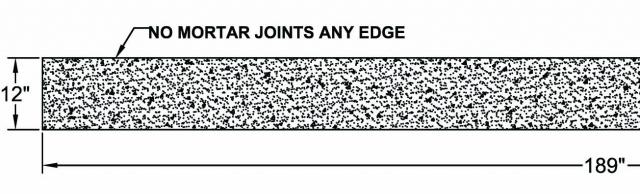

17993 Splitfaced Stone Cap - Rough Split-Faced Rock Texture

GrayLastic
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 0.625"

Part Size:
189" W x 12" H

Click here for cut-sheet

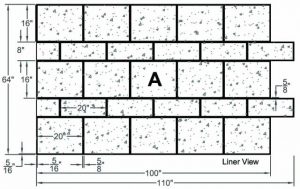

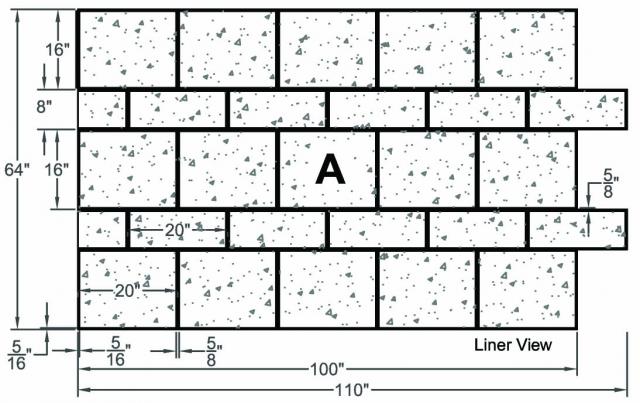

17997 Splitface Stone - 8" x 16" Coursed Rough Stone, 0.75" Deep

GrayLastic
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 0.750"

Part Size:
Part A: 110" W x 64" H

Part B: 130" W x 64" H

Part C: 120" W x 64" H

Click here for cut-sheet
