GrayLastic™ Extended-Use Elastomeric Formliners


Design by Pattern...



GrayLastic™ Pattern: Stone & Rock (69 Results Found)  1 > 2 > 3 > 4 > 5 >

Click to go to pattern - 17916 | 17917 | 17918 | 17921 | 17922 | 17924 | 17928 | 17929 | 17931 | 17933 | 17963 | 17974 |  17979 | 17980 | 17981


17916 Colorado River Rock (2.25" depth) - Random cobble stone, 2.25" deep

GrayLastic
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 2.250"
Stone Size: 4" - 10"
Notes:
Match top to bottom and side to side, see pattern 16985 for 1.5" depth, slightly larger stones

Part Size:
144" W x 48" H

Click here for cut-sheet

17916 Colorado River Rock - California
17916 Colorado River Rock - Barrier Wall Blocks




17917 Lone Star Ashlar - Random Cut Stone, Heavy Texture Face

GrayLastic
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1.620"

Part Size:
Part A: 58.5" W x 144" H

Part B: 82.5" W x 144" H

Part C: 40.5" W x 144" H

Part D: 28.5" W x 144" H

Click here for cut-sheet





17918 Liberty Island Modified, 24" High Course - Heavy texture, random cut stone, 2.75" deep.

GrayLastic
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 2.75"
Stone Size: 24"- 72" Wide x 24" High Coursing
Notes:
Also available in 9", 12" and 16" coursing, see patterns 17022, 17009 and  17004. Match points on all four sides.

Part Size:
Part B and C

96" W x 48" H

Click here for cut-sheet

17918 Liberty Island Stone - Retaining Wall, Illinois: Newfield Construction
17918 Liberty Island Stone - Retaining Wall, Illinois: Newfield Construction

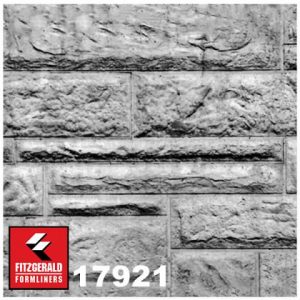

17921 Brooklyn Sandstone - Large Stone Ashlar, 12.5" to 70" wide stones, 1.5" deep.

GrayLastic
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1.500"
Stone Size: 12.5" - 70" Wide x 5"-21" High
Notes:
Match points on all four sides.

Part Size:
354" W x 48" H - two interlocking formliners

Click here for cut-sheet

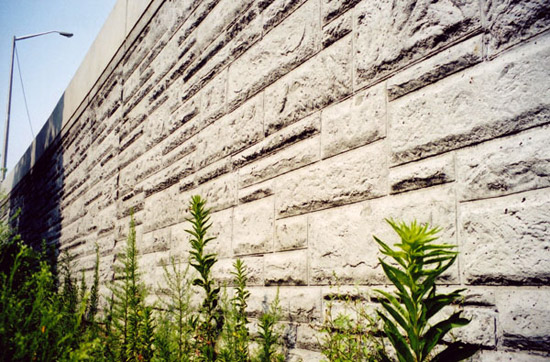

17921 Brooklyn Sandstone - Queens, NY




17922 Zion Rock - Random Rocks, 1.5" deep.

GrayLastic
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1.500"
Stone Size: 6"-32" Wide x 6"-20" High
Notes:
Pattern comes in Part A and B.  A & A match side to side, Part B is needed to match top to bottom.

Part Size:
Part A and B

96" W x 48" H

Click here for cut-sheet

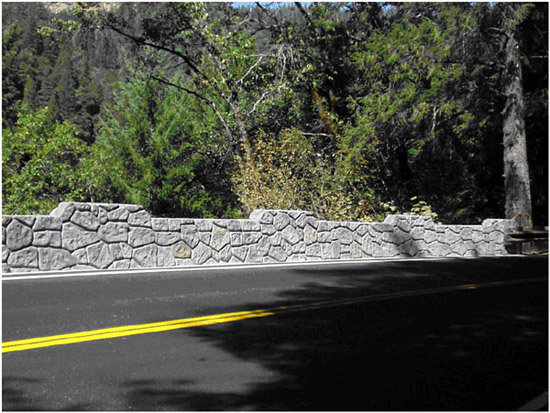

17922 Zion Rock - Wall Restoration: Stewart Engineering

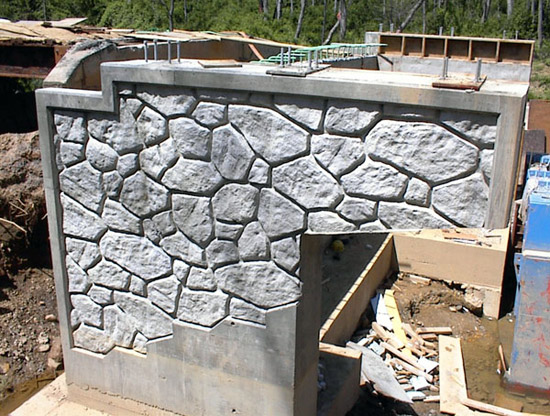

17922 Zion Rock




17924 Liberty Island Modified, 12" Course - Heavy Texture, Random Stone, 2.75" deep.

GrayLastic
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 2.750"
Stone Size: 24" -72" Wide x 11.25" High
Grout Width: 0.75"
Notes:
Parts A, B, C can be mixed and matched depending upon length of rocks required.  For variations on this pattern, see 17004, 16" coursing and 17918, 24" coursing.

Part Size:
Parts A, B, C

96" Wide x 48" High

Click here for cut-sheet

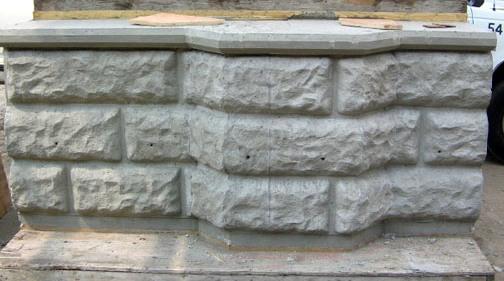

17924 Liberty Island Modified, 12" Course




17928 Western Basalt - Heavy Texture Rock Face, 2" deep

GrayLastic
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1.750" - 2.000"
Notes:
Match points on all four sides.

Part Size:
48" W x 120" L
48" W x 192" L

Click here for cut-sheet

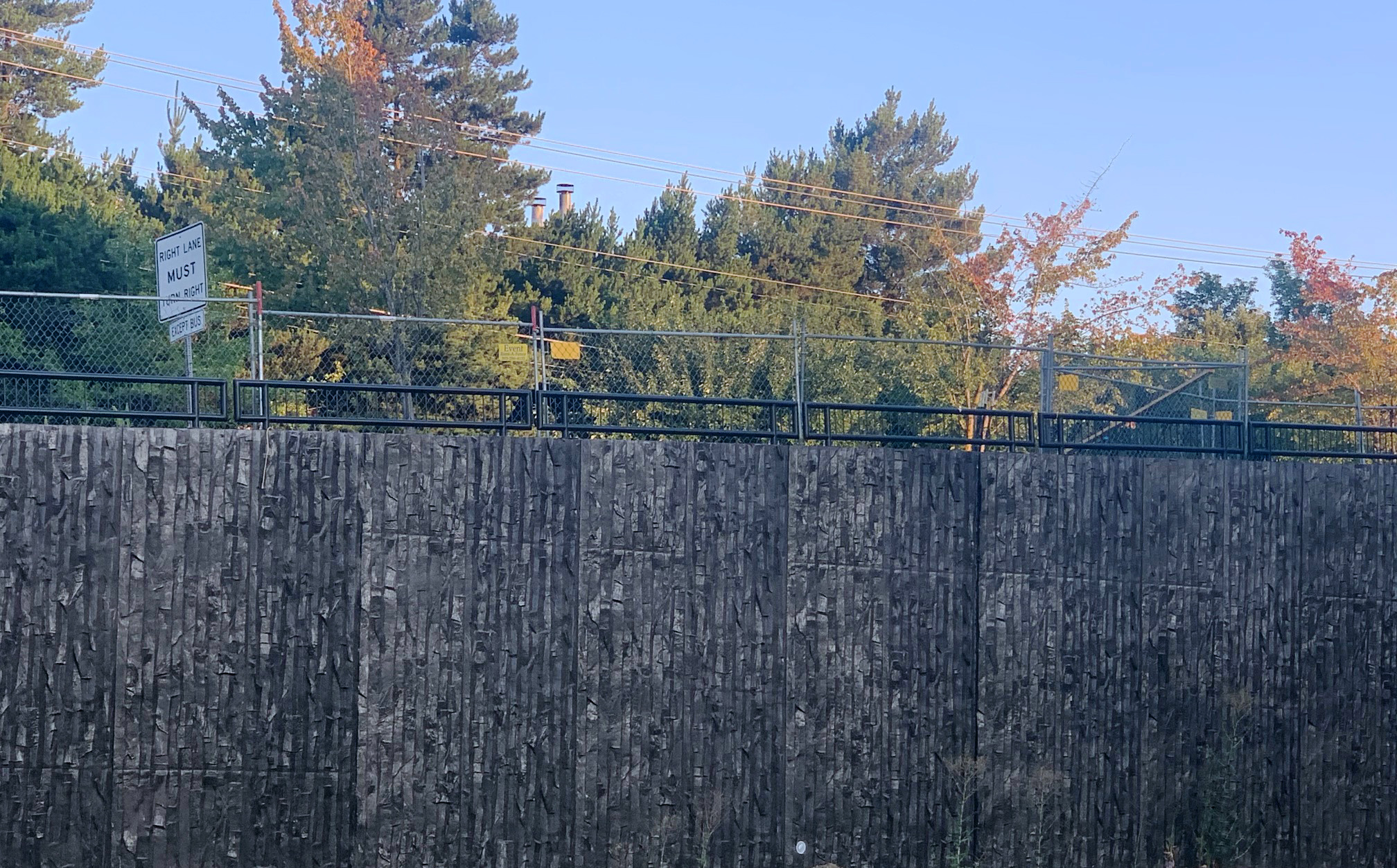

17928 Western Basalt. Fresno, CA. SR-99 Realignment. RNR Construction
17928 Western Basalt. Fresno, CA. SR-99 Realignment RNR Construction
White Tanks w/DBA Const- AZ #17928 Western Basalt

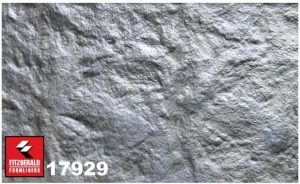

17929 Chiseled Limestone - Limestone texture, 1.25" deep

GrayLastic
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1.250"
Notes:
See pattern 16993 for .75" deep version. Match points at 8', 10', and 16'.

Part Size:
Part 1: 48" W x 192" L

Part 2: 48" W x 240" L

Part 3: 96" W x 192" L

Part 4: 60" W x 96" L

Click here for cut-sheet

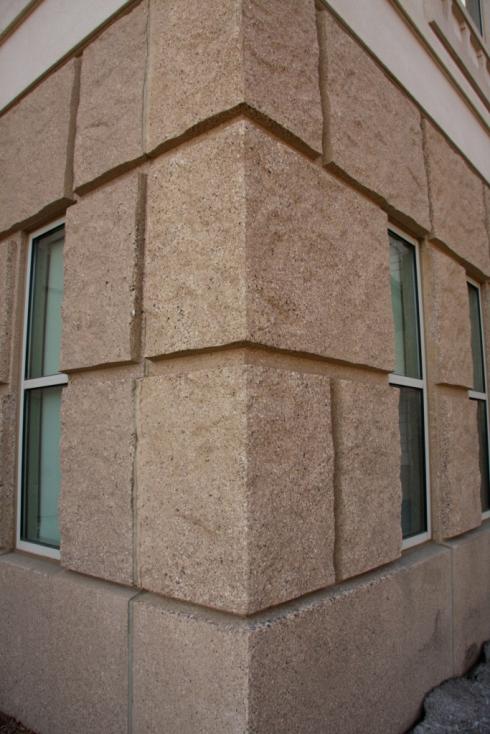

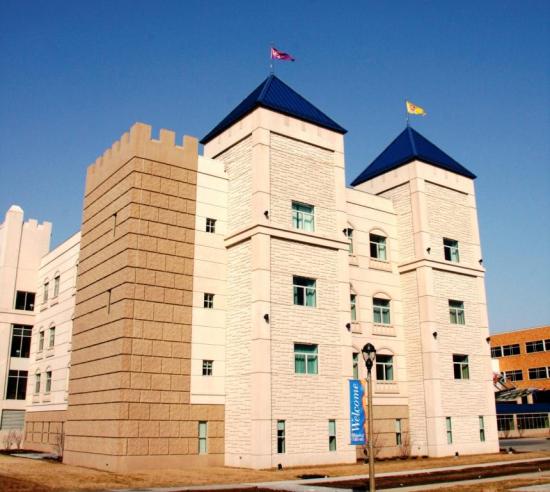

16986 Georgetown Ashlar & 17929 Medium Chisled Limestone Blocks- Sanford Children's Hospital, Sioux Falls, SD: Gage Brothers

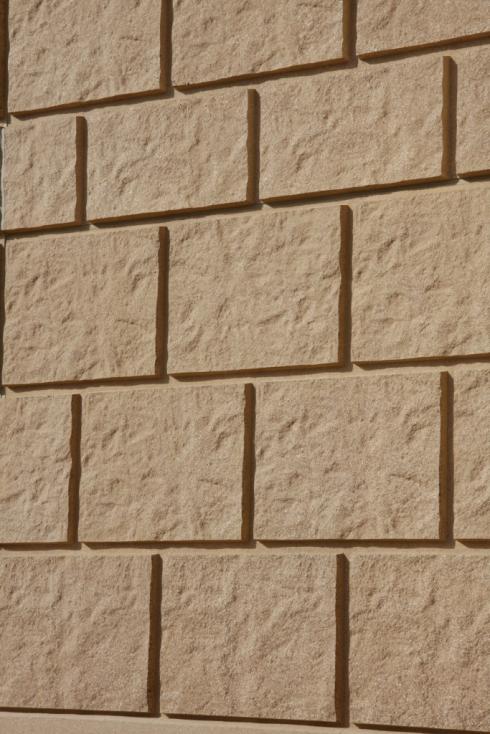

17929 Medium Chisled Limestone Blocks - Sanford Children's Hospital, Sioux Falls, SD: Gage Brothers
17929 Medium Chisled Limestone Blocks - Sanford Children's Hospital, Sioux Falls, SD: Gage Brothers




17931 Carolina River Rock - Random Cobble stone, 2" deep.

GrayLastic
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 2.000"
Stone Size: 4.5" - 9" W
Notes:
See pattern 16985, 1.5" deep and pattern 17916, 2.25" deep. Match points on all four sides.

Part Size:
48" W x 48" H with keys

Click here for cut-sheet

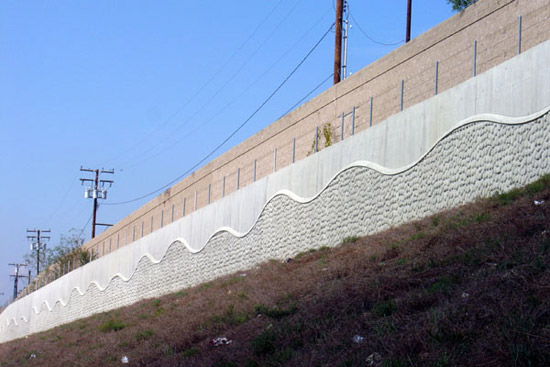

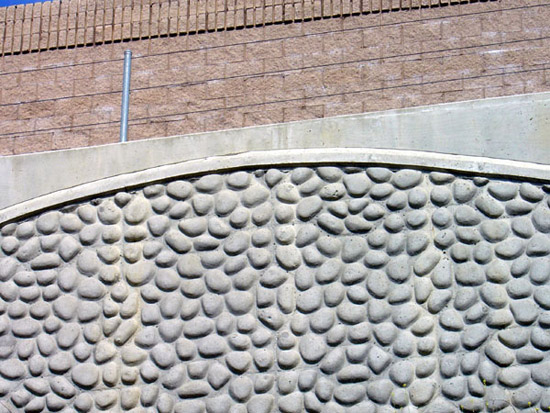

17931 Carolina River Rock - Atkinson Construction
17931 Carolina River Rock - Atkinson Construction
17931 Carolina River Rock - Atkinson Construction




17933 Sierra Drystack (deep) - Drystack stone, 2.125" deep.

GrayLastic
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 2.125"
Stone Size: 6" - 17" W x 3" - 9" H
Notes:
Pattern can be dammed at 8', 16', 24' and maintain match points on all four sides. See Pattern 17033 for a shallow version of this pattern.

Part Size:
288" W x 48" H

Click here for cut-sheet

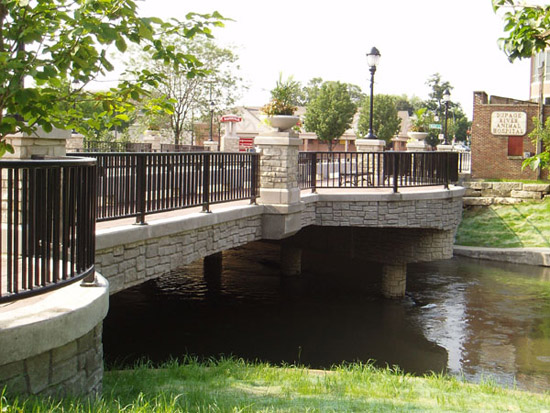

17933 Sierra Drystack - Main Street, Naperville, IL: Lakes and Rivers Contracting

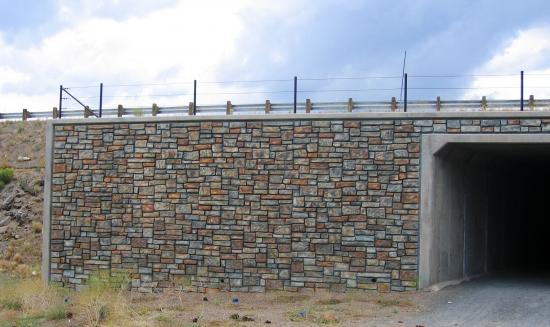

17933 Sierra Drystack (Deep) - Overpass Wall, Truckee, California
17933 Sierra Drystack (Deep) Close Up - Overpass Wall, Truckee, California

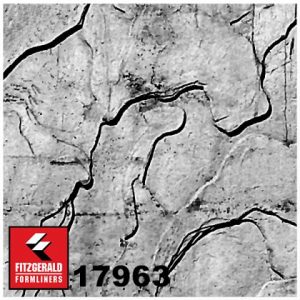

17963 1" Deep Split Slate - Random Pattern

GrayLastic
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1.000"

Part Size:
144" W x 96" H

Click here for cut-sheet

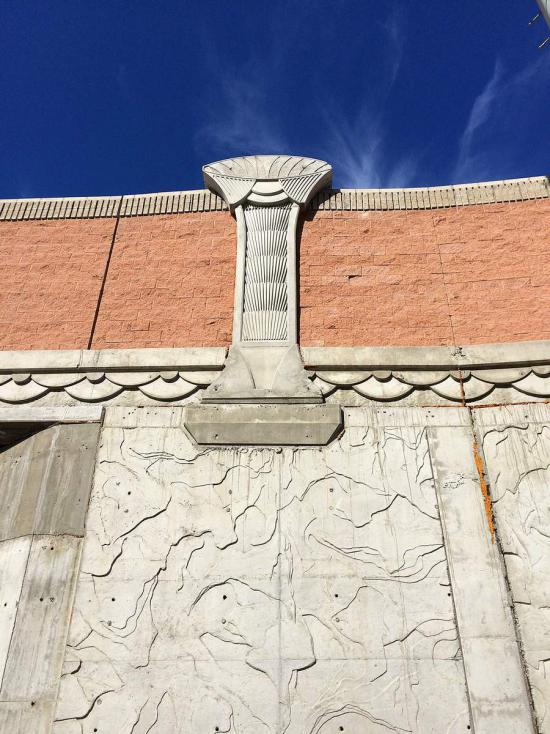

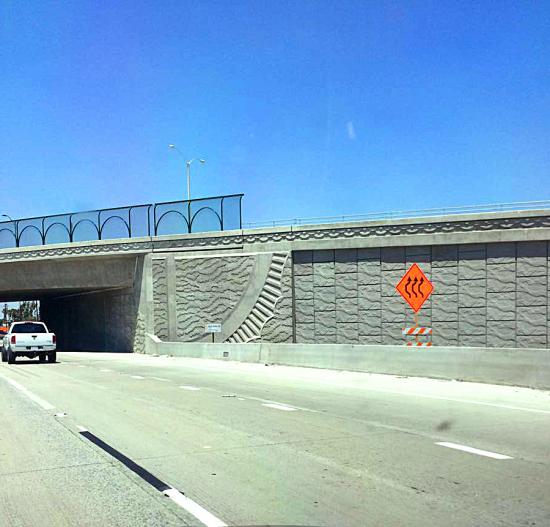

17963 1" Deep Split Slate I-5 Corridor in Norwalk, CA
17963 1" Deep Split Slate I-5 Corridor in Norwalk, CA




17974 Smooth Block - 32" Wide x 15" High Smooth Running Bond Block

GrayLastic
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 0.750"
Stone Size: 32" W x 15" H

Part Size:
128" W x 90" H

Click here for cut-sheet





17979 Oversized Ashlar Block - 2.5" deep

GrayLastic
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 2.50"
Stone Size: 77.25 W x 71.25" H
Grout Width:
No grout around perimeter

Part Size:
77.25" W x 71.25" H

Part A, B and C

Click here for cut-sheet





17980 Ground Fractured Granite

GrayLastic
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 0.500"

Part Size:
48" W x 120" H

Click here for cut-sheet

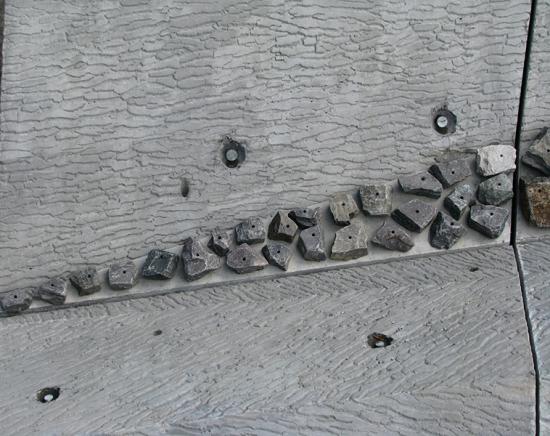

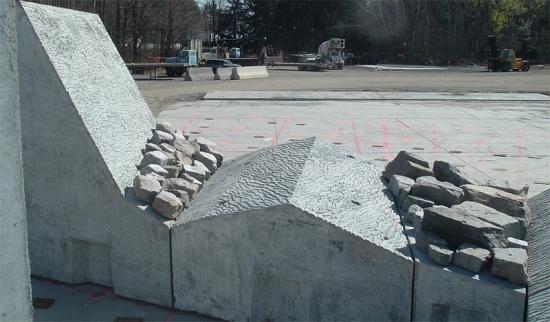

Pier 35 Oyster Habitat, East River Manhattan

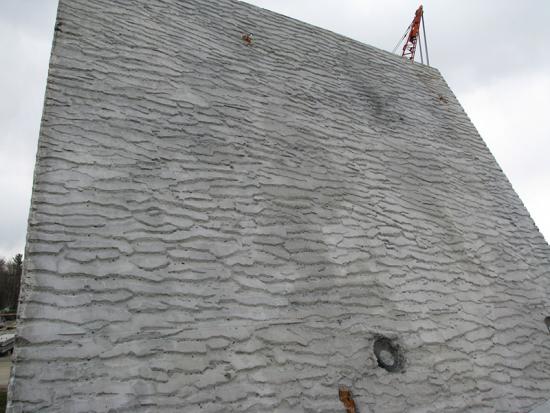

Pier 35 Oyster Habitat, East River Manhattan
Pier 35 Oyster Habitat, East River Manhattan

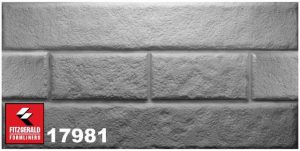

17981 Aged Iowa Sandstone block - Sandstone blocks

GrayLastic
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1.500"
Stone Size: 32"-96" W x 16" H
Grout Width: 1.0"

Part Size:
96" W x 48" H

Click here for cut-sheet

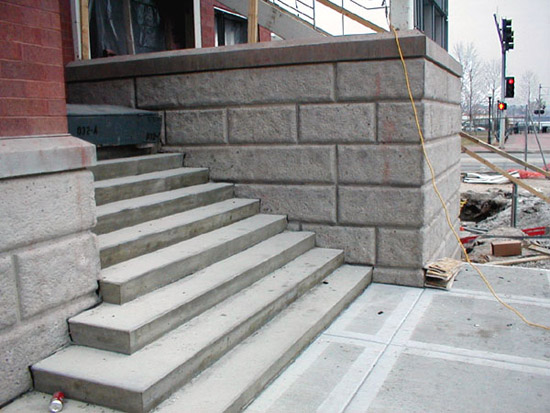

17981 Aged Iowa Sandstone Block
