GrayLastic™ Extended-Use Elastomeric Formliners



Design by Pattern...


GrayLastic Patterns: Sandblast (9 Results Found)

Click to go to pattern - 16981 | 16990 | 16991 | 16992 | 16996 | 17057 | 17990 | 17992 | 17998

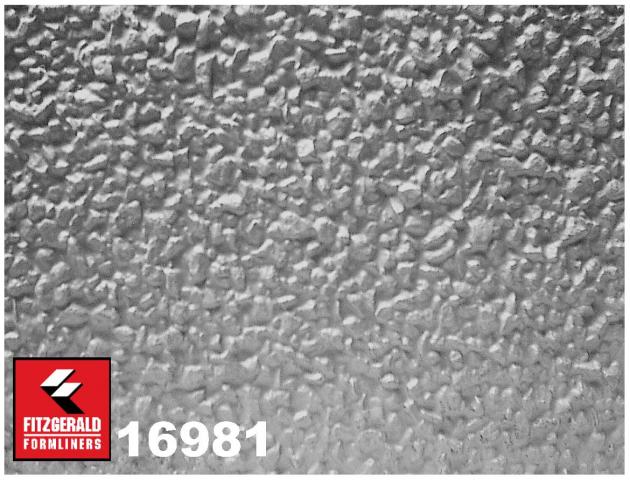

16981 Exposed Aggregate - 0.375 Max depth, small, irregular pebble finish.

GrayLastic
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 0.375"
Notes: For a similar pattern in plastic, see pattern 16992.

Part Size:
48" Wide x 120" Long

Click here for cut-sheet

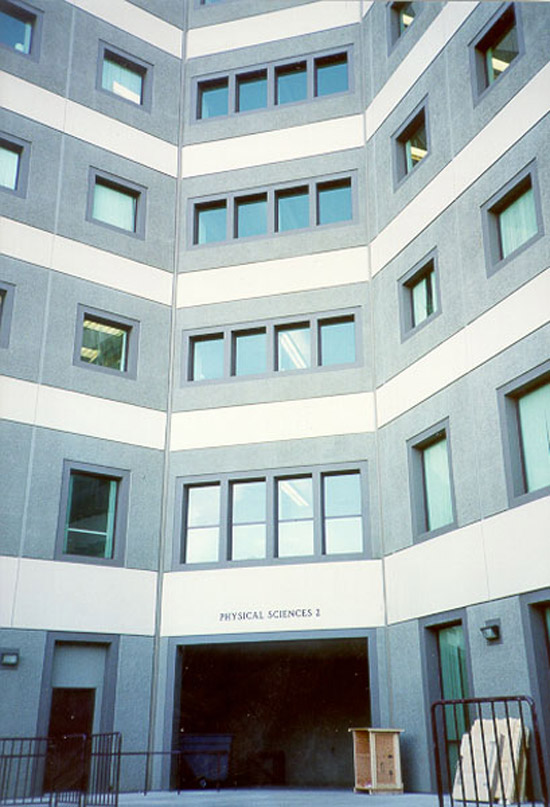

16981 Exposed Aggregate - Physical Sciences Bldg

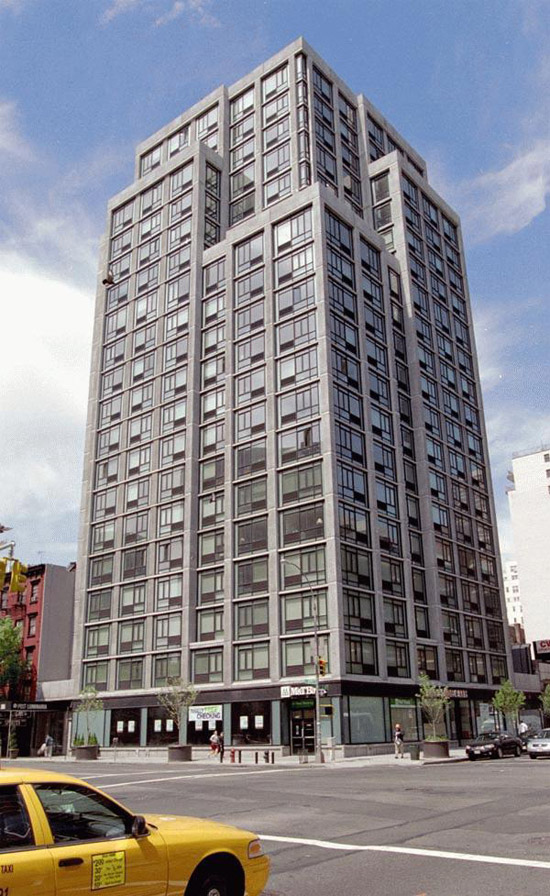

16981 Exposed Aggregate - Post Luminaria Residential/Retail Complex, New York, NY / *galleryAward Of Merit - 2002 NY Concrete Industry Board Pinnacle Industries II, LLC*
16981 Exposed Aggregate - Post Luminaria Residential/Retail Complex, New York, NY / *galleryAward Of Merit - 2002 NY Concrete Industry Board Pinnacle Industries II, LLC*




16990 Light Sandblast - 0.0625" maximum depth, no aggregate exposed.

GrayLastic
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 0.0625"

Part Size:
48" Wide x 220" Long

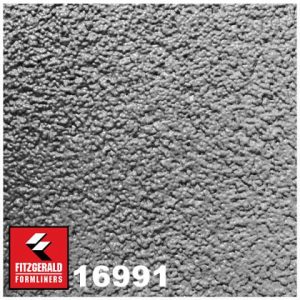

16991 Medium Sandblast - 0.125" maximum depth, top of aggregate exposed.

GrayLastic
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 0.125"

Part Size:
48" Wide x 120" Long

Click here for cut-sheet

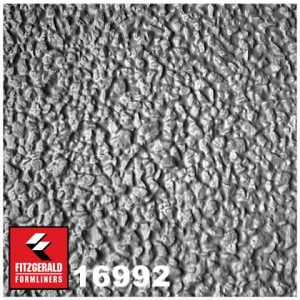

16992 Heavy Sandblast - 0.375" maximum depth, some aggregate fully exposed.

GrayLastic
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 0.375"

Part Size:
48" W x 120" H

Click here for cut-sheet

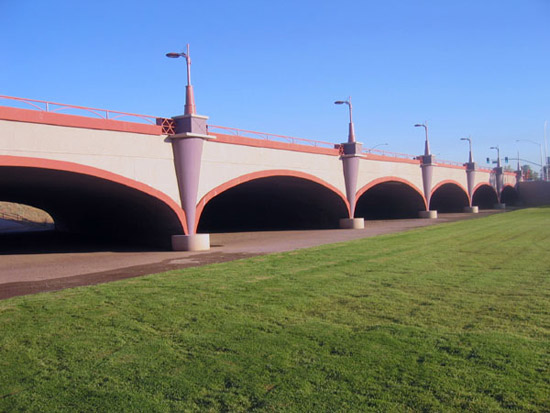

16992 Heavy Sandblast - Scottsdale Road: Hunter Contracting
16992 Heavy Sandblast - Scottsdale Road: Hunter Contracting

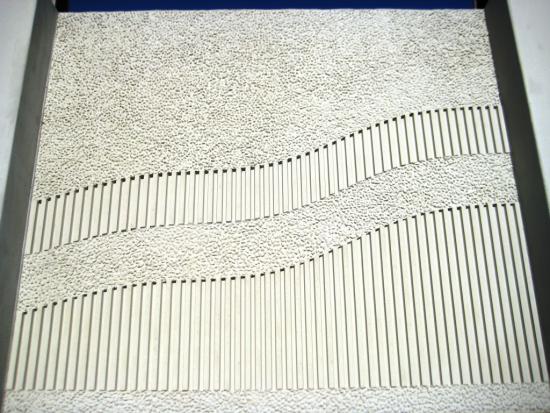

16992 Heavy Sandblast & Custom 3/4" Fluted Rib Combination - San Francisco BART (Bay Area Rapid Transit): Clark Pacific

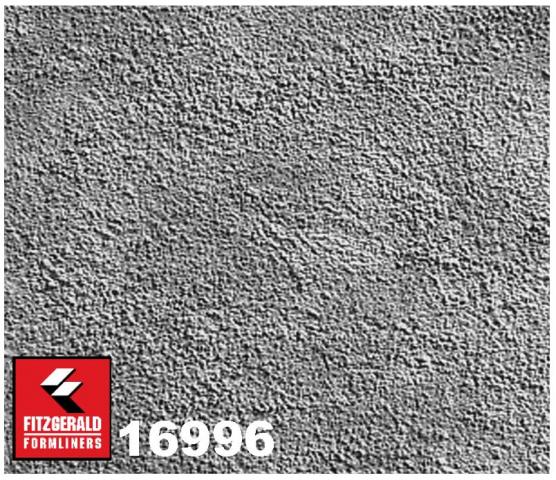

16996 EIFS Texture (Simulated) - 0.0625" maximum depth

GrayLastic
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 0.0625"

Part Size:
72" Wide x 192" Long

Click here for cut-sheet

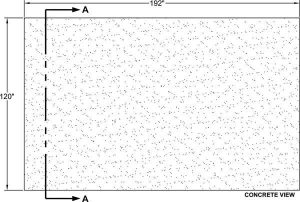

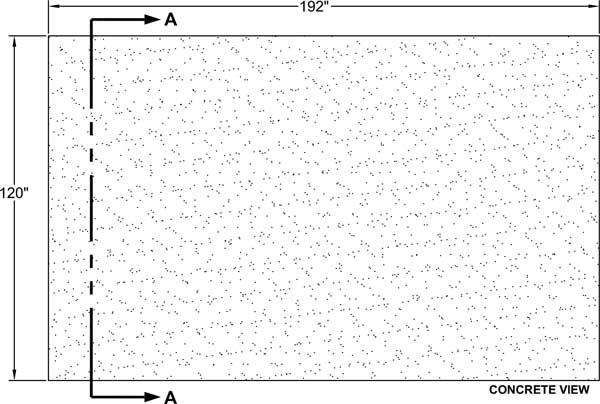

17057 Texas Sandblast - Sandblast Texture

GrayLastic
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 0.250"

Part Size:
192"W x 120"H

Click here for cut-sheet

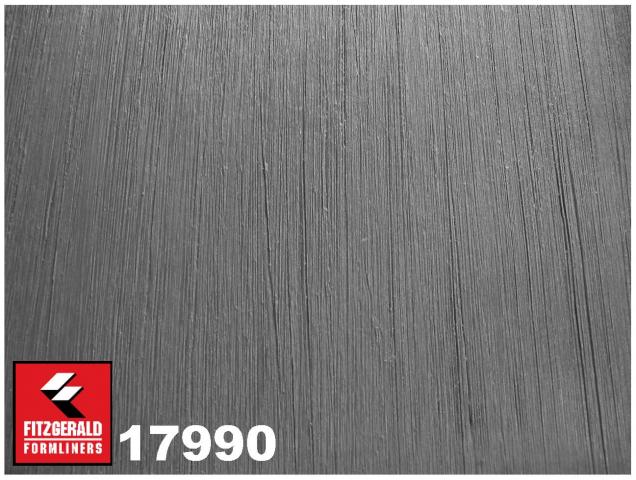

17990 Broom Finish

GrayLastic
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 0.09375"

Part Size:
108" Wide x 67.5" High

Finish in the 67.5" direction

Click here for cut-sheet

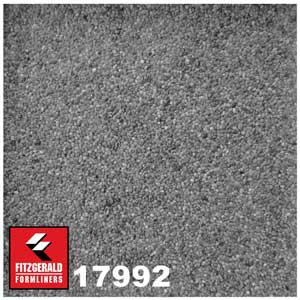

17992 Texas Sandblast - 0.25" maximum depth

GrayLastic
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 0.250"

Part Size:
120" W x 48" H

Click here for cut-sheet

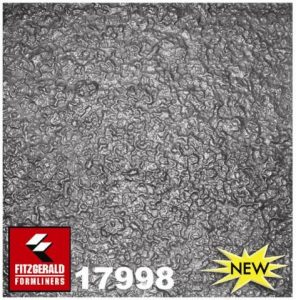

17998 Bushhammer - 1/4" Medium Texture

GrayLastic
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 0.750"

Part Size:
120" W x 168" H

Click here for cut-sheet
