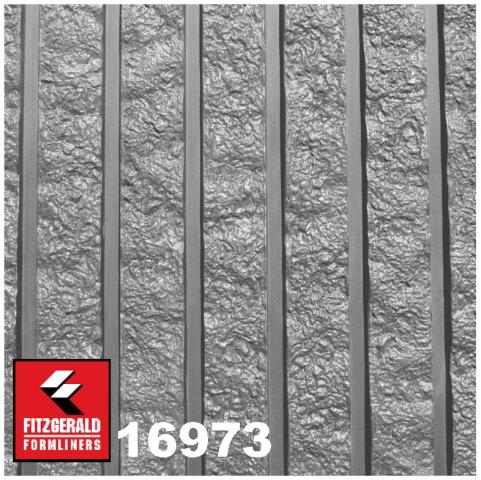

16973 Arizona Splitfaced Block Grooved - 3.187" wide fluted splitfaced block, 1" deep

Vac-U-Form
Styrene - Single use.
ABS Plastic - Up to 15 reuses.

Max Depth: 1.000"
Draft: 0.625"
Notes: 3.187" fluted splitfaced block with 0.75" smooth grooves, see pattern 18045 for modified stacked block version of this pattern.

Part Size:
120" Wide x 48" High

Note panel configuration

Click here for cut-sheet




16973 Arizona Splitfaced Block Grooved - 3.187" wide fluted splitfaced block, 1" deep.

GrayLastic
Elastomeric Urethane - Up to 100 uses.
Mold-bonded to 0.75" plywood. Add 1.125" to liner thickness.

Max Depth: 1.000"
Notes: 3.187" fluted splitfaced block with 0.75" smooth grooves, see pattern 18045 for modified stacked block version of this pattern.

Part Size:
48" Wide x 120" Long

Click here for cut-sheet
